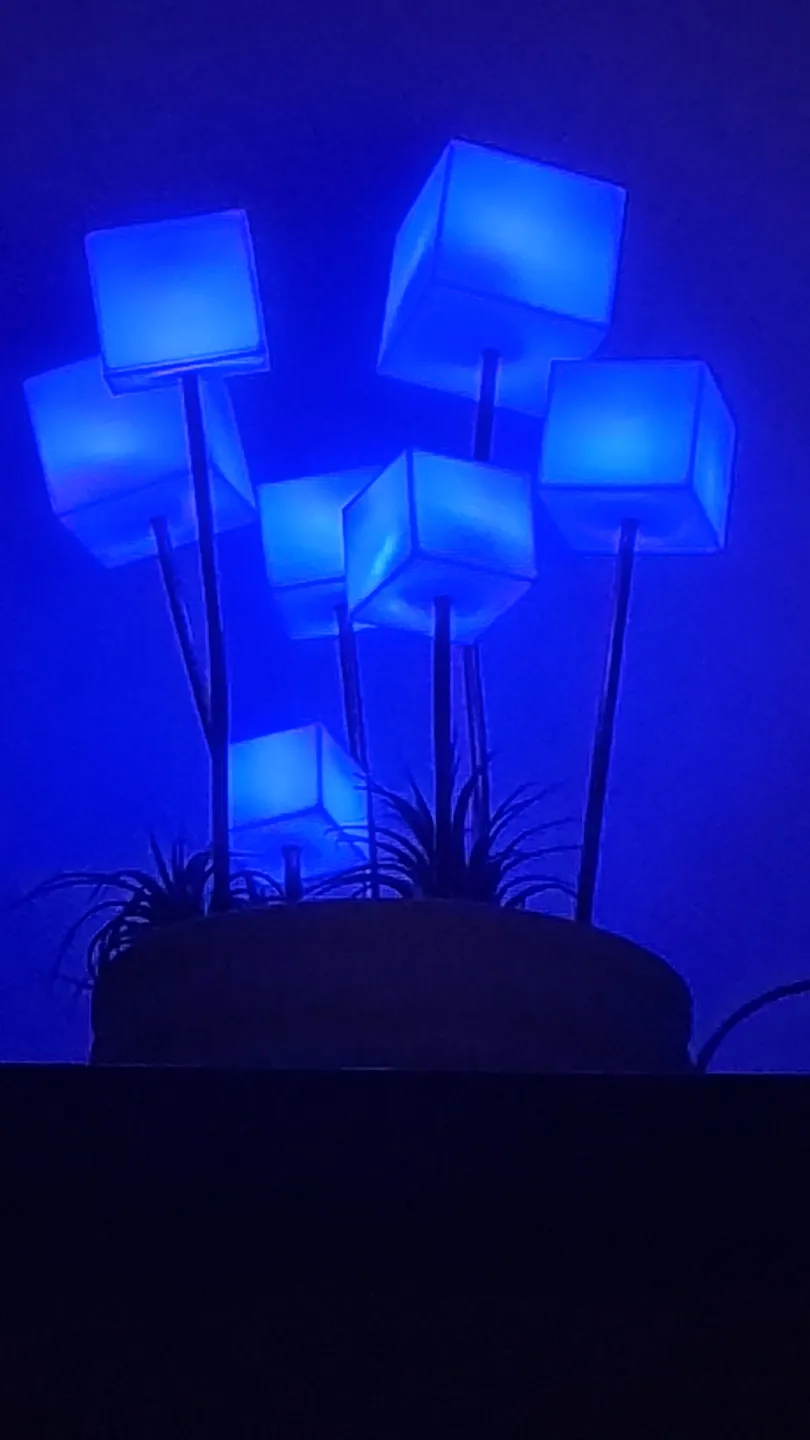

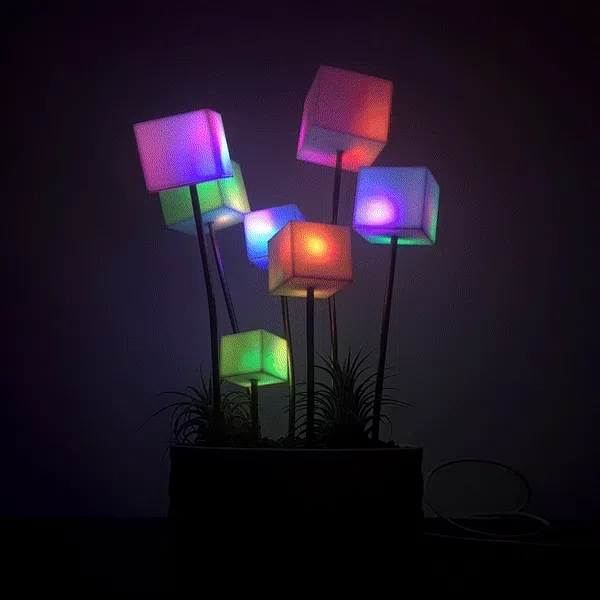

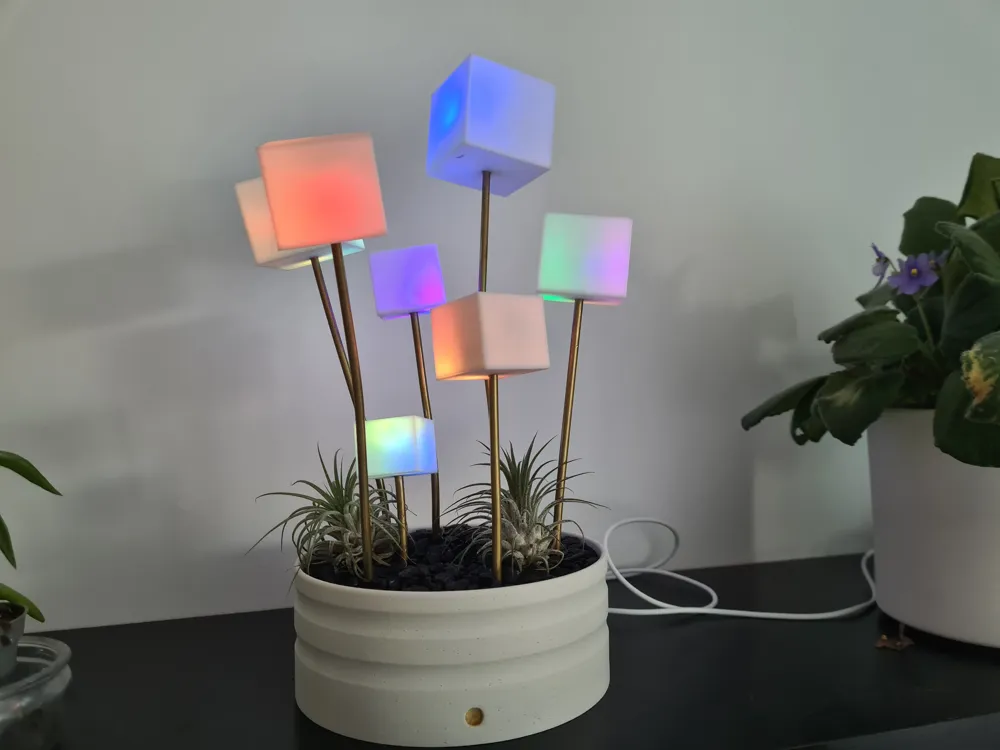

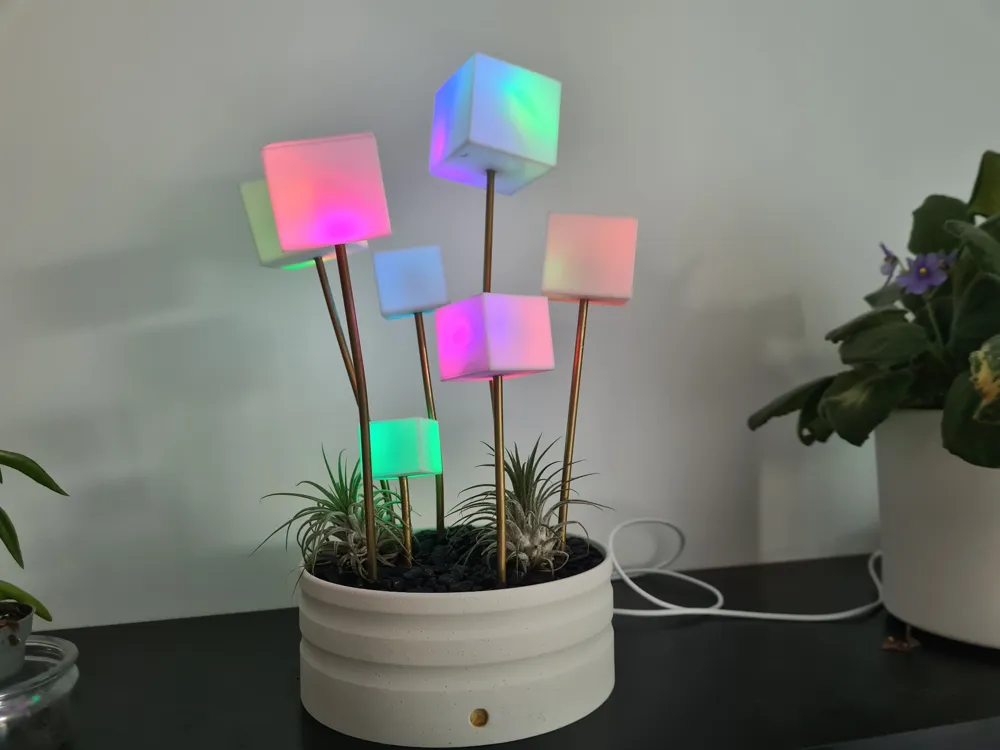

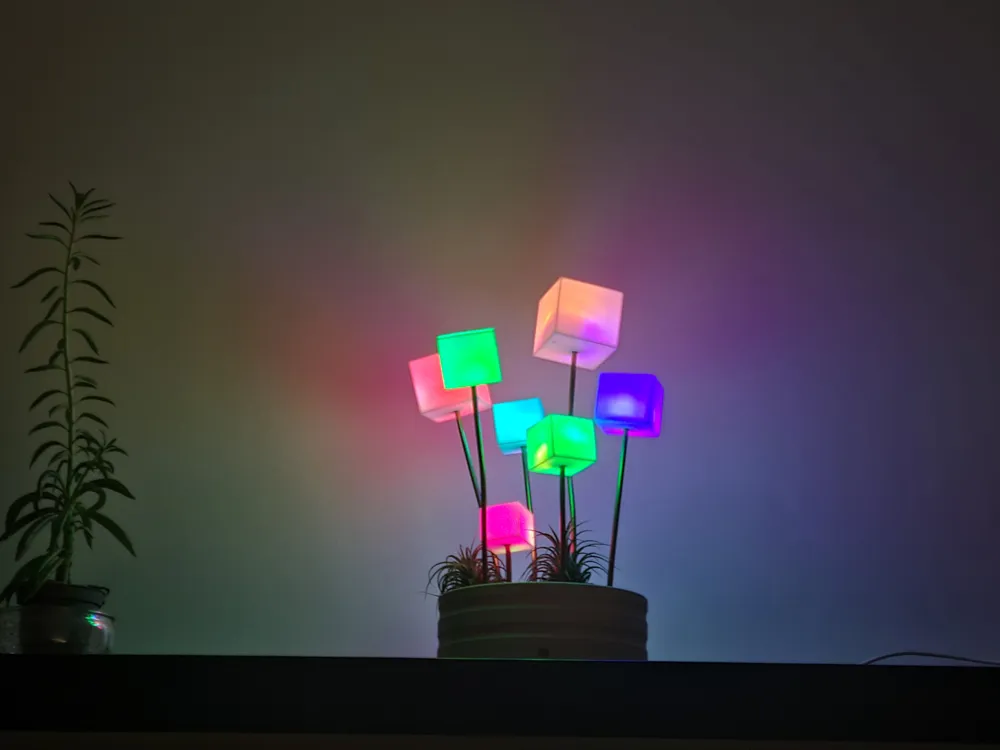

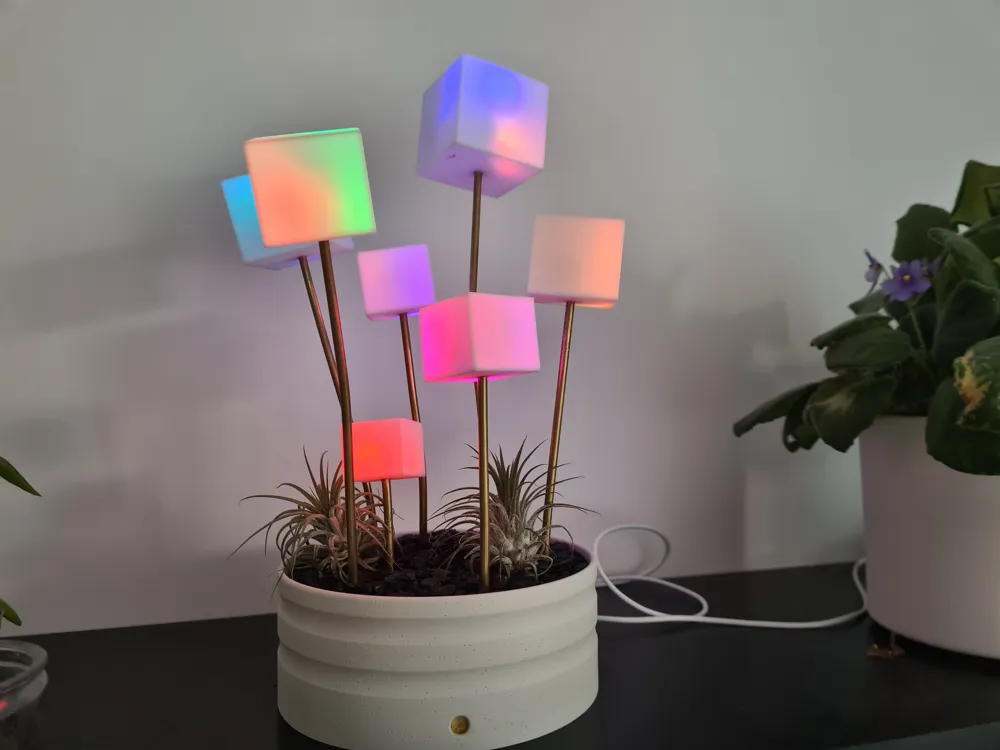

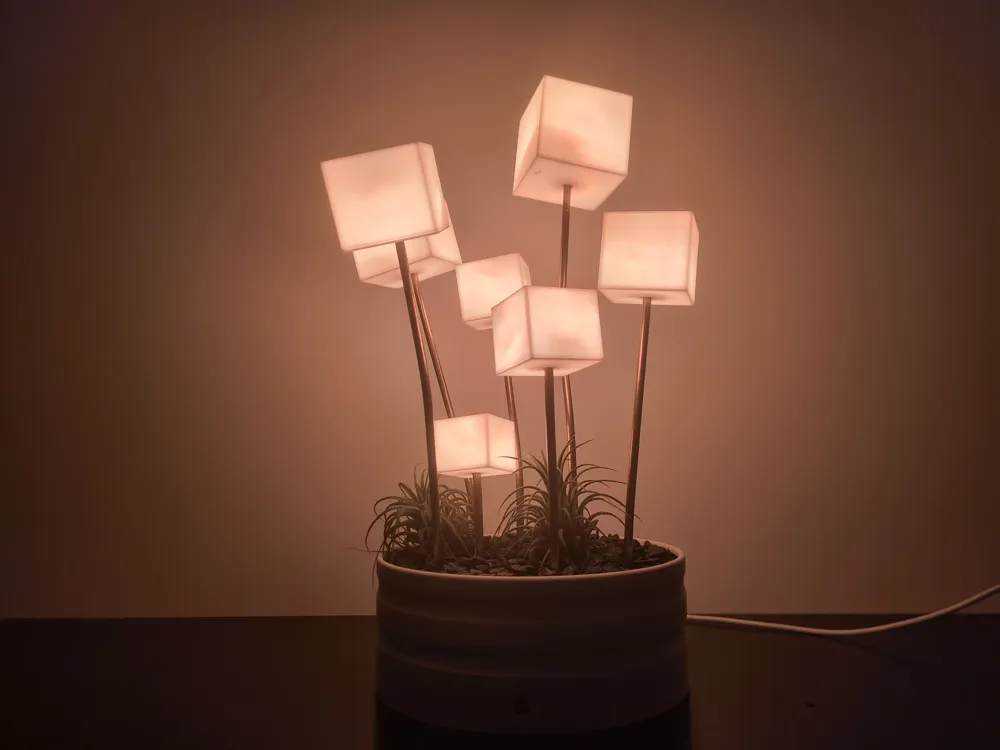

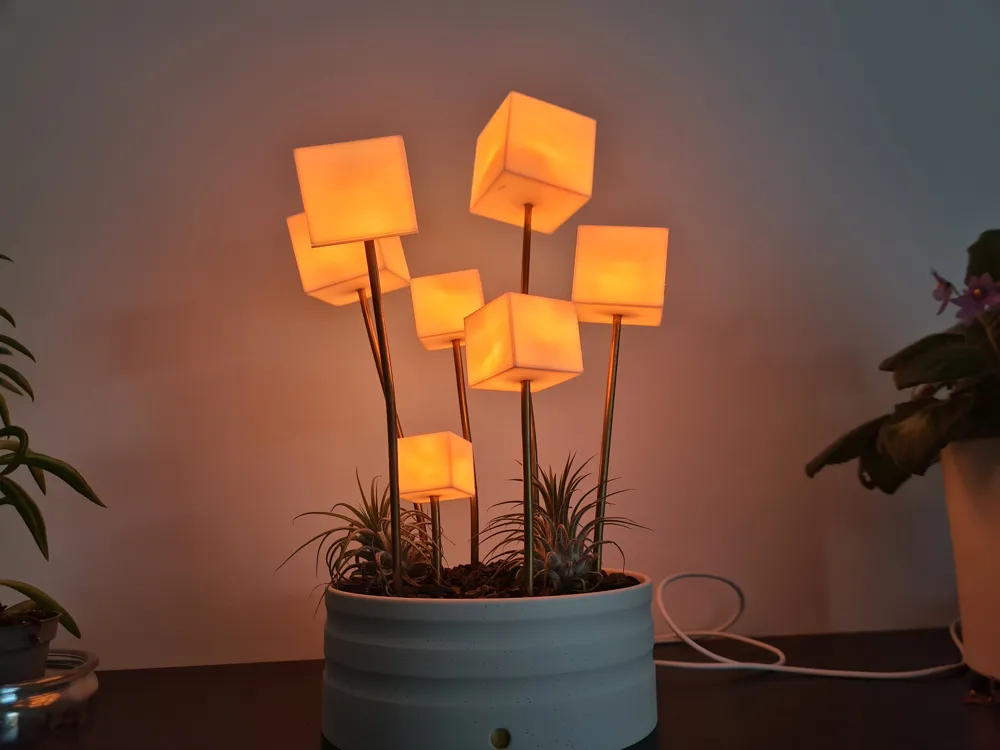

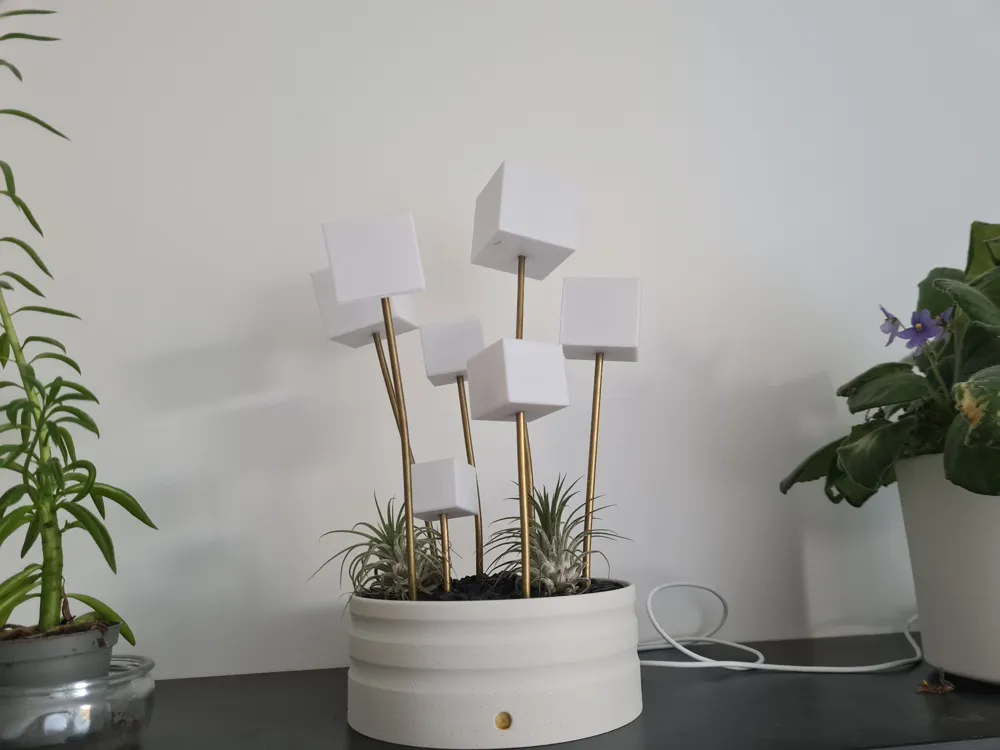

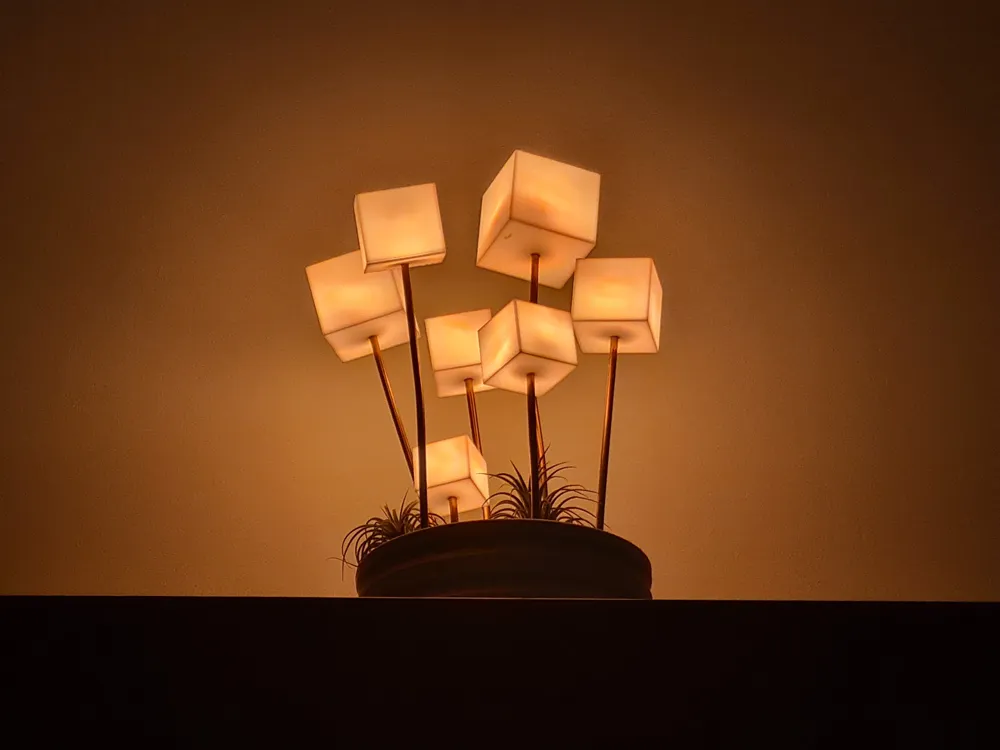

Ambient LED Lamp Magic Cubes RGB (Wi-Fi)
Print Profile(1)
Bill of Materials
- Brass/aluminium 4mm tube x 1: outer diam.4mm
- M3 Brass Threaded Insert + screw x 2:
- M4 Brass Threaded Insert + screw x 1:
- ESP32 mini Livekit x 1:
- Wires x 1: 3 lines per cube
- Super glue x 1:
- Ttp223 / microphone module x 1: not necessary
- USB C socket x 1: with wires or pcb
Description
If you'd like to support my work, you can treat me to a virtual coffee.
Thank you so much in advance!
https://buycoffee.to/bobsoniclab
RGB lamp based on Esp32 Live mini kit and WLED software.
The lamp uses wsb2812 mini LEDs on a narrow LED strip.
Depending on your preferences, you can connect a microphone or a touch switch.
Easy power supply via USB C 5V. Easy to print and assemble.
The application allows you to set many effects, timers, presets, color, brightness, etc.
It is recommended to use super glue to connect brass/aluminum tubes with printed elements.
Installing WLED on esp32 via google chrome: https://install.wled.me/
WLED project site with all needed info: https://kno.wled.ge/
