This profile has the internal connector peg hole scaled down to 92% for compatibility with A1/A1 mini while keeping the outer size at 100% to make it look nice and full. I&#39;ve added 3 plates: a no-AMS version with a pause at the relevant layer, an AMS version with a color change at the relevant layer, and a 2-color version.Settings:0.4mm nozzle, 0.08mm layer, 2 walls, 15% infill, ironing on all top layers

Fixed peg scale: 0.08mm layer, 2 walls, 15% infill, w/o AMS

Print Stop Color Change version

Two Color version (92.5%size)

Single Color version

Ryanooo



<h3>WARNING! 請先確認插銷直徑再列印</h3>新增一個92.5%大小的配置，以配合A1 mini中間插孔的大小(直徑約3.7mm)。如有需要可自行縮放列印單個約20分鐘<ul><li>0.4mm噴嘴</li><li>支援AMS</li><li>調整熨燙設定以避免表面出現空洞</li></ul>

<h3>WARNING! Verify the pin diameter before printing</h3>A 92.5% scaled configuration has been added to accommodate the A1 mini's center pin hole (approximately 3.7mm in diameter).Adjust scaling as neededIndividual print time approximately 20 minutes<ul><li>0.4mm nozzle</li><li>AMS supported</li><li>Adjust ironing settings to prevent surface voids</li></ul>

0.4mm nozzle, 0.08mm layer, 2 walls, 15% infill, with AMS

RevHazlett


Screenshot 2025-04-04 010815.png

Set up for a standard 0.4mm nozzle and 0.2mm heights with a pause for the top four layers to print in a contrasting color (I used White and Glow Blue PLA).&nbsp;There&#39;s a pause for manual load/unloading for the color swap. Since the model is also painted you could simply remove the pause and let your AMS do it for you. This also ensures if you are printing with materials that have different properties (like in my case PLA Glow has an MVS of 18mm³/s and PLA Basic has an MVS of 21mm³/s) they will both print cleanly, even if you do a manual swap without an AMS.&nbsp;More importantly, the provided model geometry did not fit - it spun loosely. The hole in the mesh is 4mm which printed at 3.7mm, too loose to hold on to the 3.5mm pin.&nbsp;I filled it in and added holes at 3.9mm, 3.8mm, and 3.7mm. Printed them all and 3.8mm actually printed at 3.5mm and fits the pin perfectly. I have disabled the other two in the print profile but left them included in case you want to try all three so you only have to print it once to get the perfect fit.&nbsp;Applied general quality settings that yield a cleaner print. Left ironing on since it actually did nicely on this one.

0.4 mm Nozzle with Pause - Three Options for Better Fit

Dantheman26


Smaller line width with ironing on all top surfaces

0.08mm layer, 0.3mm lines, 15% infill

S9Crafts


PETG, 0.4mm nozzle, 0.08mm layer, 2 walls, 15% infill

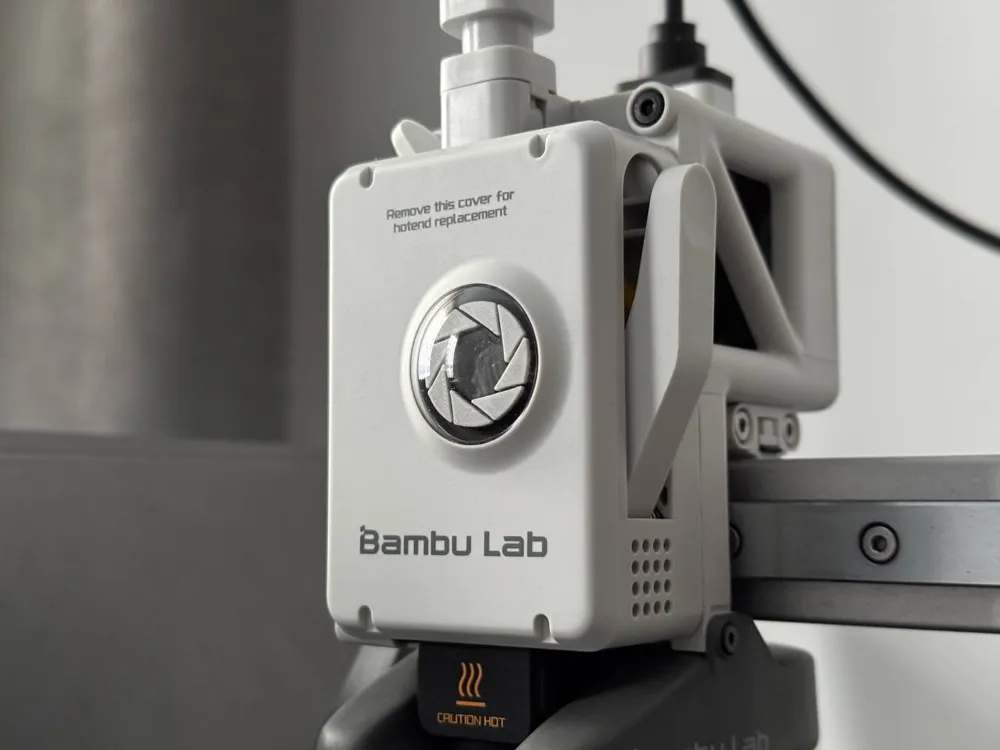

<h2>Aperture Science Extruder Wheel</h2>I had to do it. The moment I unboxed this printer, Portal came to my mind.I wasn&#39;t particularly fond with other implementations present on this platform, so I made my own. I tried to keep the shape faithful to the factory wheel.This was printed using a 0.2mm nozzle. The profile provided (0.08mm high quality) is practically no different from the default one, except it has ironing enabled. The model on the photo was printed with no ironing. Since I have no AMS, this is a dual color print with a pause inserted midway.<boostme><boosttitle>Boost Me</boosttitle><boostcontent>I have now removed my profile from public visibility and urge you to use other top rated profiles for the 0.4mm nozzle as they seem to work better. Huge thanks to everyone for your help and support!</boostcontent></boostme>

Aperture Science Extruder Wheel

HackMan3D


SPARKX i7 aperture extruder wheel

user_352598651

Брелок Aperture Science

Aperture Science Keychain
