"Print-in-place" Tweezer

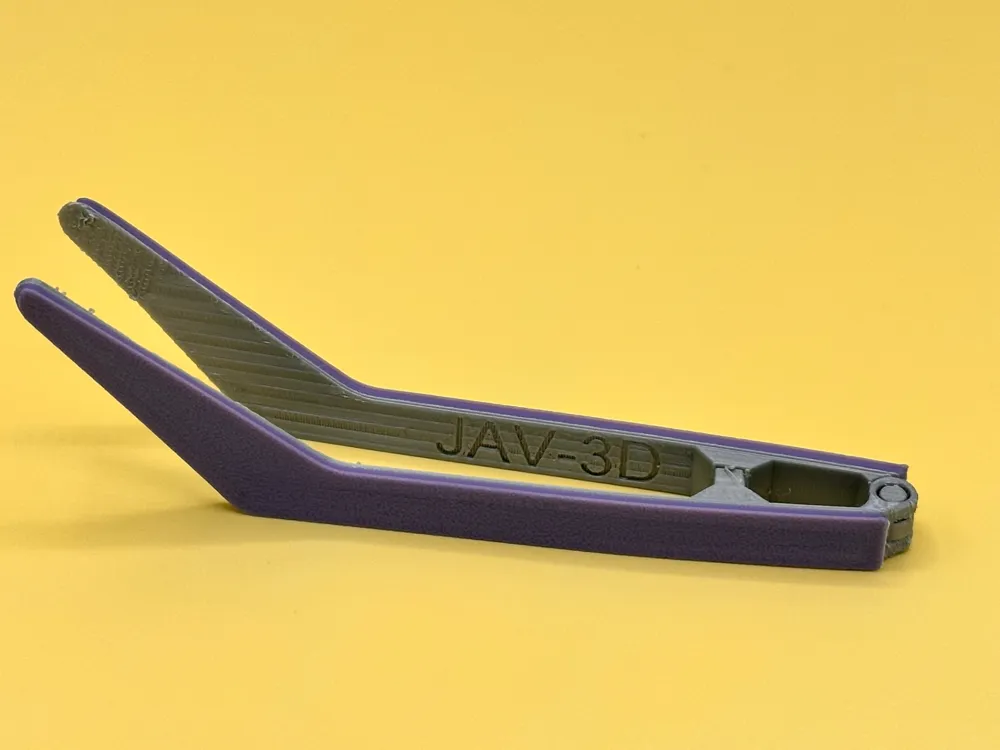

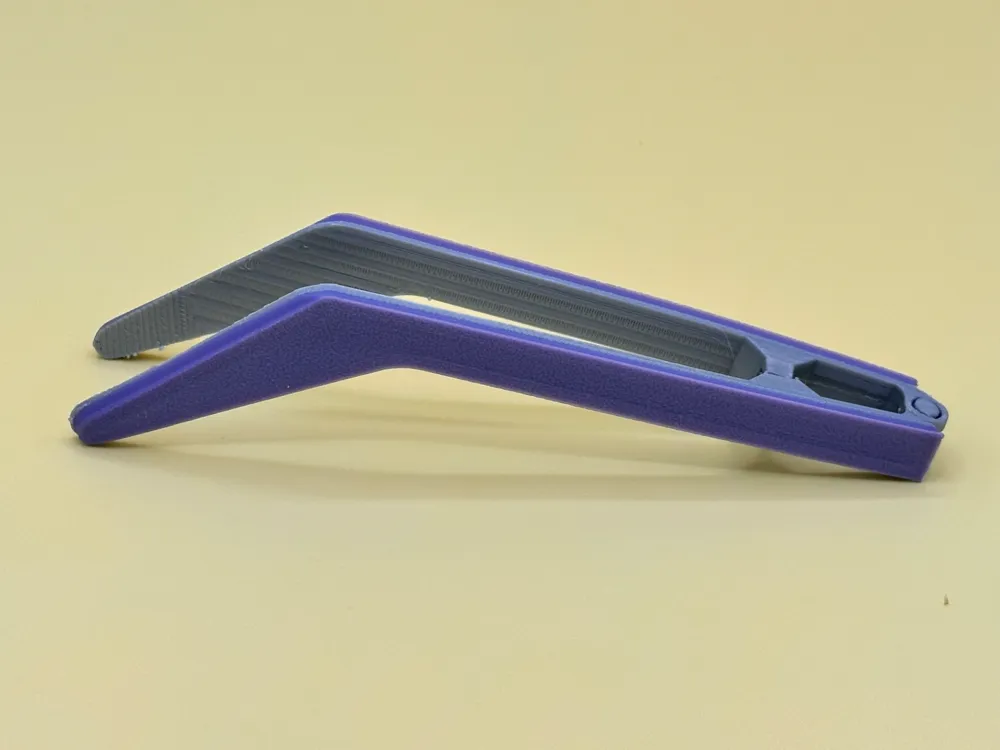

The 3D print of a tweezers with a curved tip is a functional, print-in-place design, ideal for precision work in various fields such as electronics, crafting, or everyday tasks. This model is designed to be printed in one piece, where both halves of the tweezers—upper and lower—are joined by a hinge mechanism that allows for smooth operation.

Design Features:

• Curved Tip for Precision:
  The tweezers have a slightly curved tip, perfect for grabbing small objects with ease and precision. The curved design also provides better visibility and control during use.
• Print-in-Place Hinge Mechanism:
  The tweezers are printed as a single piece with an integrated hinge. This hinge allows the upper and lower halves to move independently, yet remain connected without the need for assembly. The hinge is carefully designed to provide enough tension for the tweezers to open and close smoothly.
• Self-Opening Mechanism:

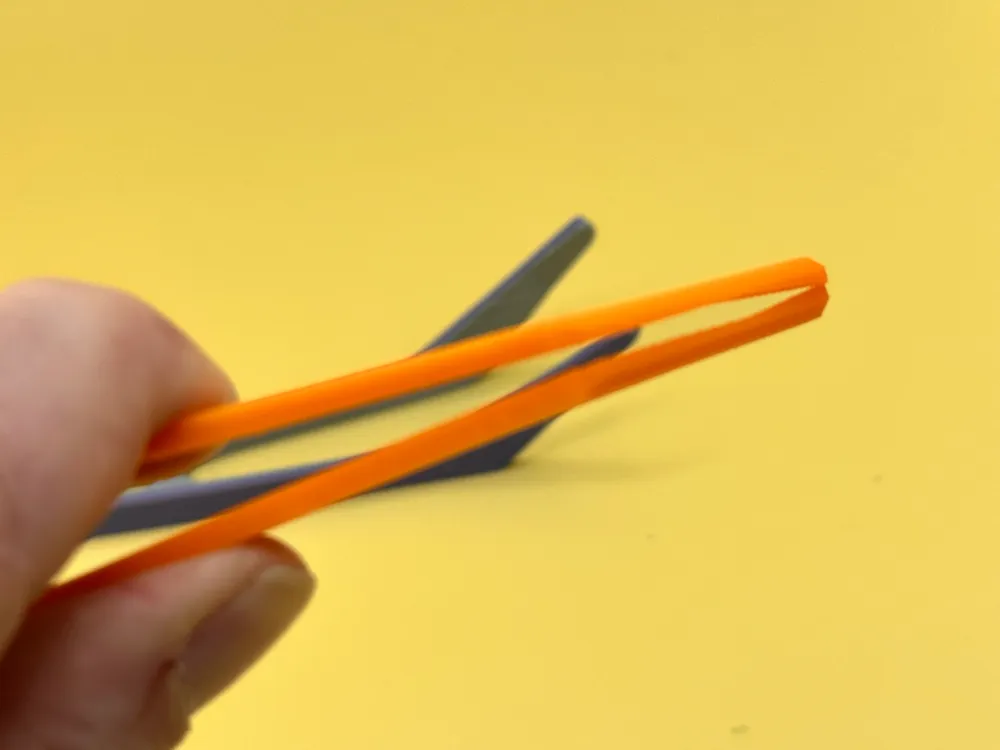

  Thanks to the hinge design, there is no need for an additional spring. The tweezers generate enough tension when squeezed, and they naturally return to their open position when released. This self-opening feature adds to the convenience and ease of use.
• Sturdy and Flexible:

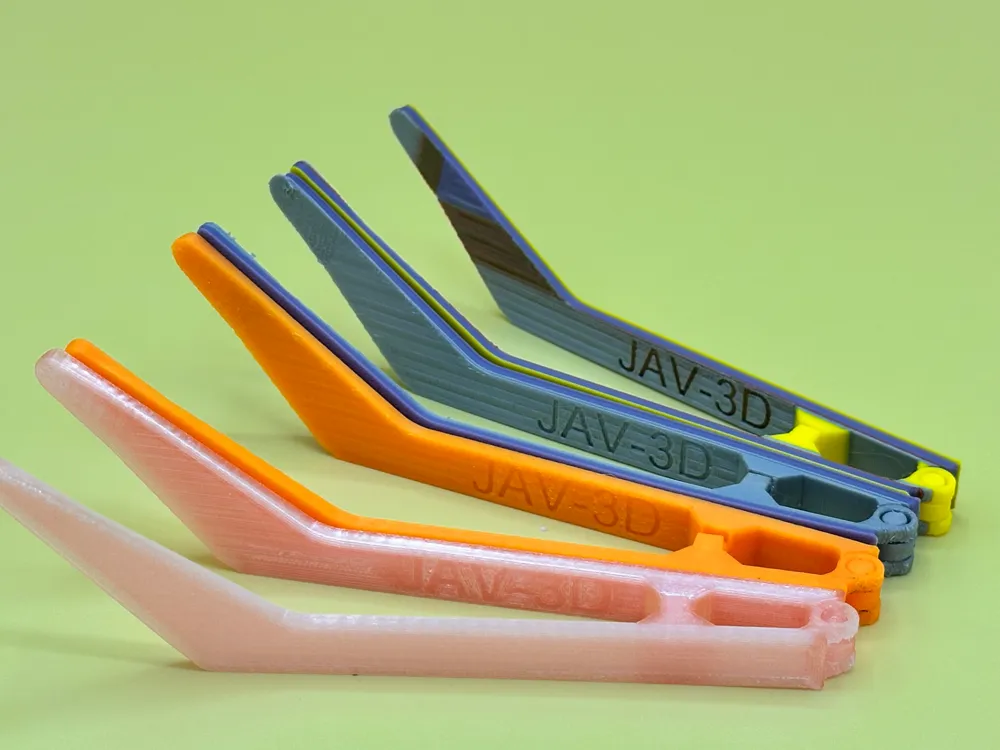

  Depending on the filament used, the tweezers can offer a good balance between flexibility and rigidity. PETG, for example, provides durability while allowing for slight bending without breaking, making it ideal for this kind of functional print.

Print Specifications:

• Material:
  PETG is recommended for durability and flexibility, but PLA can also work if high precision is required without excessive bending. ABS or nylon can also be considered for enhanced durability and heat resistance.
• Nozzle Size:
  0.4 mm is ideal to maintain the precision of the hinge and curved tip.
• Layer Height:
  0.2 mm for a smooth finish and accurate hinge details.
• Infill:
  20-30% infill provides sufficient strength for the tweezers while keeping them lightweight.
• No Supports Required:

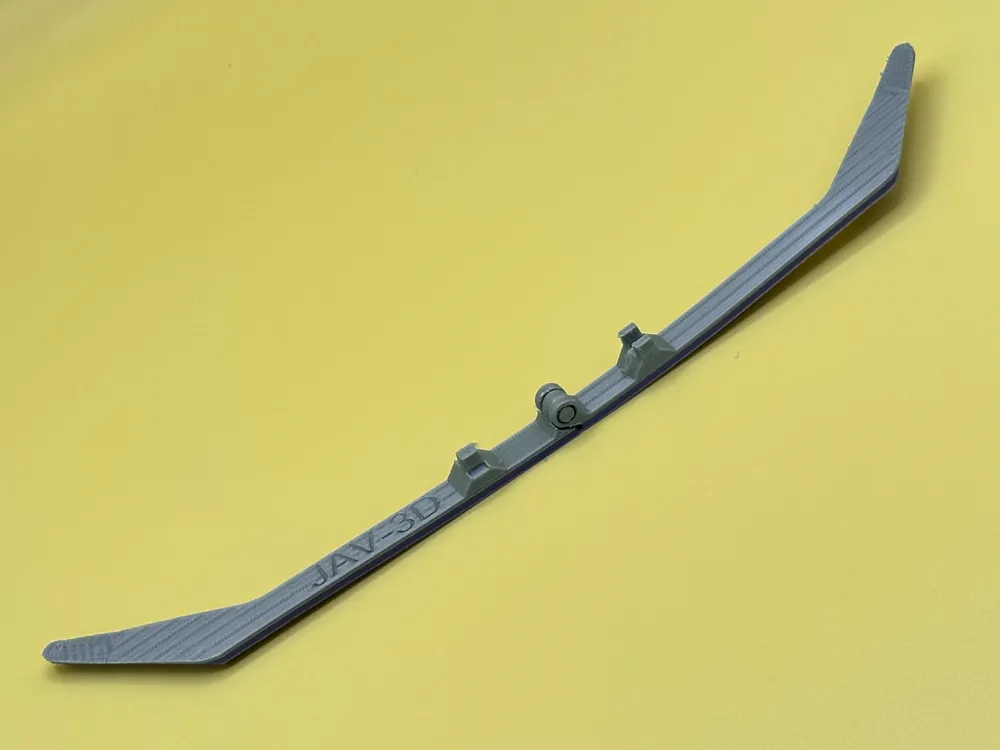

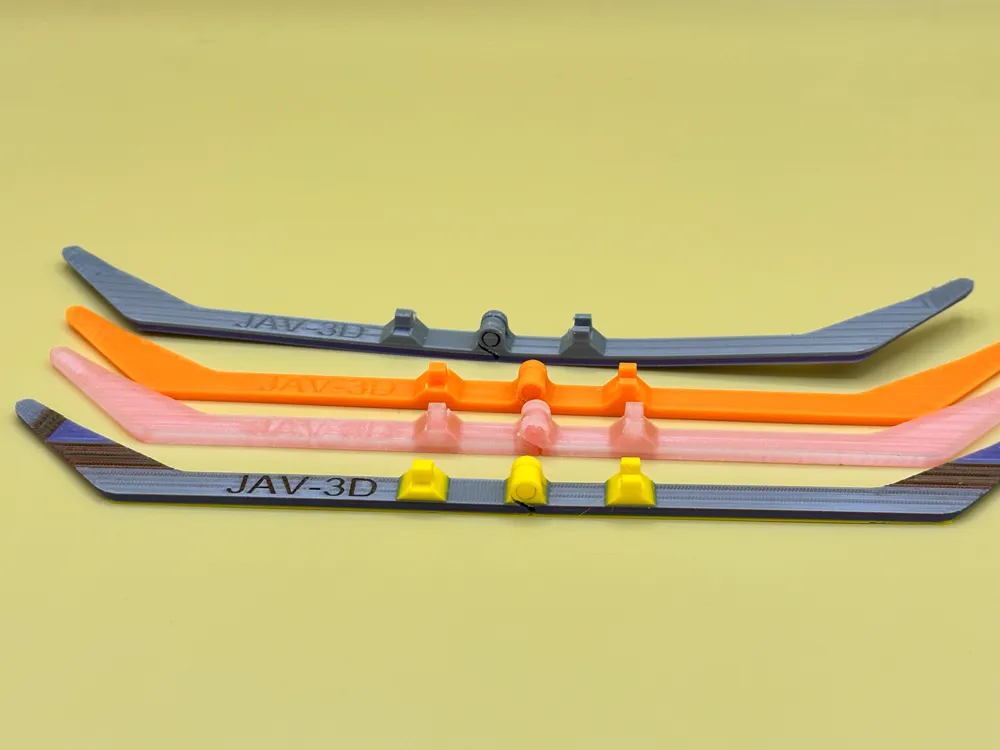

  This model is designed as a print-in-place piece, so no supports are needed.

Printing Instructions:

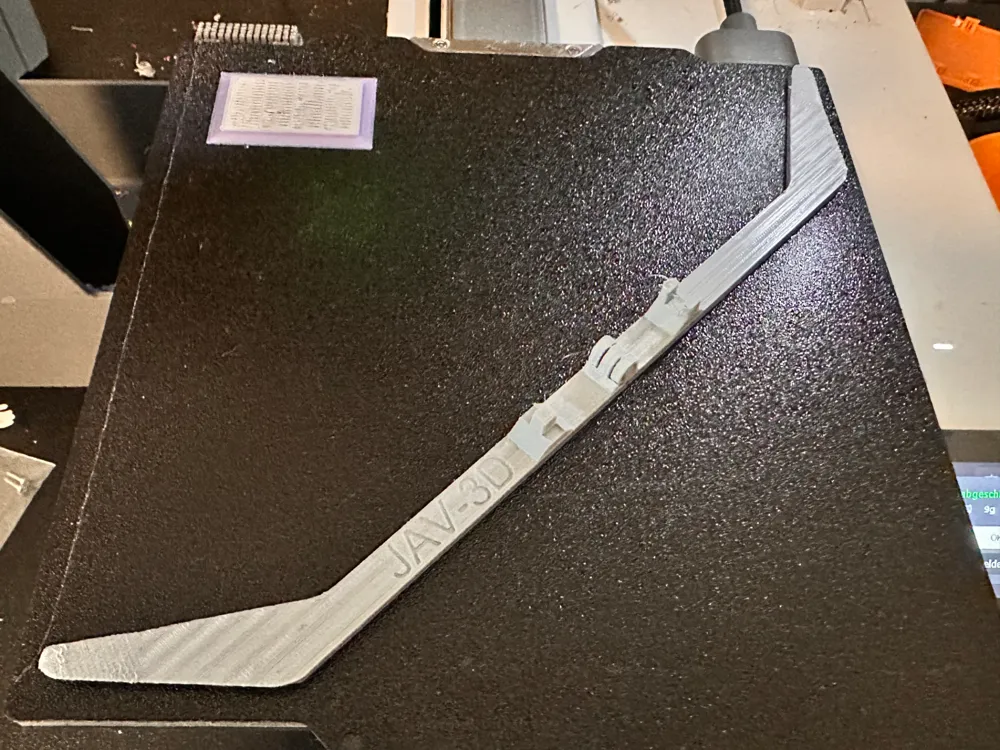

1. Model Preparation:
   Load the tweezers model into the slicer and make sure the hinge area is well-calibrated for clean movement. Ensure that your bed leveling is accurate, as this is crucial for the proper function of the hinge.
2. Printing Process:
   Start the print without supports. It’s important to maintain a slow to moderate speed to avoid any issues with layer adhesion, especially around the hinge.
3. Post-Processing:
   Once printed, the tweezers should be gently worked around the hinge area. Carefully apply minimal pressure to break free any small connections, allowing the tweezers to open and close freely. Be cautious not to apply too much force to avoid damaging the hinge.

Applications:

• Precision Work:

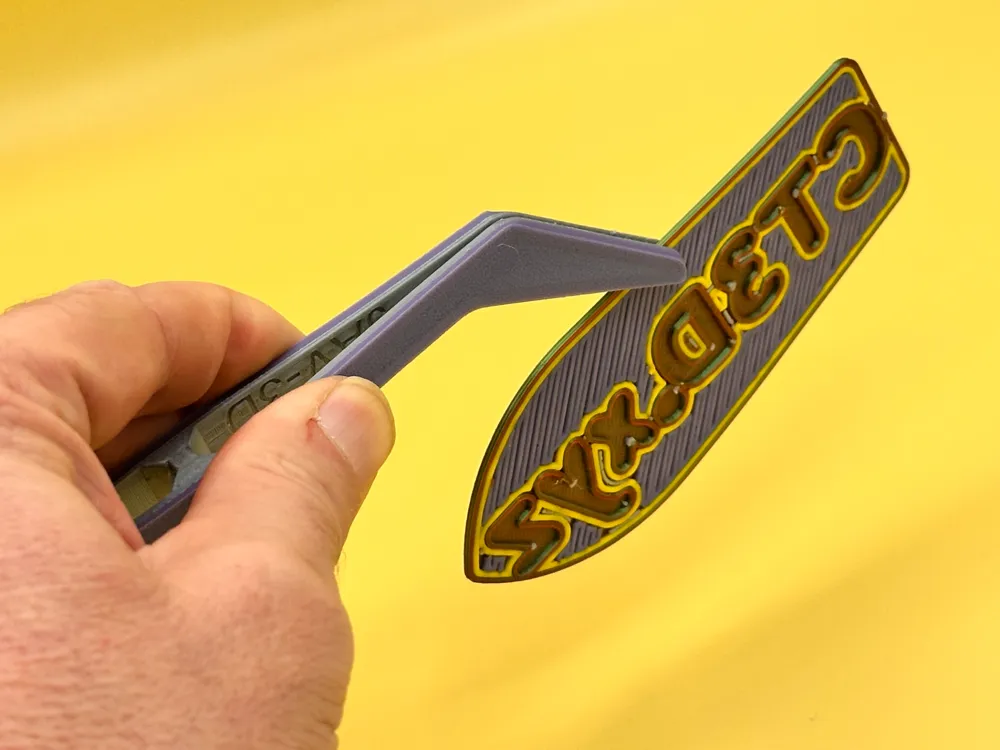

  The tweezers are perfect for tasks that require high precision, such as picking up small objects, placing parts in electronic boards, or delicate crafting.
• Versatile Use:
  Suitable for use in everyday tasks such as plucking, gripping, or even light assembly work where fine control is needed.

Conclusion:

This 3D-printed tweezers with a curved tip and a print-in-place hinge mechanism is a great example of functional design. The ease of use and self-opening feature, combined with the simplicity of the print process, make this a highly practical tool for a wide range of applications.
