I need some boxes to orgnize my LF lens in linhof board. Existed boxes doesn't meet my request, so I designed some new boxes in same series.

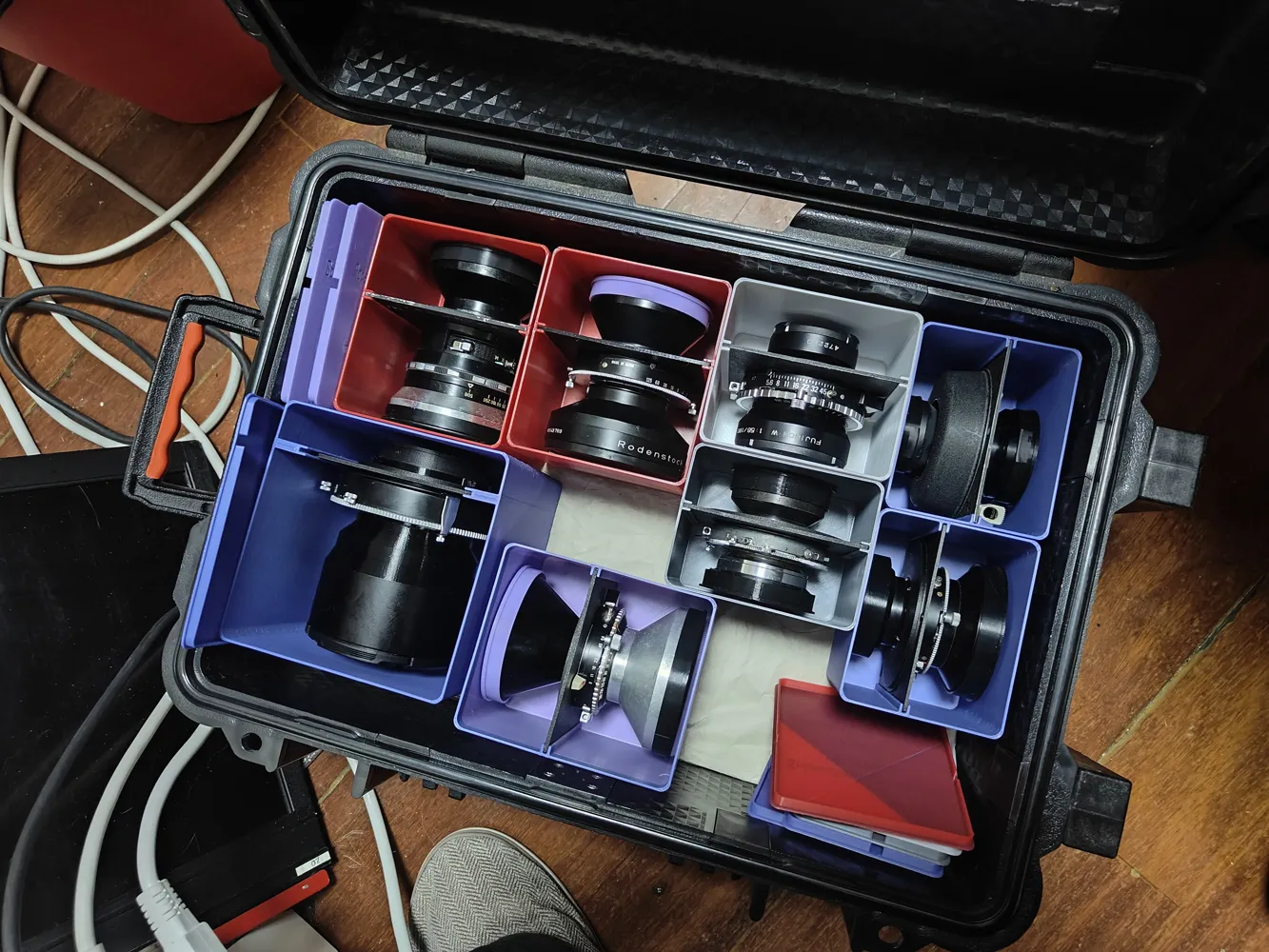

Lens boxes for famous (I owned) large format lens in Linhof board.

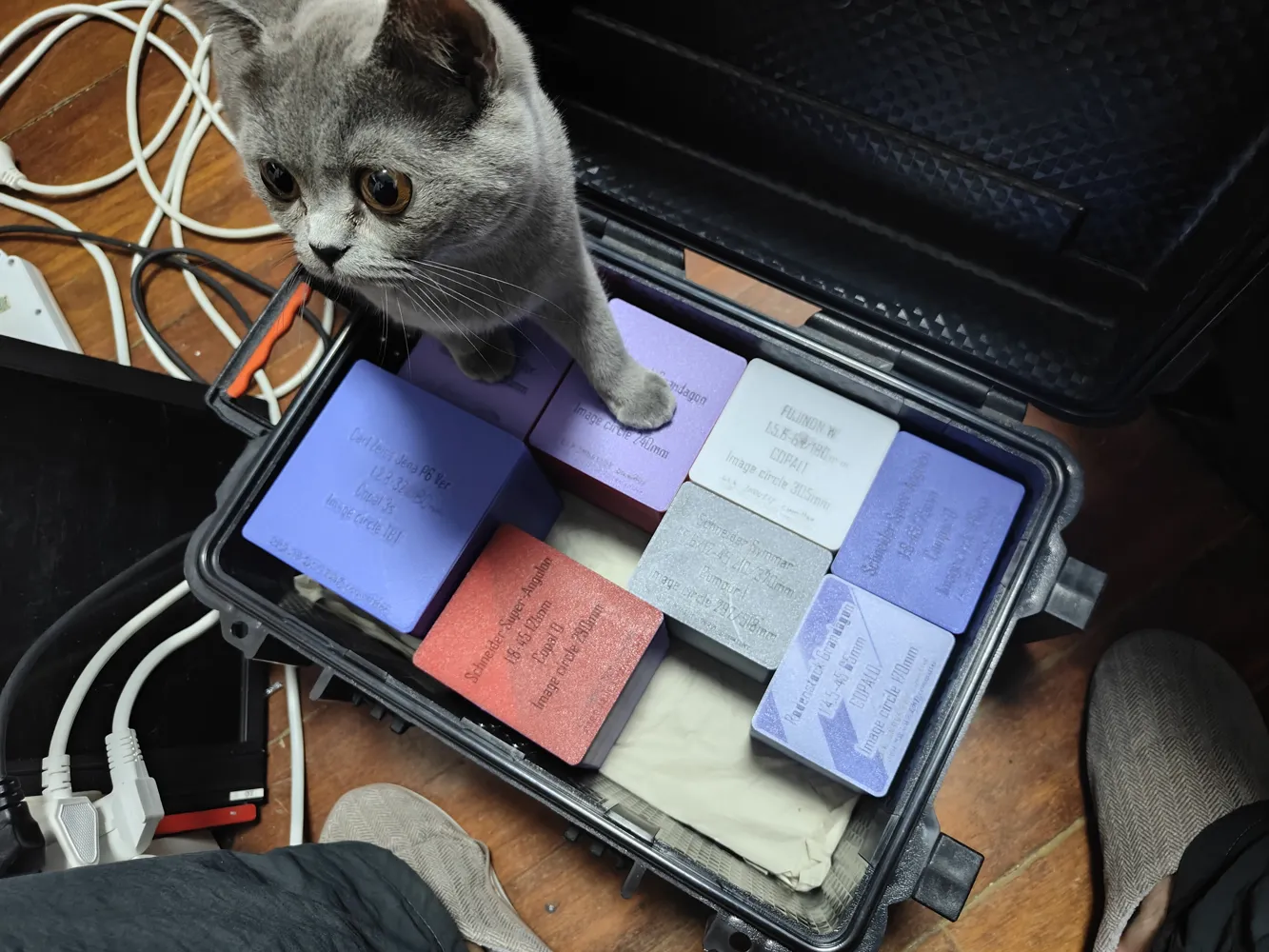

Don't use too soft material. I use PLA. Sakura Micron 005 (0.2mm pen) is used to make letters on lid more clear.(not necessary)

Gap of 0.4mm is reserved between lid and box. Use tape to make some resistant.(not necessary)

No 3/3s shutters have much bigger out round for these wrenches. So I make it large enough that can fit in any direction.

Data of image circle are from https://lf.animaux.de/lenses . I will make stickers for each lens.

NOTICE: For I measure these size in different times. Some may be too tight if using some kind of lens cap or with filter. I will resize every box after I make a jig to measure every lens. Your shutter may different with mine, so lids may not be precies for you.

2023/12/12 UPDATE:

I use a jig remeasure lenses and resize these boxes. Where have a screw I add 6mm reserving for filter and 7mm for lens cap; where no screw add 5mm for simplify/original lens cap.
