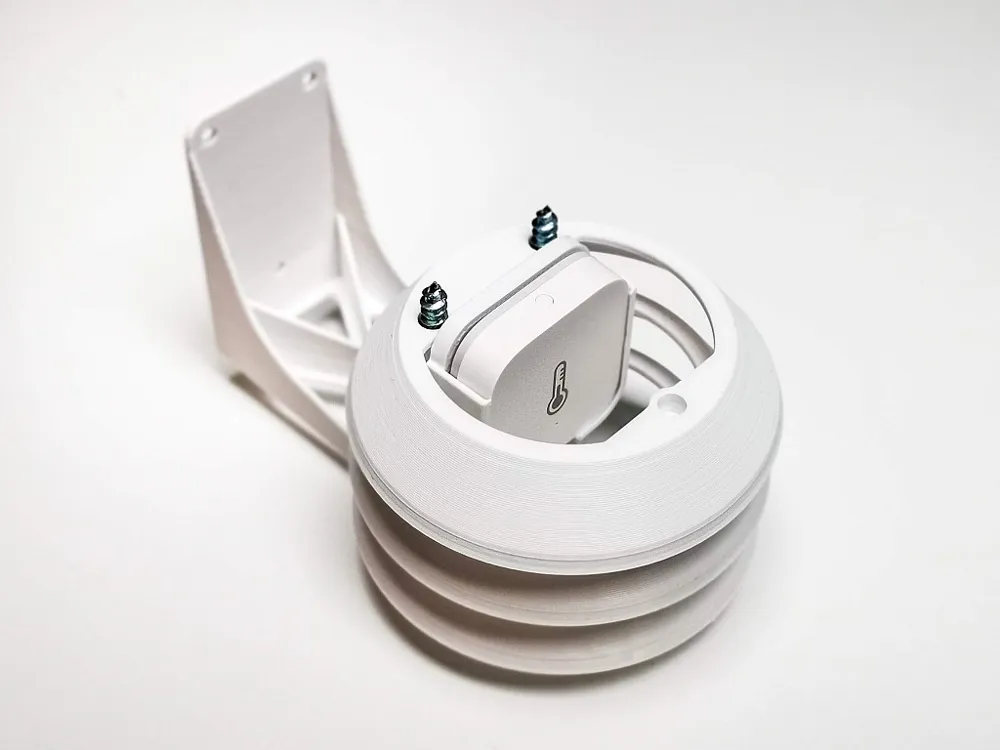

Stevenson screen for Xiaomi Aqara Temperature, Humidity and Pressure zigbee sensor (WSDCGQ11LM).

Works also with Sonoff SNZB-02 and similar.

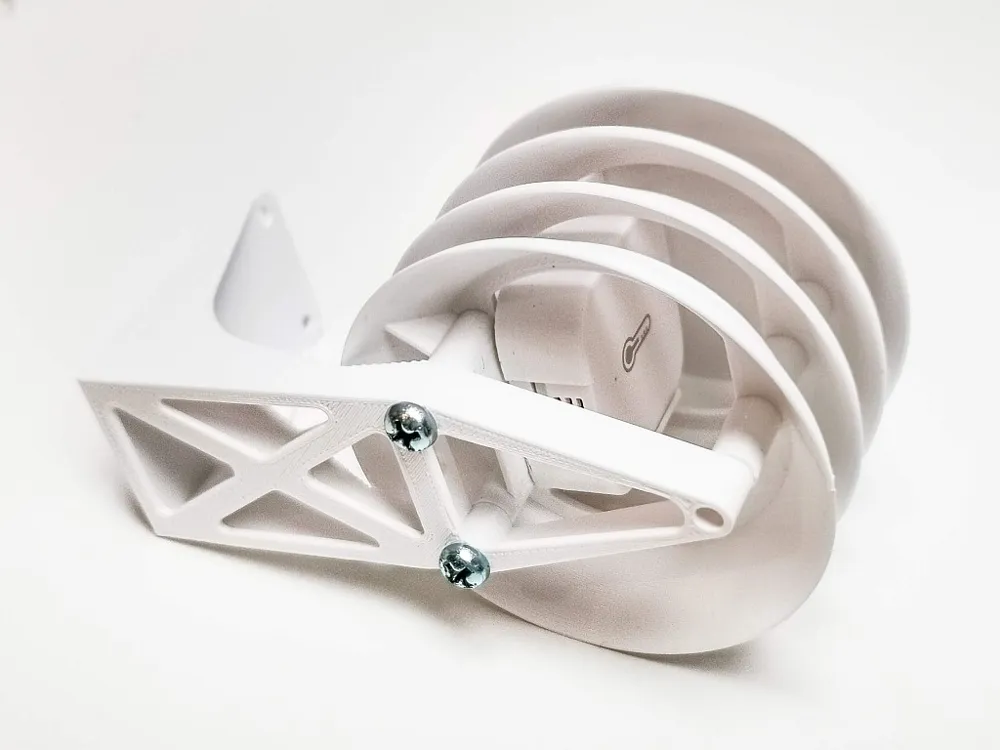

Designed mount and screw holes. Holder and middle part have 2x 5.2mm wholes. Top part has 2x 4.5mm with bigger walls around to increase strenght. Top surface is flat without any holes visible.

Material used:
1x Xiaomi Aqara sensor / 1x Sonoff SNZB-02 sensor

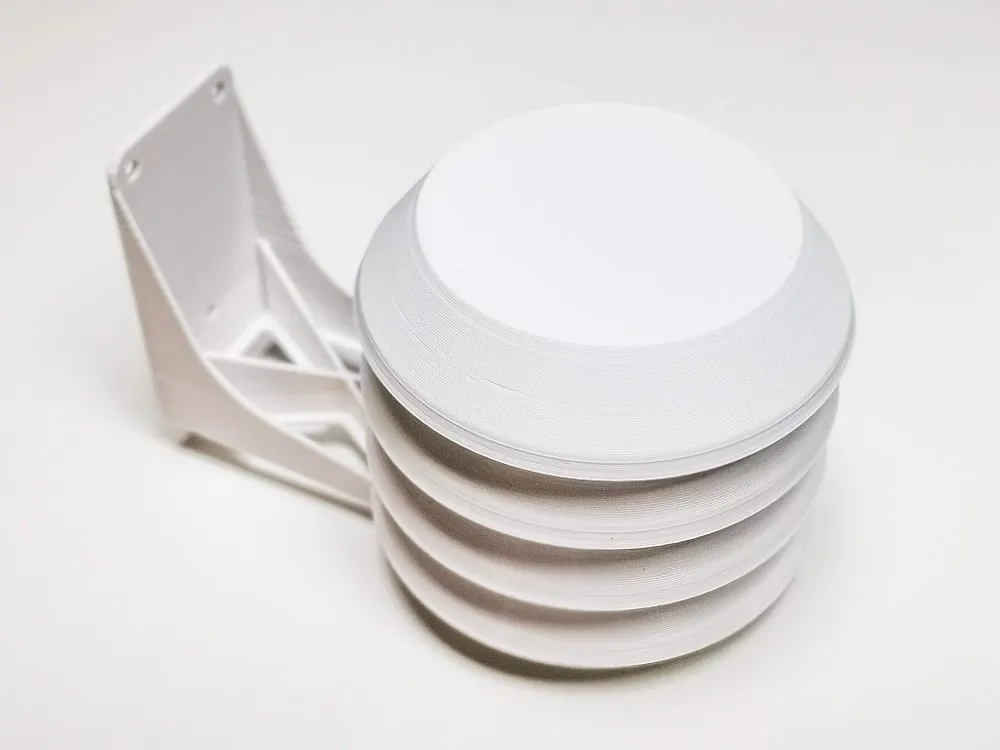

1x top part
3x middle part
1x holder part
2x 5x60 wood screws

TIP: set seam position to be at the back so it wouldn't be visible.
