TronXY X5SA Entruder and Filament Sensor Mount

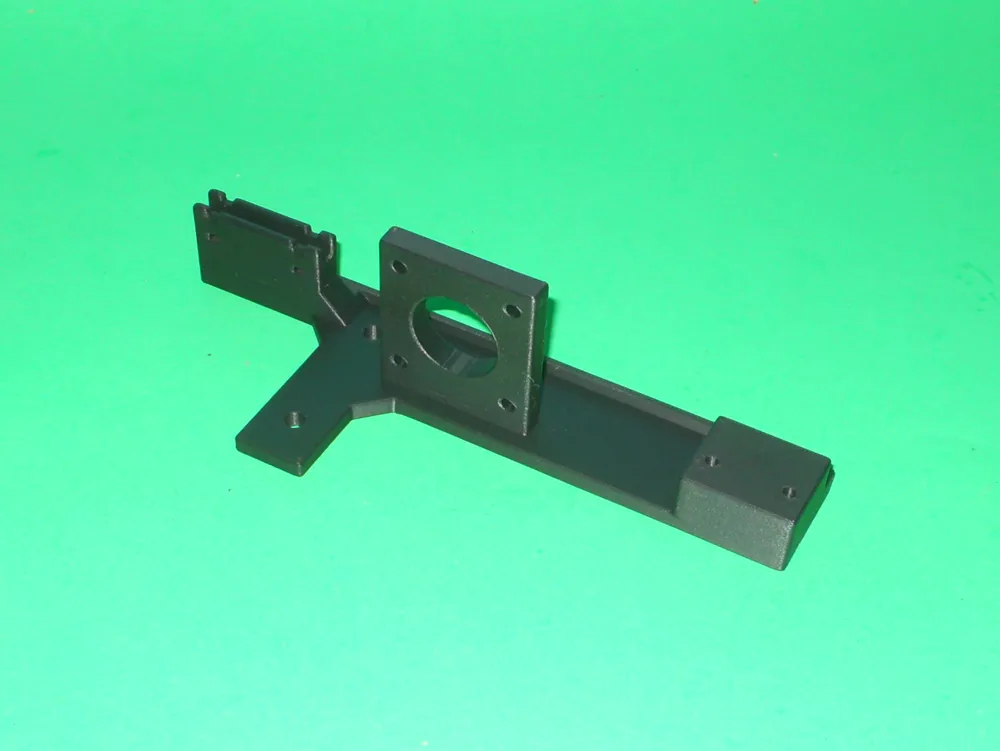

This is a mount for the extruder and the filament sensor for the TronXY X5SA.

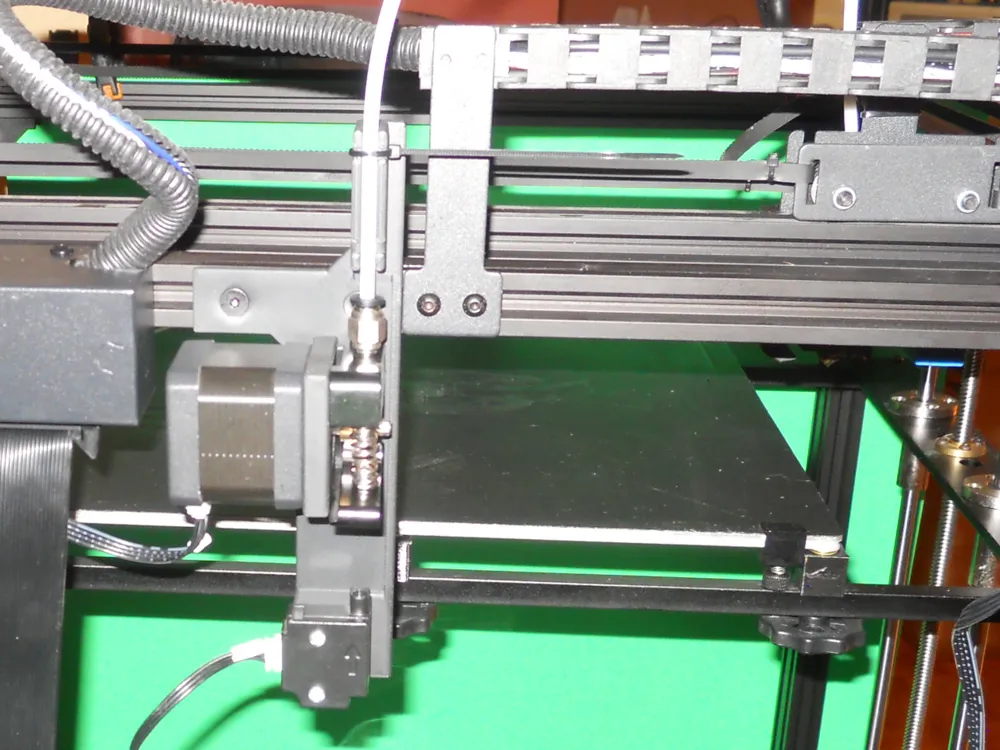

It replaces the stock mounts. This mount was designed to move both the
extruder and the filament sensor in the middle of the back side of the
printer. You can then shorten the Bowden tube by about 20 cm (8 inches).
You'll need a two 8 mm M5 screws with two T-nuts to mount it to the frame of
the printer. You'll also need two M3 20mm screws with nuts to mount the
filament sensor to the extruder mount.

Support material is not required. An infill of 25% is recommended.

This object's main web page is:
http://www.ctheroux.com/tronxy-x5sa-entruder-and-filament-sensor-mount/.

This object was designed using Solid Edge Community Edition.

You can request the source files on the page listed above.
