Description

This is a great center finder! It is very compact and doesn't take a lot of space!

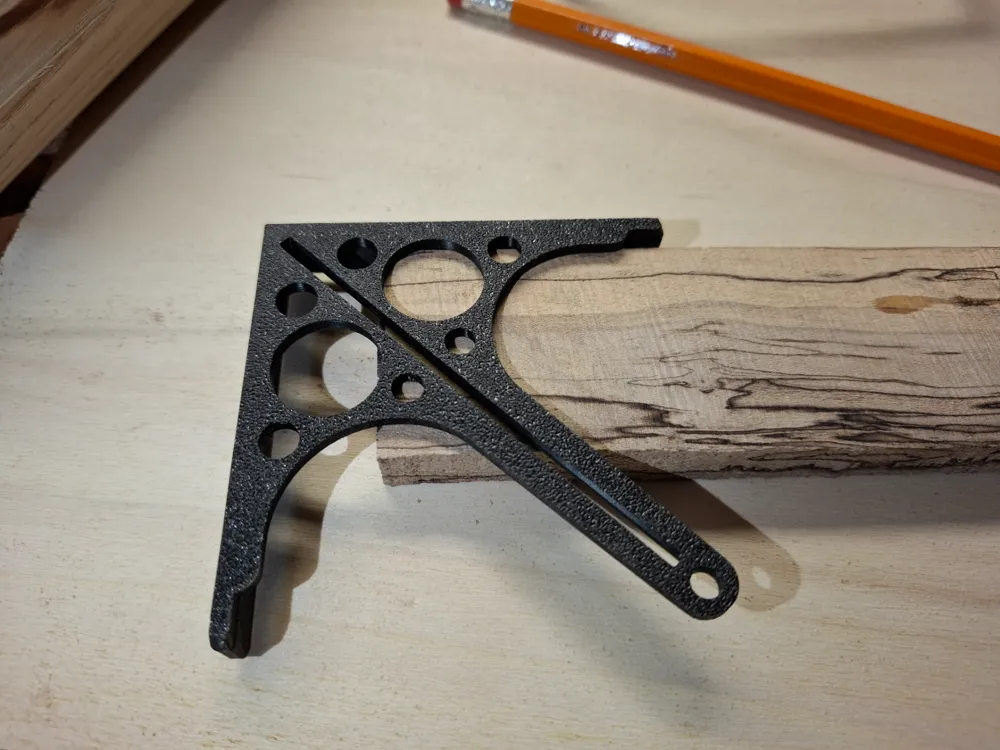

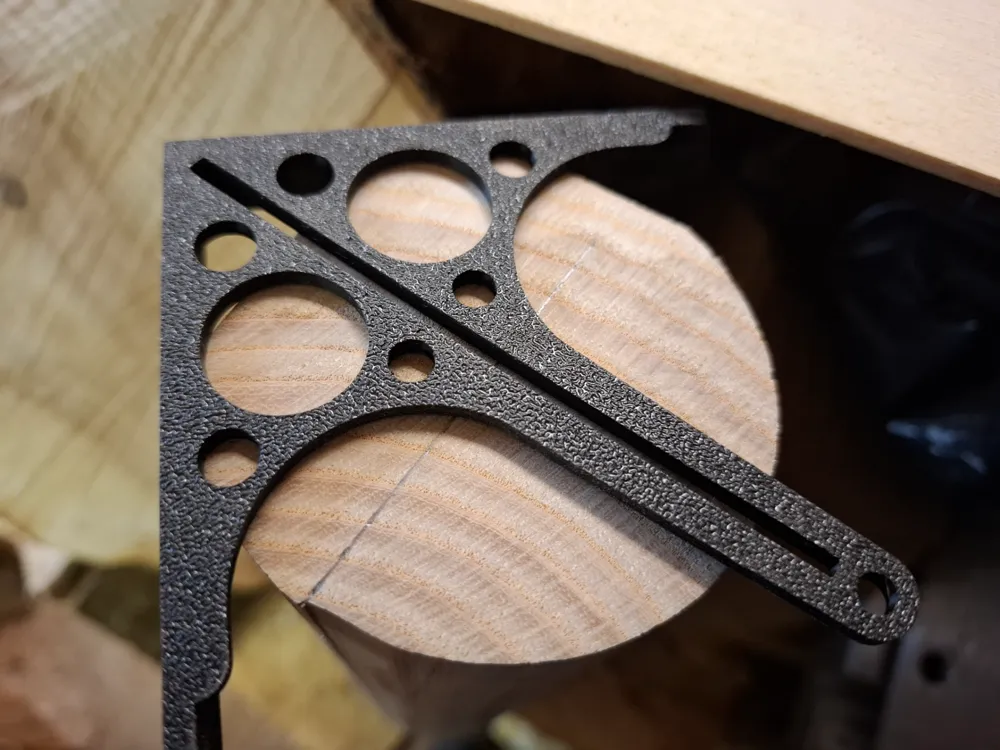

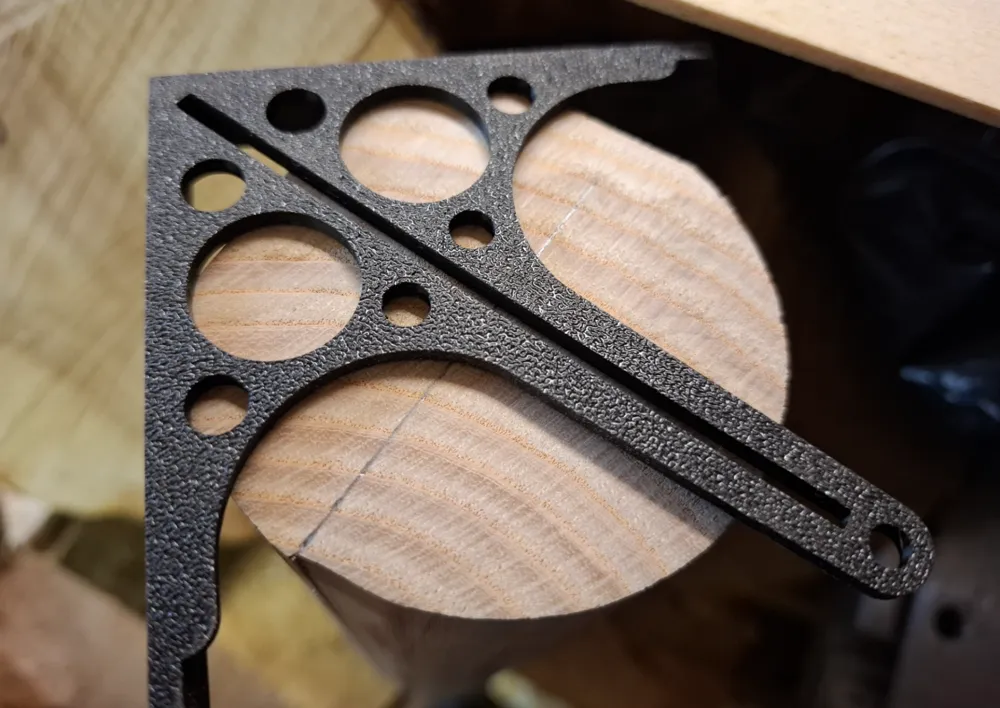

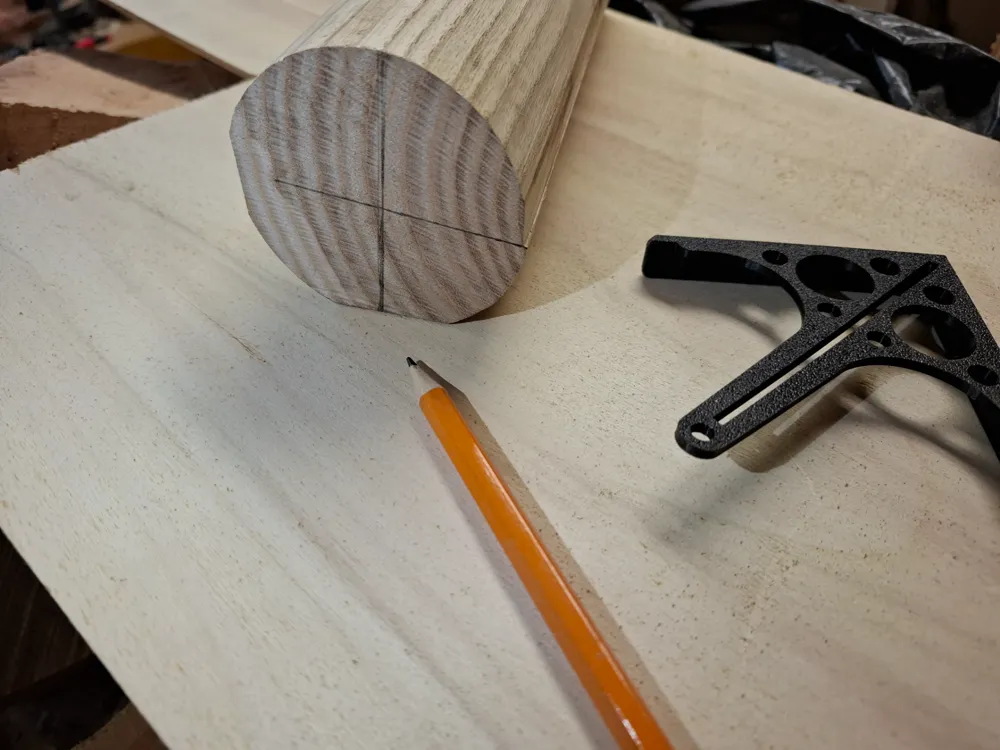

You can use it to mark the center of round and square stock.



The center finder stands on it's side and it easy to check for 90° and 45°. Marking 90 and 45 degrees is also an option.



The embedded circles can be used to mark round overs on corners.



Best of all: It only takes 30 min to print!



Update: Now versions with 2mm slot and 1mm slot available!
