Ute tub 12-volt power box - Isuzu D-Max

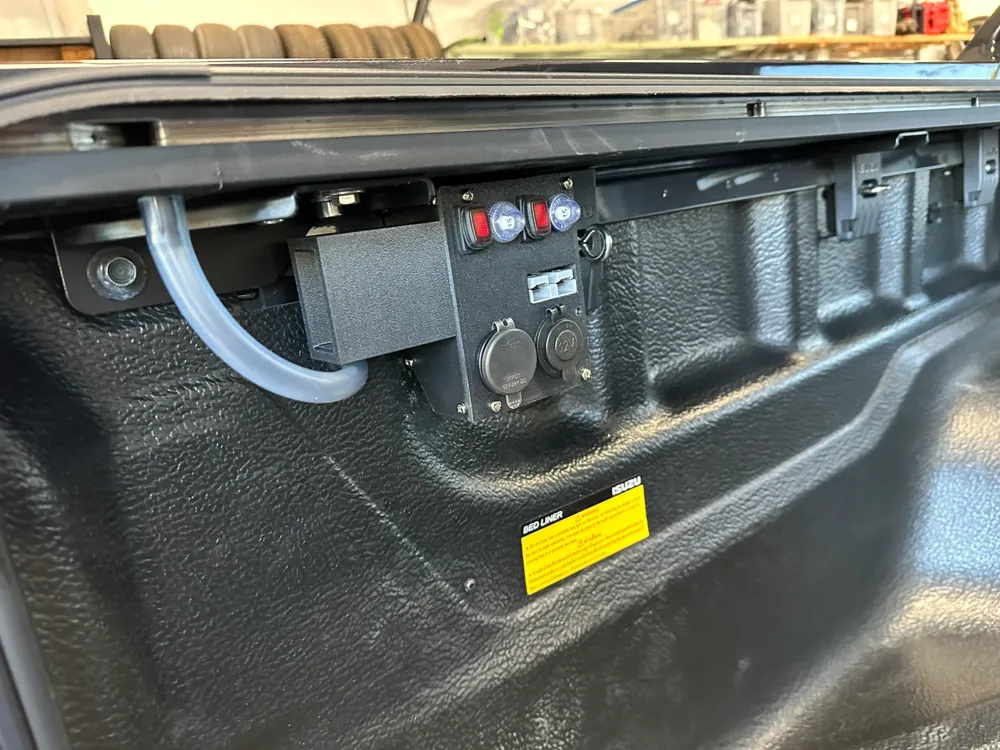

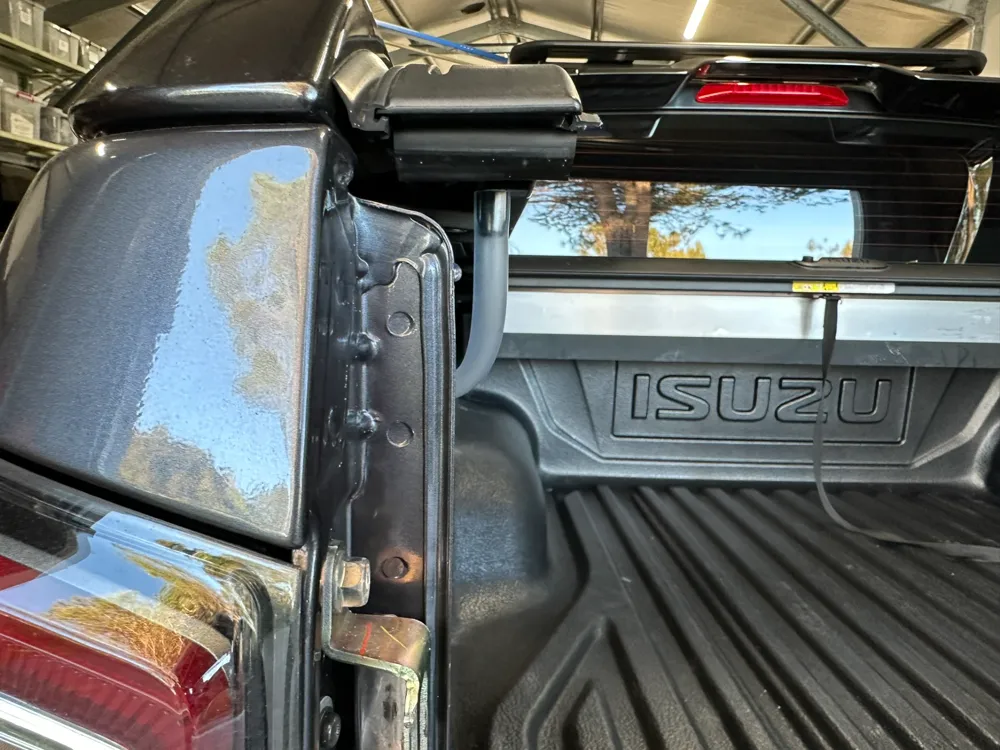

Setup to clear the factory tub liner in a 2023 Isuzu D-Max X-Terrain, but suitable for most dual cab utes with a similar style tub. I suggest printing the back part first if you are unsure of fitment.

Uses a 120amp Anderson plug for power input (not shown in pictures), allowing it to be removed if required, and can be connected to the main battery or a second battery.

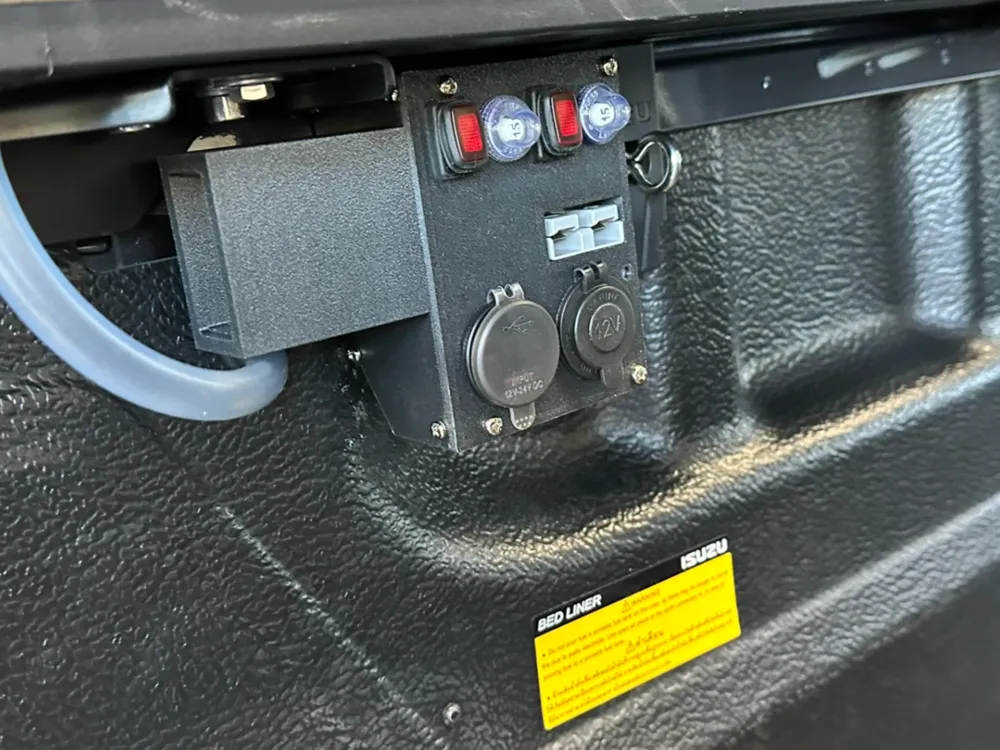

Output to a 50amp Anderson and cigarette lighter style plug as well as two switches (https://www.jaycar.com.au/ip65-rated-mini-illuminated-rocker-switch-spst-16a-12vdc/p/SK0969)

SK0969 and panel mount circuit breakers for a USB output (cigarette lighter style) and Deutsch style flange mount 2pin connector for lights or other electrical devices.

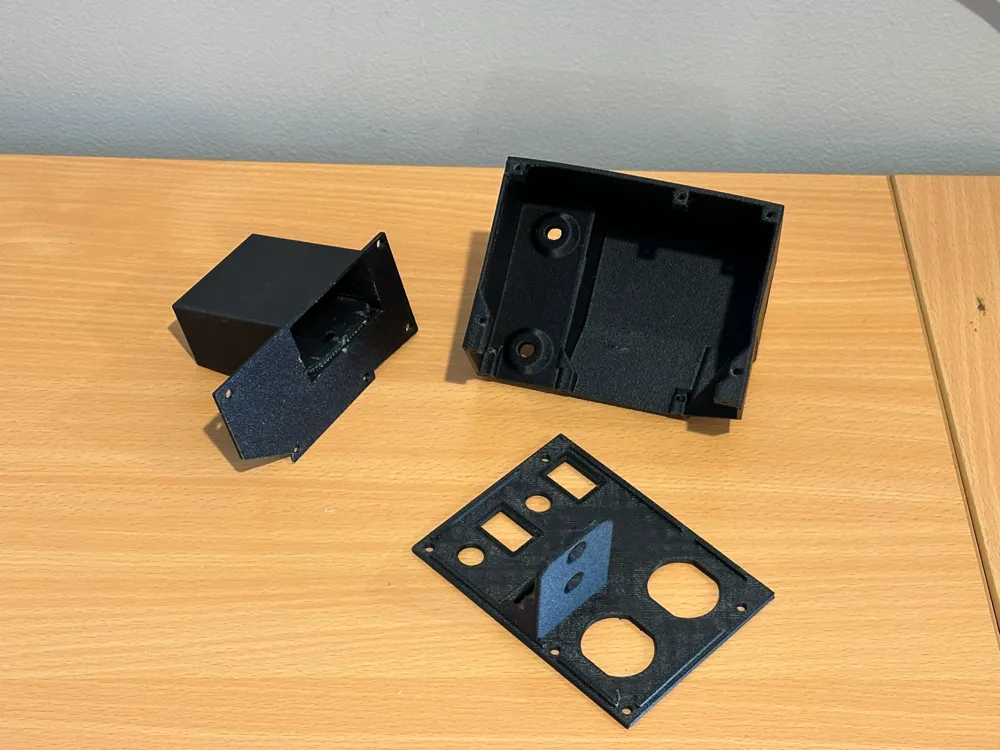

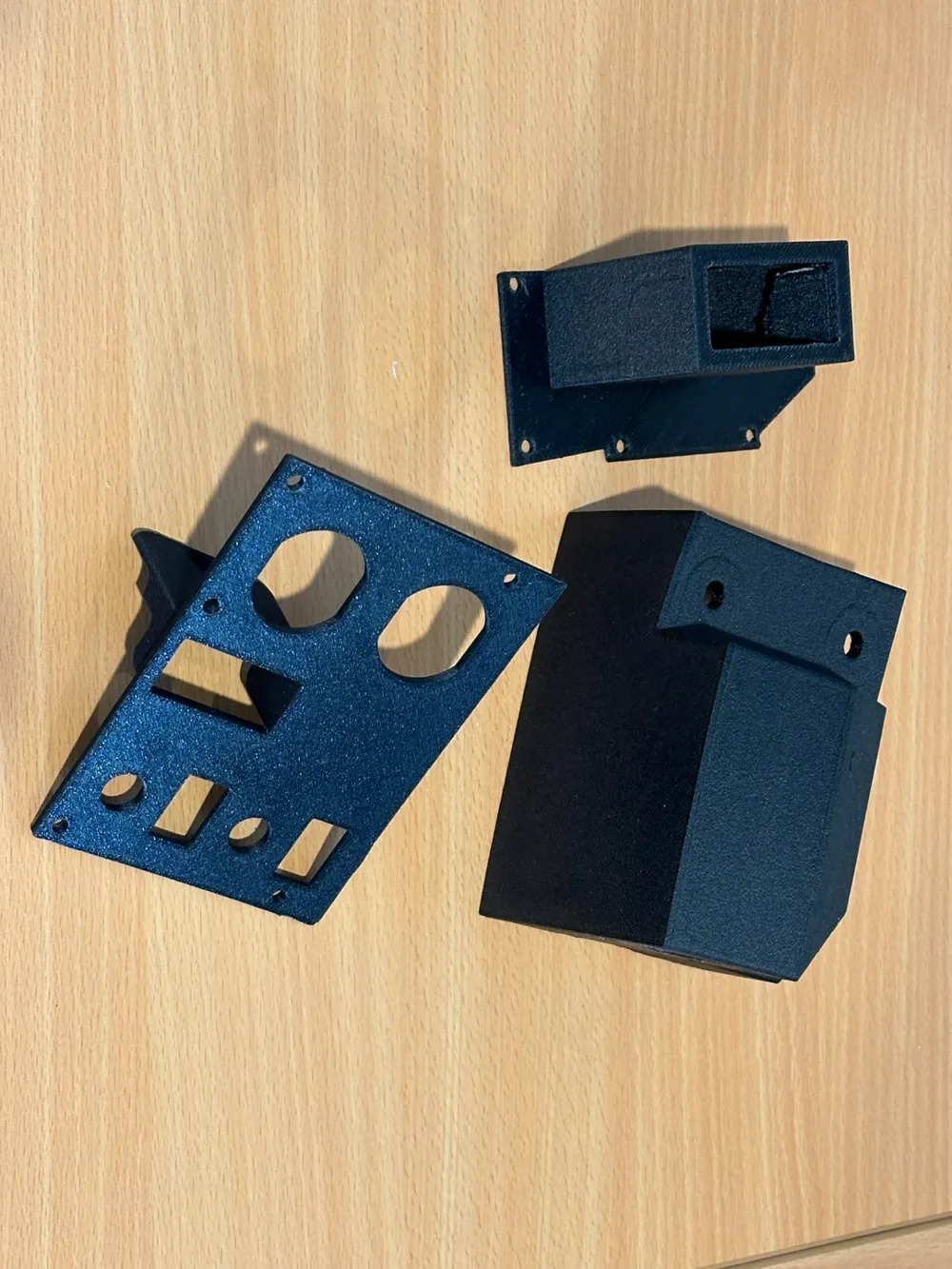

Printed in three parts, the back section is bolted to the side of the tub (two holes need to be drilled) and holds the deutsch 2pin dt flange connector, the side mounts the input anderson and the front holds the remainder of the electronics.

Requires basic 12volt electrical knowledge to connect in a way that suits your needs.
