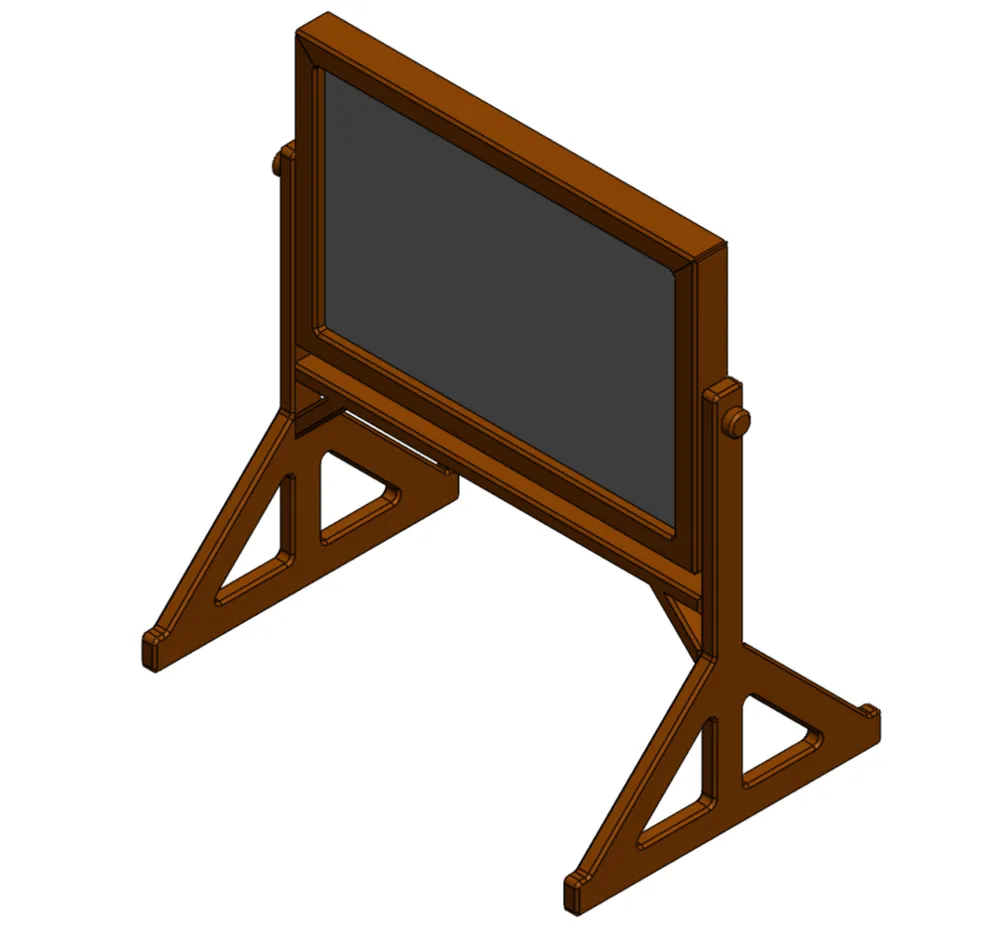

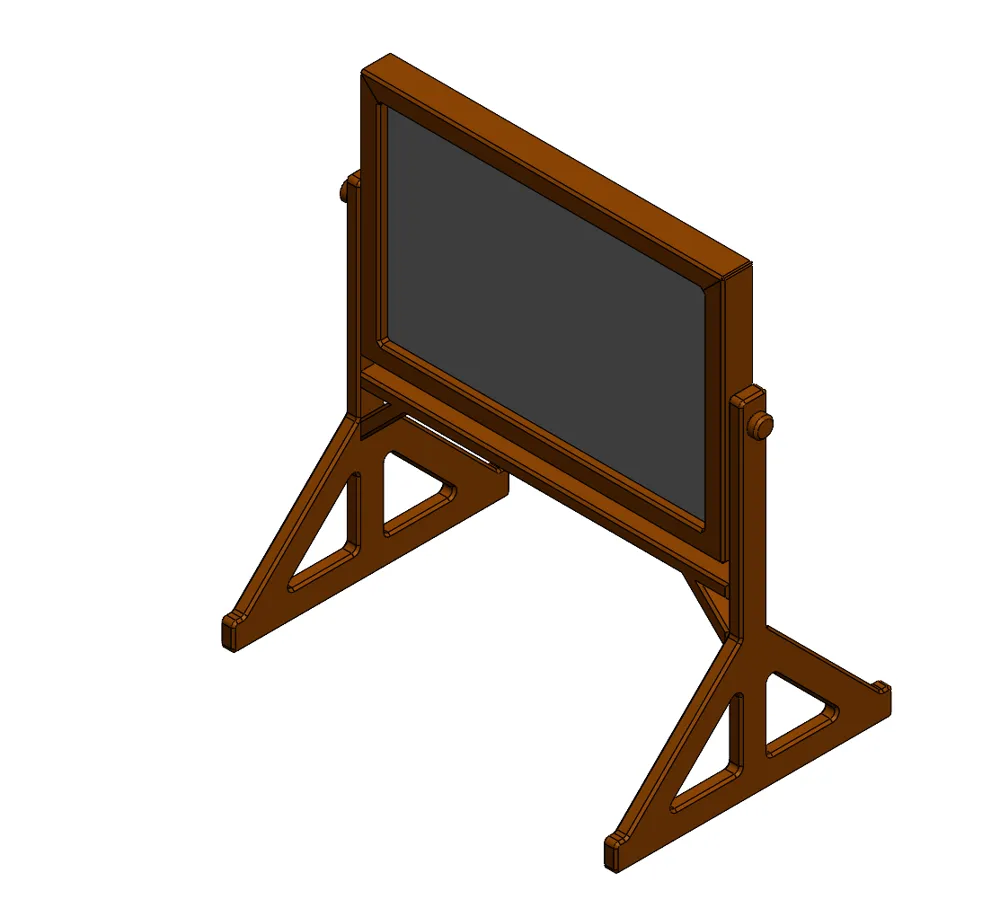

Chalkboard Picture Frame

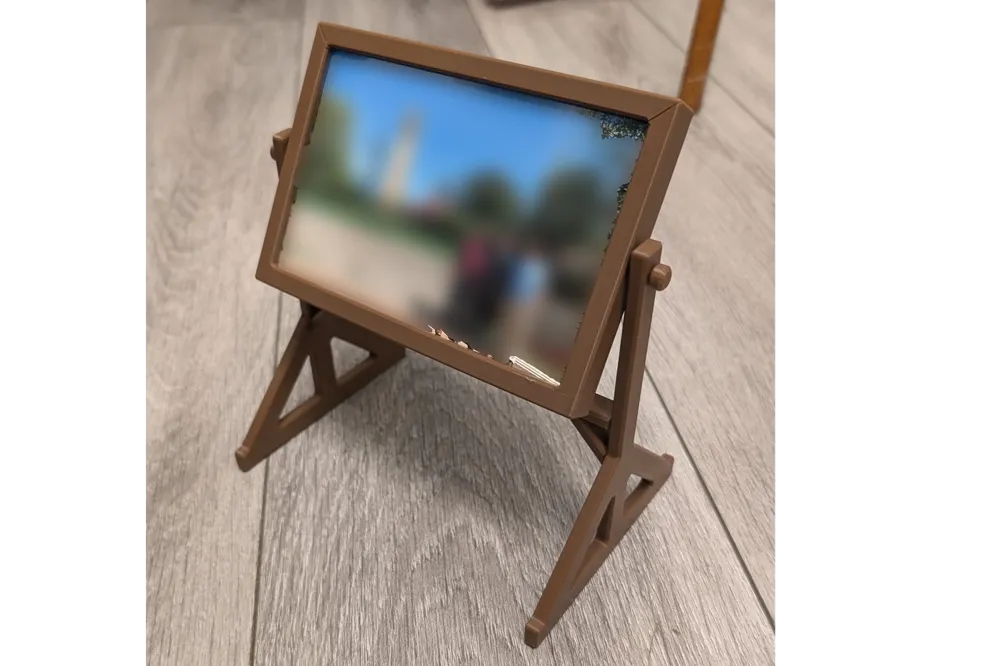

Perfect gift for that awesome teacher that always goes above and beyond! This Chalkboard fits two 4x6 Images and is easily changed out via the magnetically attached top. Simply lift the top bar off and slide your images in and admire its beauty!

Please feel free to let me know if you have any issues with printing or assembly. I strive to make quality models that everyone can enjoy!

there is an extra set of adjustment knobs and washers incase you have issues in assembly so you wont need to reprint.

In addition to the printed parts, you will need:

Qty 2 - M2 x 12 sockethead bolt (or longer) to attach the chalkboard to the frame

Qty2 - M2 threaded insert (optional, holes in chalkboard are deep enough that a longer bolt can thread into the plastic if need be.

Qty 14 - 3mm Diameter X 2mm thick Magnets to hold the top bar on ( 3 x 1 magnets will also suffice, just ensure that they are pressed in evenly and end up flush to the top surface.)

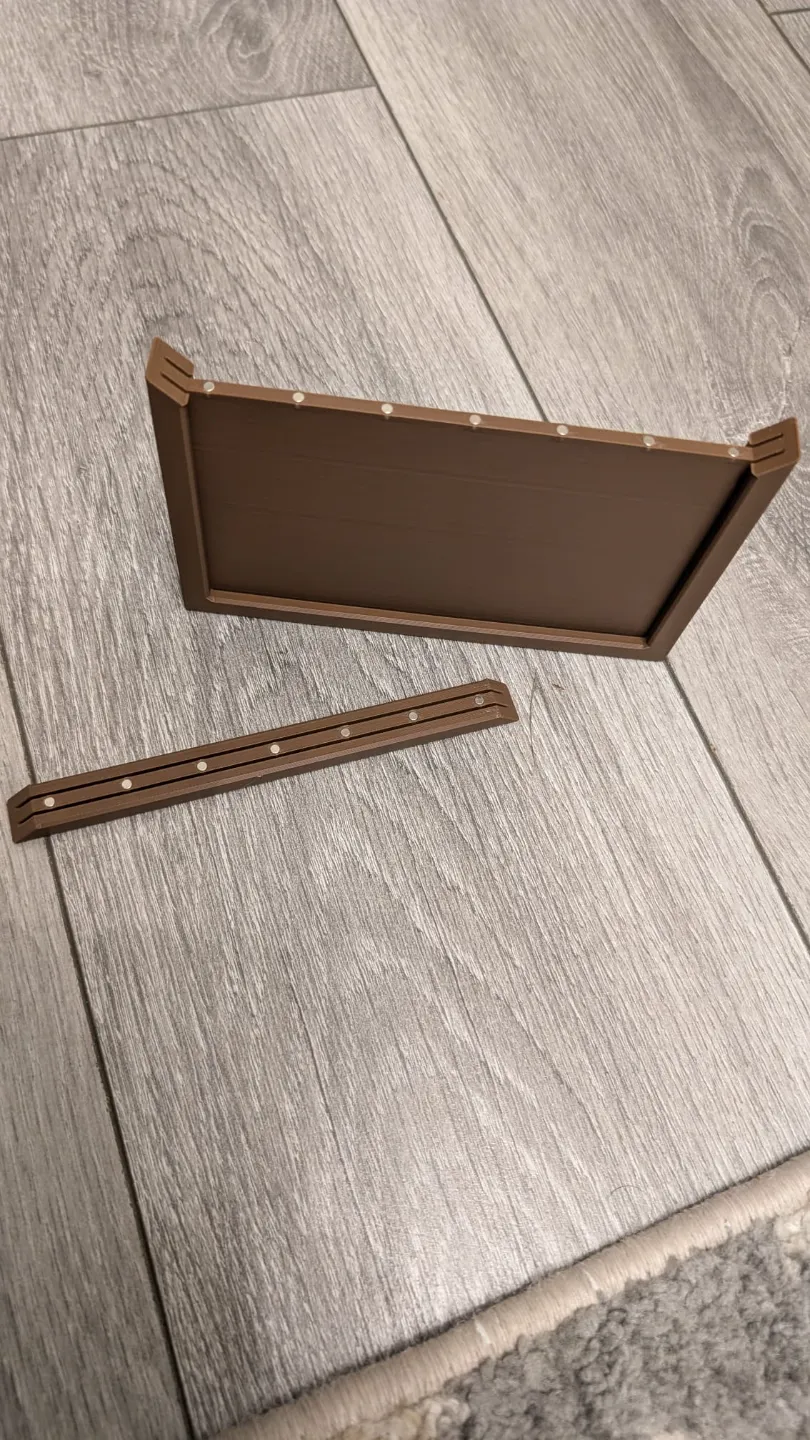

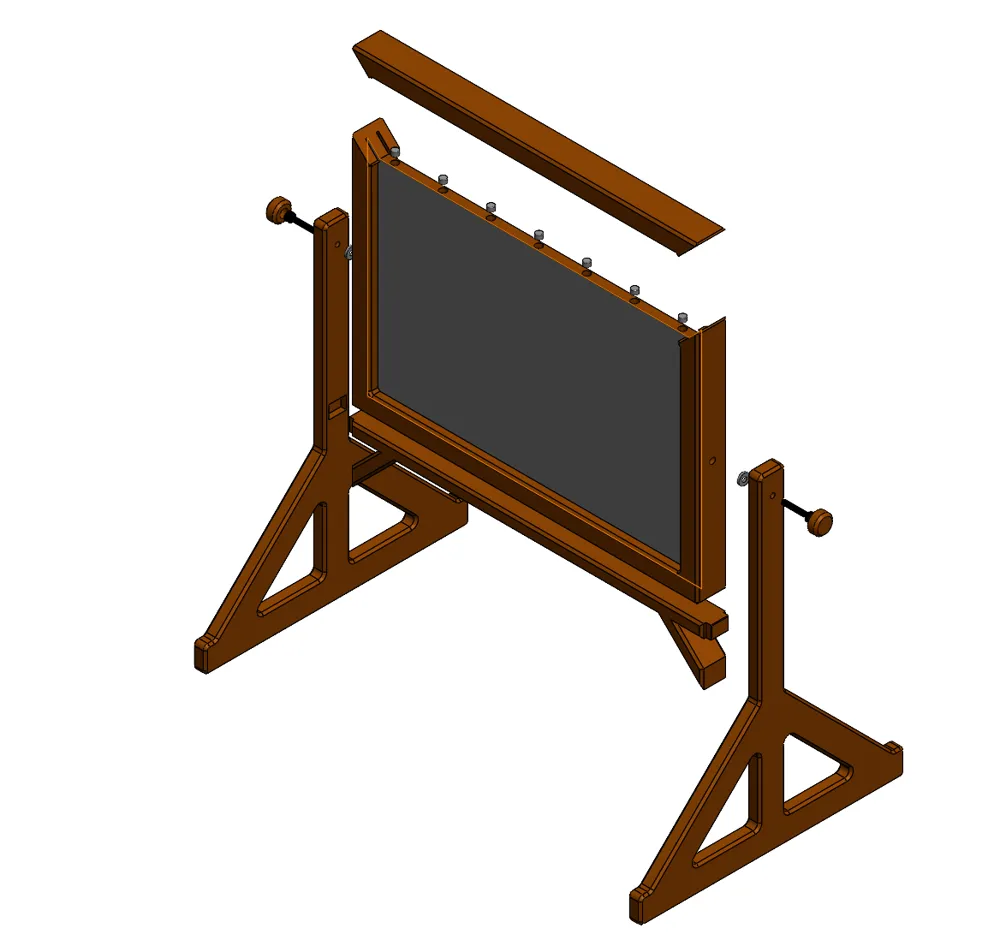

1. Press qty 14 magnets into the chalkboard base and top rail ensuring polarity of magnets is consistent throughout
2. Apply a small drop of super glue inside of the adjustment knobs and insert a M12 sockethead bolt into each one.

3. Using super glue, attach the cross bar to each of the side frame rails. (the slots for the cross bar are a tight fit so a small amount of force may be necessary to fully seat)
