Concealed Cabinet Hinge Marking Jig
Print Profile(1)
Description
Simple model that makes it easy to mark out where to place the cabinet carcass part of the concealed hingle. It needs to be exactly at the same height as the part of the hinge and also needs to be exactly 90 degrees to the edge.

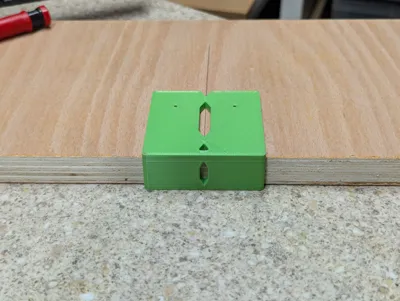

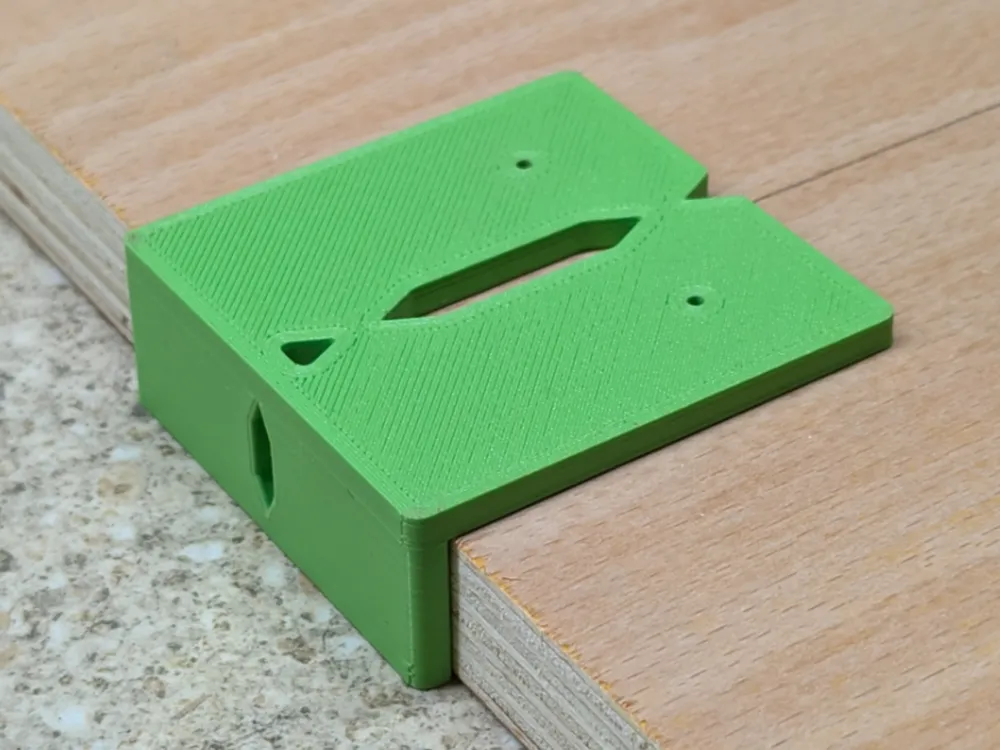

To use this is easy, please the door and cabinet flush with each other so the door is at 90 degrees to the cabinet and draw a line between the 2. Place the on the side of the cabinet lining up the mark you just made with the centreline of the tool. There are 2 holes for you to mark where the cabinet part of the hinge will need to be screwed into. Simply remove the tool, drill a pilot hole and screw the hinge on.
