Zipper Pull Tab Pack
Print Profile(2)
Description
An assorted pack of zipper pull tab to replace broken zippers. Note: Cannot be disassembled.
Various designs and sizes of the original model: https://makerworld.com/en/models/591227
All size loops can be used with all size tabs
Mechanism: Ring loop comes with sawtooth serrations. These will latch onto the linear ratchet on the zipper tab. (Think zip tie)
Loop Ring Thickness: 1.2mm, 1.6mm, and 2mm. This is the piece that needs to be put through your zipper
Weight of whole pack: 16.7g

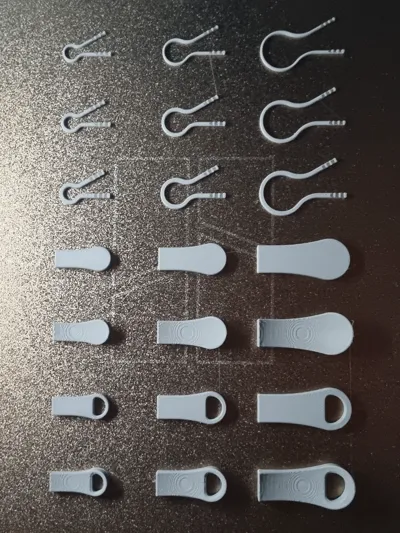

Detailed dimensions: (as laid out in my print profile)
Loop 1.2mm thickness 6mm diameter | Loop 1.2mm thickness 10mm diameter | Loop 1.2mm thickness 16mm diameter |
Loop 1.6mm thickness 6mm diameter | Loop 1.6mm thickness 10mm diameter | Loop 1.6mm thickness 16mm diameter |
Loop 2.0mm thickness 6mm diameter | Loop 2.0mm thickness 10mm diameter | Loop 2.0mm thickness 16mm diameter |
Tab Small (25mm length) Flat, no hole | Tab Medium (30mm length) Flat, no hole | Tab Large (40mm length) Flat, no hole |
Tab Small (25mm length) Curved, no hole | Tab Medium (30mm length) Curved, no hole | Tab Large (40mm length) Curved, no hole |
Tab Small (25mm length) Flat, with hole | Tab Medium (30mm length) Flat, with hole | Tab Large (40mm length) Flat, with hole |
Tab Small (25mm length) Curved, with hole | Tab Medium (30mm length) Curved, with hole | Tab Large (40mm length) Curved, with hole |
- All size loops can be used with all size tabs
- No need for supports
- Strong and reliable
- Designed with 0.4mm nozzle
