Pancake Compressor Anti-Skid Feet

ABOUT:

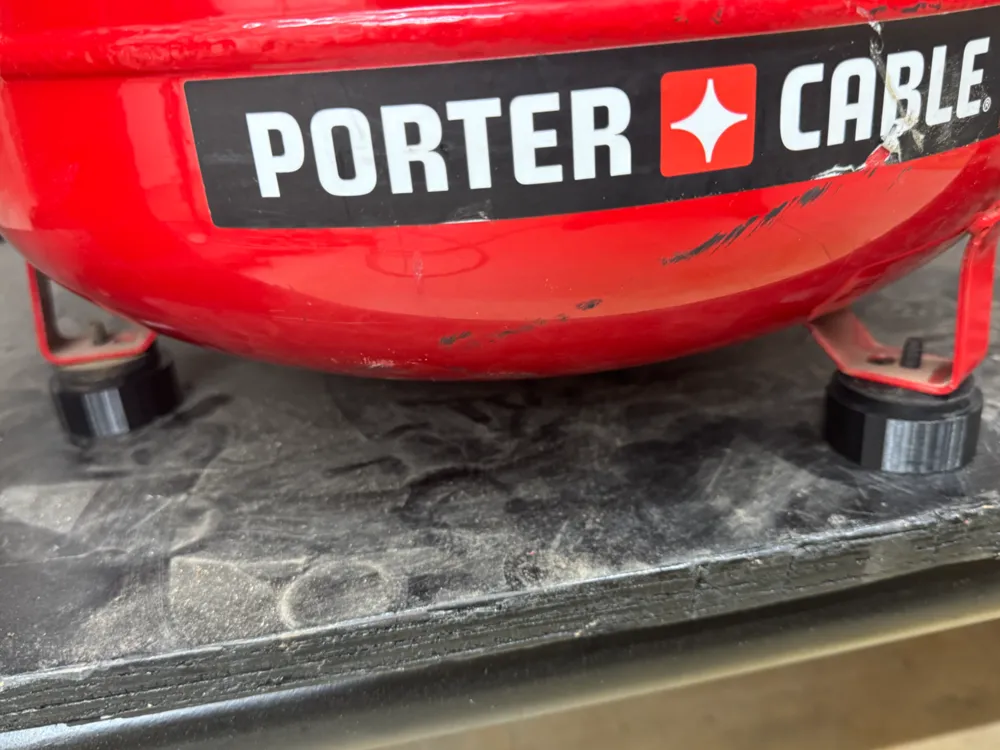

Made some anti-skip feet and replacement feet for my pancake compressor that lives on a wooden board under my metalworking bench. Most people keep it under a workbench of some kind. Hopefully it's wood.

This will work with any pancake style compressor's feet. Porter Cable, Craftsman, Ryobi, etc…

If you need another diameter for yours, I can help out.

I only have one pancake compressor so I don't know what sizes are out there.

FEATURES:

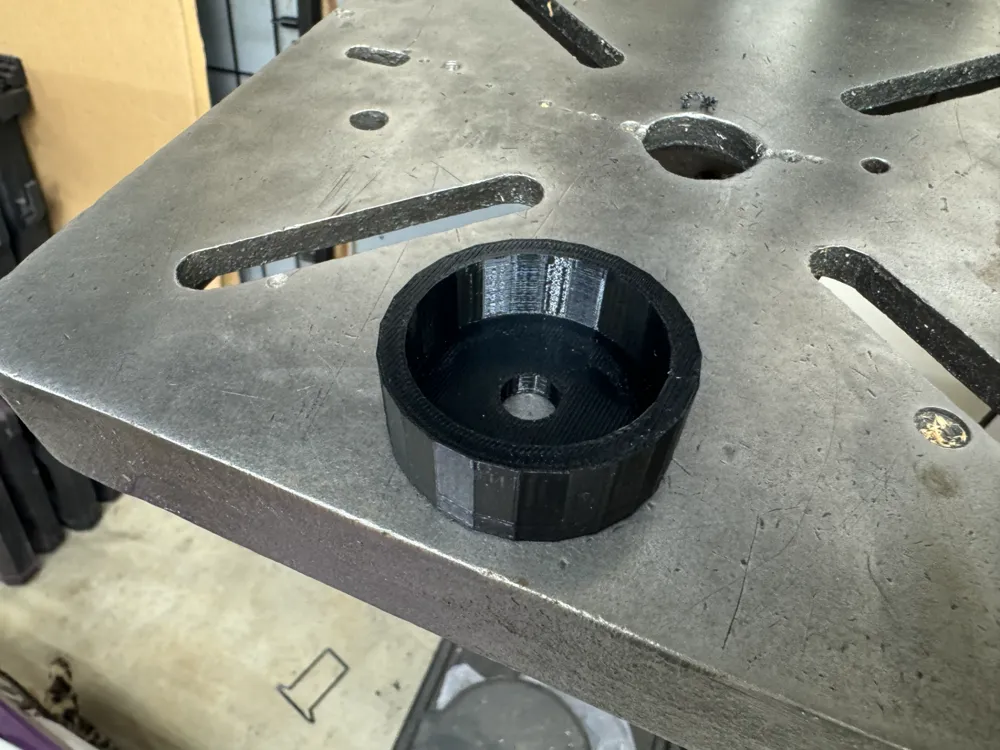

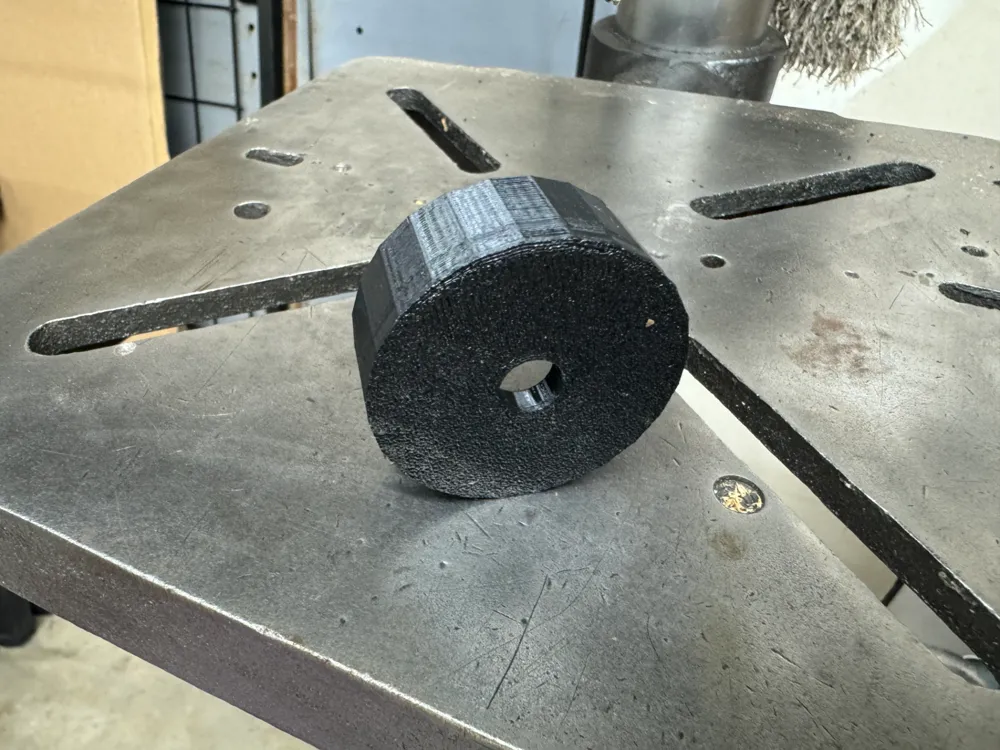

Provides new feet and keeps the compressor in one place without skipping. Will accommodate a bolt or screw depending on what size you need.  The replacement feet have a tapered hole for accommodate a bolt and a nut. The anti-vibration feet have an ID of 40mm. You can use either size depending on your needs (5mm or 10mm).

HARDWARE NEEDED:

(3) 5mm or 10mm ¾" or 1" long fasteners with nuts.

PRINTING SUGGESTIONS:

I would use PLA, TPU 95a, or PEBA. Basically anything shock resistant.

It shouldn't take more than 1hr to print all three.

I would do 10-15% infill for the anti-vibration feet and 45% for the replacement feet.

No brim is needed because of the large print surface.
