Description

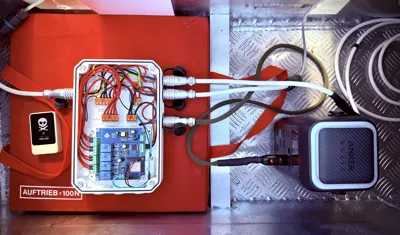

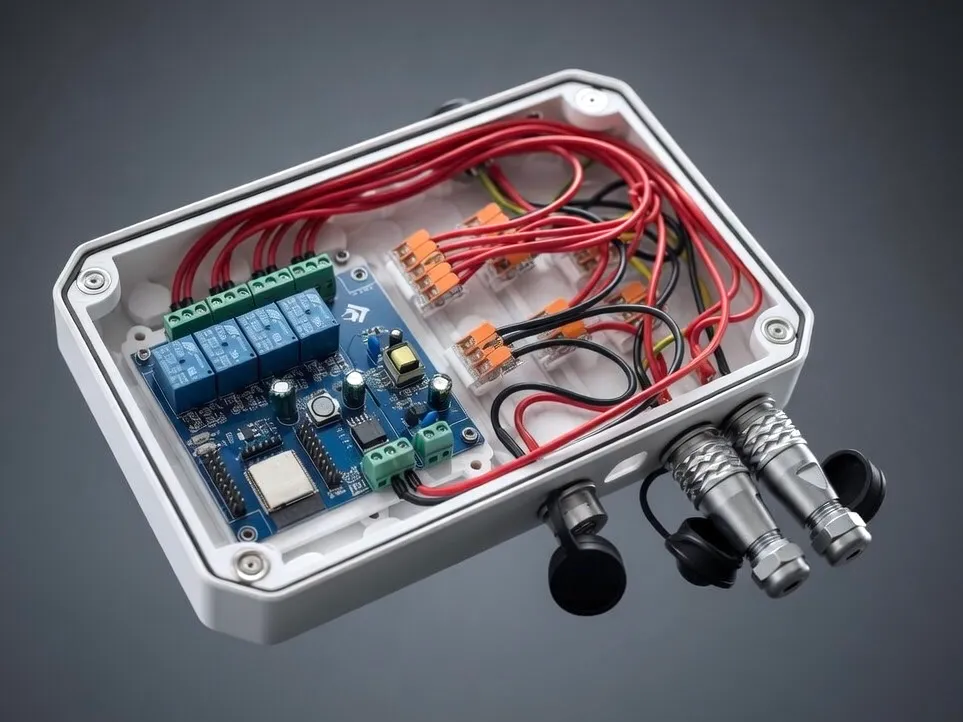

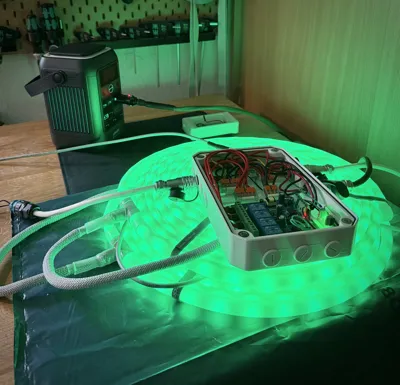

For a boat installation I created a custom electrical box to have one central place for all wiring, relays, smart LED controllers as well as switches.

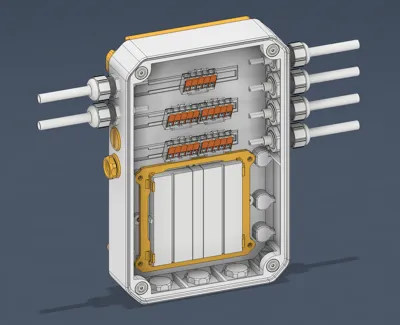

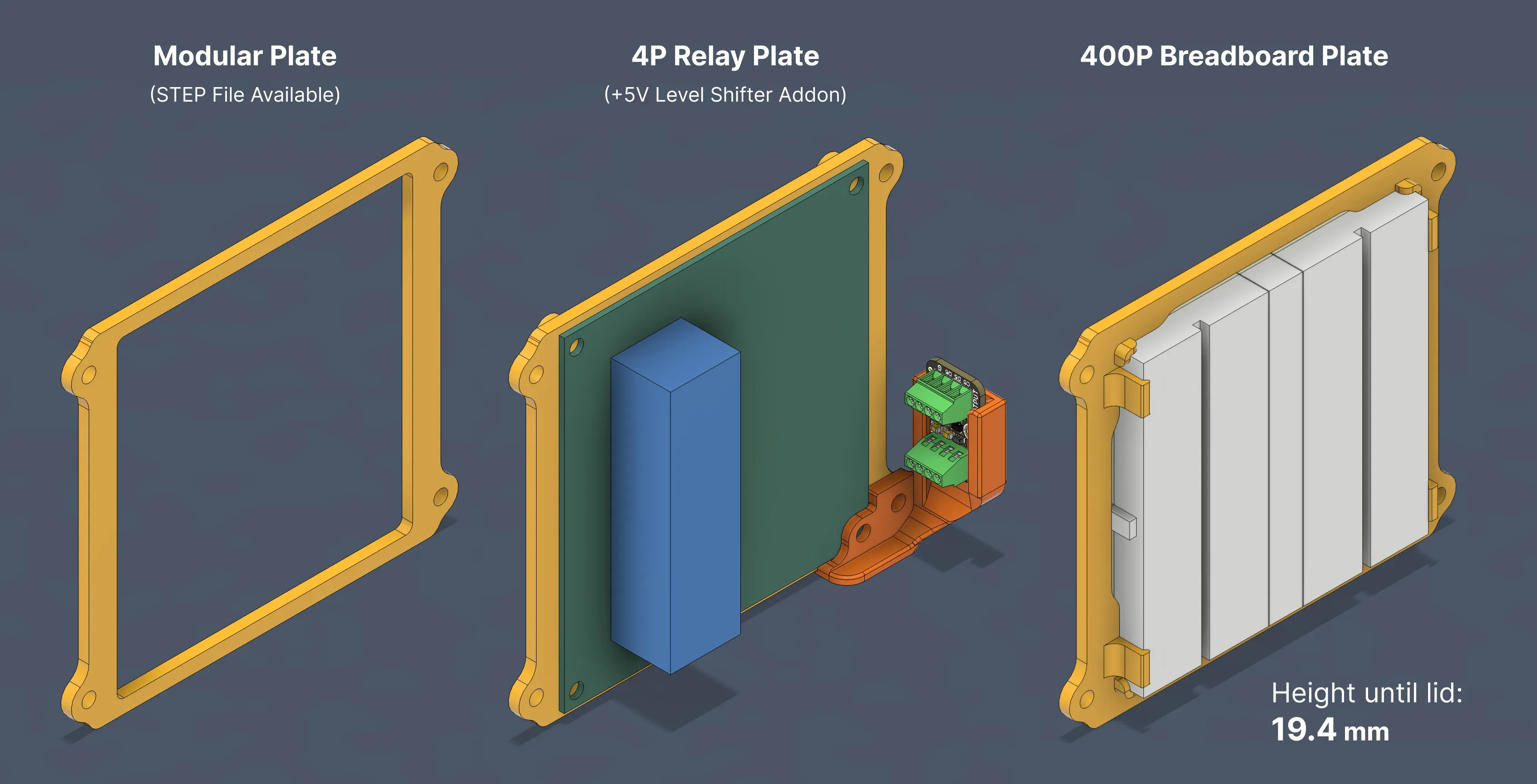

The box has a magnetic lid and a custom Wago rail system to mount different configurations (3x or 5x 221 Series) in a slight angle to preserve space. It als features an additional lower modular part fitted with M3 nuts to mount custom hardware like controllers, relays, etc …
On each side (L/R) there are 4x M16 mounting holes with custom caps for sealing. On the bottom are 3x M12 mounting holes.
The rear has 4x M5 Threads for mounting.
Printed Parts:
- 1x Box Base
- 1x Box Lid
- 2x Box Lid Handle
- 8x M16 Caps (Screw & NutCaps) - optional
- 3x M12 Caps (Screw & NutCaps) - optional
- 6x Wago Clamp Holder
Sourced Parts:
- 13x M3 Melting Nuts
- 4x M2 Melt-In-Nuts
- 4x M5 Melt-In-Nuts
- 4x M5x10 Hex Screw
- 4x M3x6 Flat Head Screw
- 4x M2x6 Hex Screw
- 8x 12x2.5 Magnets

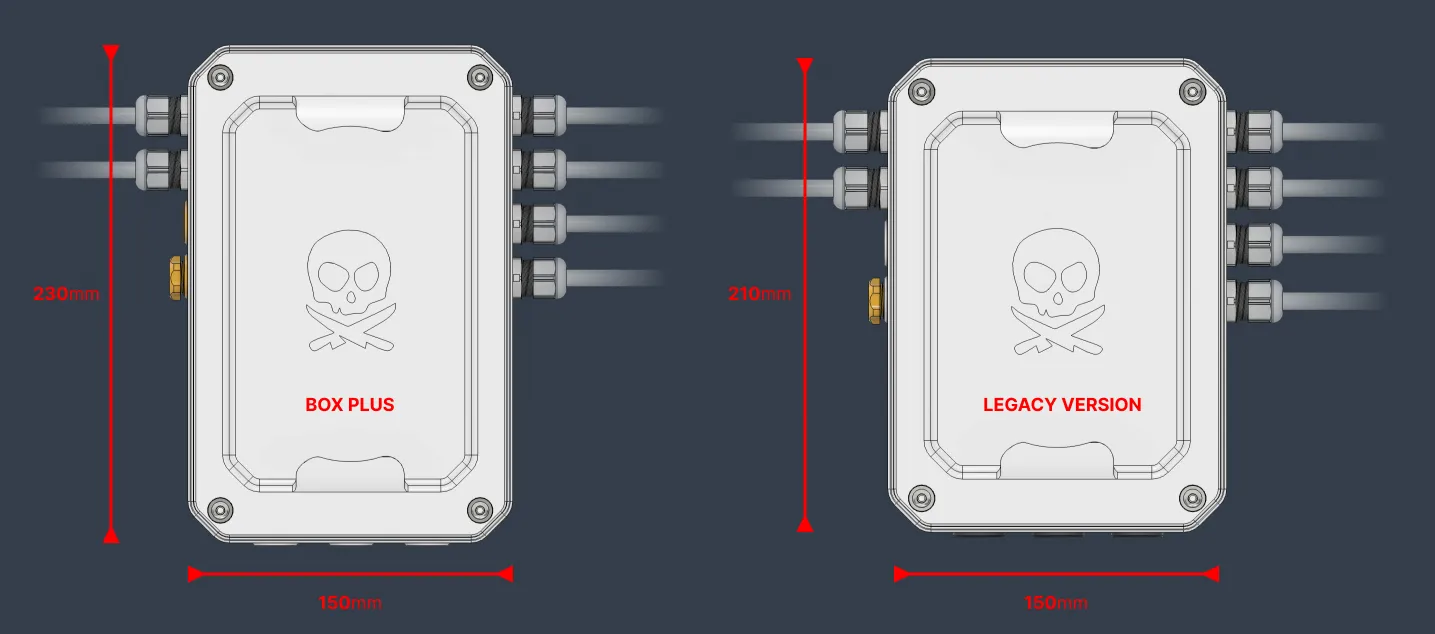

In the downloadable files you can still find the smaller legacy version (210mm). This one is NOT COMPATIBLE with the new modular plates. All current print profiles are for the new larger box (230mm).
