Bemis NextStep2 Toilet Seat Hinge Bracket

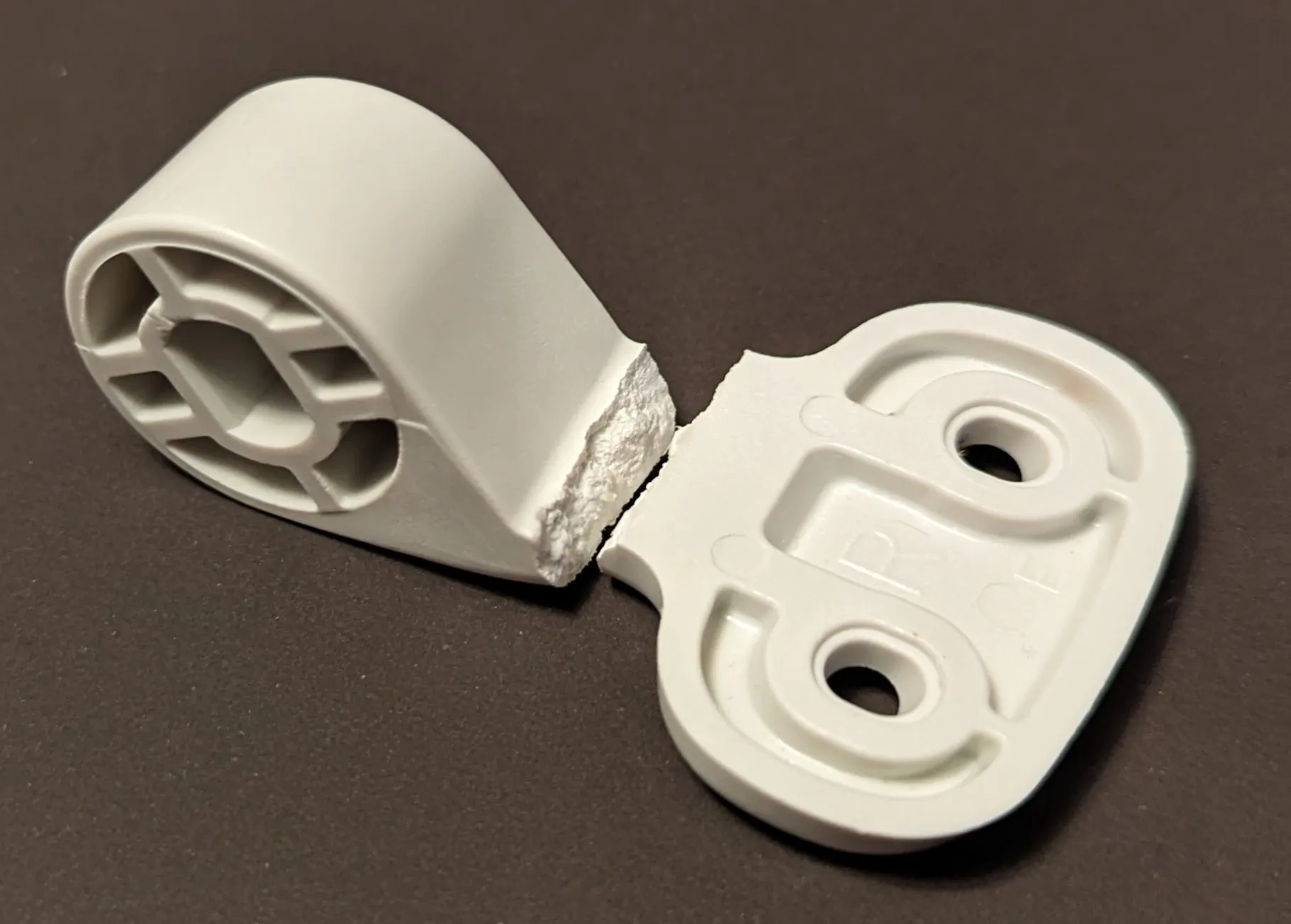

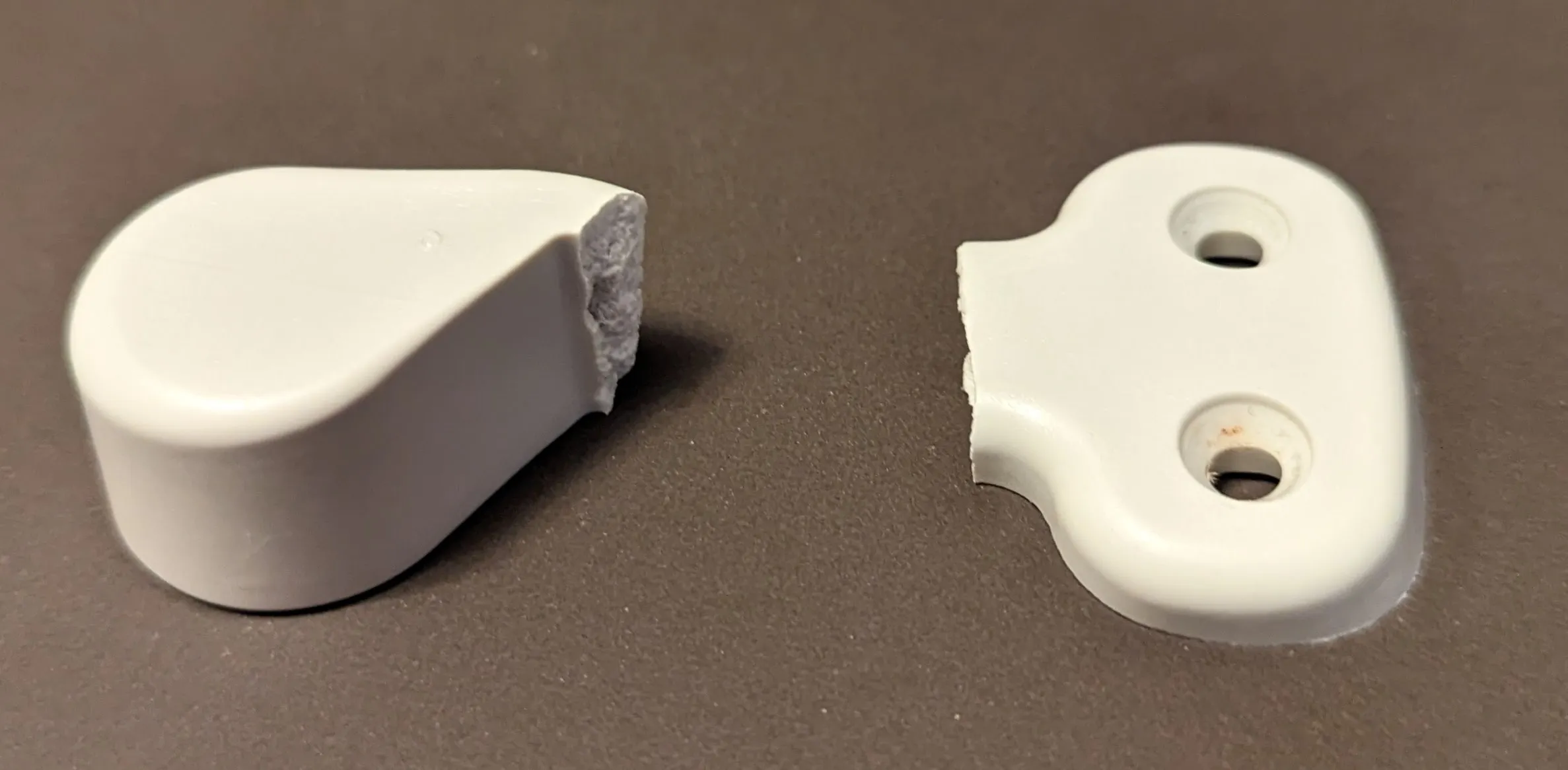

This is for the Bemis NextStep2 toilet seat with soft close hinge. It may fit other Bemis toilet seats. It seems these hinges are prone to breaking. This is what a broken OEM hinge looks like:

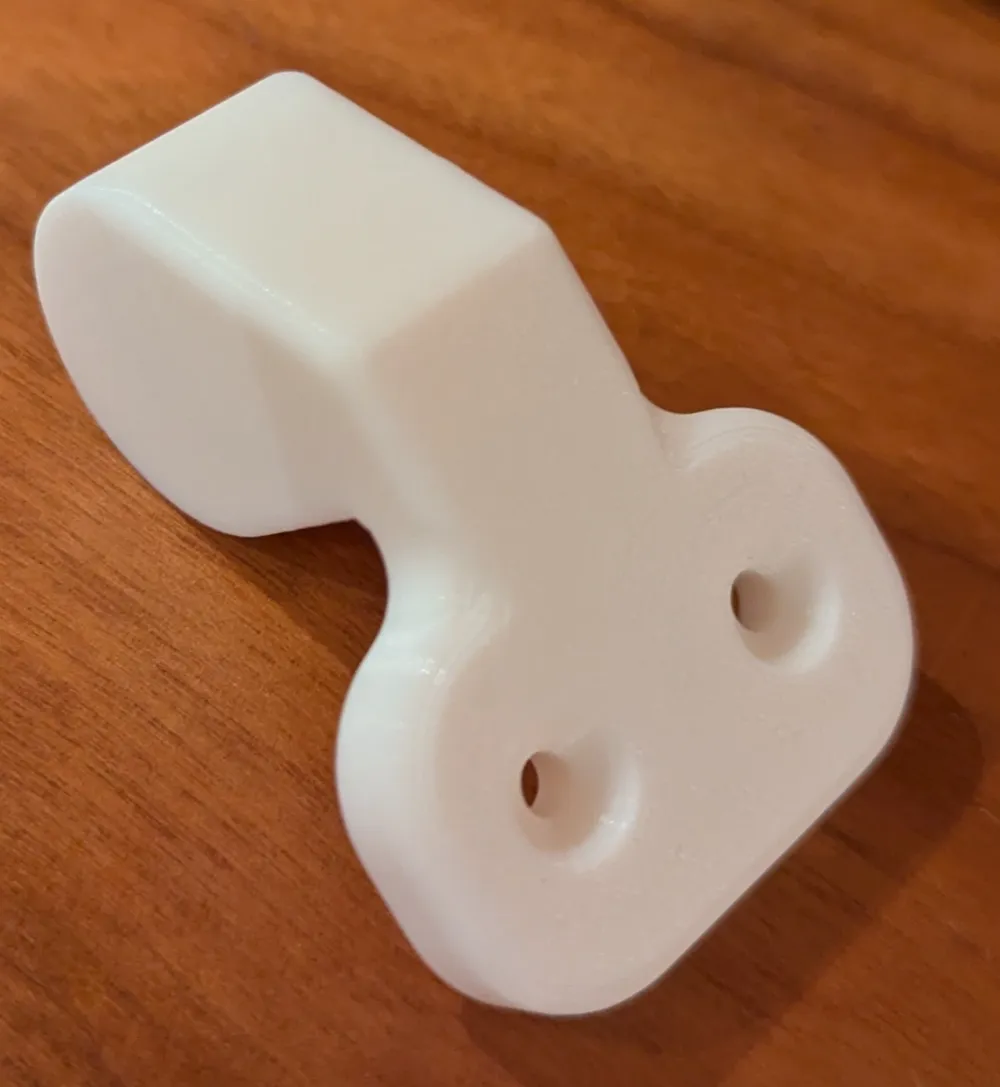

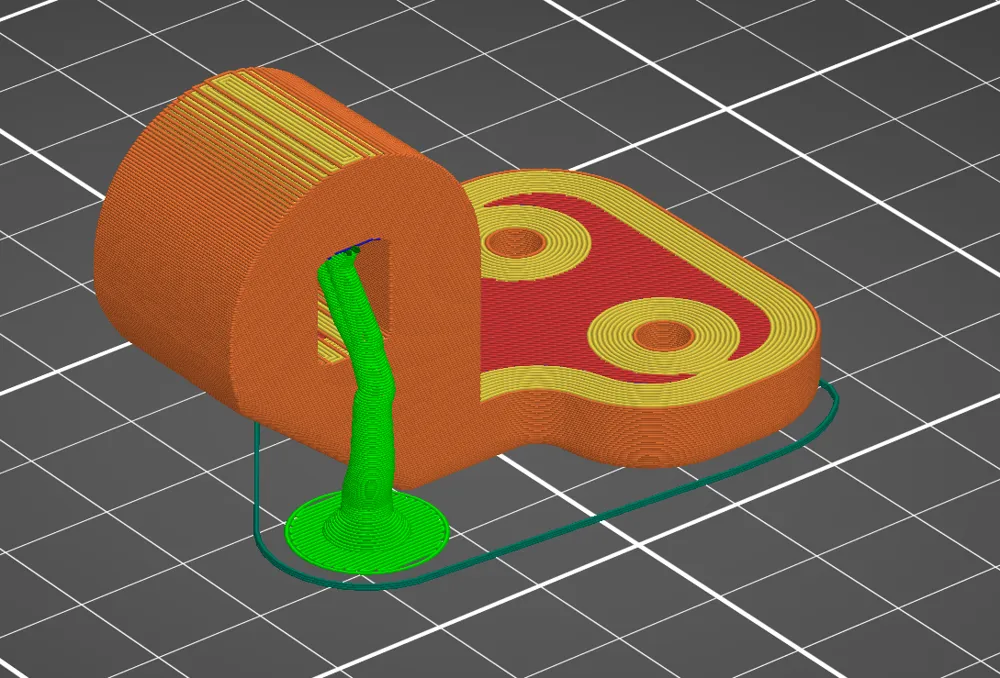

You'll want to use supports for the inside as shown (organic works great for this). My toddler has broken 2 OEM hinges and one printed replacement already, so I'd suggest cranking up the walls and infill (or use the provided print profile).

Changelog:

Rev2 (Rotated with support material):  Added a print profile for printing the hinge rotated.  This profile uses support interface material.  If you don't have support interface material (support for PLA or PETG) then you should reset the support settings to restore the z-distance and top interface spacing to defaults (or your preferred values).

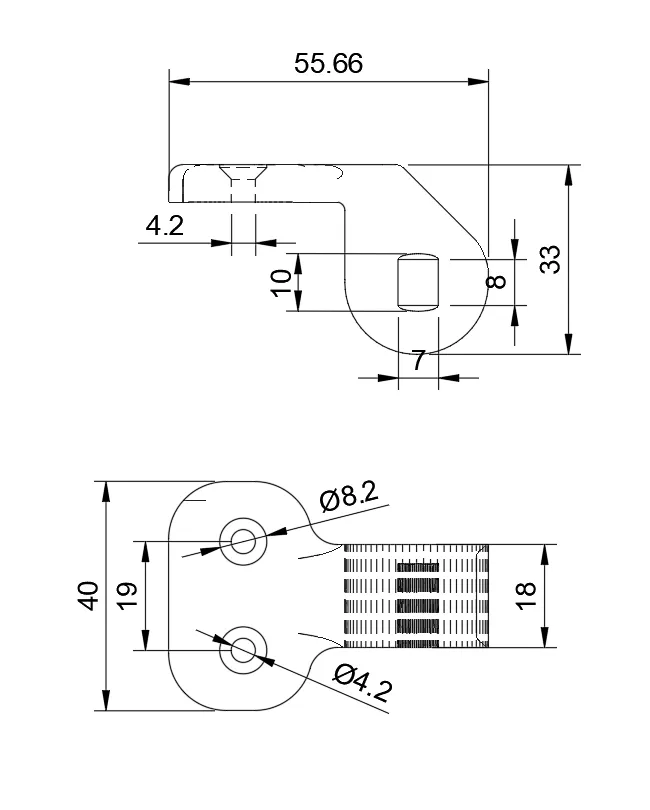

Rev2:  I've updated the model to better match the face profile and length of the original part.  I've also slightly decreased the angle leading up to the hinge which prints much cleaner and stronger.
