Cable Chain Track Trunking - Full Articulation - Free 3D Print Model

Search models, users, collections, and posts

NZPrint

Education>Engineering

IP Report

Print Profile(1)

All

X1 Carbon

P1P

X1E

H2D Pro

A1 mini

P1S

H2S

H2C

P2S

H2D

X2D

A2L

0.16mm layer, 3 walls, 15% infill no support

Designer

1.3 h

1 plate

4.7(23)

Open in Bambu Studio

Boost

263

679

683

305

Released

Bill of Materials

Bambu Filaments

Select all

PETG HF

Description

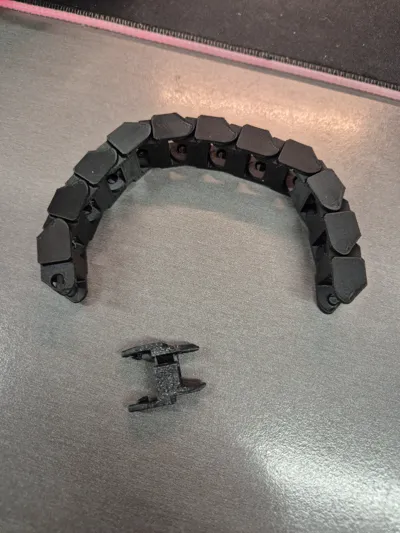

Great little cable track to organize cables for linear motion. This version articulates both ways. I have a version that only articulates one way on my profile as well.

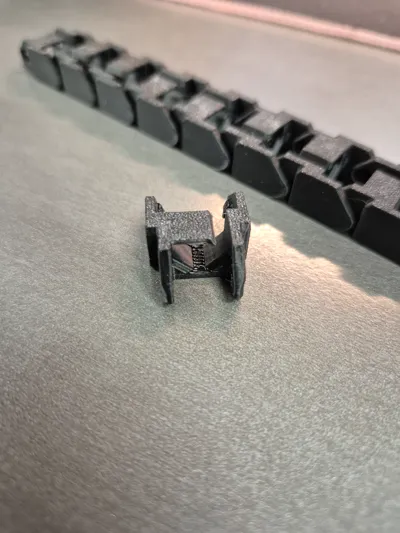

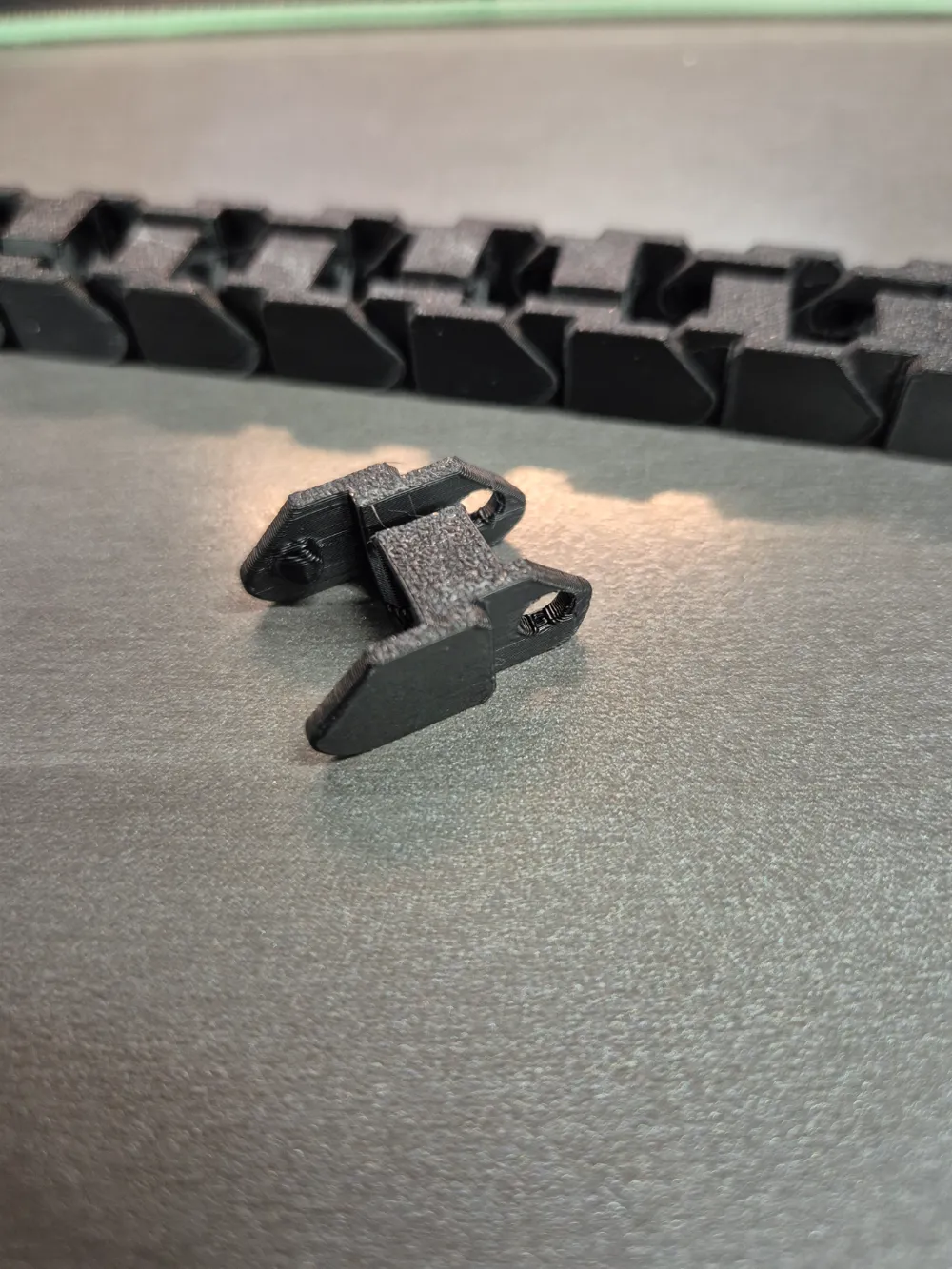

I recommend printing in place but it's designed so you can clip them together if printed individually. Has clip openings so you can add your cables at any time (2mm opening). Recommend PETG to make the clip a bit tougher and flexible but PLA works too.

There are two mirrored openings for the clip. I do 2-3 of one direction followed by 2-3 of the other direction so the cable cant fall out.

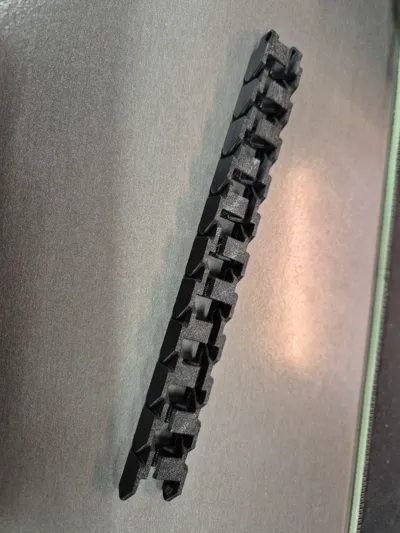

Designed for no support. You should not need any if you want to print this.

Boost Me (for free)

Went through quite a few iterations for the right tolerance so I'd appreciate a boost if you like it. Cheers!

Will add end pieces soon.

Designed so no support is required.

Designed to fit 2020 and 2040 extrusions as well.

Can be scaled up to use on 4040 extrusions or others as well.
