0.2mm layer, 2 walls, 15% infill
Designer
8.2 h
1 plate
Open in Bambu Studio
Boost
5
10
0
0
8
5
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- Motor CHP-10GP-M10VA 10mm DC 3V 60RPM Plastic Gear x 1: DC 5V 100RPM,Cross Shaft
- 1.5V 1 x AA Plastic Cell Battery Holder Case x 1:
Description

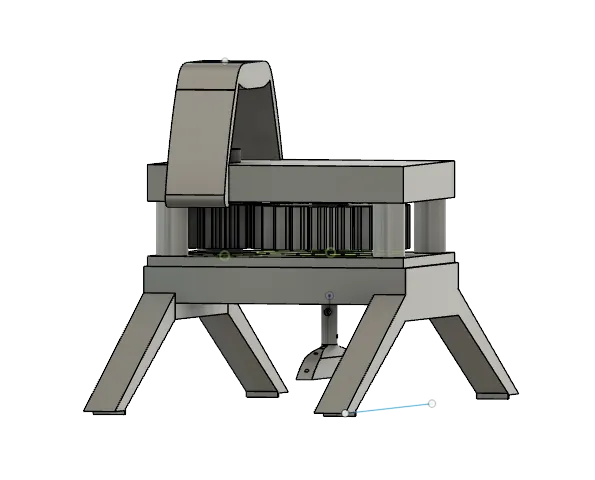

A 3D-printed gearbox for mixing electrolyte in metal plating setups is a compact, durable device. Made from high-strength, corrosion-resistant materials like PETG or ABS (but can be also printed in PLA) it houses precision gears optimized for smooth, low-speed mixing. A small motor drives the gears, ensuring consistent stirring of the electrolyte to maintain an even particle distribution. The gearbox features an open casing with easy access for maintenance and is designed to resist chemical degradation, making it ideal for electroplating 3D-printed plastic parts.
Other matterials used:
- 4pcs - 608 bearings High Performance Bearings | Bambu Lab EU
- 1pcs - 1.5V 1 x AA Plastic Cell Battery Holder Case HALJIA 10Pcs 1.5V 1 x AA Plastic Cell Battery Holder Case Battery Storage Box with Wire Leads: Amazon.co.uk: Electronics & Photo
- 1pcs - Motor CHP-10GP-M10VA 10mm DC 3V 60RPM Plastic Gear Cross Shaft Motor CHP-10GP-M10VA 10mm DC 3V 60RPM Plastic Gear Cross Shaft Smallest Micro planetary Gear Motor (Size : Cross shaft, Color : DC 5V 100RPM) : Amazon.co.uk: Automotive
- 4pcs - M3x5 Socket Head Cap Machine Screws (SHCS) M3 Socket Head Cap Machine Screws (SHCS) | Bambu Lab EU
- 4pcs - M3x5x4 Round Threaded Brass Heat-Insert Nut Round Threaded Brass Heat-Insert Nut | Bambu Lab EU
