compressed air powered rotary engine - Free 3D Print Model

Search models, users, collections, and posts

brightenw8

Education>Engineering

IP Report

Print Profile(2)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

A1 mini

0.16mm layer, 4 walls, 15% infill

Designer

1.4 h

1 plate

4.8(44)

0.16mm layer, 4 walls, 15% infill

Designer

1.6 h

1 plate

4.9(18)

Open in Bambu Studio

Boost

322

471

158

889

610

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

M3x10 FHCS Machine Screw (20PCS) - AA188

M3 Flat Head Cap Machine Screws (FHCS)

Description

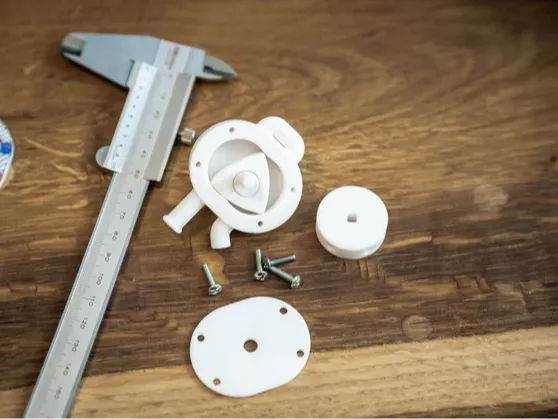

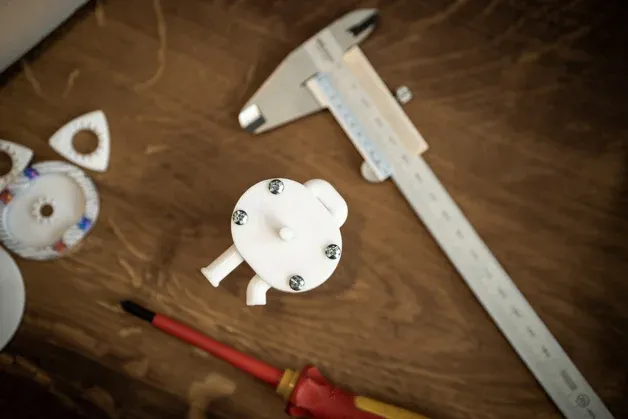

you need m3x10mm screws to hold the lid on

I've ran it at 80 psi

might need to sand rotor and and some kind of lube like graphite

optional m6x10mm screws for flywheel it runs fine without

engine

motor

rotary

Comment & Rating (158)

@blu.ball

Boosted

the first one works so I scaled it up to around 200% it’s awesome

@user_837435258

anyone know if 3d printed screws would work?

@user_837435258

Did the scaled one work?

@user_837435258

Replying to @user_837435258 :

someone should make a life sized one

@user_2283792374

made 2 rotor version

The designer has replied

@brightenw8

yo that’s sick

@user_3419644235

can you send me it

@brightenw8

you should post that as a remix

@airsofter

works good just needs some oil

@hibhub

how did you keep the bike pump in?

@blu.ball

Boosted

thank you for showing me what that circle thing was for

@user_837435258

Replying to @hibhub :

prolly just glue or epoxy or a rubber stopper

@1980alfaspider

Boosted

Print Profile

0.16mm layer, 4 walls, 15% infill

Awsome little engine

@ben.jmarshall09

amazing print, works best when scaled up to at least 130% with the shaft’s length and width scaled down 1%. I made mine 200% with PETG translucent. with WD40 and olive oil (don’t ask why) it ran as low as 1psi and with a vacuum ran so fast i couldn’t stop it burning my fingers in the process 🤣

(Edited)
