Fujikura Box - CT16 - SS05 - KS-1 Miller
Print Profile(1)
Bill of Materials
Description

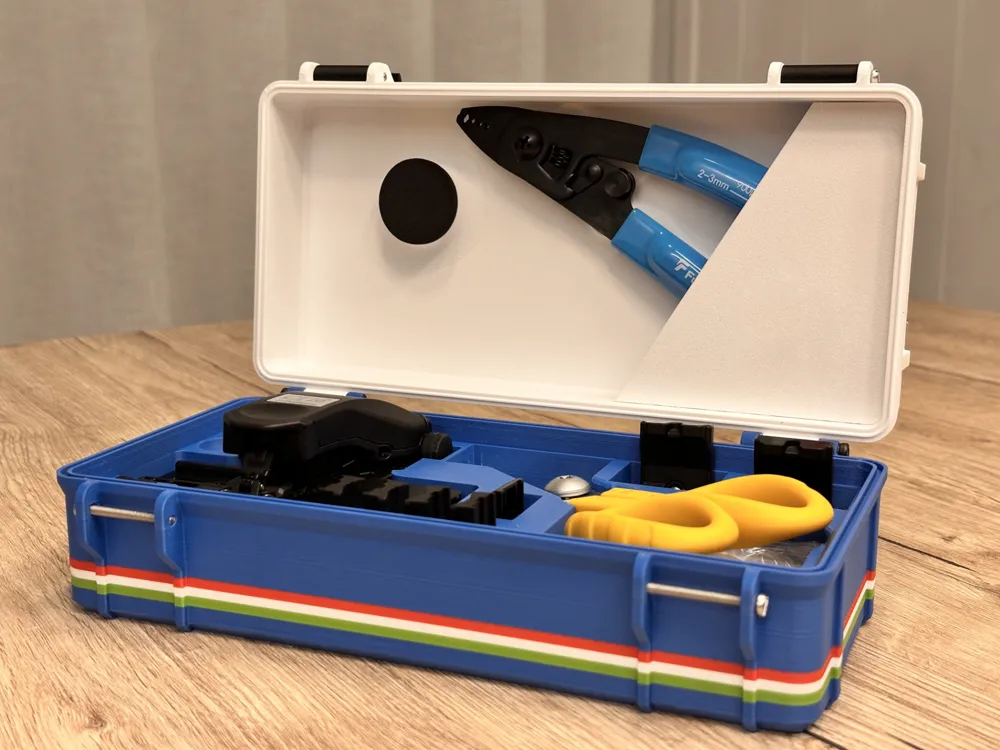

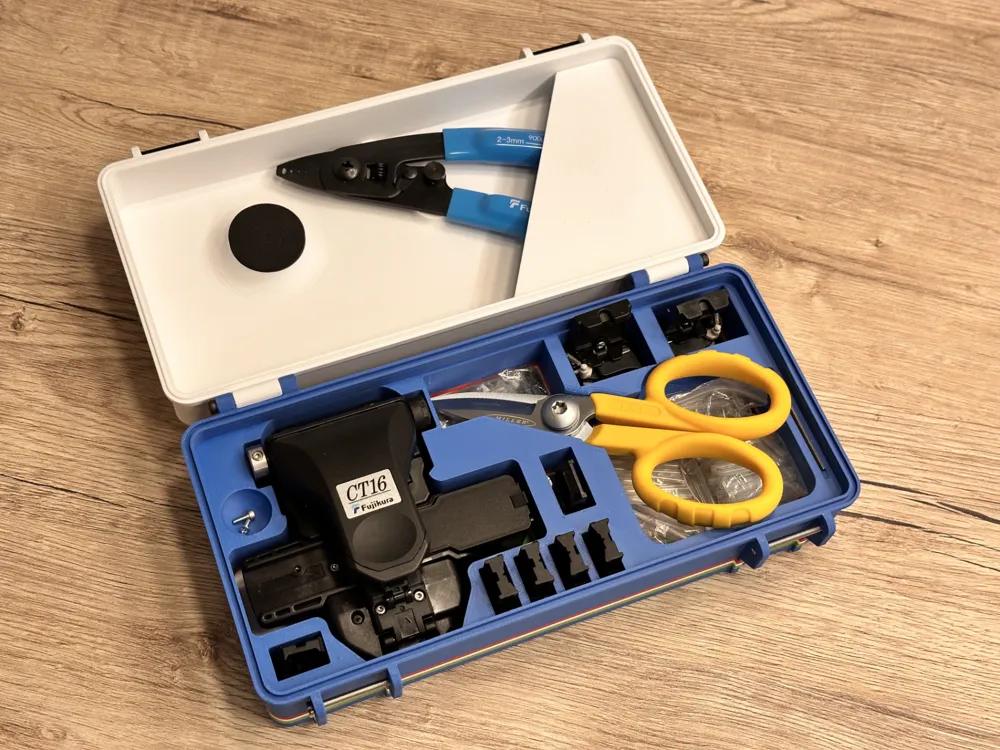

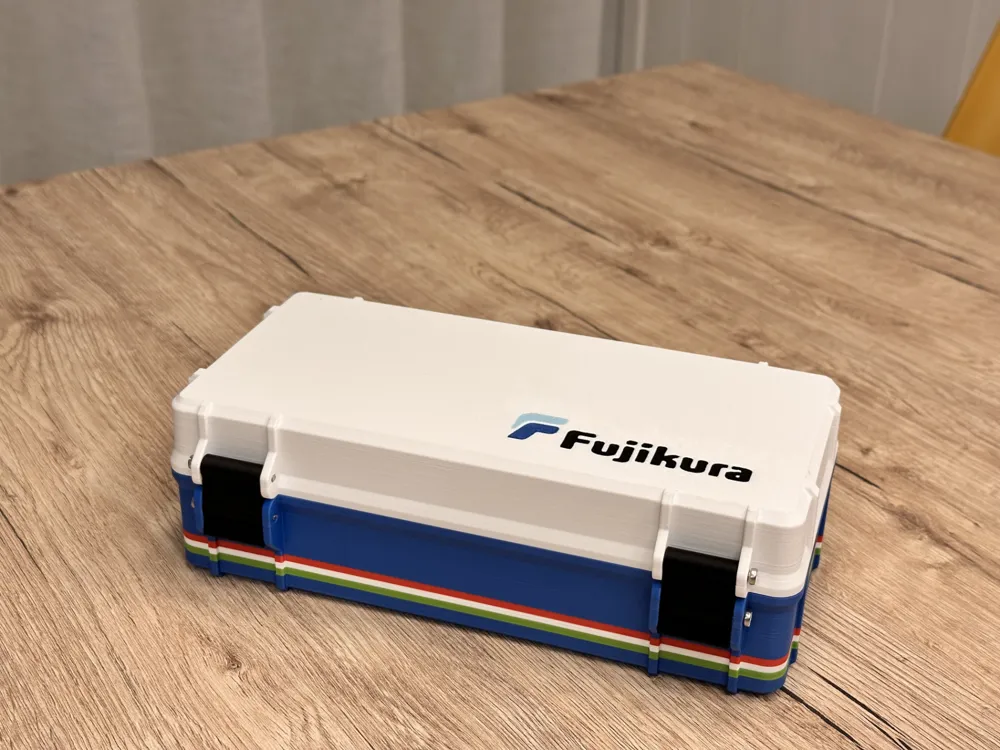

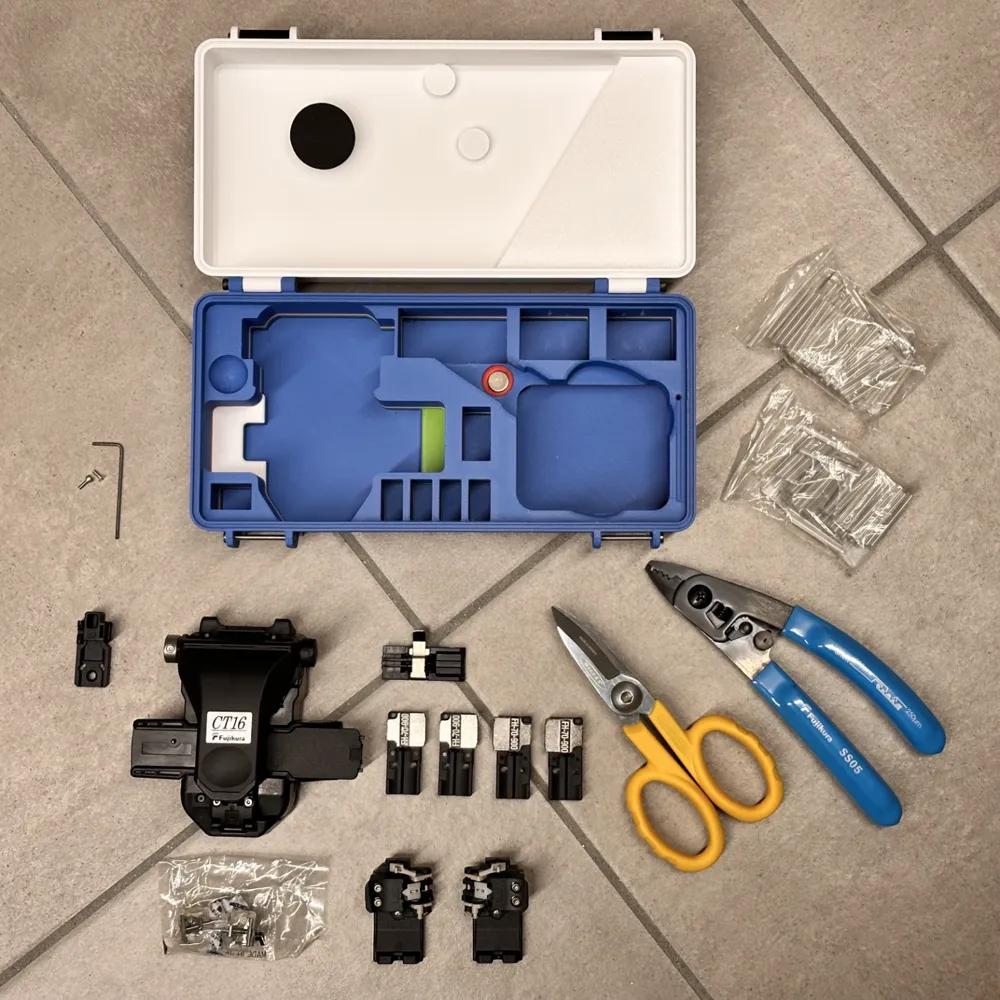

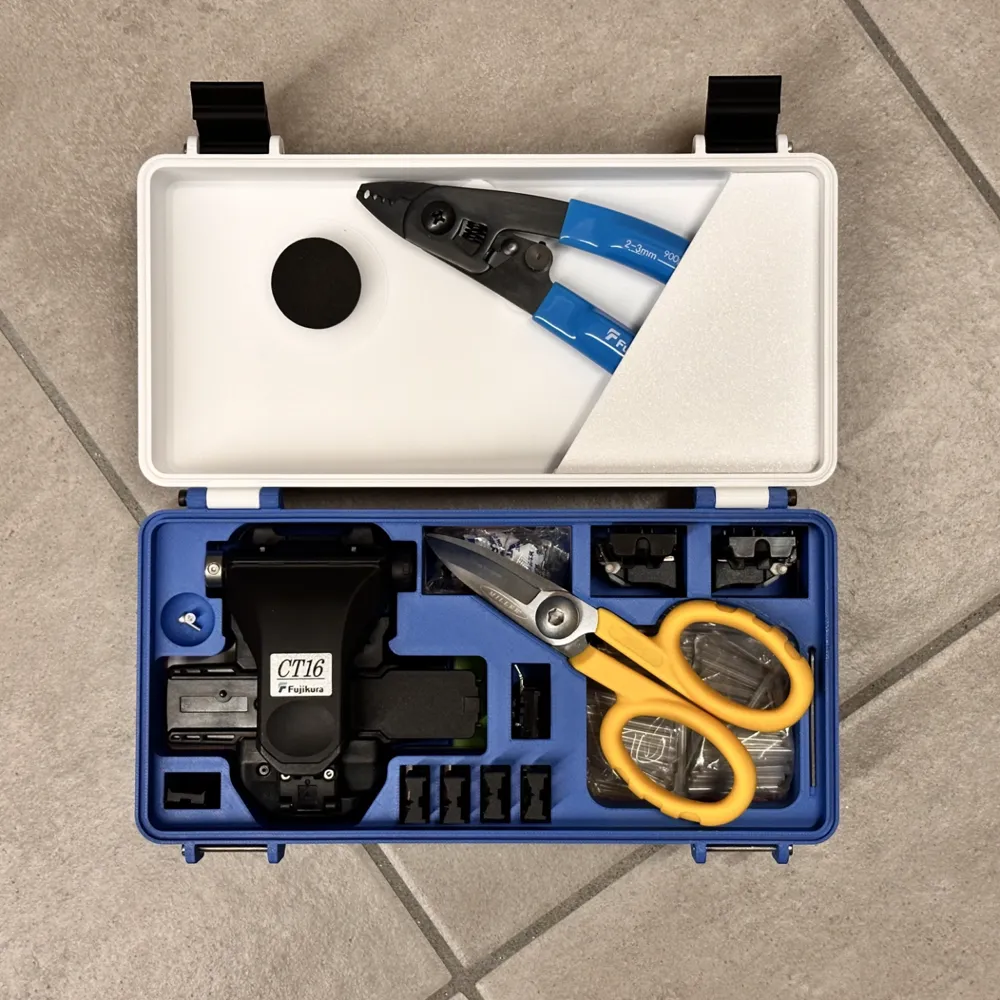

Box made by me to contain:
- Fujikura CT-16 cleaver
- Fujikura SS05 stripper
- Miller KS-1 scissors
- 100pcs F.O. junction tubes
- Pair of spare electrodes for Fujikura 35S
- Various accessories
- Hex wrench
All firmly fixed to the box magnetically
- - - - - - - -
Needed Various magnets to insert during the 6 breaks:
(in order of press breaks)
[Lower part]
-1° break → Layers 36 → Magnets 4x ⌀10x3mm
-2° break → Layers 70 → Magnets 1x ⌀10x5 (or 2x ⌀10x3 mm)
-3° break → Layers 129 → Magnet ⌀10x3mm
-4° break → Layers 134 → Magnet ⌀10x3mm
-5° break → Layers 141 → Magnet 3x4x20mm
-6° break → Layers 172 → Magnet ⌀5x5mm
[Upper part]
-1° break → Layers 31 → Magnets 2x ⌀10x3mm
To have ALL the magnets measurements I recommend:
https://www.supermagnete.it/
For the hinges/locks you will need:
6x M3x30mm screws
[Bambulab AA042 or AA063]
- - - - - - - - - - - - - - - - - -
