Anchors for installing LED strips at 45 degrees on the ceiling

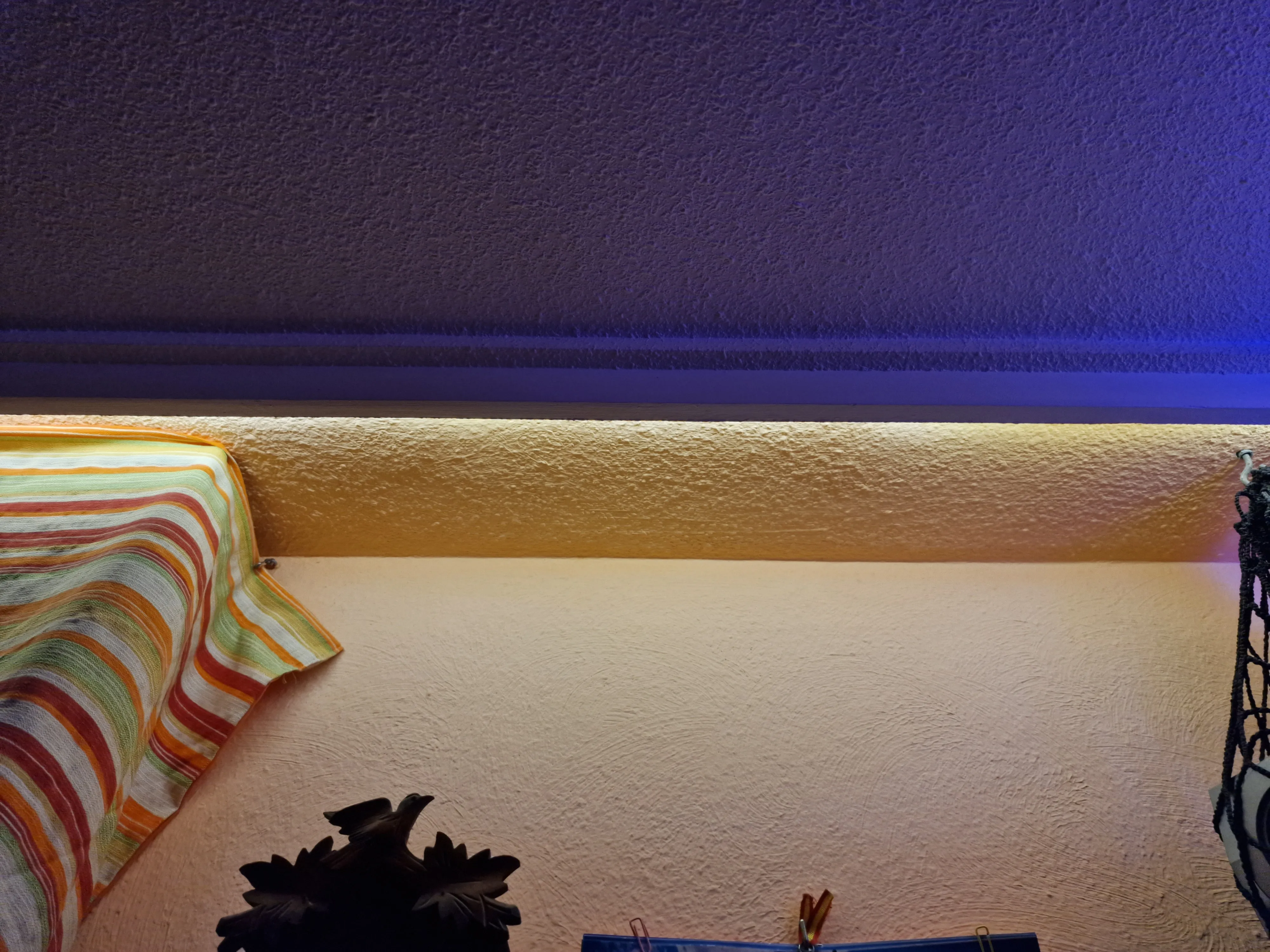

When I started 3D printing, one of the first things I designed was this LED strip installation kit for the ceiling. With these anchors, the light is emitted at 45 degrees, and can be installed in the same corner between wall and ceiling, or behind plaster or moldings, creating a rebound effect with indirect light.

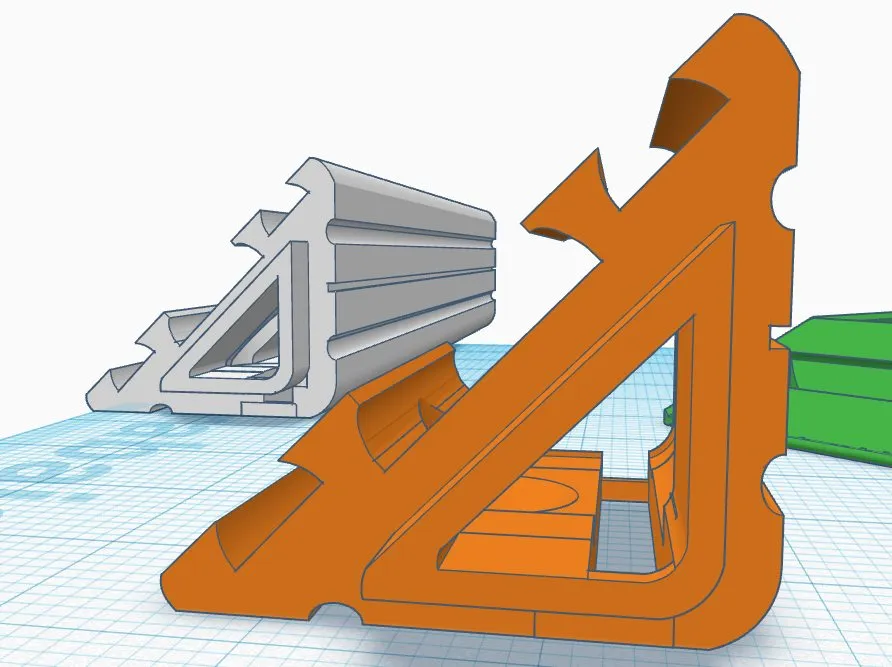

The kit is made up of a small part for straight sections, which can be screwed with a single screw. It also includes some grooves to add roughness in case you want to reinforce it with liquid adhesive.

The piece is hollow so that cables can be inserted inside and thus left hidden behind the strips. In case a replacement is needed, there is a cuttable area to be able to pass the cables inside without having to completely dismantle the installation.

In the case of the corners, they are not designed for replacement, but yes to keep the strips tensioned, since they have more holes for fixing them with screws. There are both interior and exterior ones.

They are also modular. If you need to make larger sections, you can fit pieces together around the interior gap.

These modules are designed to keep the LED strips taut and fixed at certain distances. I do not install them continuously throughout the entire installation, I only install them where I estimate that the LED strip begins to curve.

08/12/2023

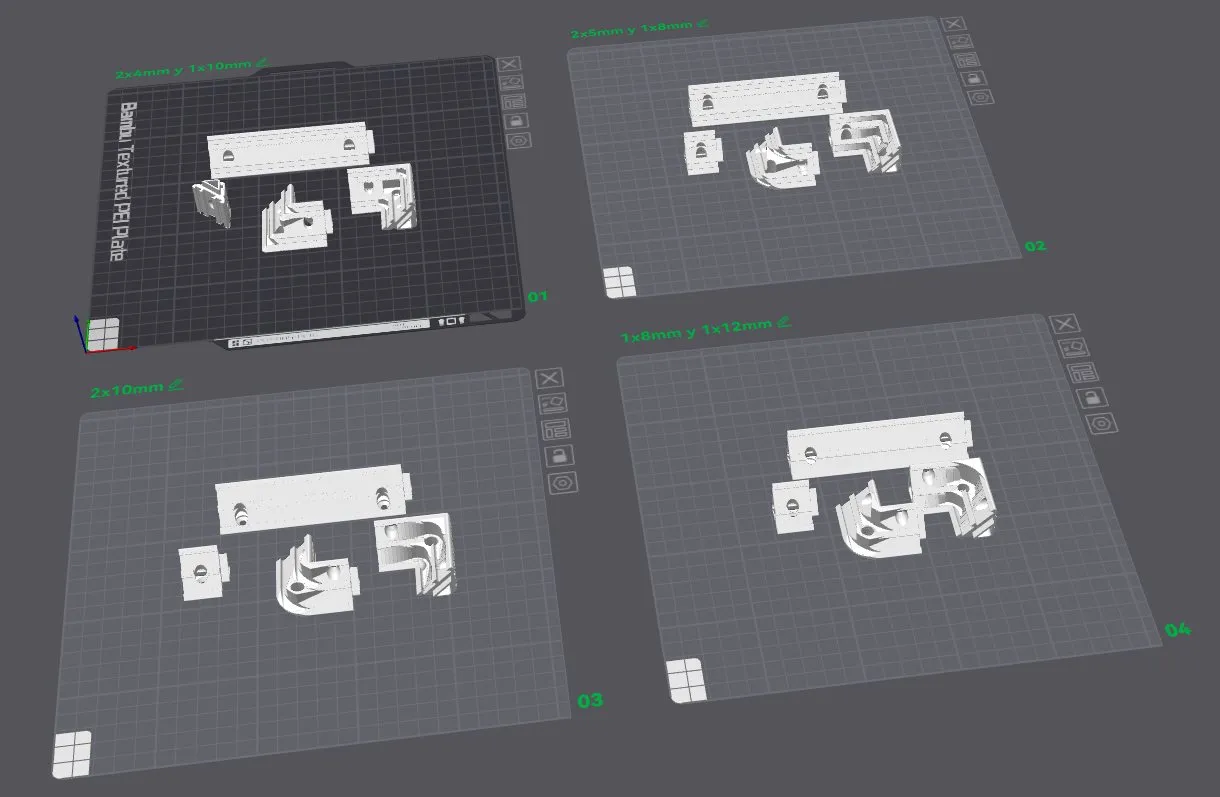

Added Kits for 5mm, 8mm and 12mm:

Plate 1: First version 2x4mm and 1x10mm

Plate 2: NEW 2x5mm and 1x8mm

Plate 3: NEW 2x10mm

Plate 4: NEW 1x8mm and 1x12mm
