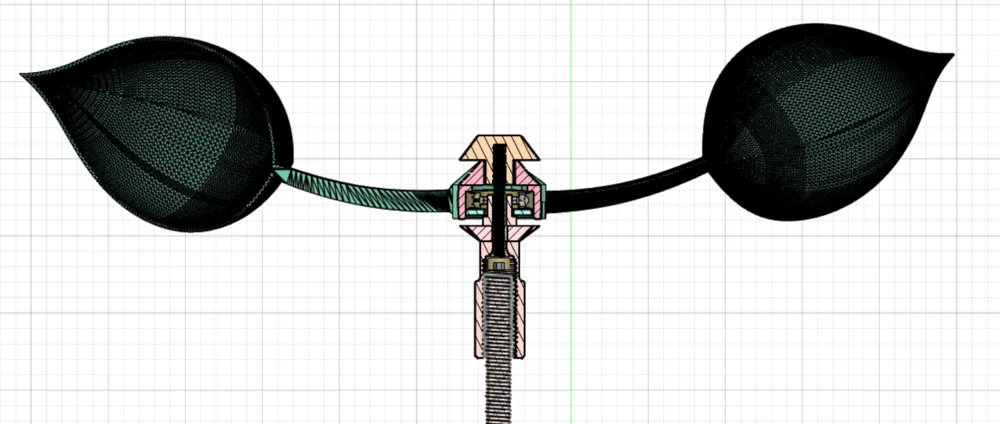

Leafes Wind Wheel+Mounting-Detail.png


Blaetter-Windrad V1.png

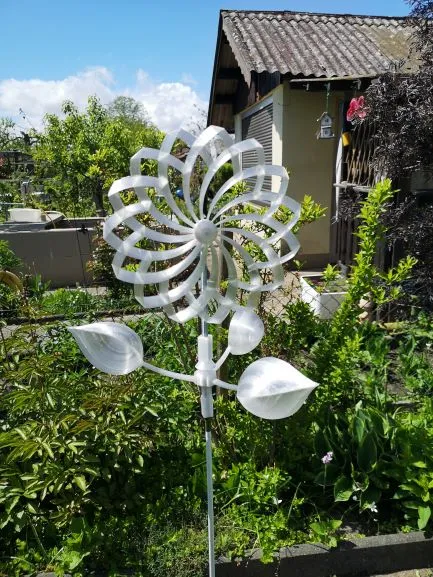

Flower with Leafs.jpg

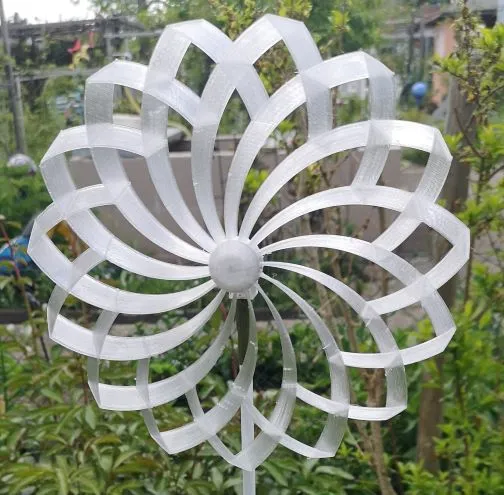

Flower wheel-1.jpg

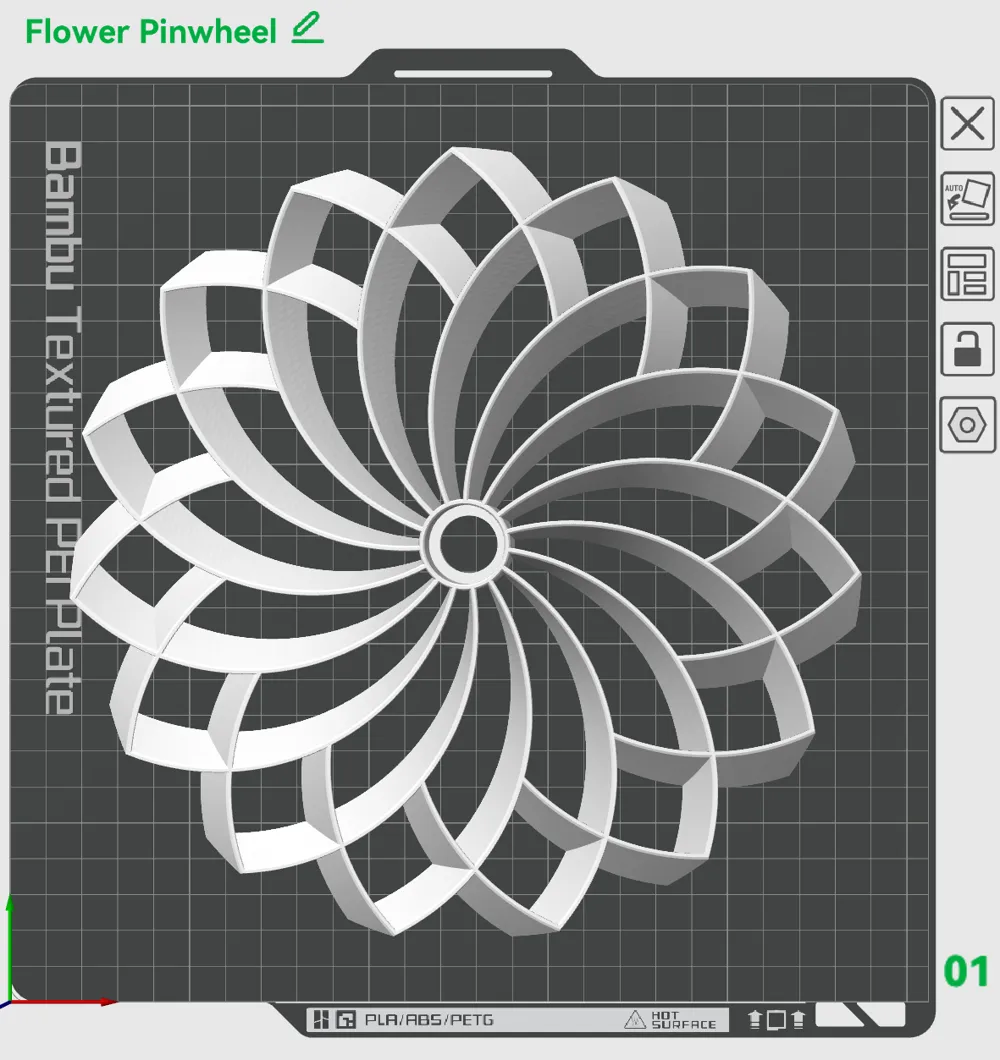

Plate 1.png

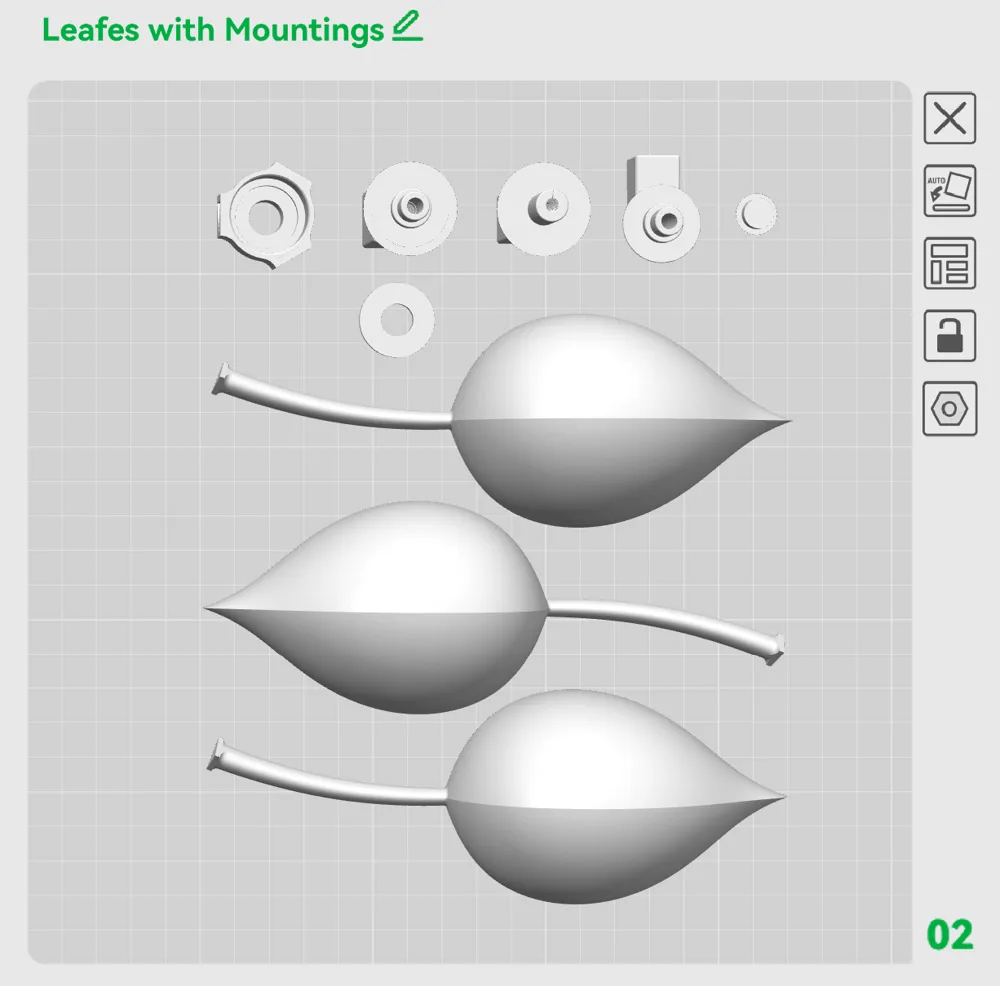

Plate 2.png

Flower Pinwheel


Leafs and Flower Mountings


Leafs only Mounting

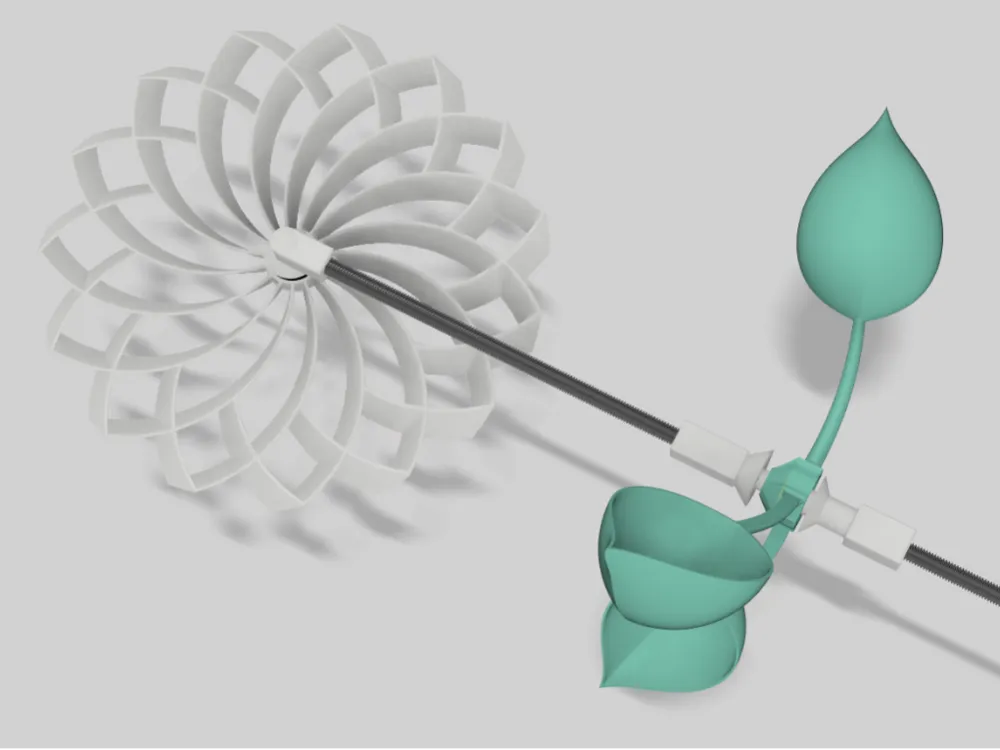

Flower wheel with leafes-Detail .png

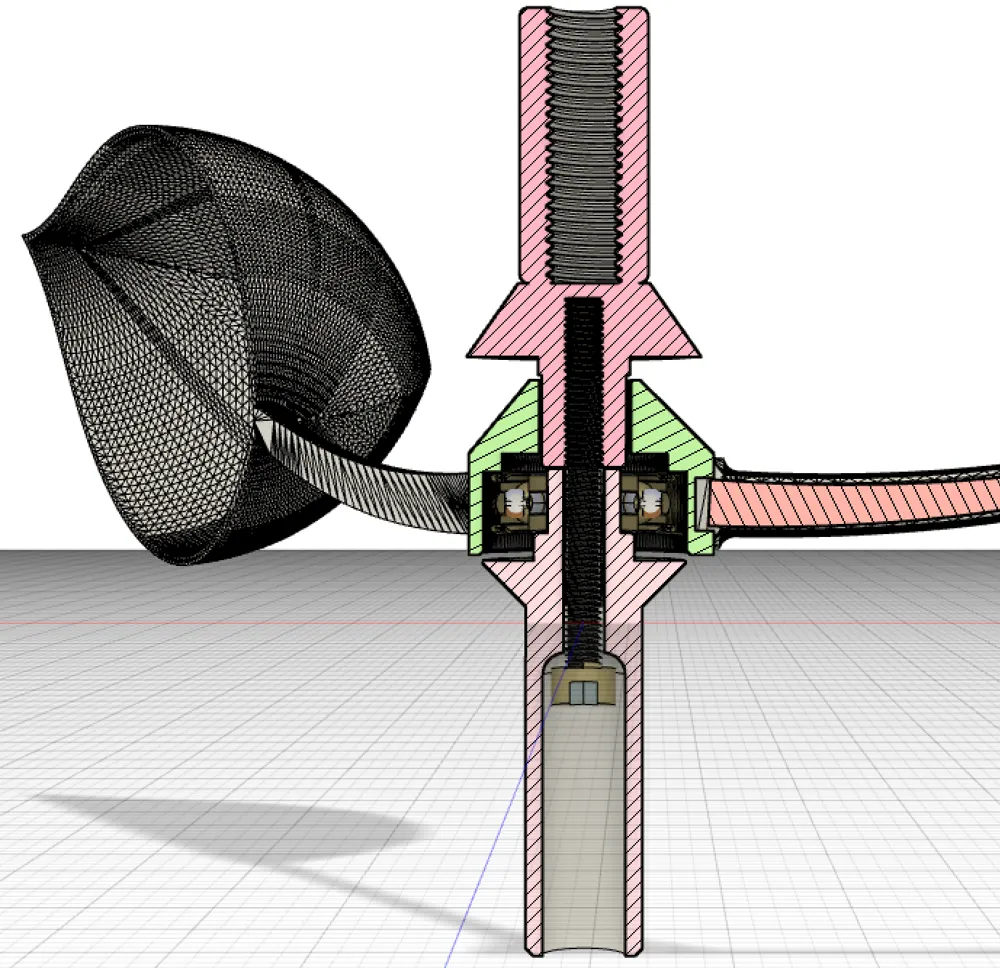

Hi, This are just some additional mounting parts to connect two fantastic designs together,See my pictures aboveUnder both designs above I could not find any mountings to connect it in the way I wanted it to be. Thats why I have designed all parts below ( See also Bill of material picture for all parts included)SHW-Leafes Mount straight.stl to place below the "BallBearingCenter.stl" of the rotating leafes and to connect with a M4x40 screw with one of the following 2 Spindel versions. The 3 leafs needs to be glued then around into the BallBearingCenter circle.SHW-Spindel Leafes-V1.stl in case you just want to build a pure leafs wind wheel.SHW-Spindel-FlowerLeafes-V2.stl in case you want to combine both builds, the flower and the leafs as one build, like I did.Remark: Both Spindel versions have a M4 threaded whole included for an M4x40 mm screw to connect the Spindel with the straight mount through the ball bearing. The V2 also has a threaded whole on top to be able to screw.

Small change

<figure class="media"><oembed url="https://youtu.be/Bv72OSUDD_k"></oembed></figure>Pin wheel with leafsFilament:PETG Diameter 1,75 mm 0,2 mm layer high3 walls with 15% Gyroid fill Rim 5mmNozzle 0,4 mm harded steel or other&#39;sPrinter Bambu A1

SHW-AIO FlowerPinWheel with Leafes
