BdS-Arduino UNO
If you need info, tips or have any questions, email me at aurel_hazizaj@spaceeagle.it. Subject: BdS-Arduino UNO
BdS-Arduino UNO is a custom-designed case for Arduino R3 boards developed by SPACE EAGLE in collaboration with SystemASA. The project is made public and accessible to anyone.

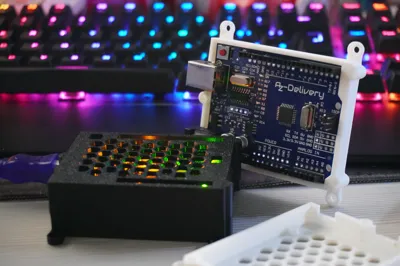

The case structure is divided into two parts. The bottom section is precisely designed for the shape of the Arduino board, featuring four holes for securely mounting the board to the case. Additionally, there are four external mounting flanges to attach the case to a work surface. The top section has all the necessary openings for connecting the pins, specifically designed to accommodate both the cables and the reset button.
Both parts snap together using a sturdy male/female locking mechanism.

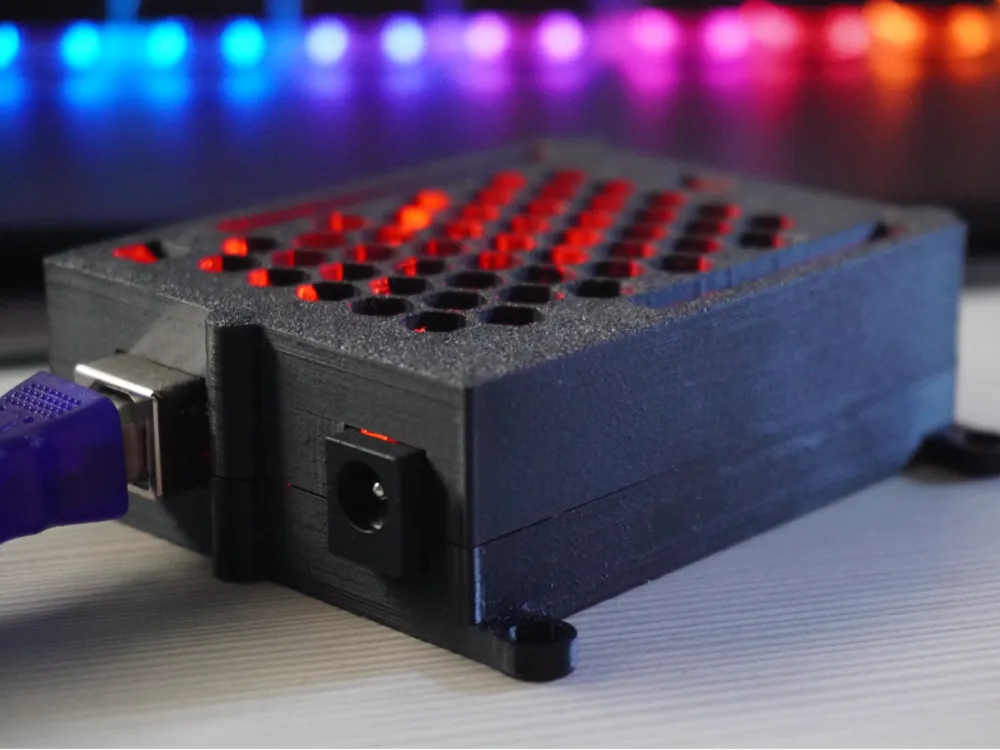

The case design incorporates hexagonal cutouts, inspired by a honeycomb structure, which enhances durability while minimizing material usage and reducing 3D printing time.
The case is compatible with all boards that have the same dimensions and pin layout as the Arduino Uno R3, including clones and compatible versions produced by various manufacturers.
Photo by: Aurel Hazizaj, Sony Alpha 6400 + 16-55mm
