Ratchet strap reel (clicky assembly)
IP Report
Print Profile(5)
Designer original 0.28mm layer, 4 walls, 23% infill
Designer
3 h
2 plates
0.2mm layer, 2 walls, 15% infill
2.1 h
2 plates
A1 Mini: 0.28mm layer, 4 walls, 23% infill
3.2 h
2 plates
0.28mm layer, 2 walls, 15% infill resize for gym ring
2.8 h
1 plate
Click to see more
Open in Bambu Studio
Boost
1483
4601
316
283
2.8 k
1.6 k
Released
Description

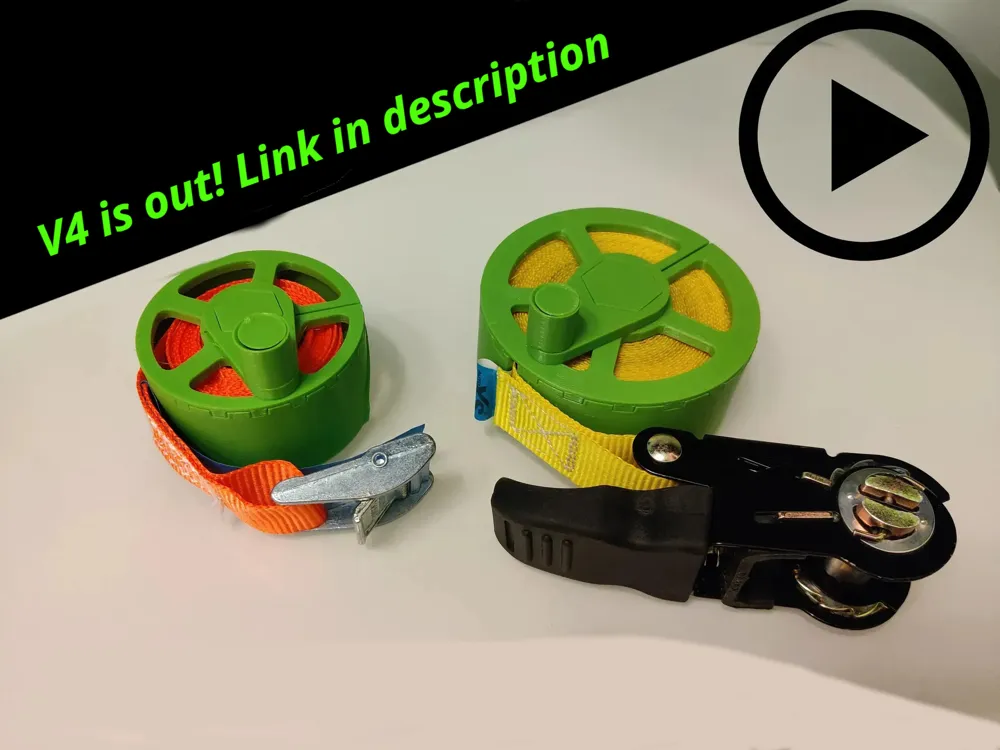

VERSION 4 IS OUT NOW! INTEGRATED LOCKING MECHANISM, MORE RIGID, BETTER!
LINK:
https://makerworld.com/en/models/1267206-ratchet-strap-reel-v4-clicky-assembly#profileId-1293172
Boost Me (for free)
Yes, yes do it!
Always secure your items adequately when traveling and make it easier to roll up the tensioning straps ...with this print.
Printed parts only!
Recommended print settings for sufficient stiffness:
PETG (PLA may get soft if stored in car)
wall loops: 4
infill: triangles 23%
top/bottom layers: 5
layer hight: 0,2 (bigger layer hights may work too and save time)
Crank 3 is print in place. Break the small sleeve free to achieve a better winding experience.
Forgot to mention in the video: Add a small amount of grease to the “bearings”
This is intended for belts with width <30mm however you can scale the parts for wider or thicker belts. As a reference: a 5m belt with a thickness of 1mm will fit very good.
spool belt car winder ratchet strap Spule lashing tension tensioning car organiser organise tidy wind
Documentation (1)
Other Files (1)
Documentation.pdf
