Video Doorbell Pro 2 - 4 In. Dutchlap Siding Mount
Print Profile(1)
Description
Boost Me (for free)
Help me by boosting my models if you like them. Boosts help me be creative by supplying filament to try new things

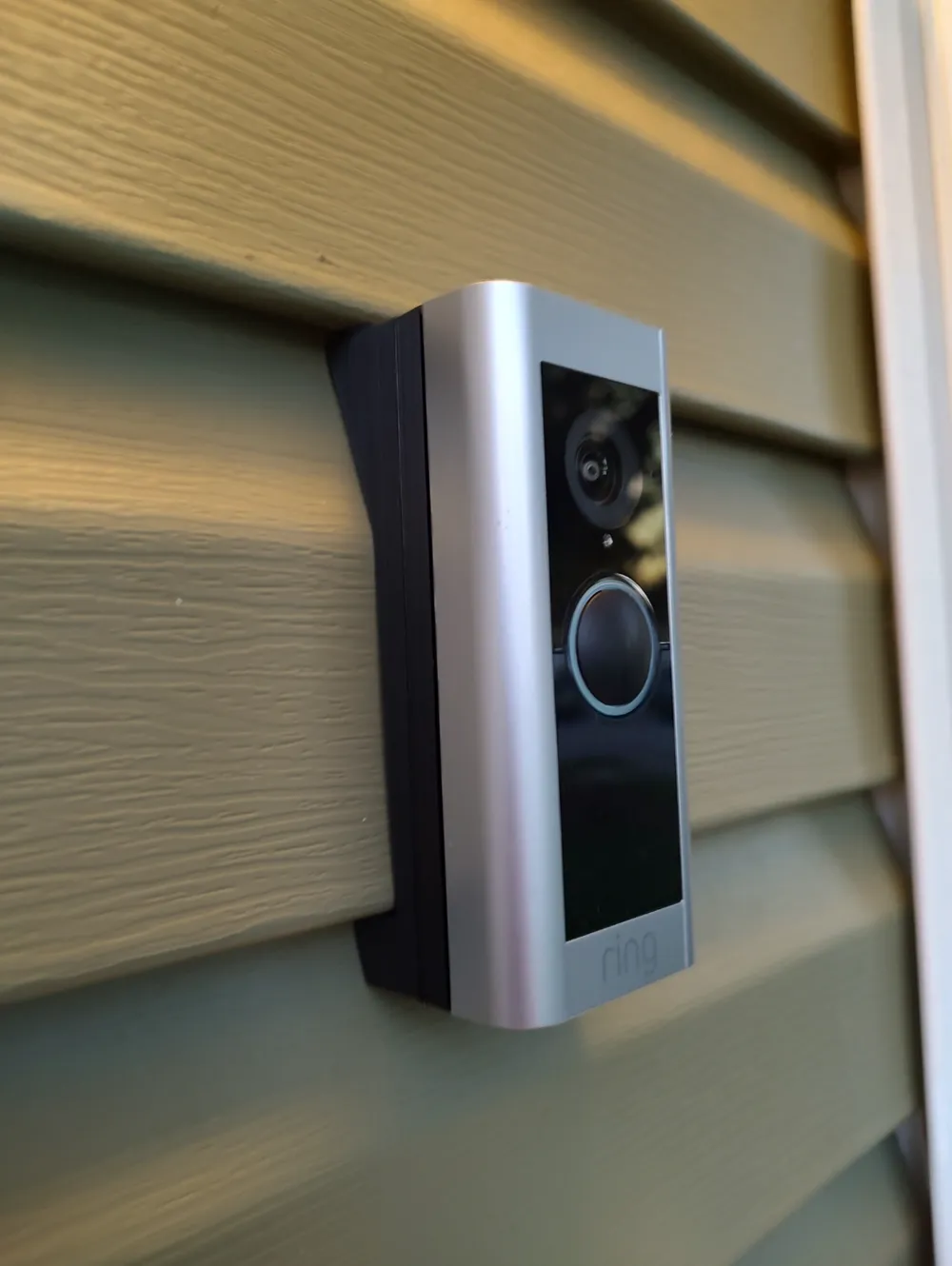

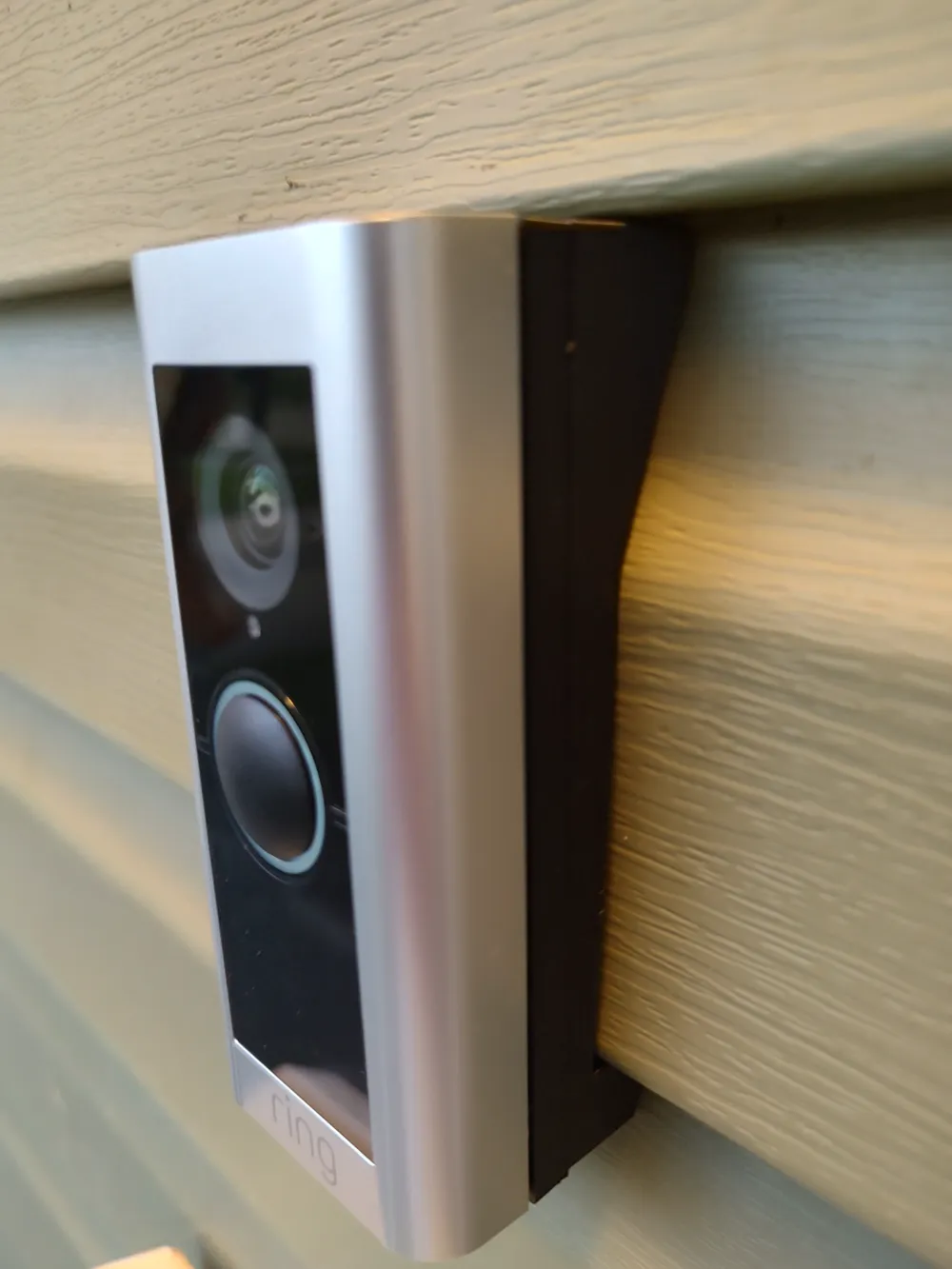

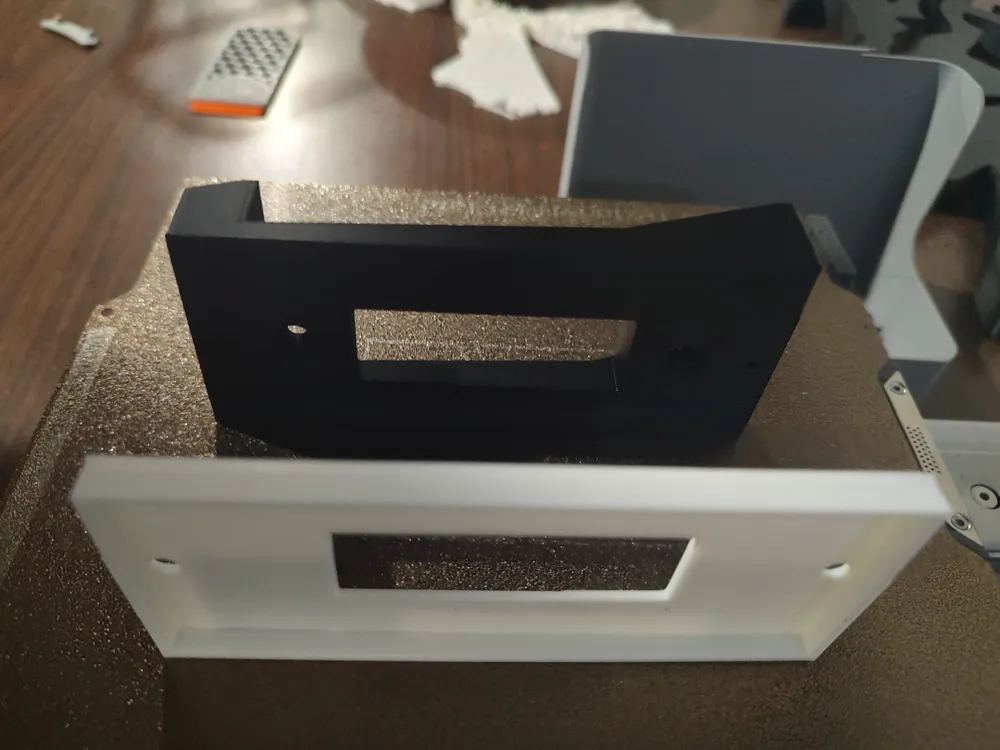

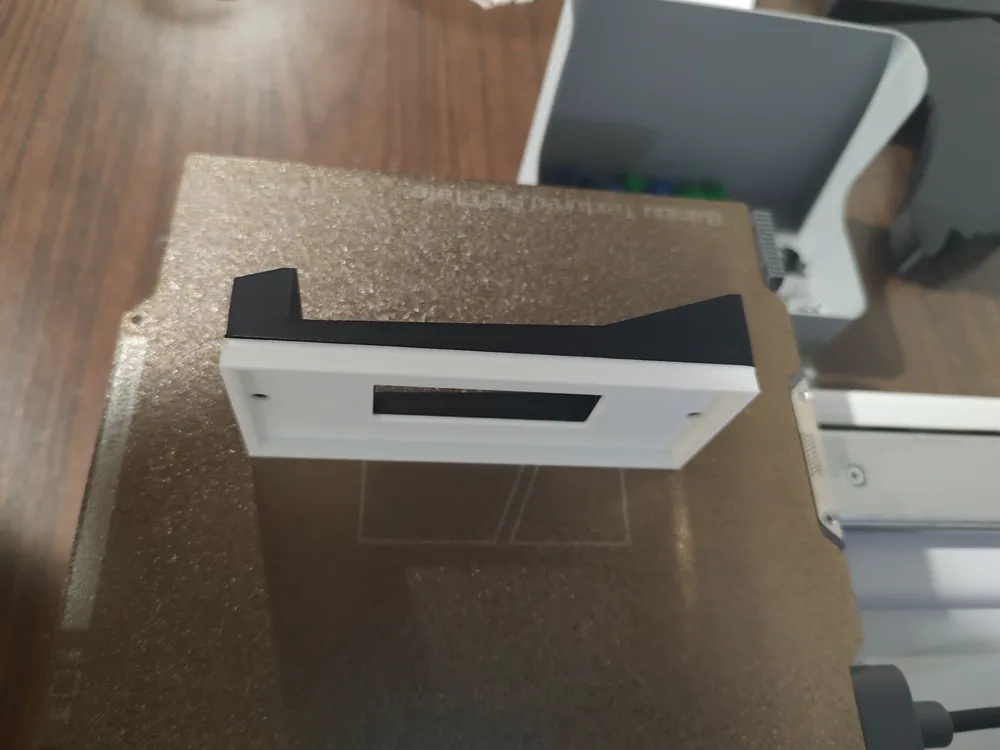

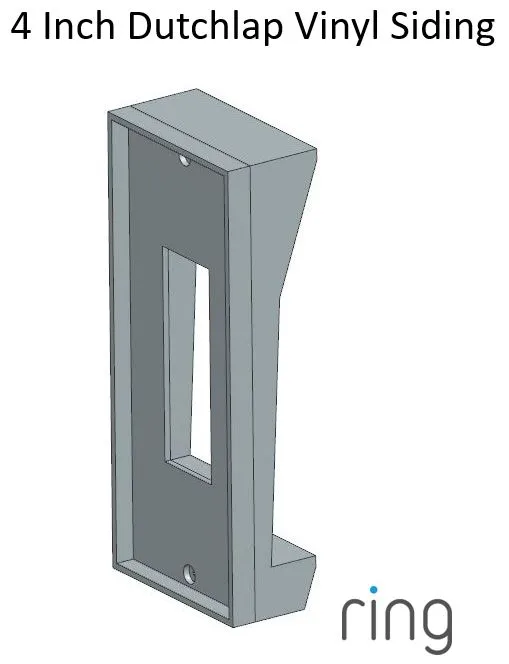

Two piece Mount for fixing Ring Video Doorbell Pro 2 to wall with 4 inch Dutchlap Vinyl Siding. Can be printed in different colors to customize your doorbell. This uses the mounting screws that came with the doorbell and a couple basic screws. A modifier was added around the doorbell mounting holes to increase infill in that area since the mounting screws will cut threads into the hole.

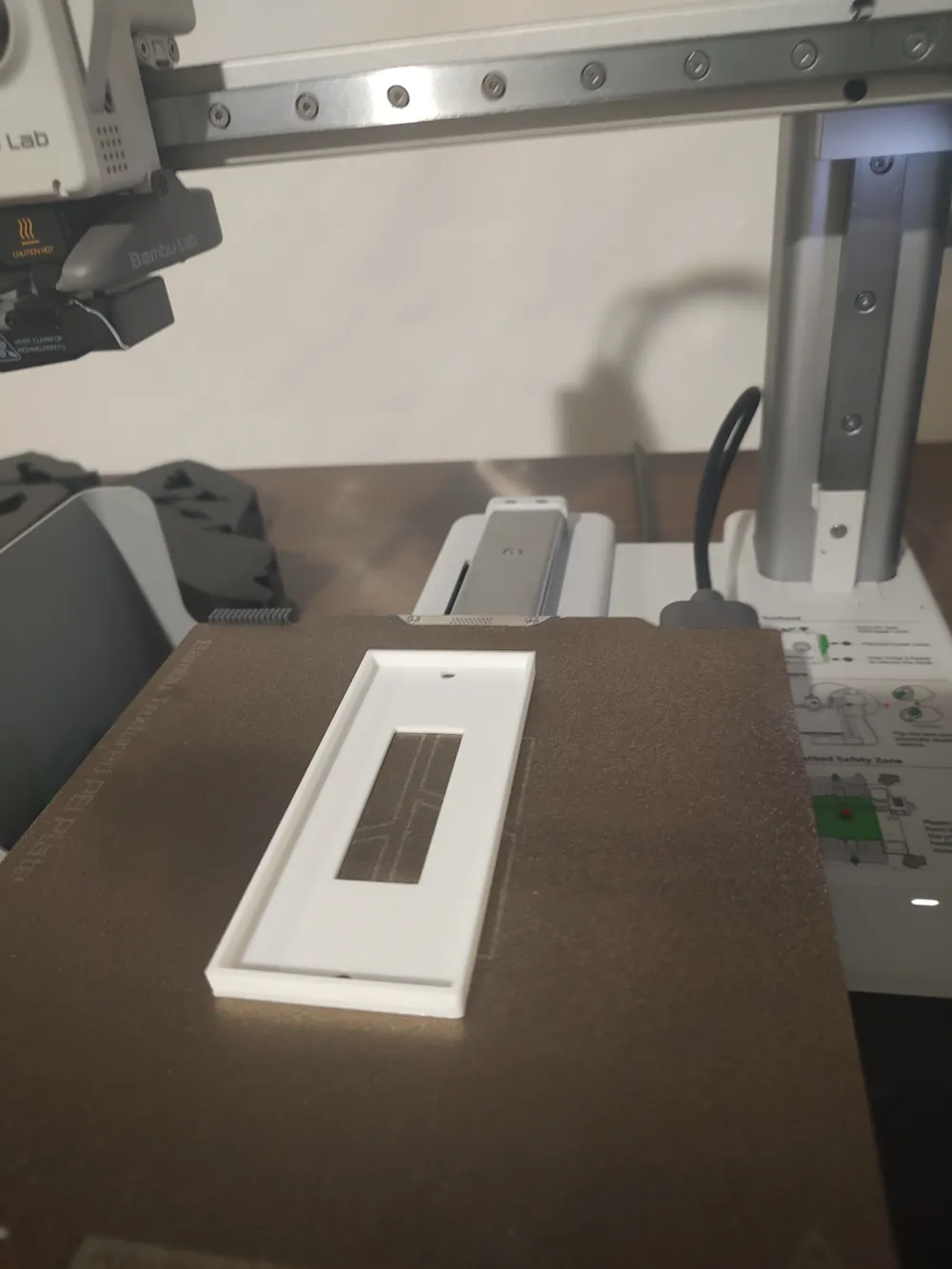

To install, feed wiring through the opening and mount the base to the wall with (2) basic screws. Align the trim piece with the doorbell and mount to the base with the (2) mounting screws provided with the doorbell. This is in a fairly protected area under an overhang so only printed with PLA on an A1 Mini although it should probably be printed in PETG. Message with any suggested changes, always open to improvement.
