Tray with clamp
Print Profile(3)
Description

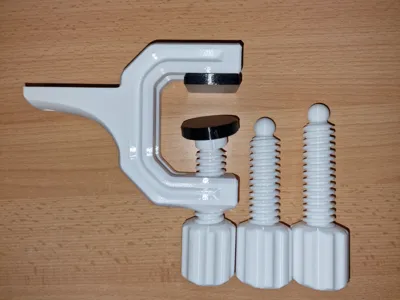

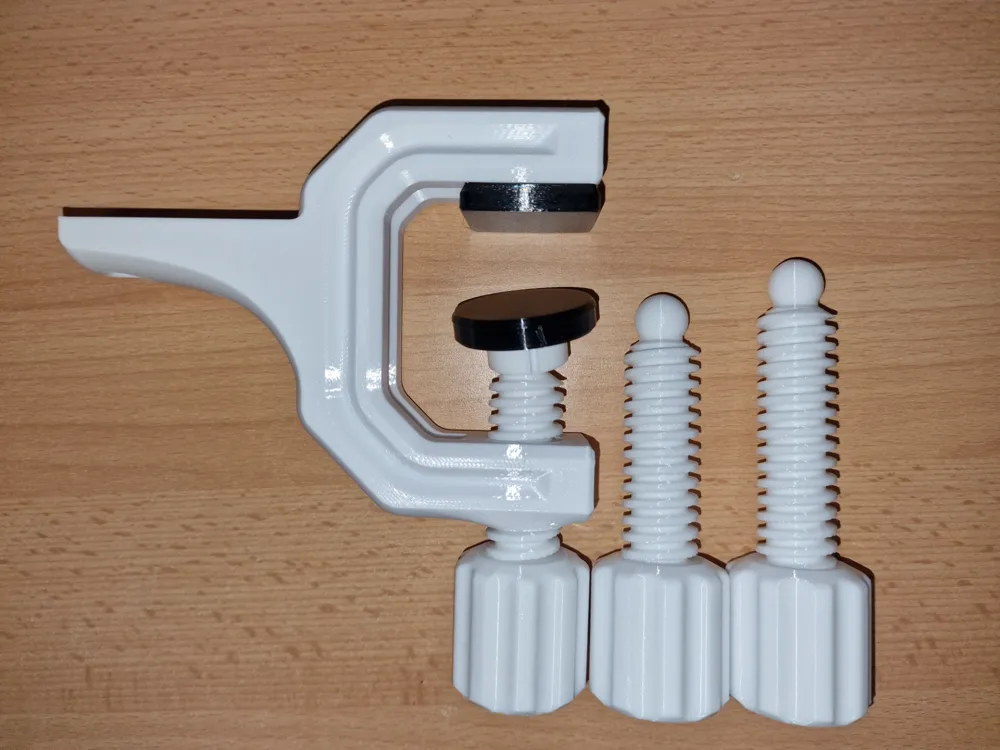

New October 20, 2024 Clamp now in short on request
Clamping range 0-40mm, 8-40mm 18-40mm
Only the clamp and the screw in length were changed.
When using the short clamp. First, guide the clamp through the plate and then mount the jaw.

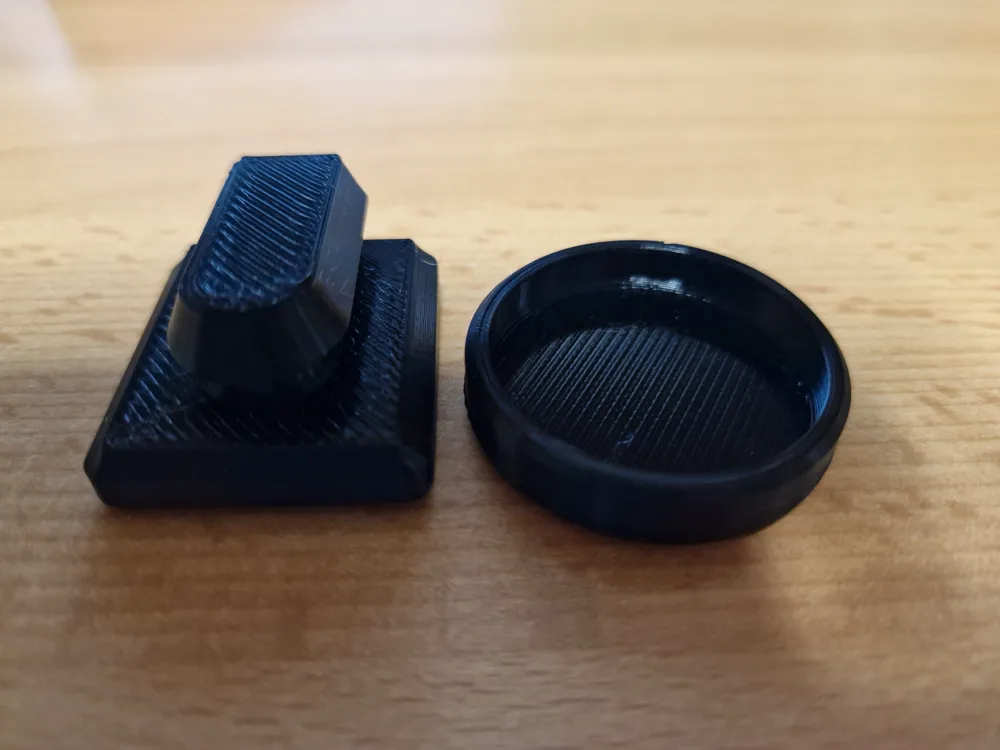

Additionally, there are protective jaws made of TPU for all models.
How do you describe something like this!

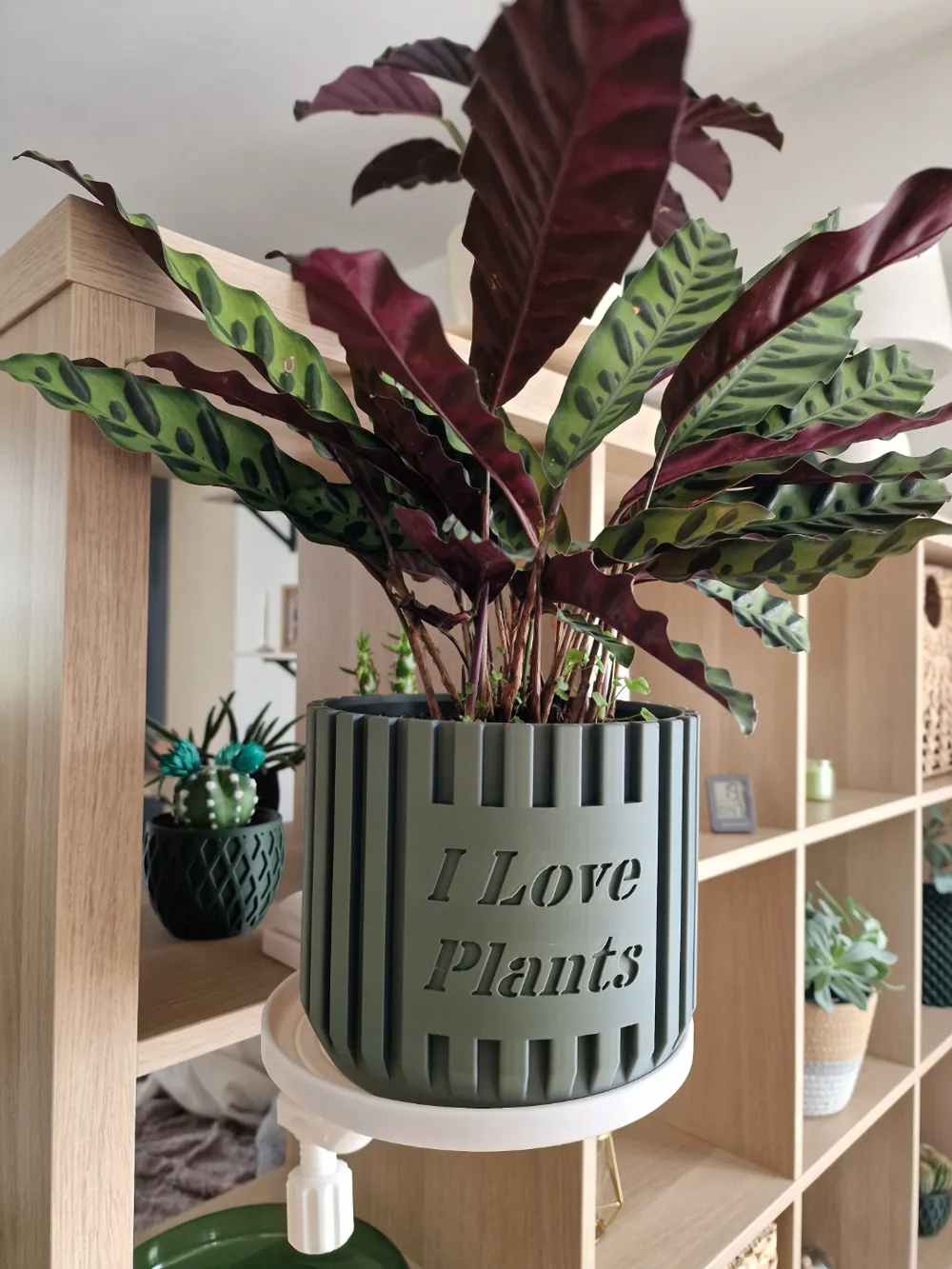

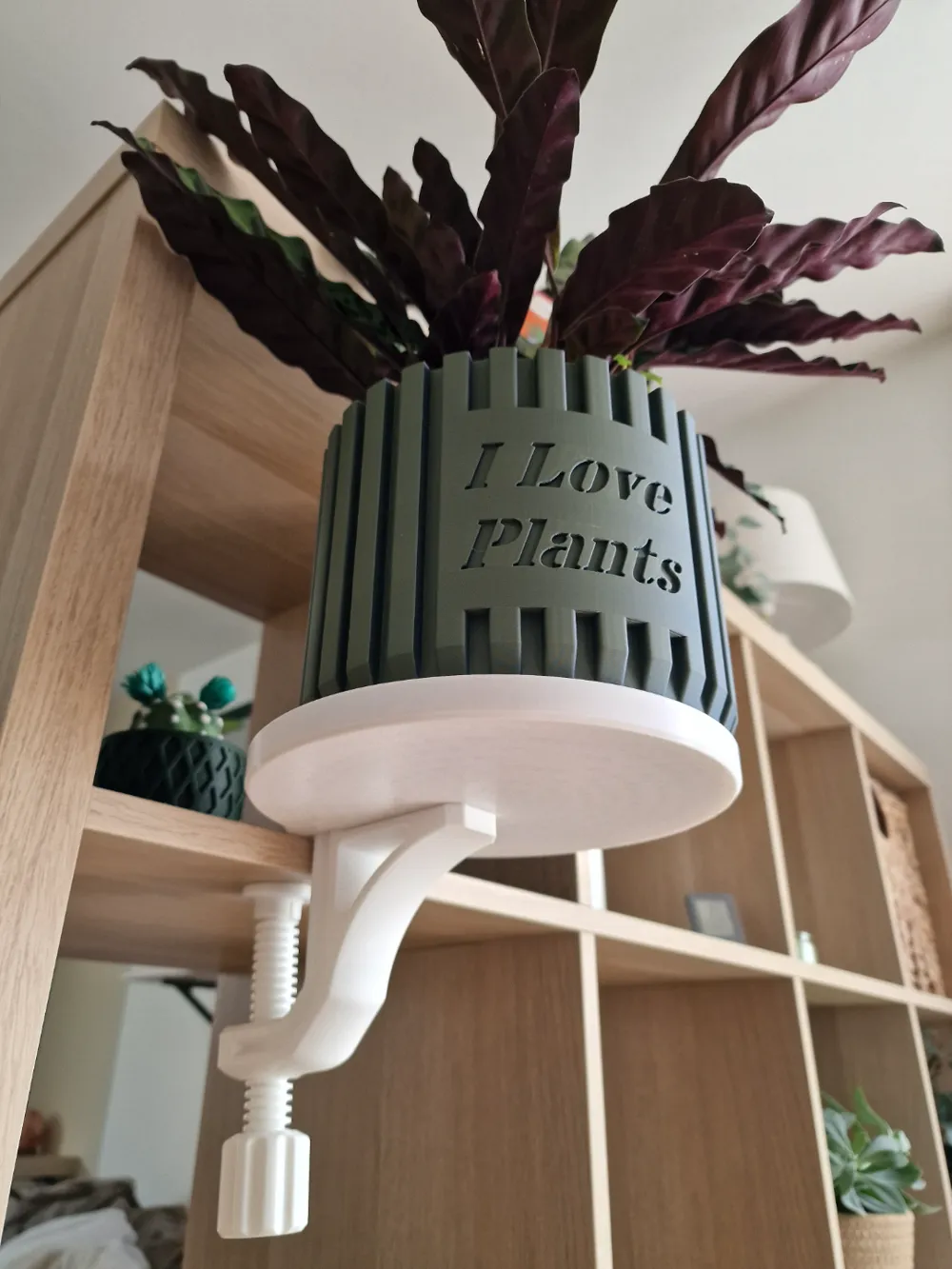

My wife wanted something that could be quickly screwed onto a windowsill and also removed again.
Ultimately, it is more versatile than thought and very stable.

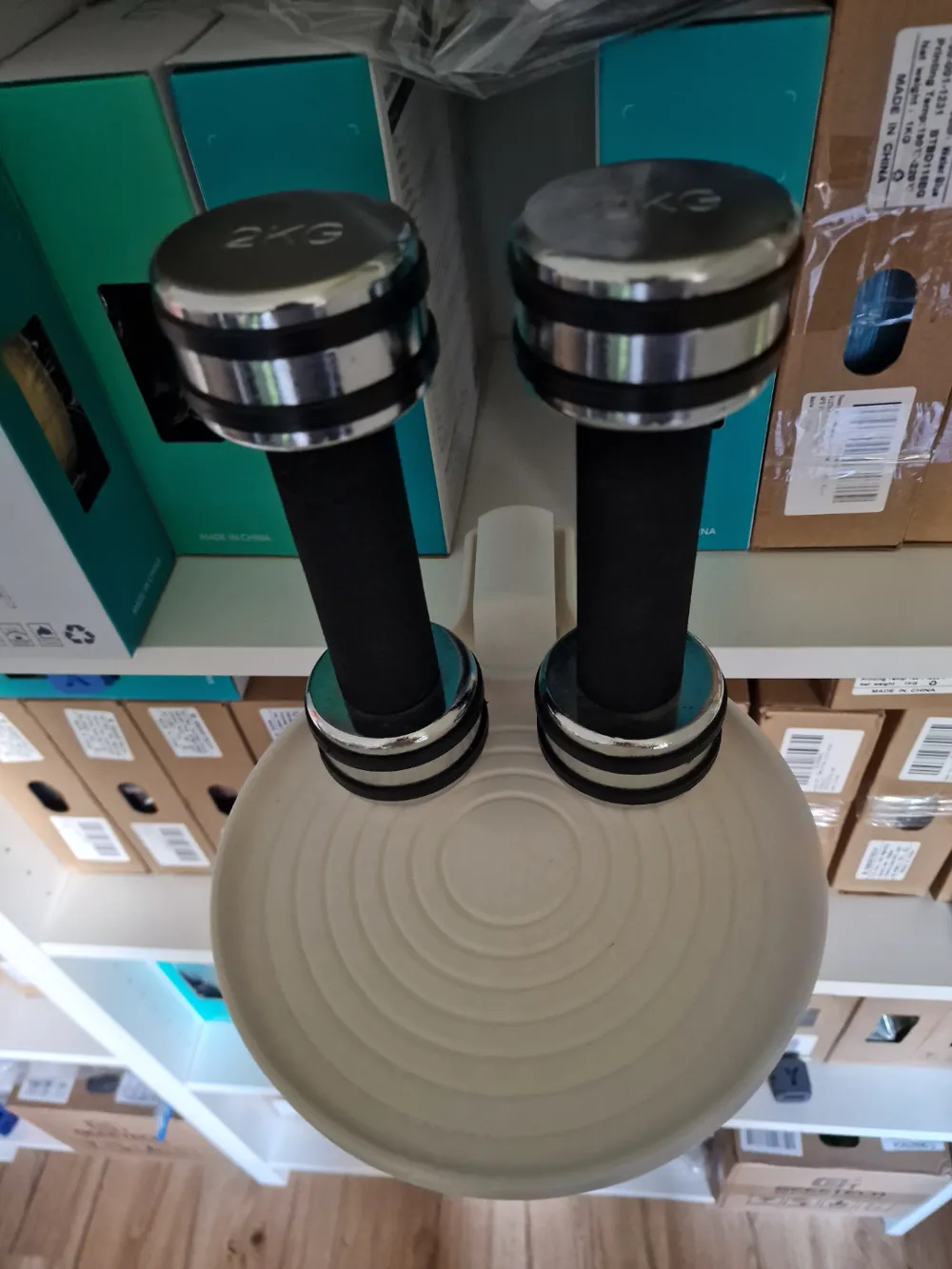

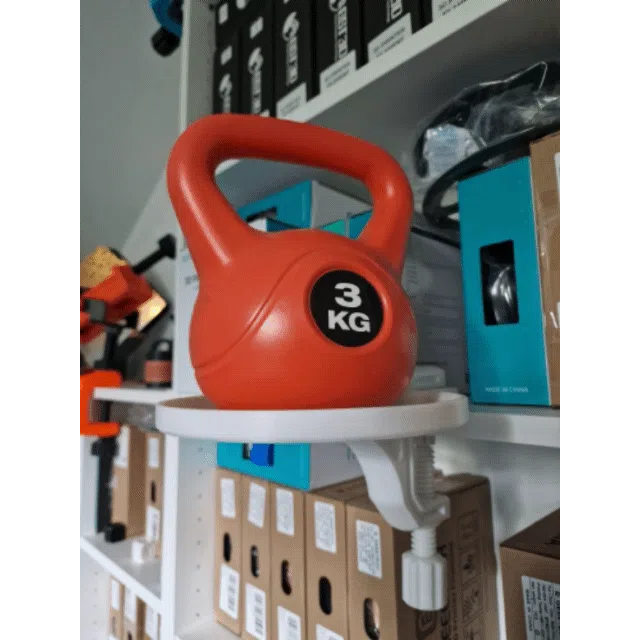

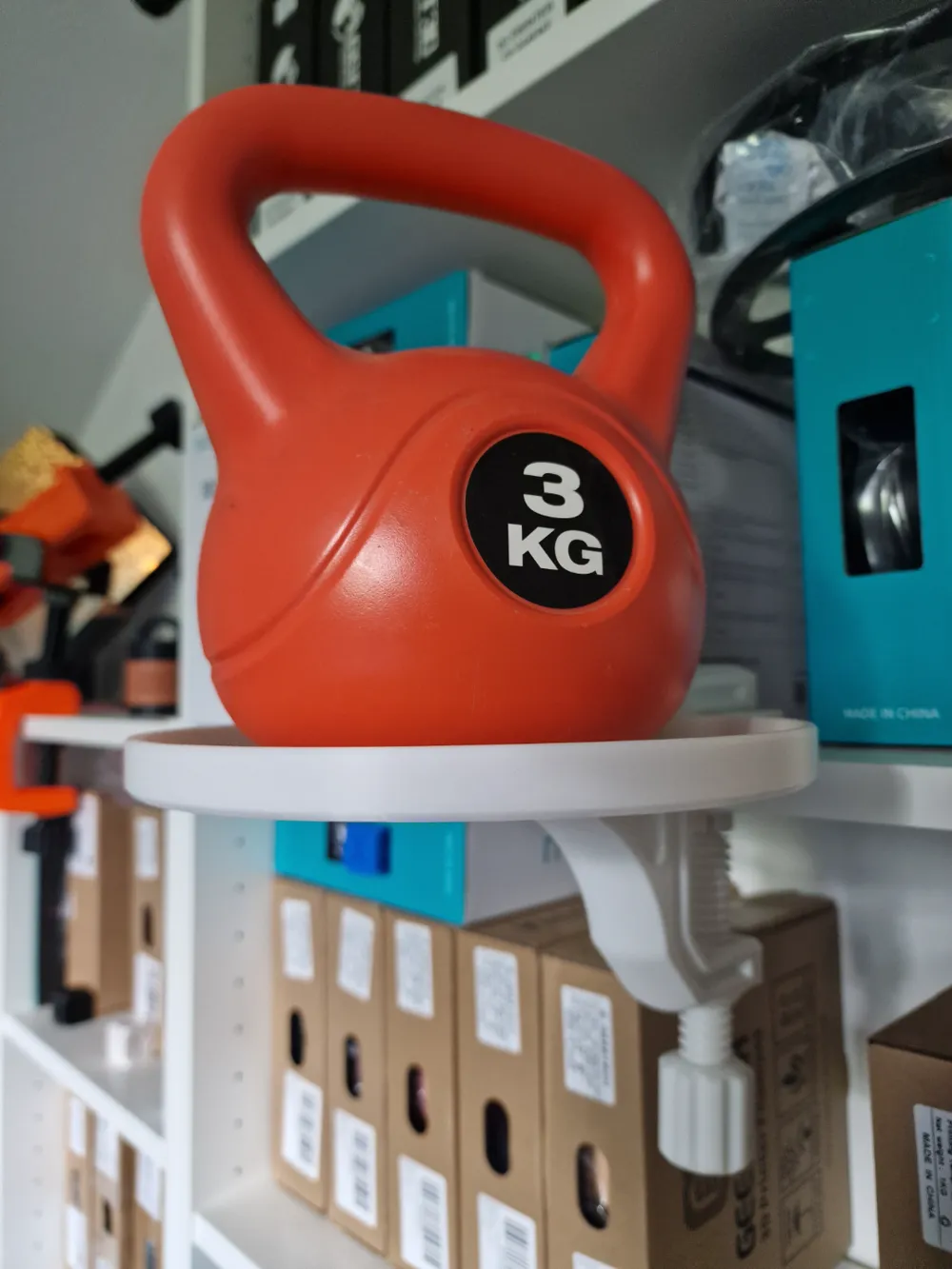

3kg to 4kg are no problem.

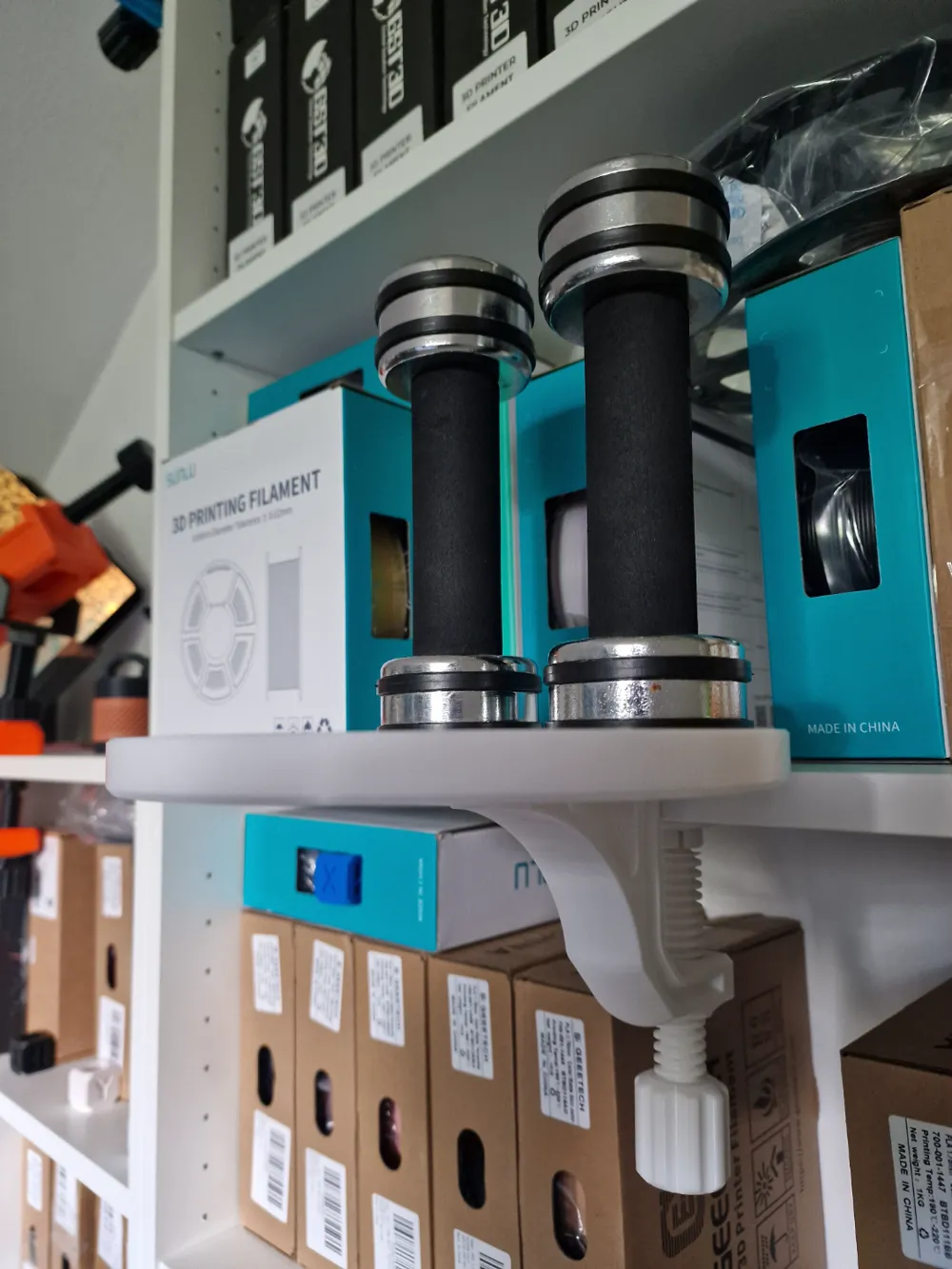

You can quickly screw it to a table or shelves to create additional storage space.
I generally recommend PETG for mechanical parts.
In PETG, the parts are very stable.

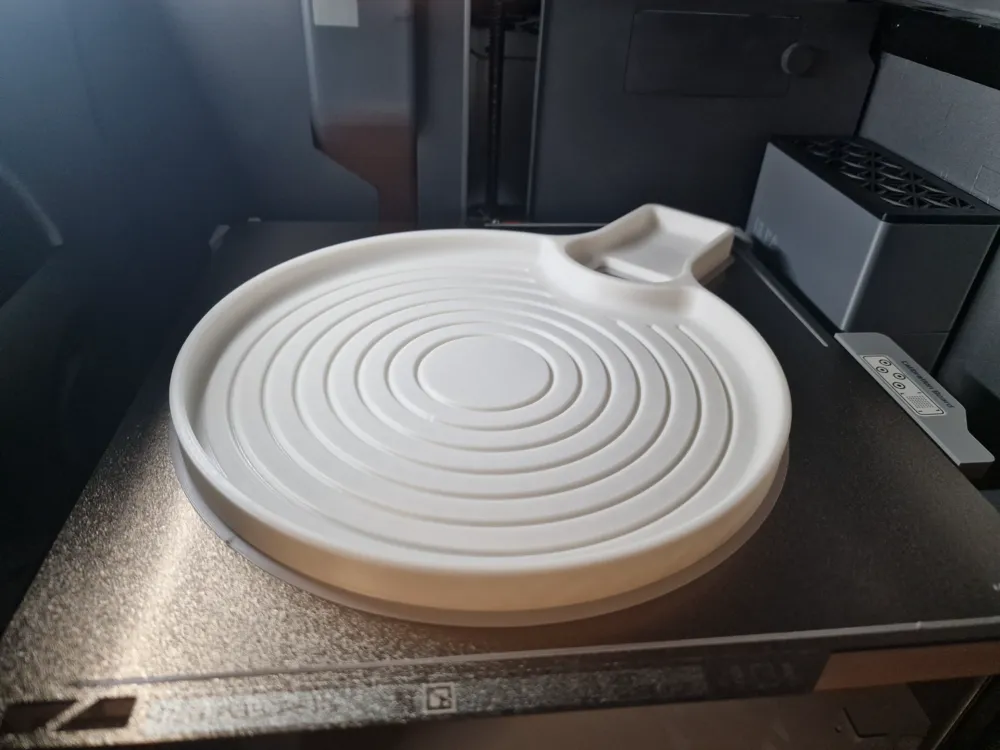

Personally, I printed the plate in ABS+ from GEEETECH.
I have designed the print profile for PETG because there are always problems with ABS.

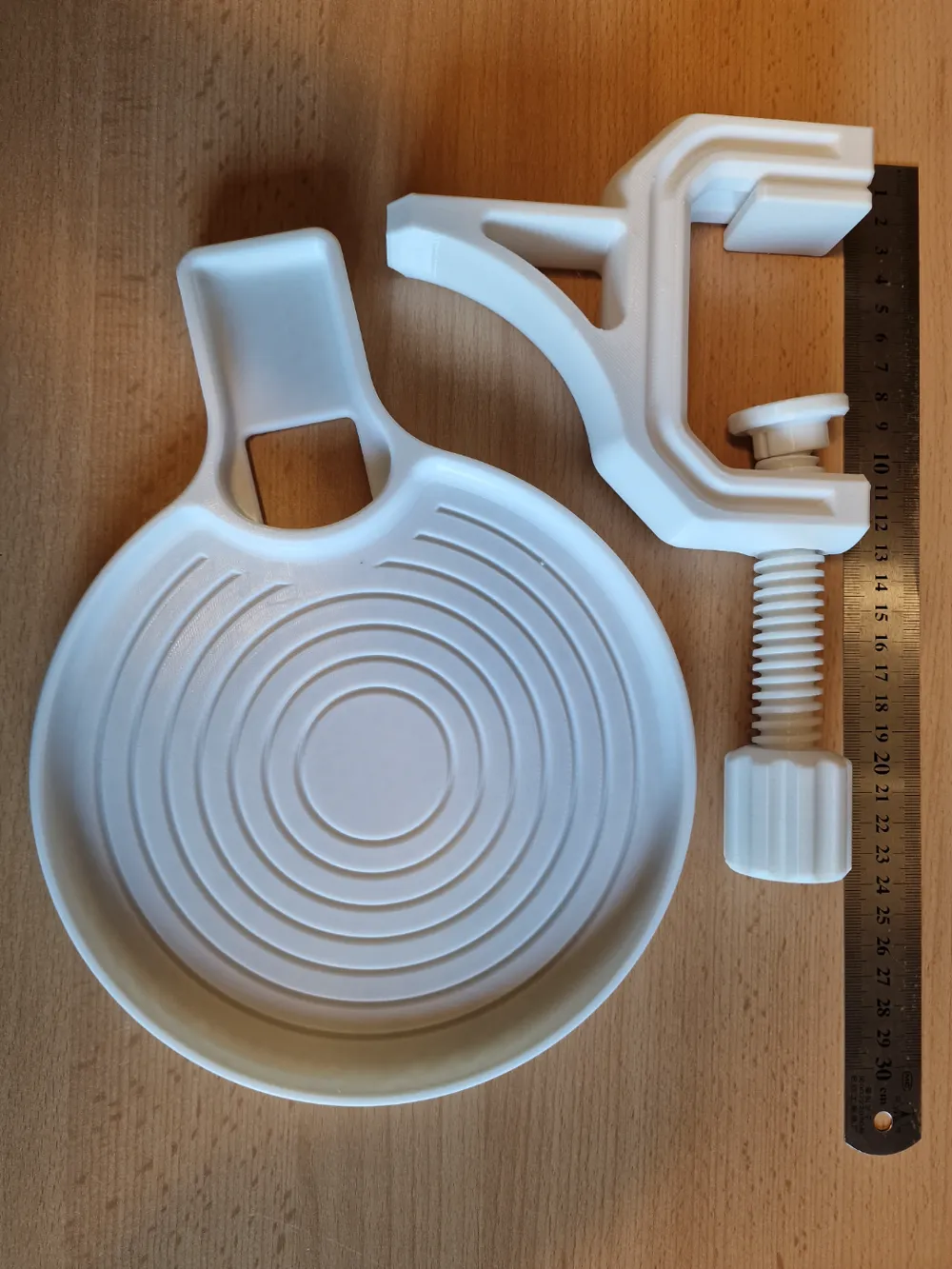

The footprint of the plate 190x165mm
The overall size of the plate 263mmx198mm
The clamping range of the clamp is 0-58mm

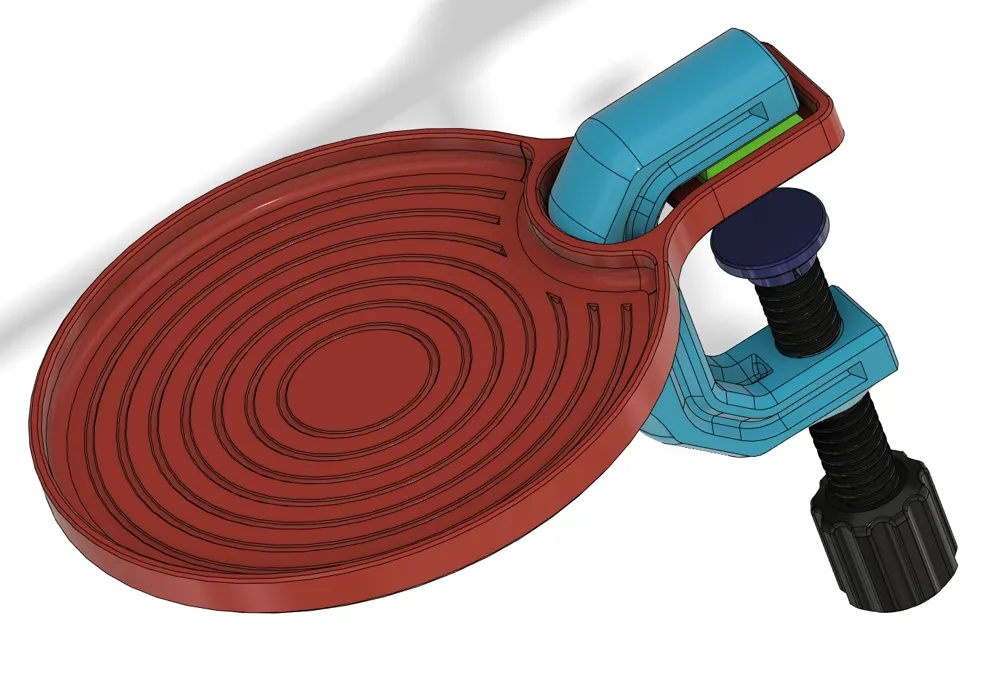

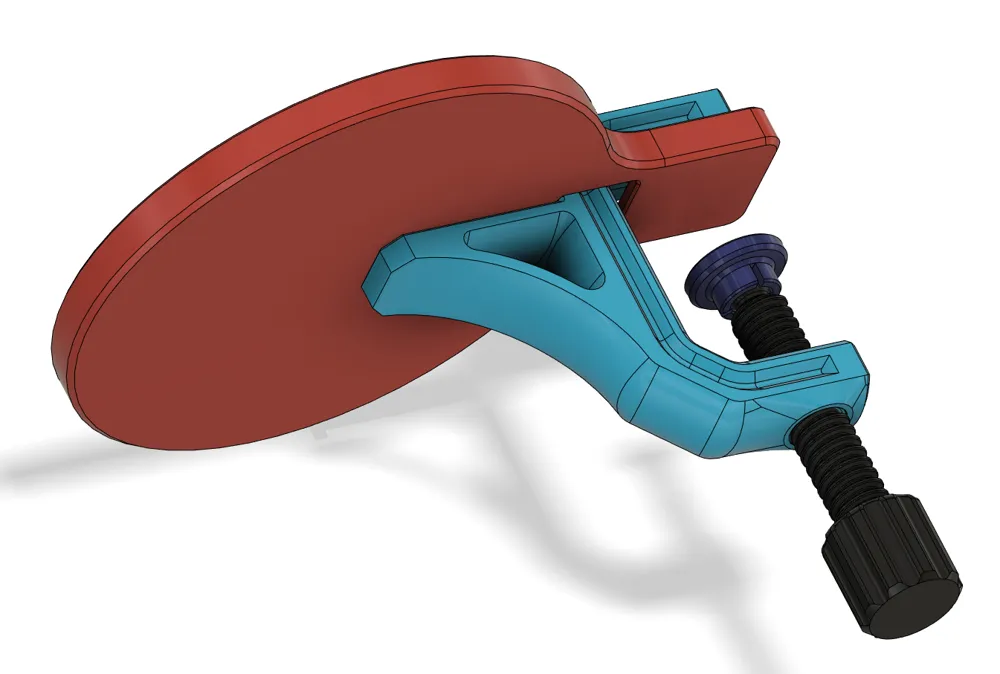

The table clamp is a modified C-clamp in XL size.
Only the bracket was changed and is compatible with the other parts of the normal C-clamp in size XL.
Anyone who wants to can glue rubber under the plate in the clamping area for more lateral support.

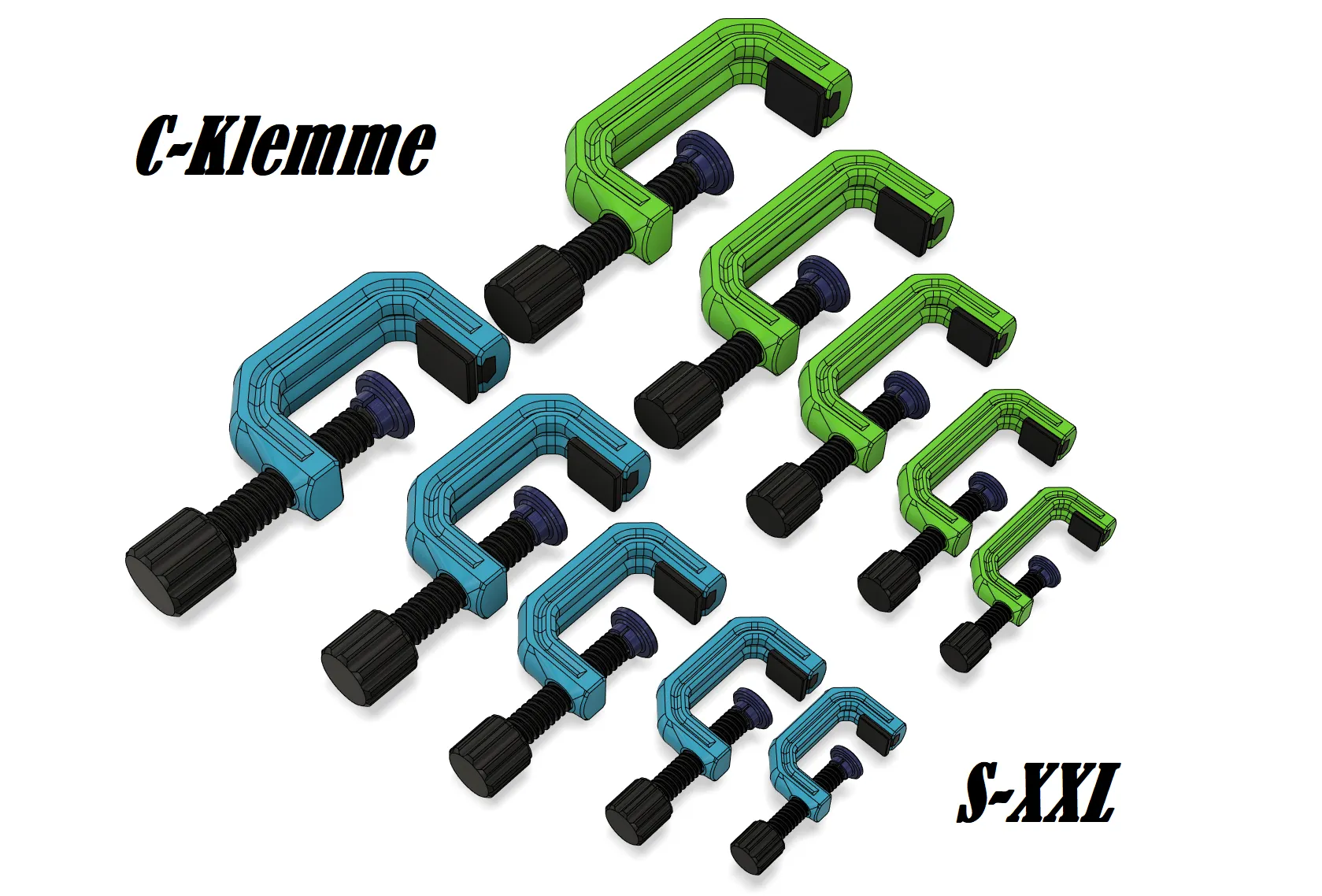

Further clamps that are versatile can be found here.
https://makerworld.com/de/models/187805#profileId-209941
