Spacer for FLSun SR Levelling Probe

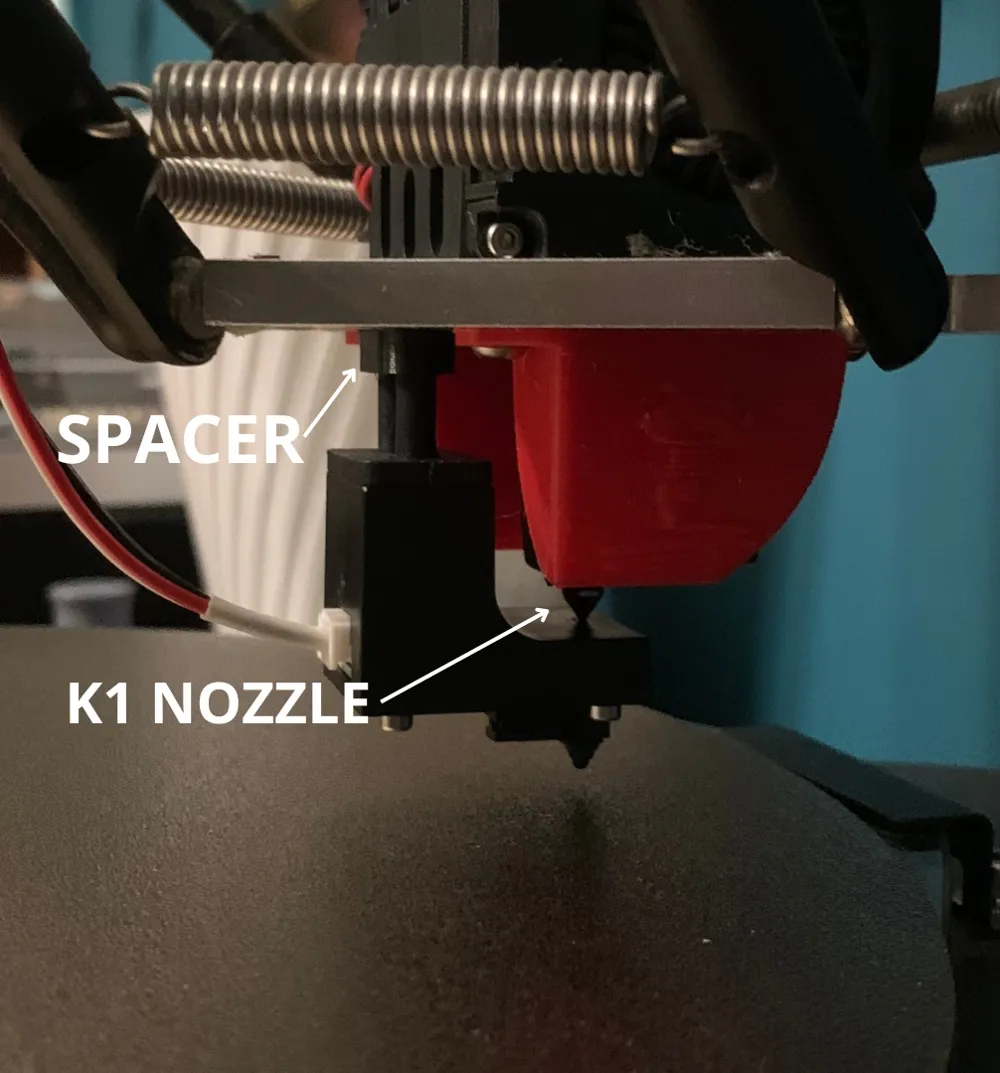

This spacer increases the distance between the sensor and the nozzle, ensuring proper leveling in case of hotend changes. I used it to install the high-flow nozzle from the Creality K1.

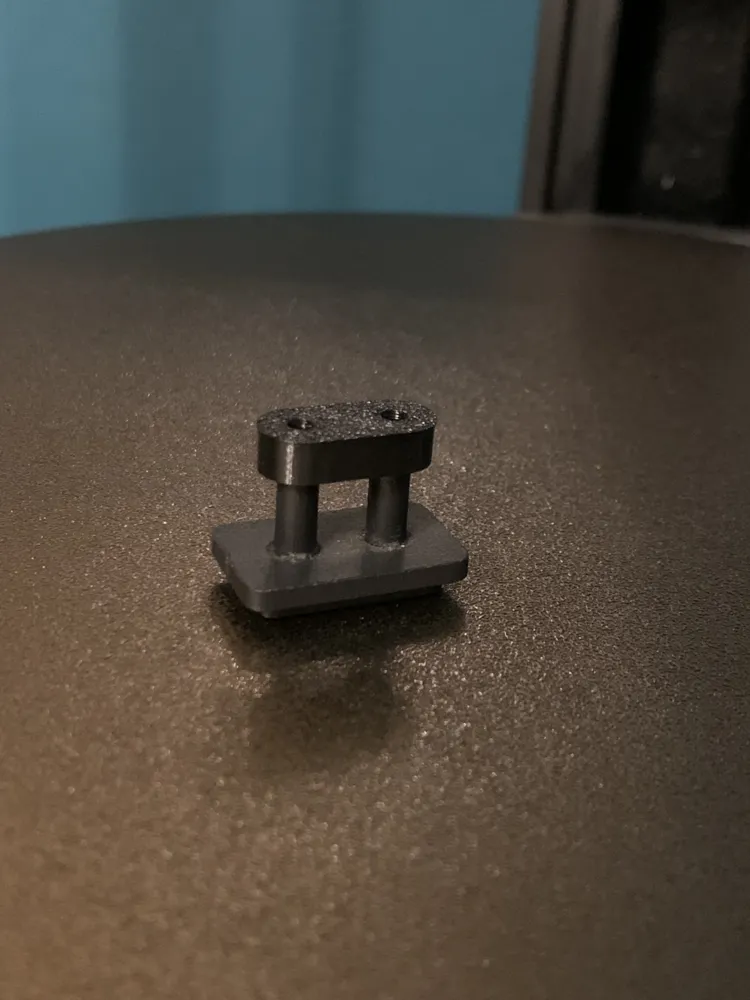

The spacer is 1.25mm. For installation:
Unscrew the two screws of the print head cover located under the effector.
Unscrew the two screws holding the arm for the leveling sensor.

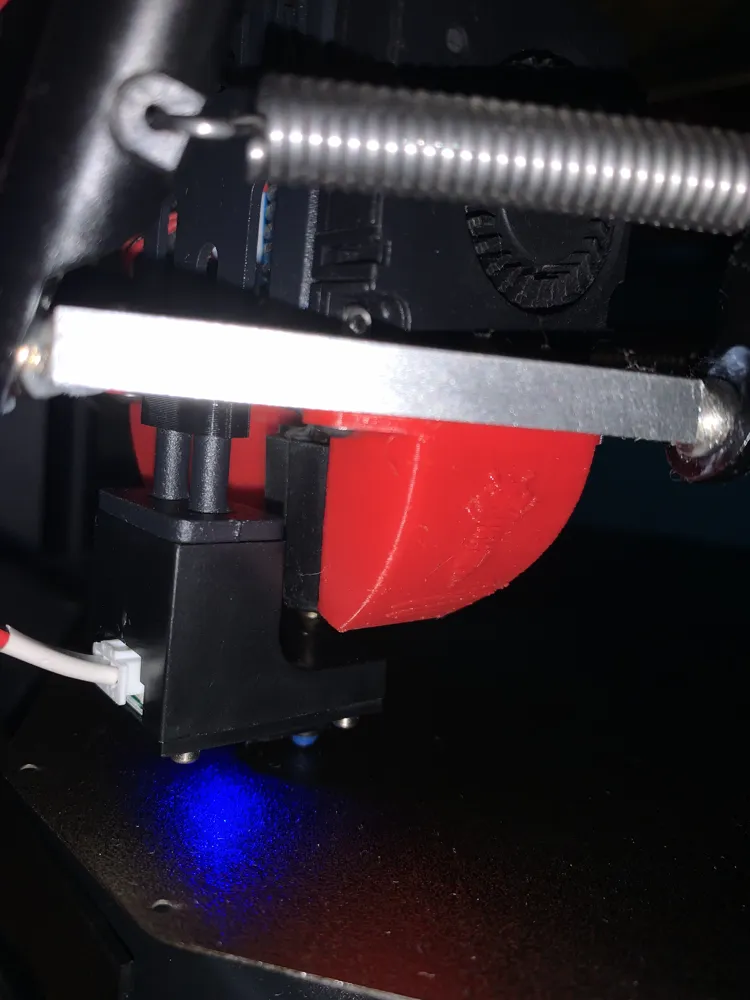

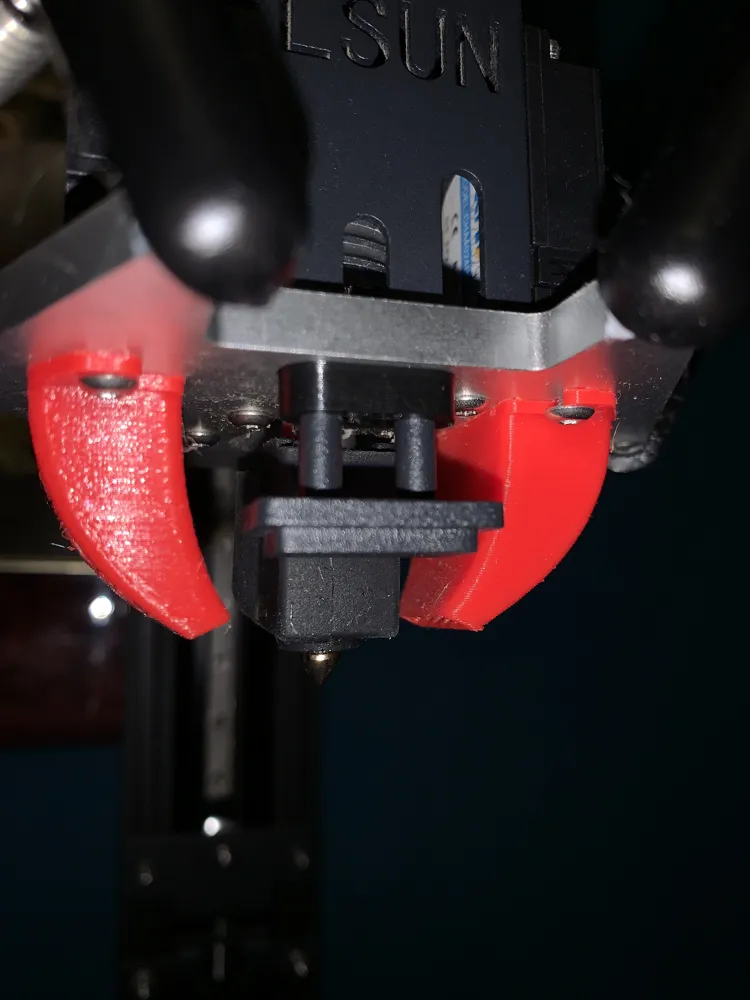

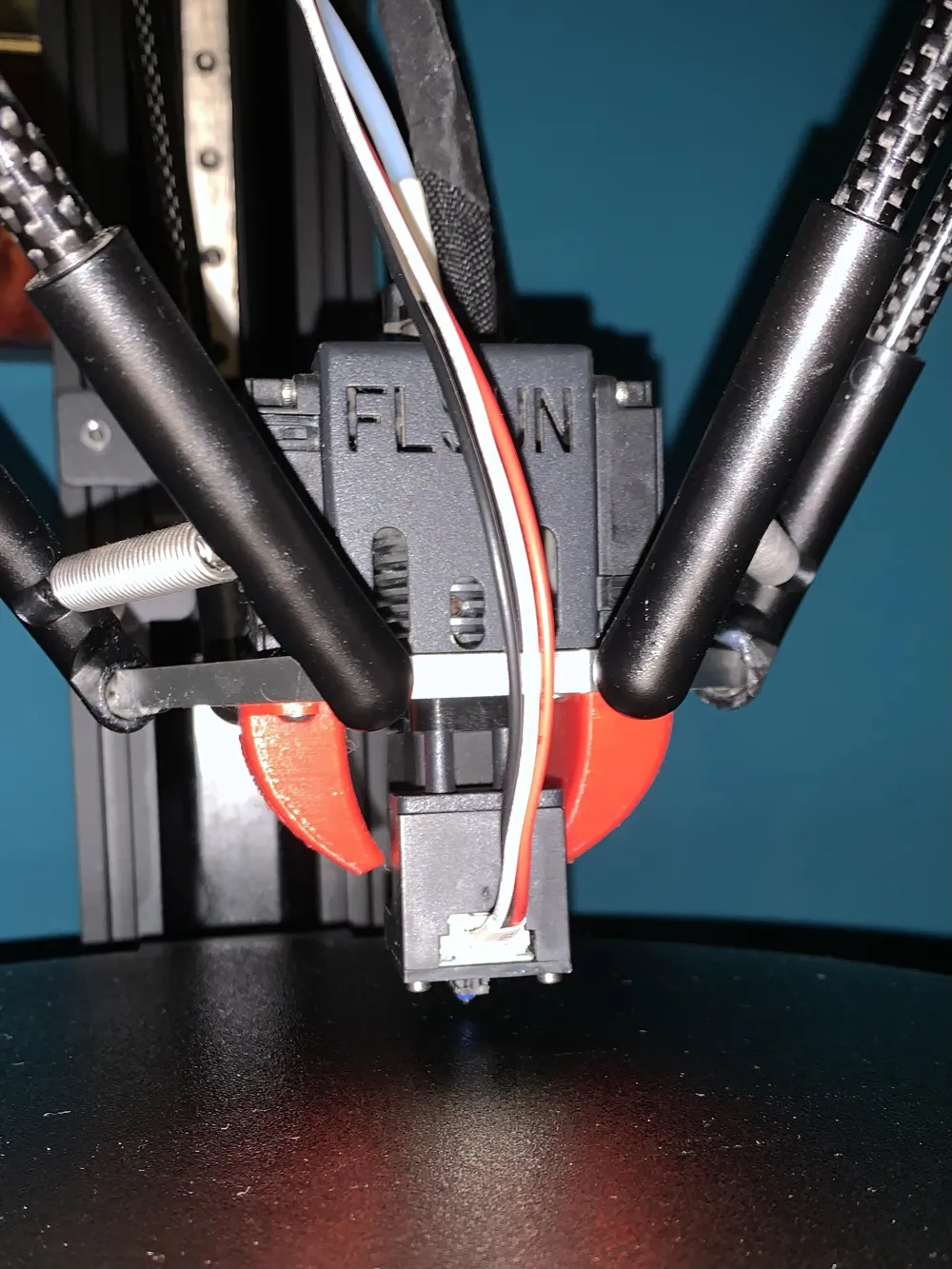

Install the spacer and reassemble everything using the original screws.
If you need more distance, you can scale the model in Z and change the screws of the arm if necessary.
PETG 100% infill
Layer height: 0.2 mm
Brim if necessary (i didn't use it)
