Sidewinder inspired Utility Knife - Free 3D Print Model

Search models, users, collections, and posts

mroven

Tools>Hand Tools

IP Report

Print Profile(4)

All

P1S

P1P

X1 Carbon

X1E

A1 mini

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 6 walls, 25% infill

Designer

1 h

1 plate

4.7(153)

PC-CF, 0.2mm layer, 3 walls, 25% infill

Designer

1.1 h

1 plate

4.3(7)

0.2mm layer, 3 walls, 25% infill-AMS-print by object

1.3 h

1 plate

Textured TPU handle scales, 0.2mm layer

29 min

1 plate

Open in Bambu Studio

Boost

1855

4696

203

110

2.8 k

1.7 k

Released

Bill of Materials

List other parts

screws x 5: M3x16mm_button_head
screw x 1: M3x6mm_button_head
nut x 1: M3
Utility_Blade x 1: Standard

Description

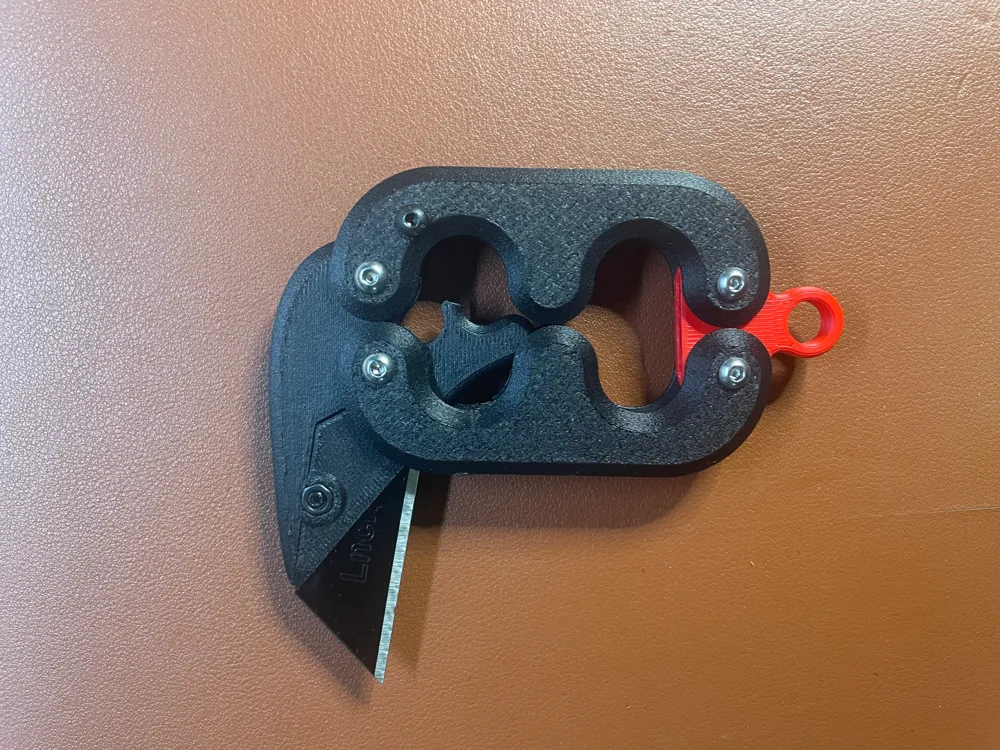

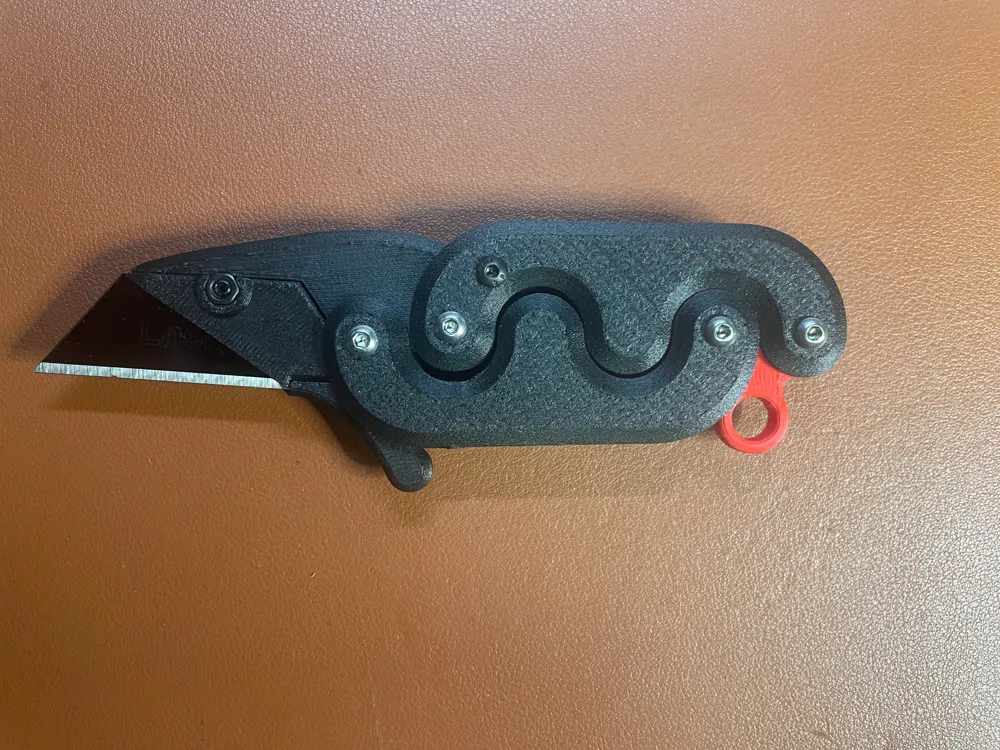

A cool little utility blade handle inspired by the Sidewinder mini knife. Updated New model replaces the “lock" with a screw for easier assembly. Redesigned the “lanyard loop” to eliminate need for support material. Also added better assembly photos.

Prints with minimal supports, use PLA or any suitable filament.

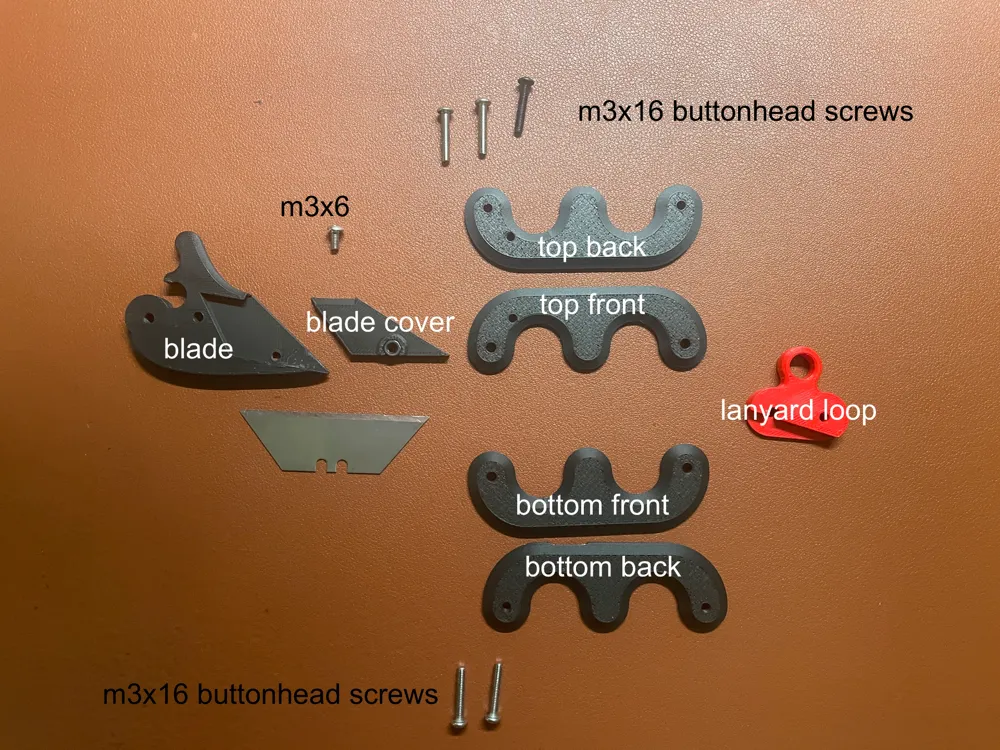

Requires the following additional hardware:

(5) M3x16mm screws
(1) M3x6mm screw
(1) M3 hex nut
Standard Utility blade

Assembly

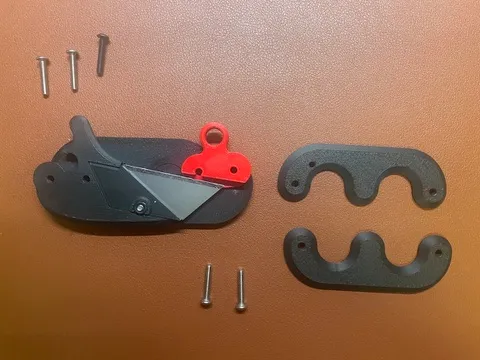

Orient the handle pieces with “top back” and “bottom back” towards the back. These 2 pieces have smaller screw holes to allow you to thread the M3 screws in.

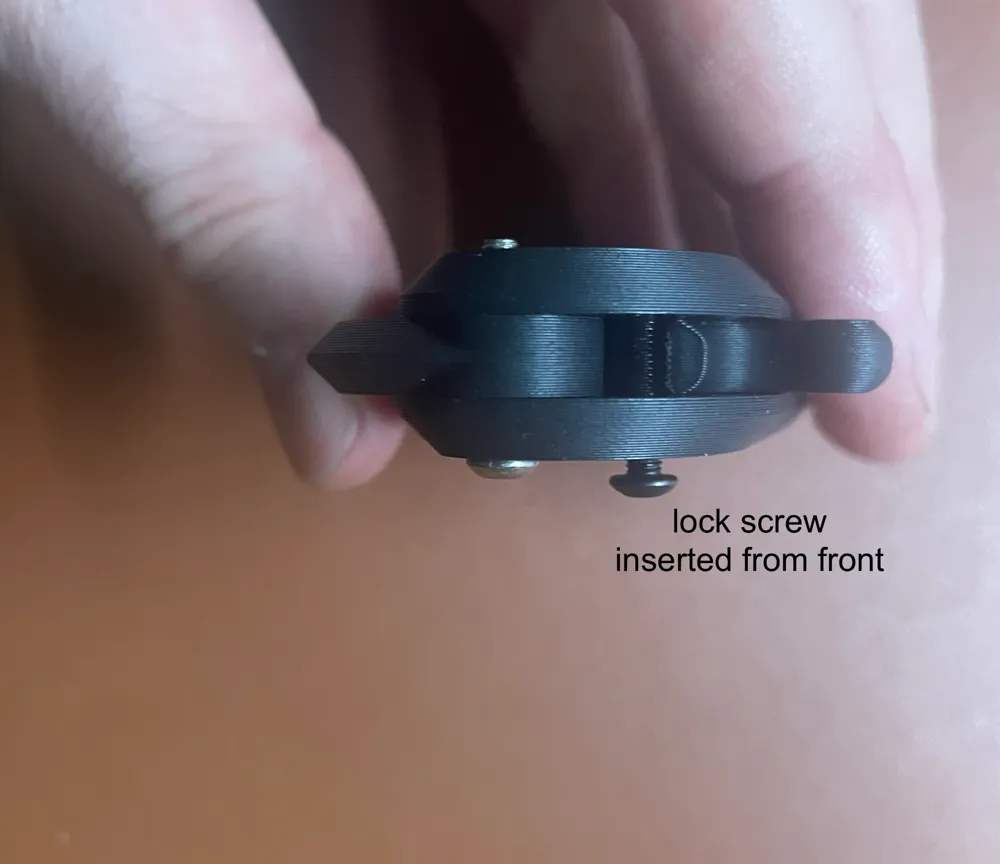

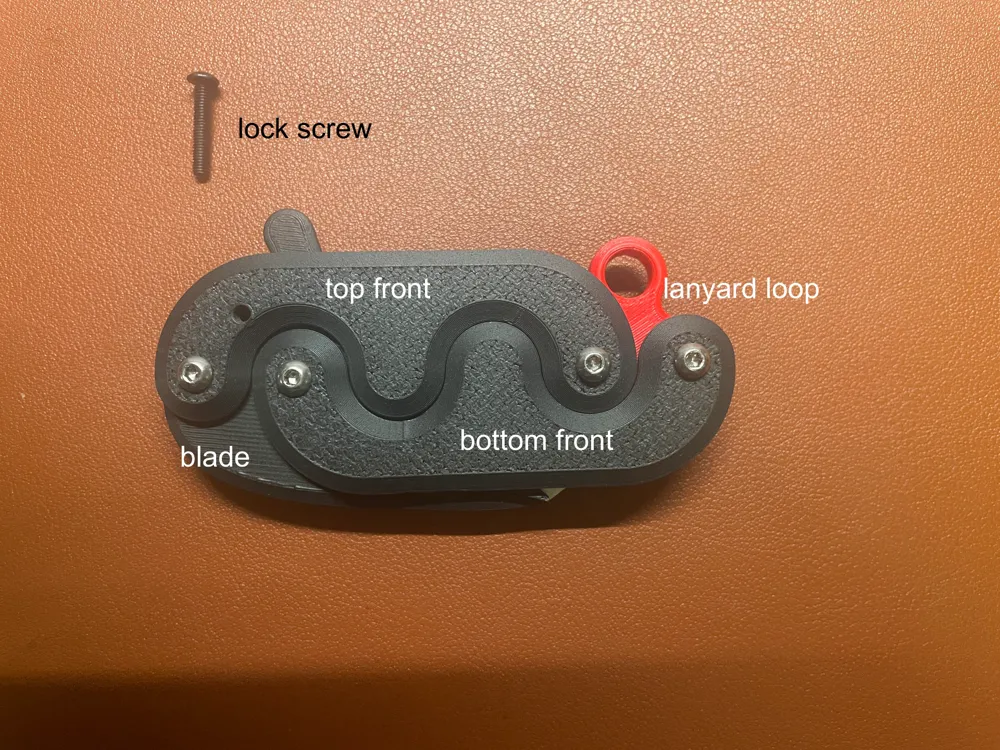

“top front” and “top back” have an extra hole to accommodate a “lock” screw. The blade will lock into the shaft of this screw when closed.
“bottom front” and “bottom back” have indentations to allow for clearance when closing. These pieces form the bottom on the handle.

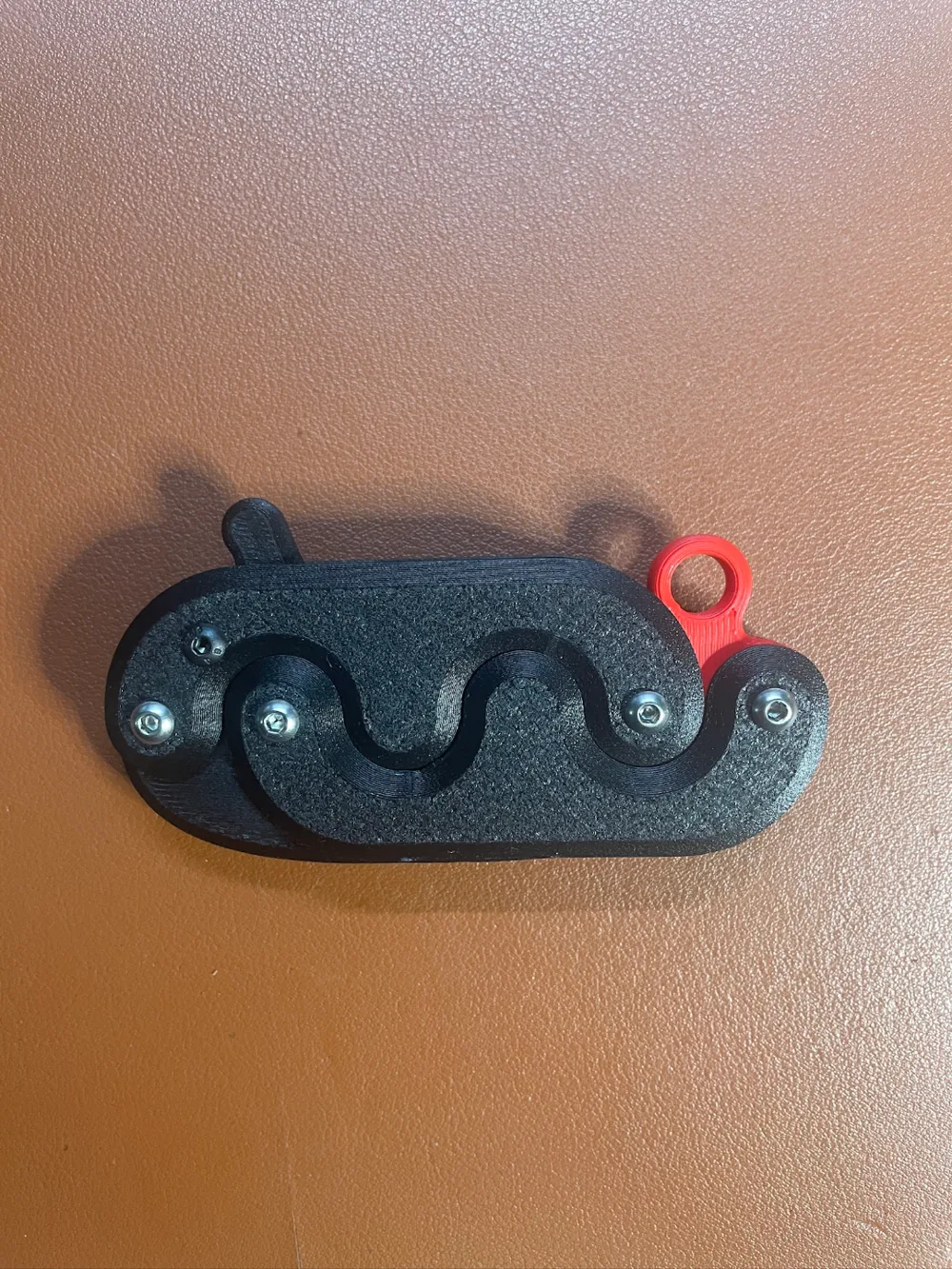

When everything is assembled, you should get a nice, satisfying “click” when closing.
To open, give the thumb lever a pull towards the back, then rotate the halves apart, and and back together again.

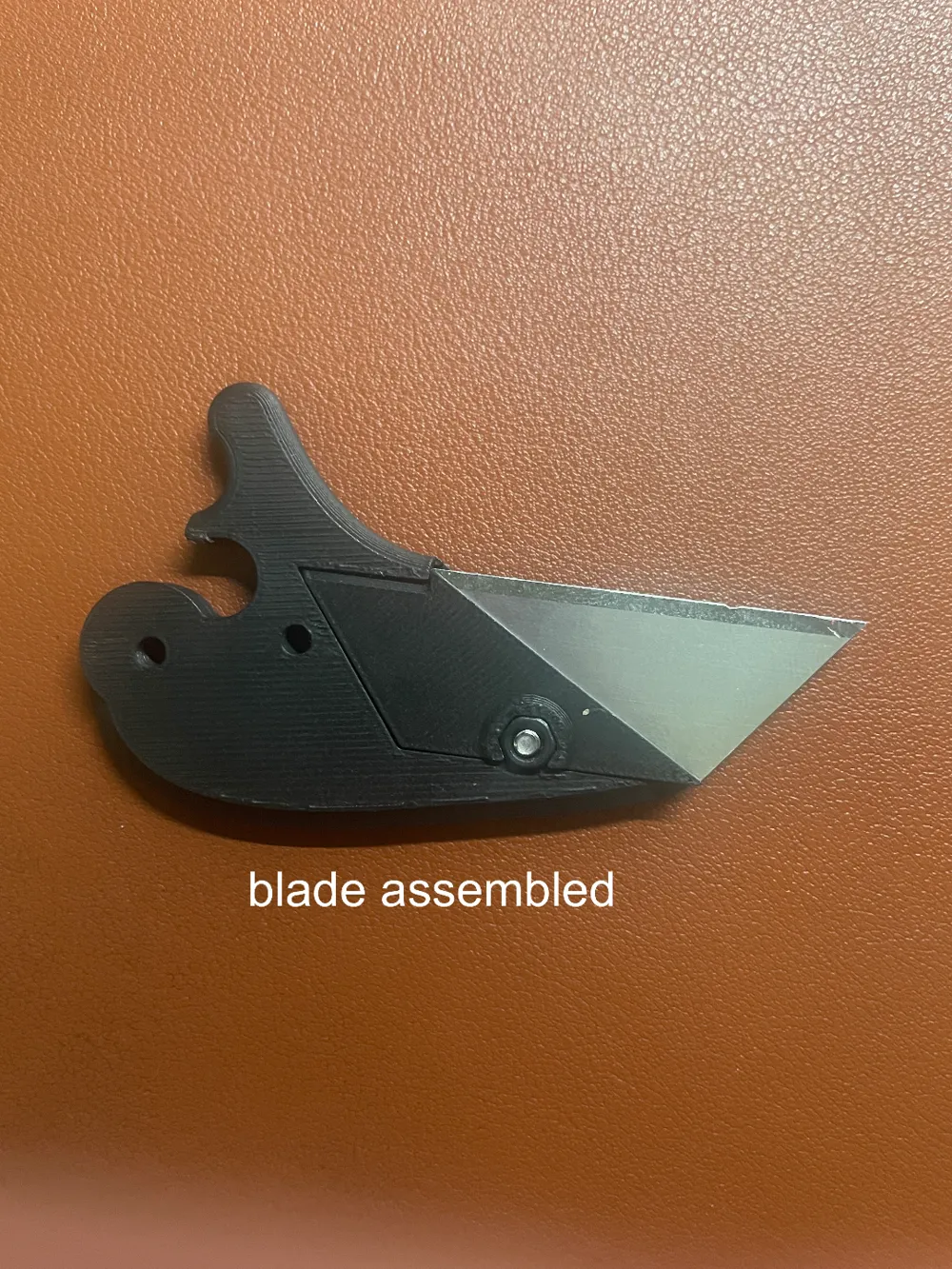

Standard Utility blade is held in place by a captive M3 nut and M3x6mm screw.
Optionally attach a lanyard to “lanyard loop”. Print it in red for a nice look.
