Cycloidal Drive

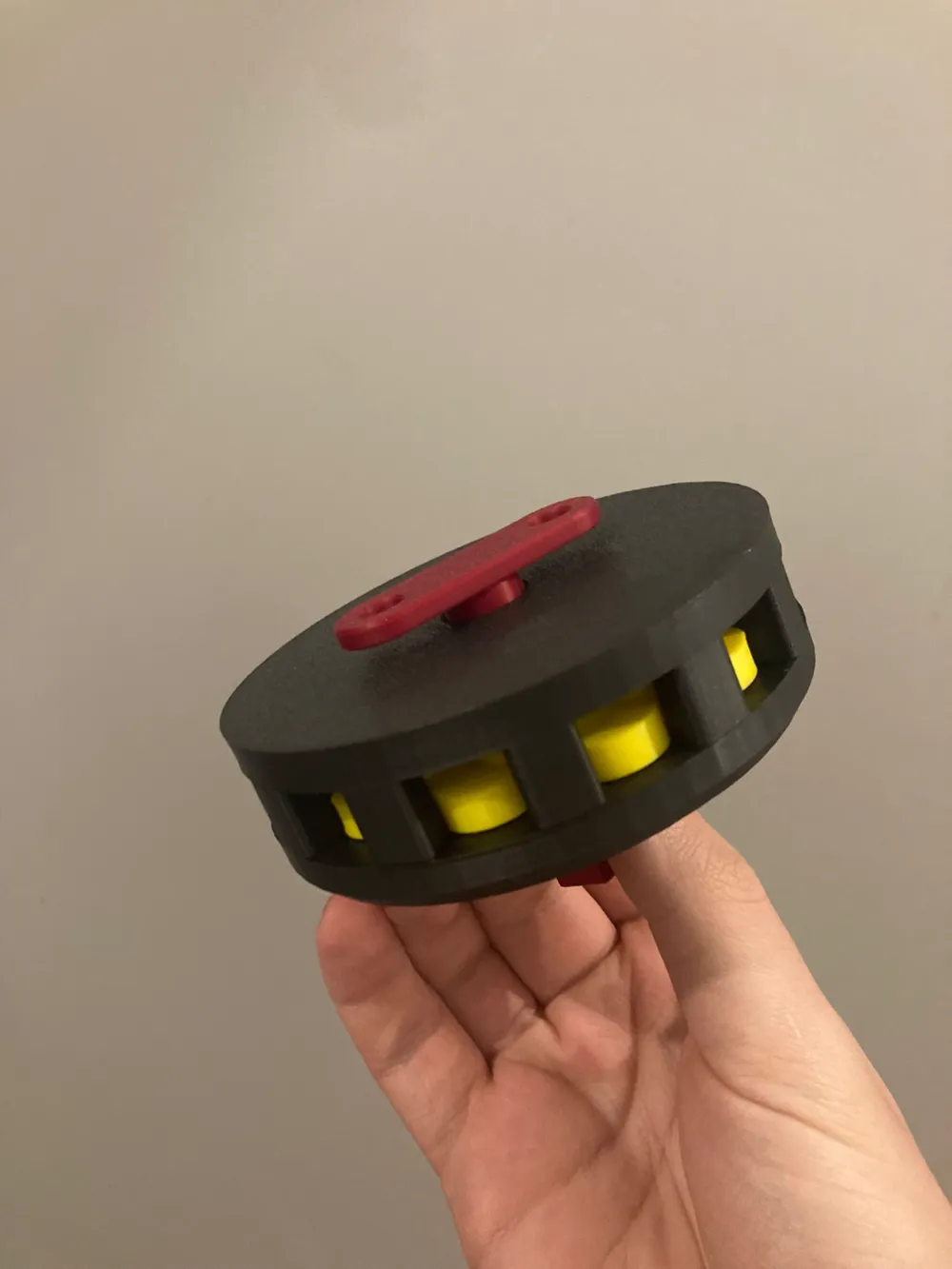

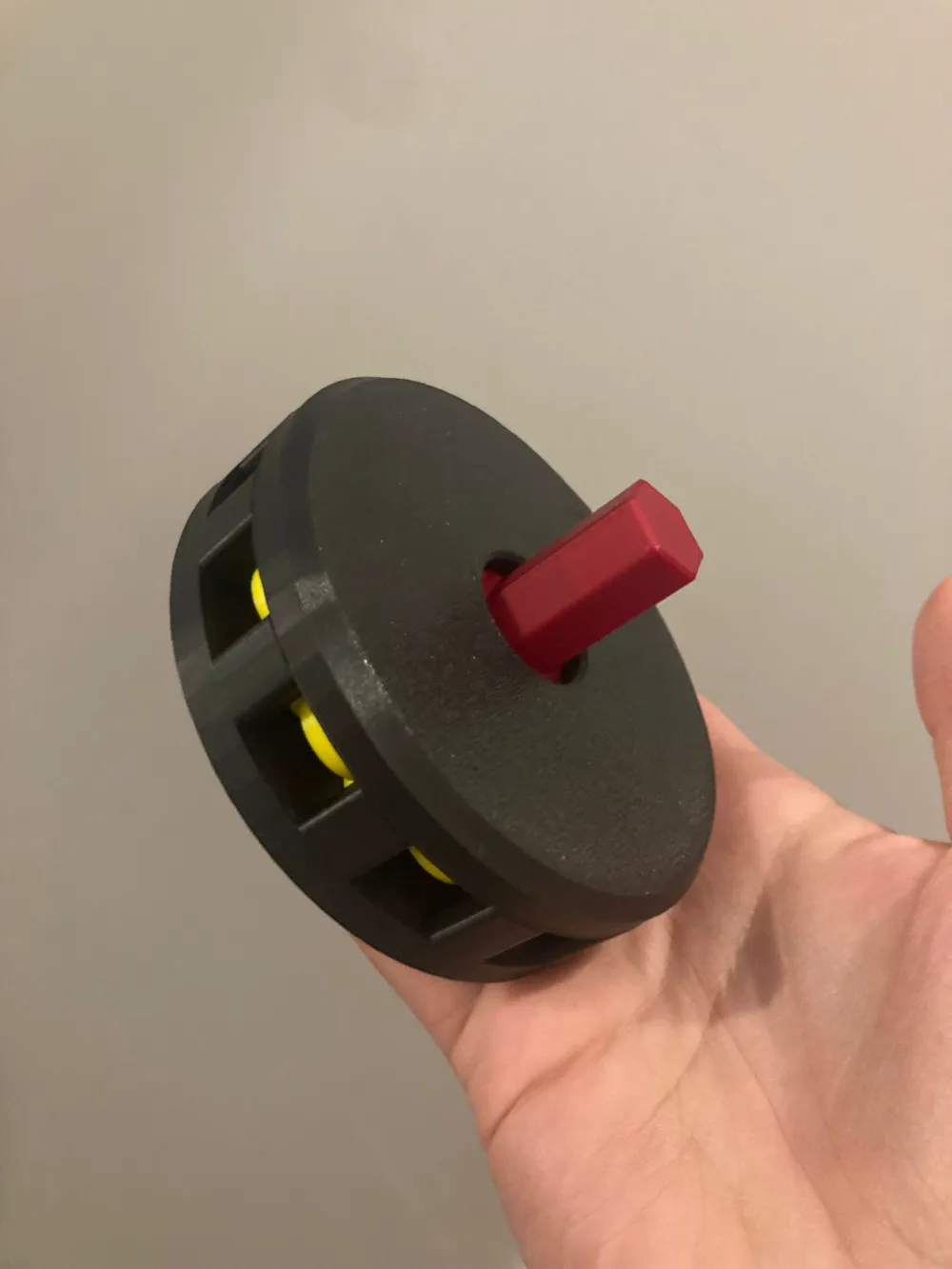

This 3D-printed model showcases an 11:1 cycloidal drive, featuring 11 lobes on the disk and 12 pins of the housing.
The disk was generated with the following parameters:

• R = 45 mm (radius of roller pin ring)
• Rr = 5 mm (radius of roller pins)
• N = 12 (number of roller pins)
• E = 3mm (eccentricity of the disk )

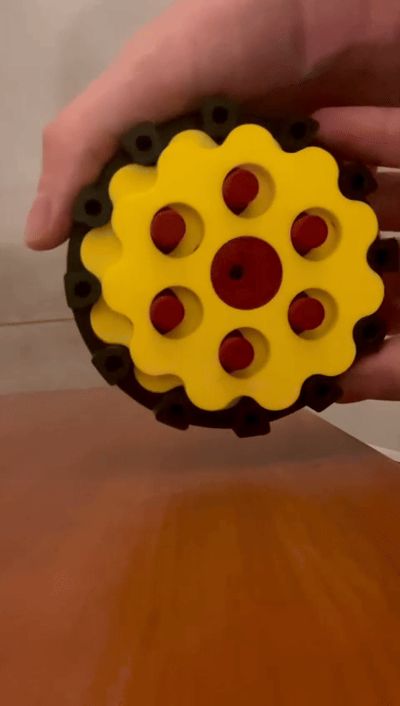

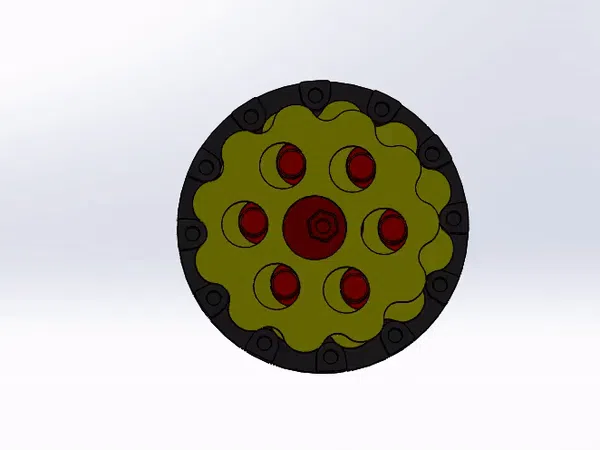

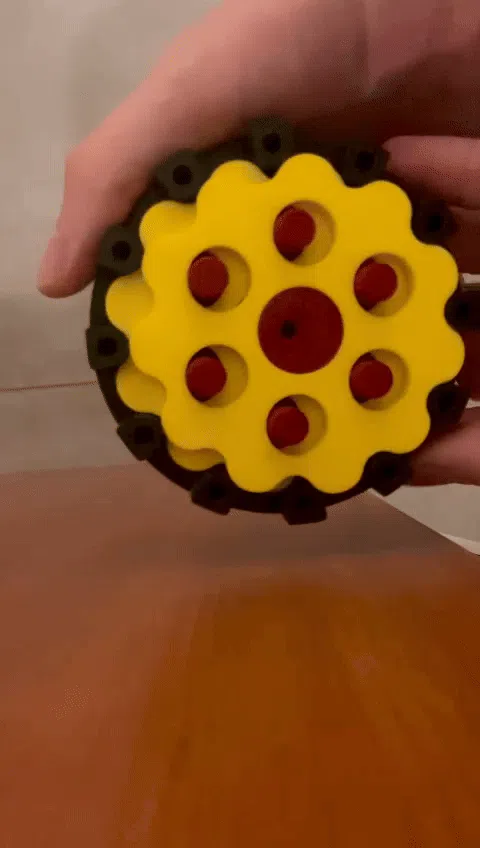

The animations and the video show how the disk's lobes engage with the pins. To simplify testing and adjusting the disk parameters, I used a MATLAB file (included), as it’s more straightforward than testing parameters in CAD.

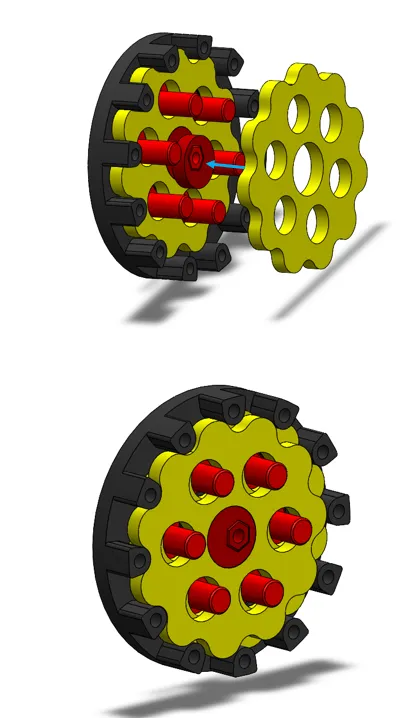

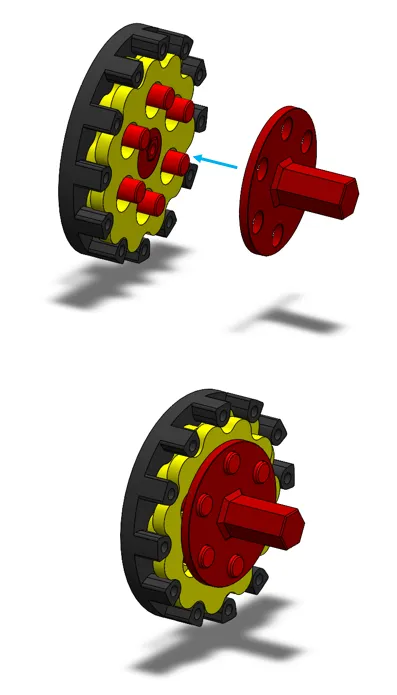

Assembly guide

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

Step 7
