A modular 3 piece Badge Holder. Mix and Match to create your one of a kind badge holder.

All designs contain a spot for a badge and 1 additional card.

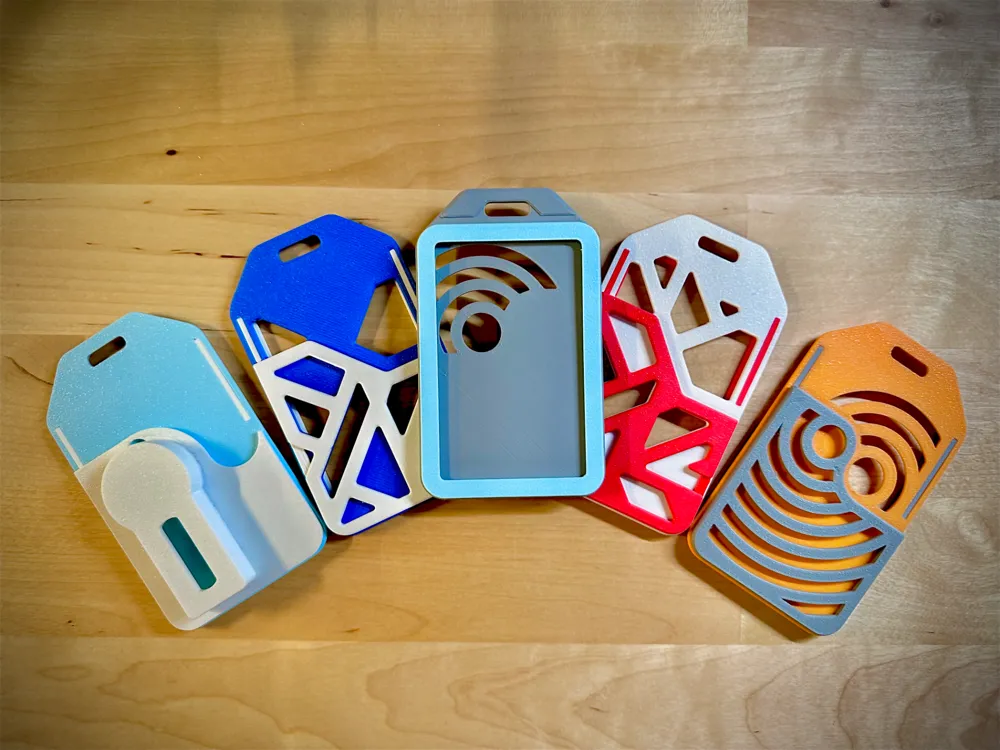

Modules:

Simple
Geometric
Geometric (no hanger)
Geometric 2 (more complex)
Spiral
Slot

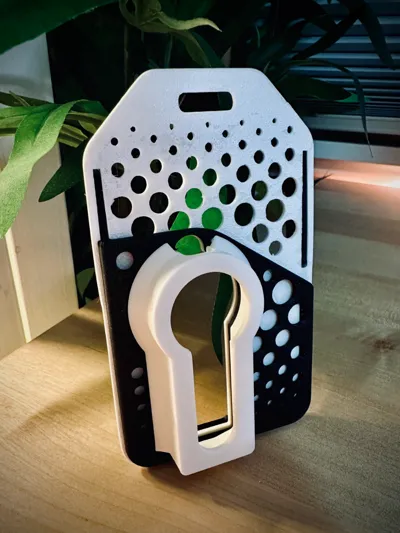

RSA Simple * updated 10/16/2024
RSA Triangle * NEW 10/15/2024
RSA Circle * NEW 10/16/2024
Extenders * NEW 11/30/2024

*RSA modules are not compatible with non-RSA modules

Check out my compatible magnetic badge holder: https://makerworld.com/en/models/715227?from=search#profileId-645898

Assembly:

Line up the tabs on each of the 3 components and snap them together. Be sure to position the raised side of the base on the badge side, and the flat side of the base on the card slot side.

NEW Extenders - You can add more badges or cards by using the extenders found in the extenders folder. Place them between the base and the badge/card cover. You can use as many or as few as you like.

I suggest gluing your final design together to make sure you don't loose any important cards.

RSA Modules require the RSA cover to be glued to the card holder. this is intended to make printing simpler and ensure the parts are all printed in the same orientation to snap together, these tolerances are tight.
