Genshin Impact Mechanism Treasure Chest

Search models, users, collections, and posts

路萤3D打印

Tools>Organizers

IP Report

GIF

Print Profile(6)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

A1 mini

The final optimized version, 0.2mm layer, 2 walls, 15% infill

Designer

25 h

2 plates

4.8(19)

Monochrome print 0.2mm layer, 2 walls, 15% infill

Designer

12.6 h

4 plates

4.8(12)

Dual-color version 0.16mm layer, 2 walls, 15% infill

Designer

51.1 h

4 plates

4.3(3)

Series A Anti-Warpage 0.2mm layer, 2 walls, 15% infill

Designer

24.3 h

3 plates

4.0(1)

Click to see more

Open in Bambu Studio

Boost

772

1672

1.1 k

298

Released

Description

Content has been automatically translated.

Show original

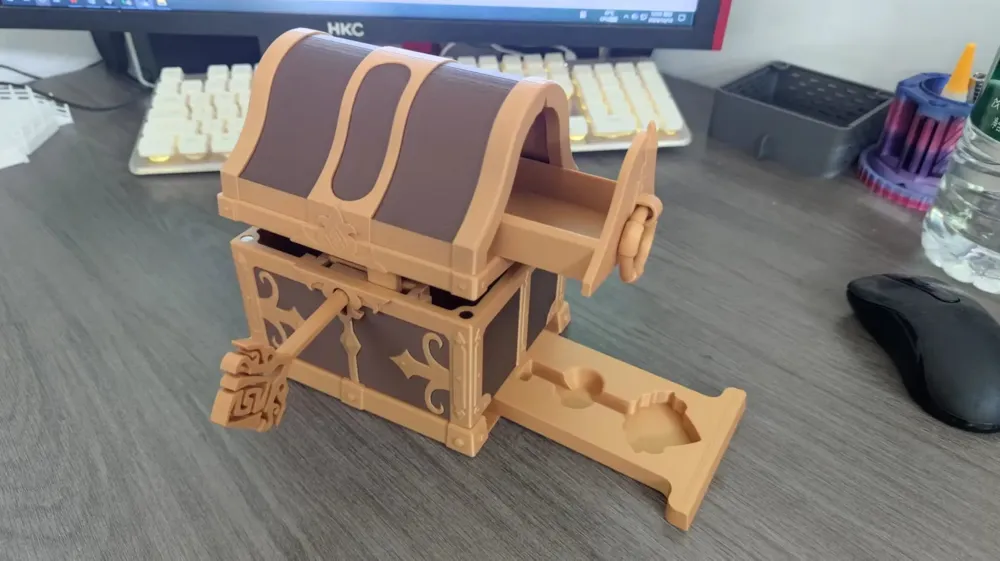

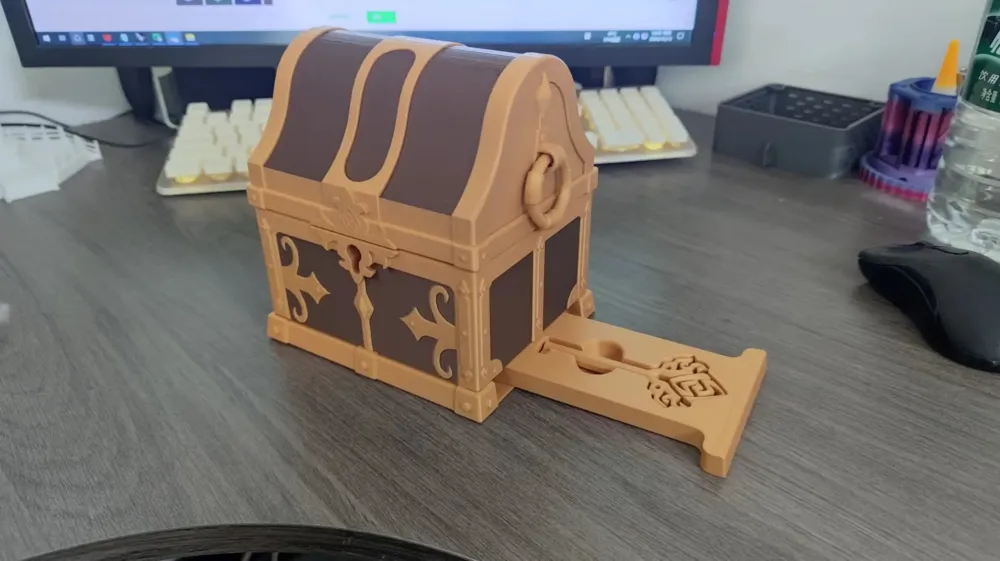

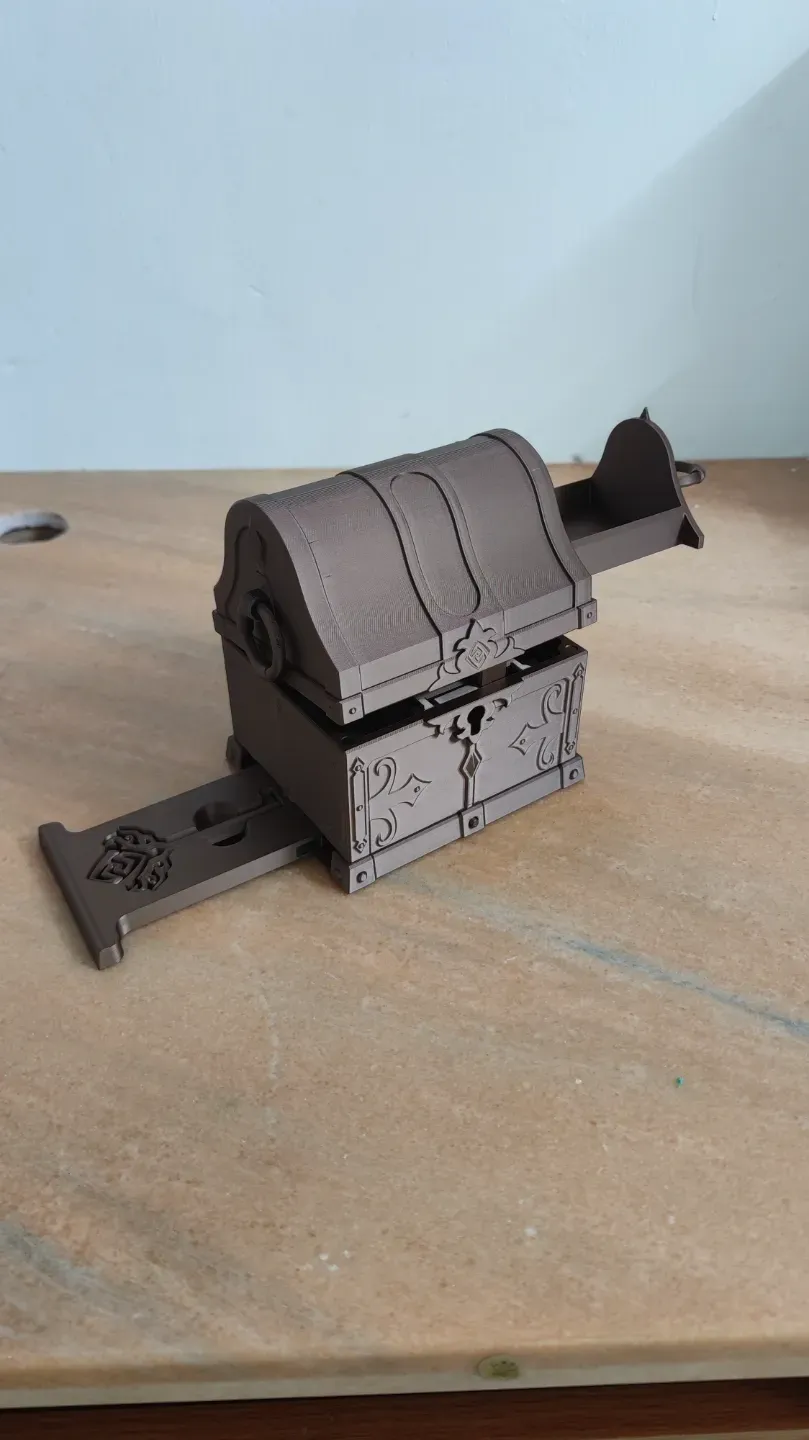

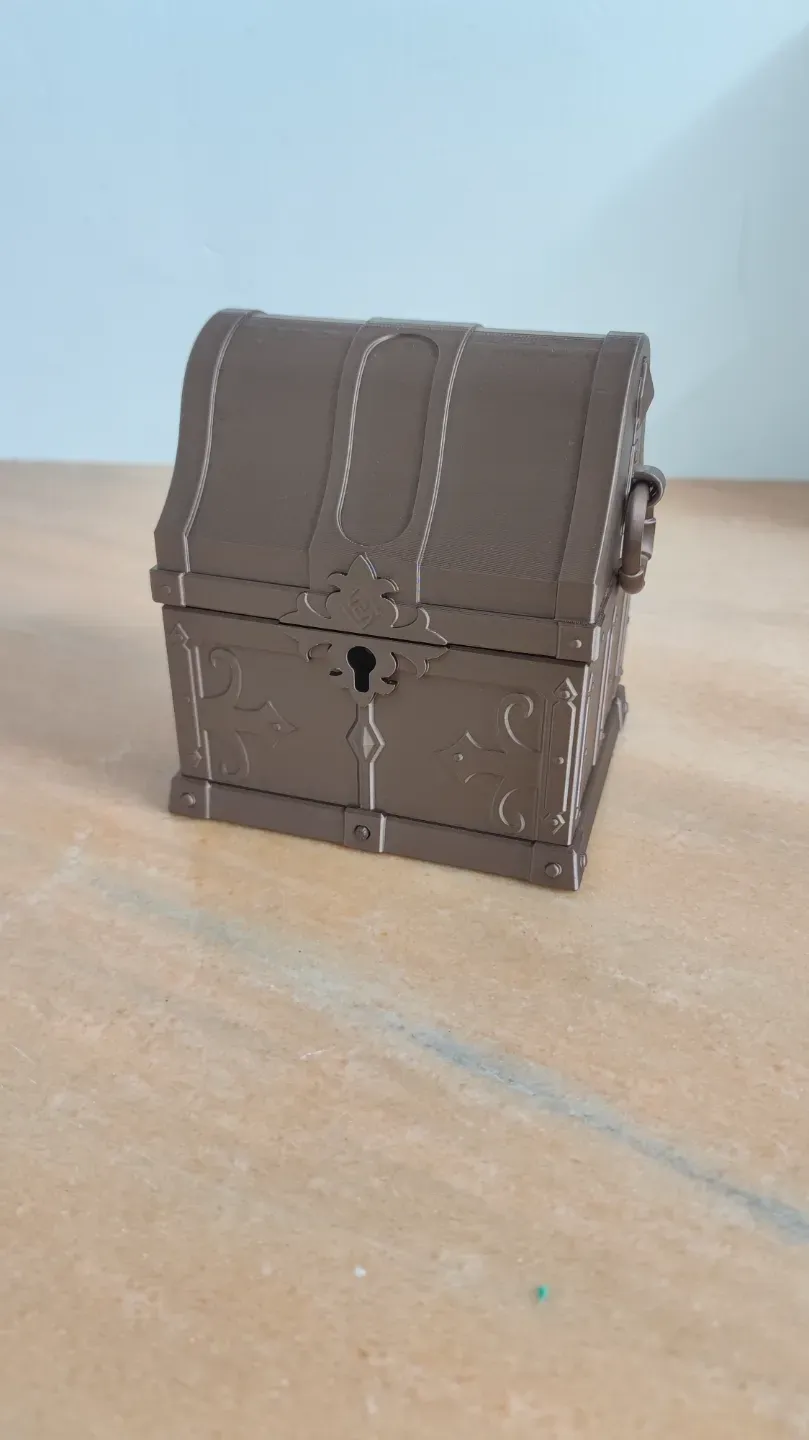

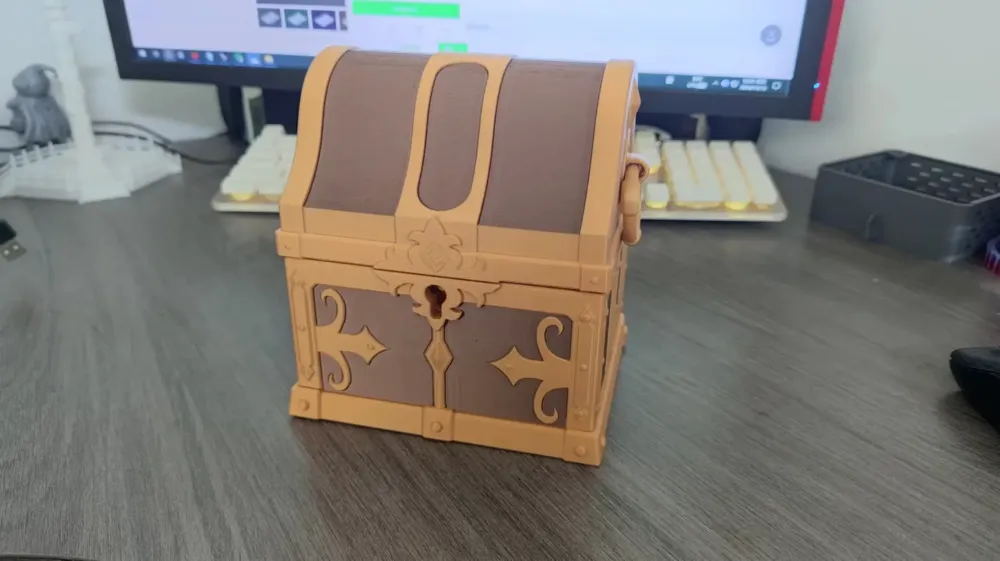

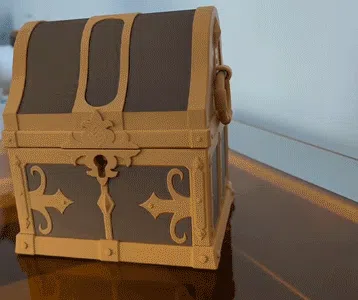

This is a treasure chest with a mechanism, the spring specifications needed are listed below

Boost Me (for free)

It took me many days to model this, I hope you will support me! I will be more motivated to create more interesting models

Spring Link https://m.tb.cn/h.gwo5rJY
The spring specifications required for the model are 0.51250mm and 0.3430, these specifications are not available in the product selection, please note these two specifications when placing an order

Magnet Link https://m.tb.cn/h.gEsdDX6 **Specifications need to be 6*3mm**

Do not print with silk filament, do not print with silk filament, do not print with silk filament, important things need to be said three times

Installation Video:

Comment & Rating (60)

@keril

Boosted

Print Profile

Dual-color version 0.16mm layer, 2 walls, 15% infill

Printing is lengthy with two colors, but the result is beautiful and works well. The children were happy with it.

@user_3953932434

May I inquire about your assembly process and the function of the springs/magnets

Show original

@keril

Boosted

Replying to @user_3953932434 :

I didn't use a magnet. It works without it. I used a weaker ballpoint pen spring in the locking mechanism. The PLA spring printed for the key tray does weaken, but it basically works. I used Bambulab PLA. It might be more practical to print this using ABS, PETG material, but it's best to use a suitable steel spring. I glued the parts together with medium-density cyan acrylate glue for modeling. I used a steel welding rod of the appropriate diameter for the hinge. There were no particular problems with assembly, you just have to be careful when gluing so that the glue doesn't drip onto anything that needs to move.

@GranatArtPrint

Replying to @user_3953932434 :

I found a description in Mandarin and there are two sizes of spring. 0.5x12x50 and 03x5x35. But! When I watch the assembly video, he uses three springs.

@sharksnack2019

Boosted

Print Profile

Monochrome print 0.2mm layer, 2 walls, 15% infill

Love this print! The directions were in Chinese so my very first print I did with very little instructions and also printed it with silk PLA. For my second print, black, I found directions in English. I did with PETG filament and it’s a lot sturdier. This was a fun project!

@user_2750392051

I made this and scaled up to 135%. I used a ball point pen spring and 2 others found at a local hardware store. Because of the scale up I needed a pin for the lid hinge(filament wouldn't work) and used 2 brass 3/32 Cotter pins 1.5" long. I probably wouldn't use silk filament next time.

@Granthegoat1234

can u make a smaller version pls i do not have enough filament

The designer has replied

@luying

There is a small version, and it is printed in parts, you can check my previous models

Show original

@Granthegoat1234

Replying to @luying :

ok thank u!

@user_2046764223

is there another place to get the springs? the site is no longer working.

@user_1730340736

I have downloaded the 2 colour version but when I import it the model seems to be in one colour. Am I missing something? Im using an Anycubic Kobra S1 Combo printer. Thank you

The designer has replied

@luying

Non-Bambu machines need to be repainted by themselves

Show original

@keril

Boosted

Print Profile

The final optimized version, 0.2mm layer, 2 walls, 15% infill

It looks good and works well. The lid design is not entirely optimal for 3D printing, but that didn't cause any problems. The kids loved it. :)

@user_4045028820

Boosted

Awesome! Thank you for sharing

Show original

@Vally78

would it be possible to get a version that is separated? the outer "adornments" apart from the inner wooden crate part? I'd love to print it in 2 colors, alas...i have only a single extruder.

@Emashi

Print Profile

Monochrome print 0.2mm layer, 2 walls, 15% infill

Weaknesses key, but great design in general
