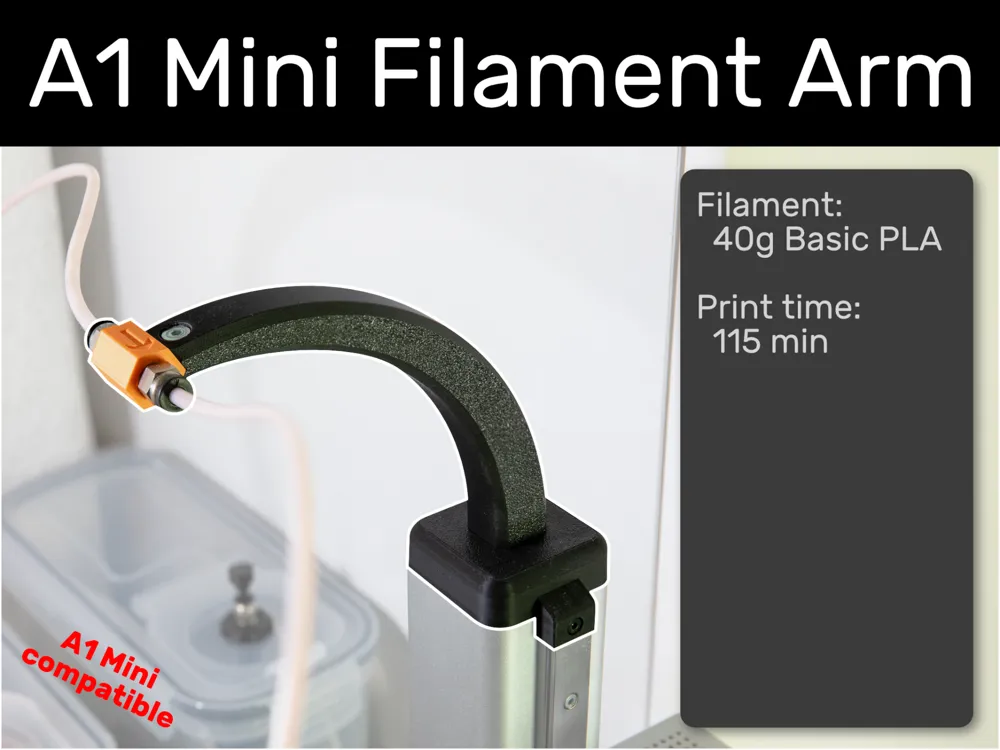

A1 Mini Filament Arm
IP Report
Print Profile(1)
Optimized Print Profil
Designer
1.9 h
1 plate
Open in Bambu Studio
Boost
19
60
6
0
35
16
Released
Description

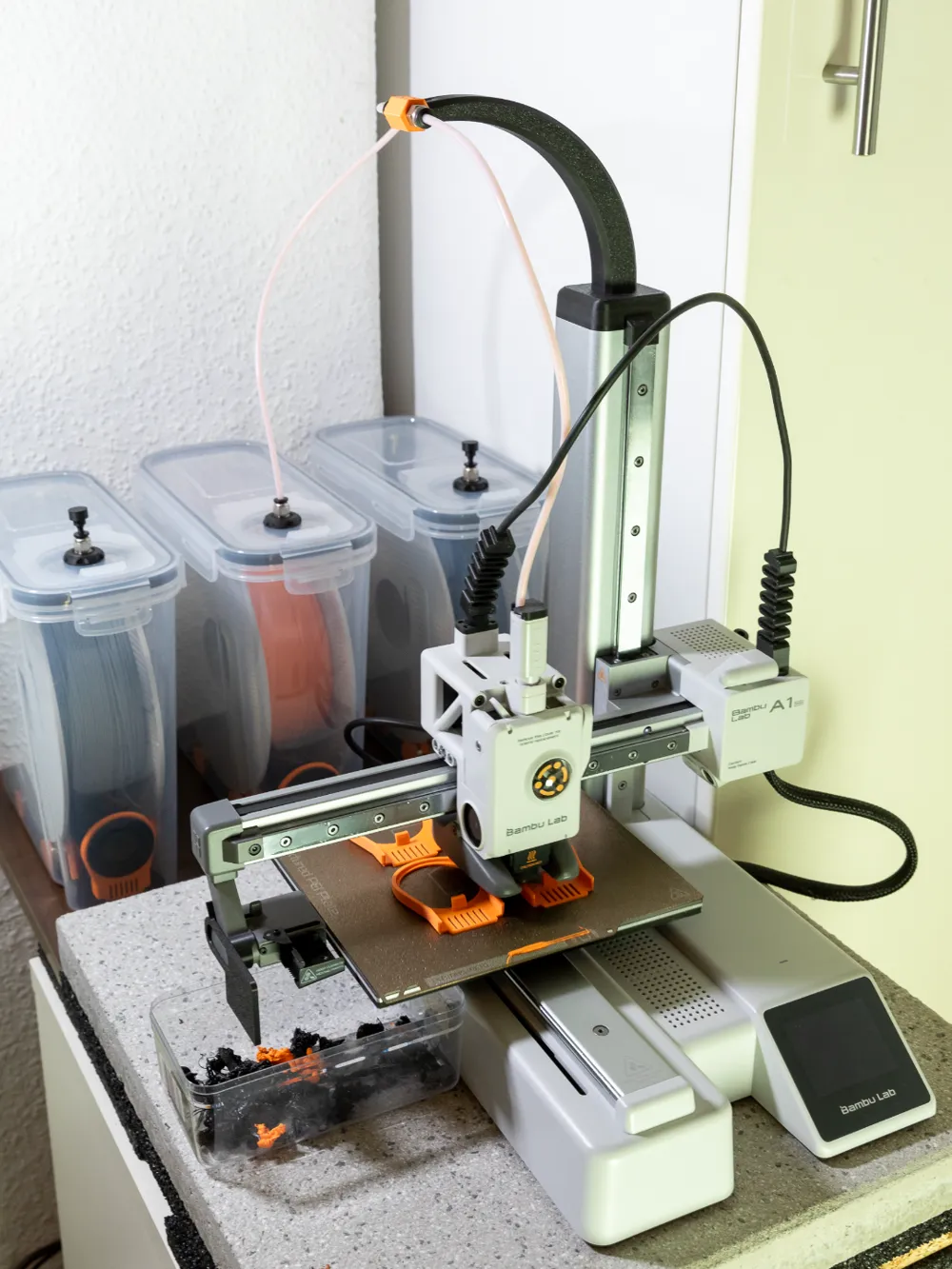

Since I print directly from the filament storage containers, I needed an alternative for the filament feed.

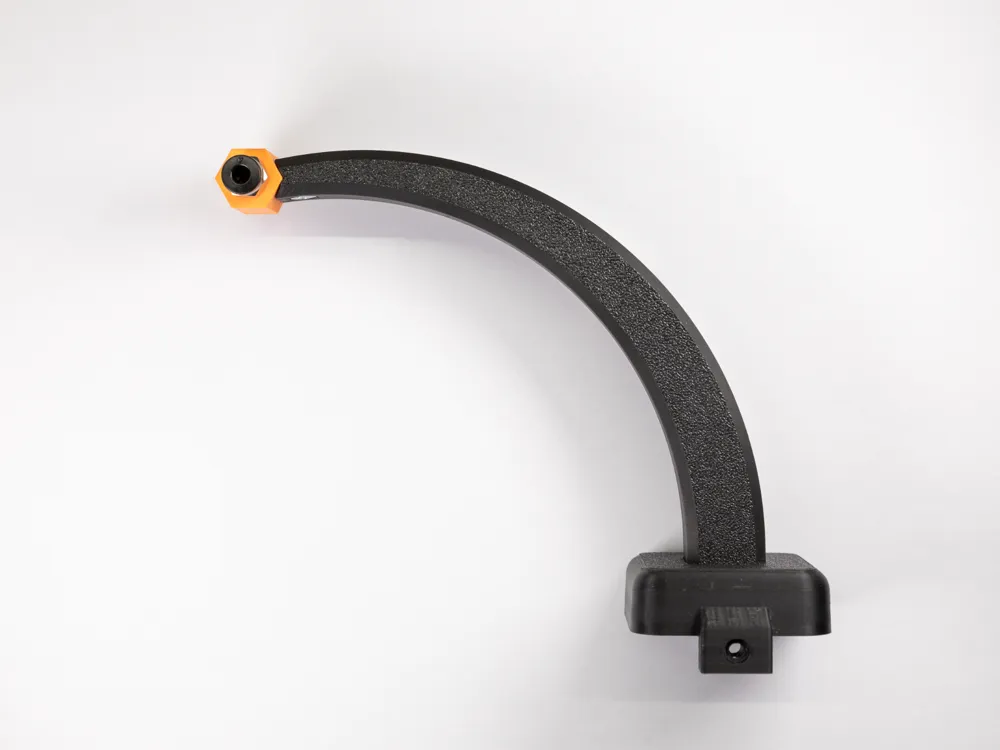

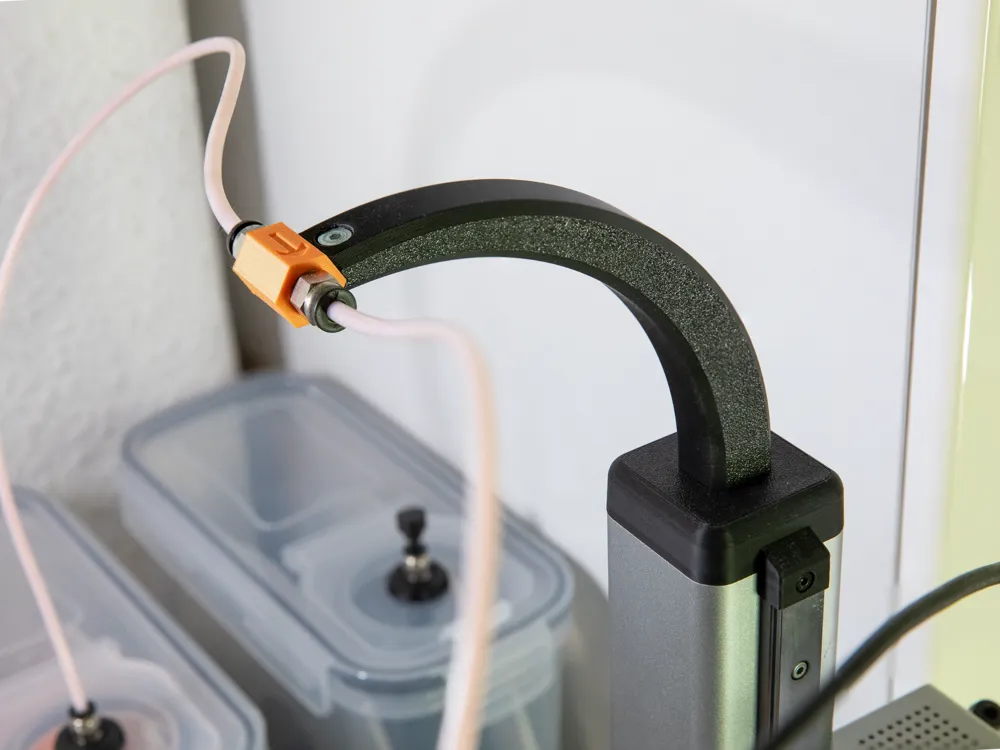

The result was this filament arm. It can easily be replaced with the original Z-axis cover.

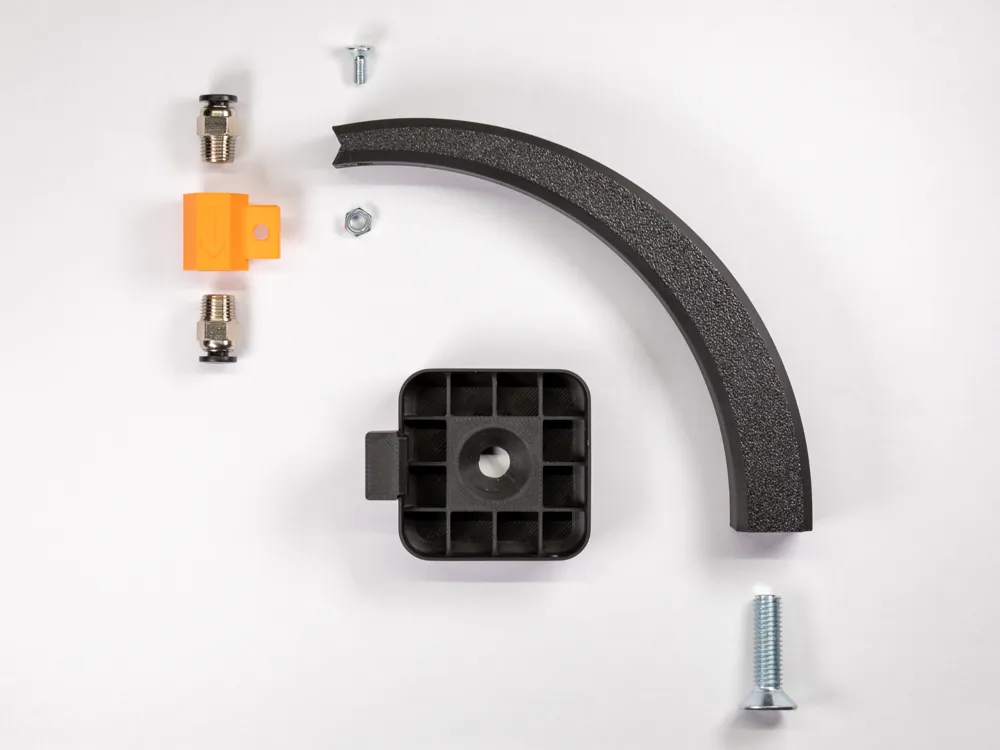

Materials required:
1x M4 x 10
1x M4 nut
1x M8 x 30
2x PC4 G1/8” PTFE fittings
Tools required:
M8 tap
The assembly should be self-explanatory. Just make sure that the arrow on the head piece is pointing forwards.
