Tired of dragging your QuickJack around the garage or paying ridiculous prices for a wheel kit?

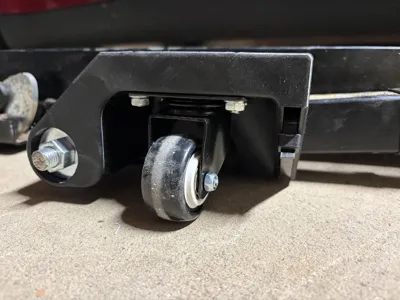

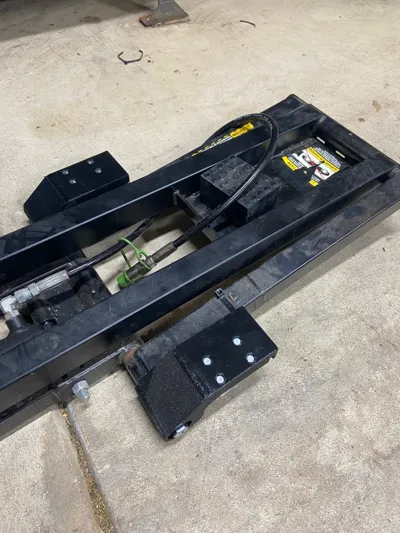

This is a reinforced, heavy-duty wheel bracket system designed to make your QuickJack easy to move—without sacrificing durability.
After real-world use, I redesigned this version with stronger wheels and improved support to fix long-term failures from the original design.

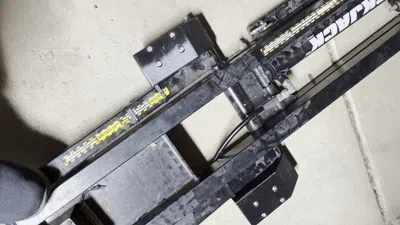

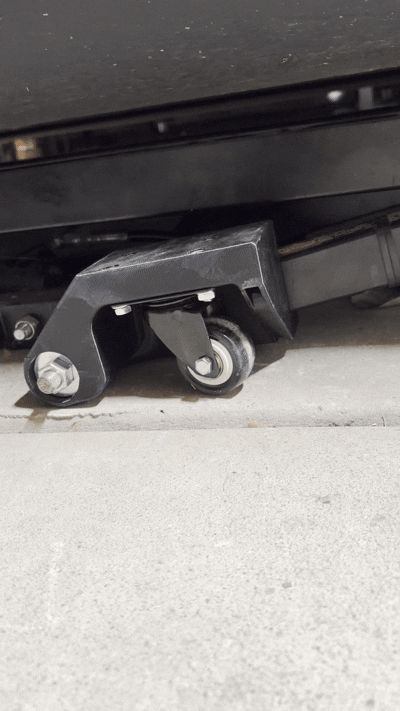

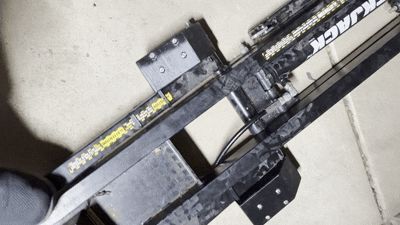

Here's a video of it in action https://www.instagram.com/reel/DW6pLiNjq4K/
Special thanks to Brain for making the video
I updated the print profile for minimal supports and to reduce the total filament usage to 2kg total. If you would like to increase supports or add infill by all means feel free to do so. I do recommend printing my profile with the door open for improved print cooling.
Parts list
4x 1/2" Threaded rod 18.5"

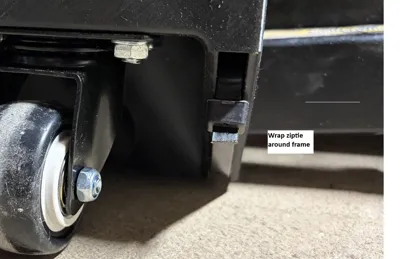

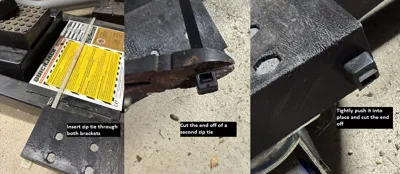

6x .3" Zipties 18.5"
8x 1/2"hex nuts https://www.homedepot.com/p/Everbilt-1-2-in-13-Zinc-Plated-Hex-Nut-804716/204647892
8x 1/2"washers https://www.homedepot.com/p/Everbilt-1-2-in-Zinc-Flat-Washer-50-Pack-807240/204284540
32x Hex bolts M6x1x25 mm https://a.co/d/0en4W2Tl
32 Hex nuts M6x1

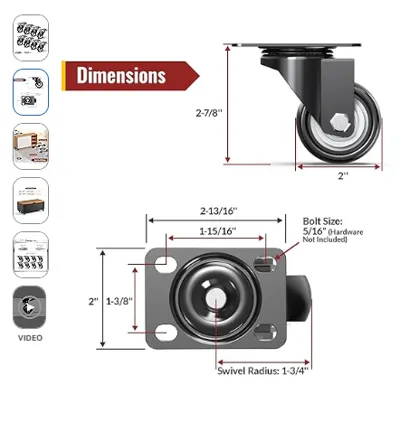

8x Casters https://a.co/d/09qGmKkD
This is a user-designed, 3D printed accessory and is used at your own risk.
I am not responsible for any damage, injury, or misuse resulting from this design.
These brackets are intended only to assist with moving/positioning your QuickJack, not for use while lifting or supporting a load in motion.
Print quality, material choice, and assembly directly affect performance and safety.
Use appropriate print settings and hardware, and inspect all parts regularly for wear, cracks, or failure.
Always follow proper safety procedures when using your lift.
