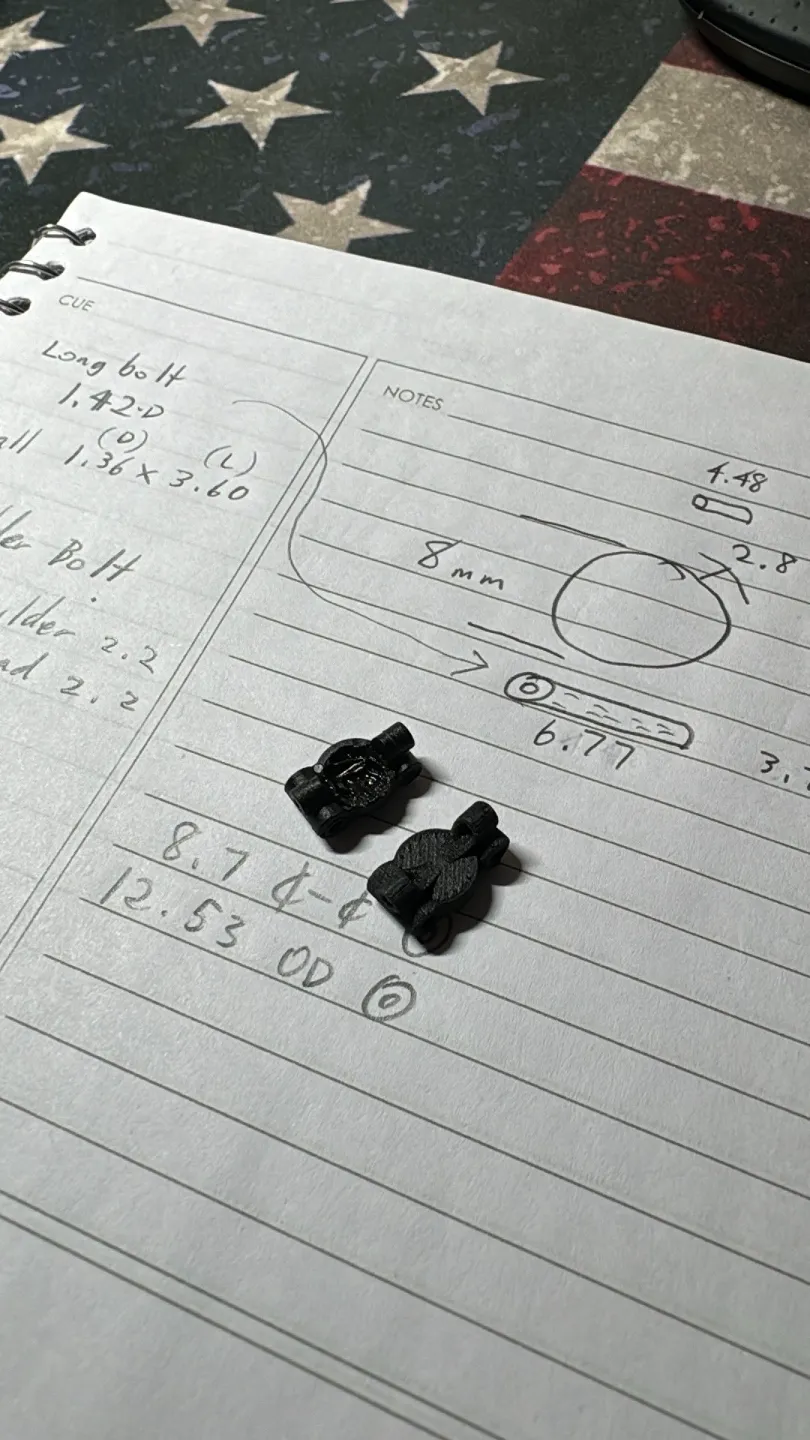

Losi MicroB front castor block

“READ”

I had to modify this file and the way it prints due to breaking at the point where the shoulder bolt connects the block to the spindle at both top and bottom. I also wanted the self threading holes tighter.

Make sure you print at 45 orientation on the build plate and use smallest layer height your machine can handle.

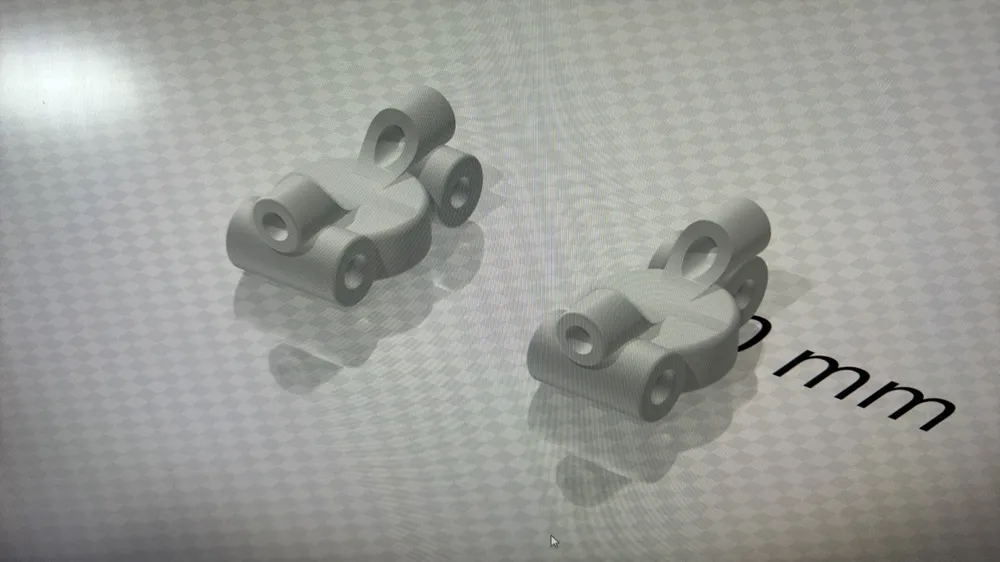

This is a modified replacement for the Losi Micro B front castor blocks. It was created in Fusion360.

I made the center solid to prevent more failures of the part and make it stronger.

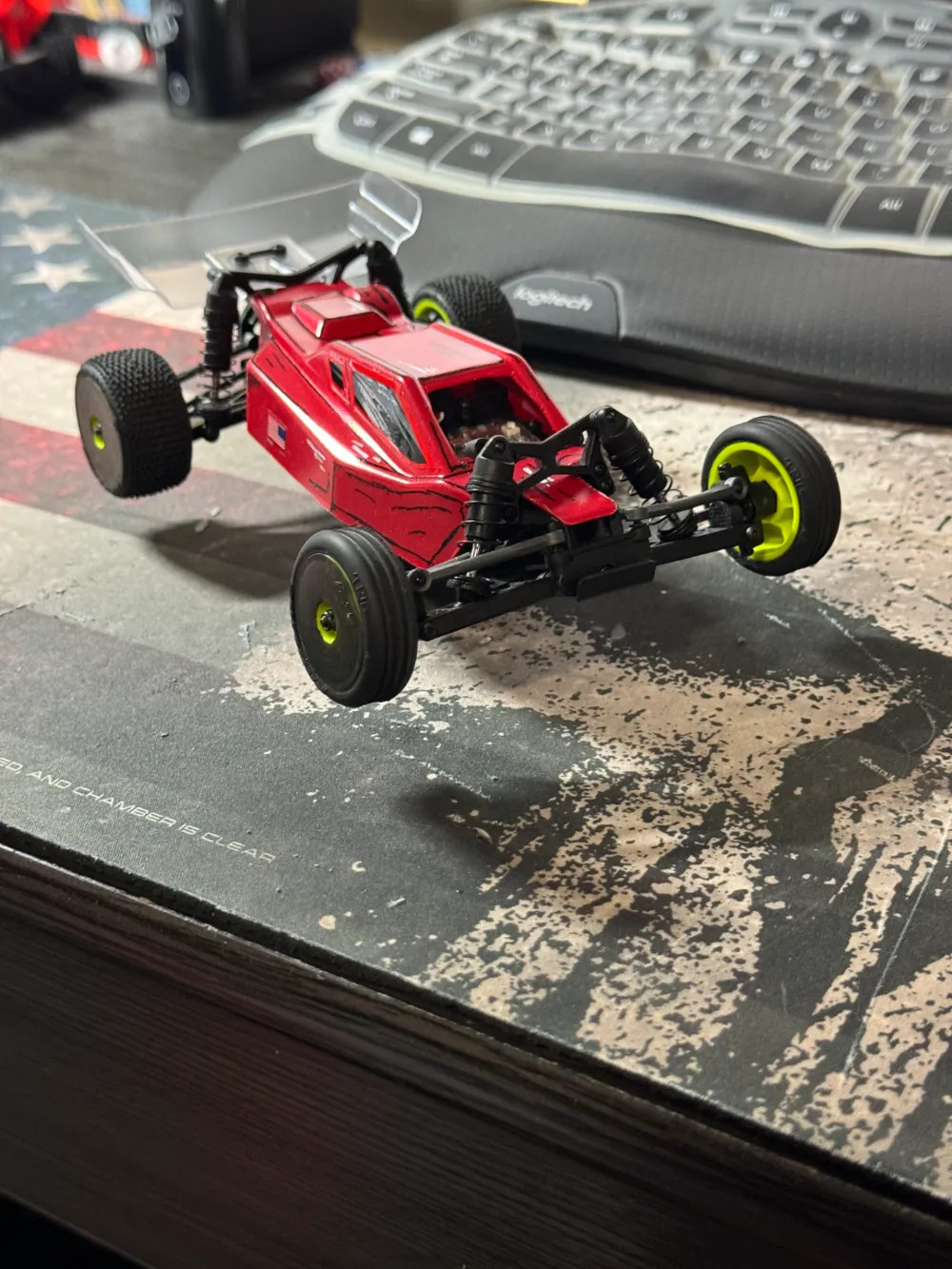

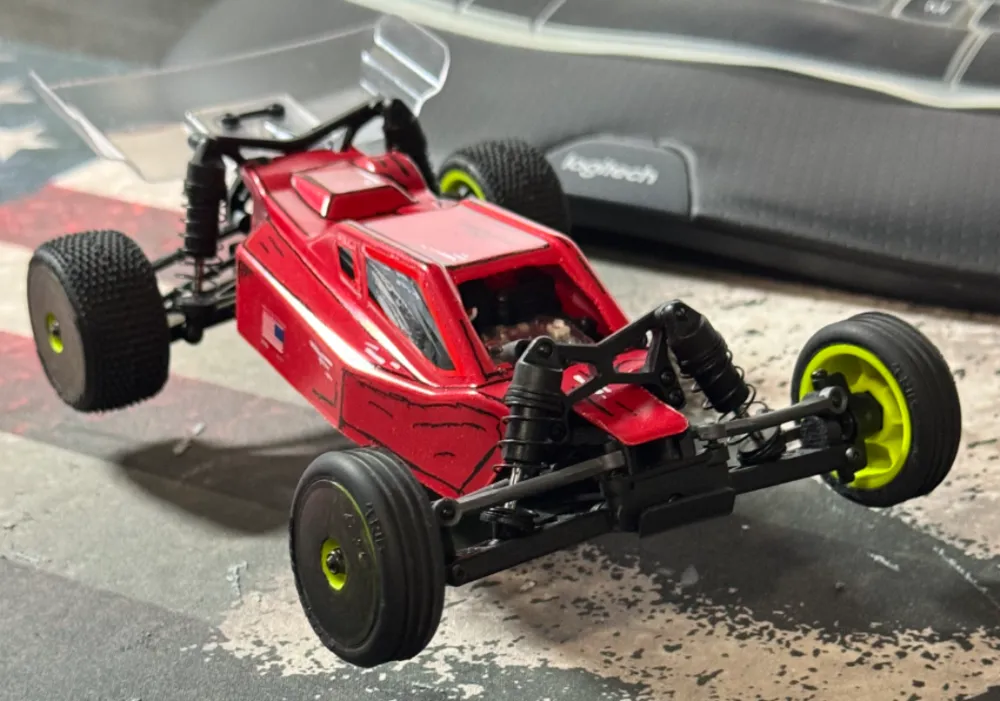

I have run the part, and it works.

I printed in Bambu PLA-CF so I do not know if any other materials will work. Feel free to try.

I sliced at extra fine .08mm layer height due to the small holes.

I had no issues with assembly and required no addition trimming or drilling for this part to work.

The only additional modification may be adding adjustable links once they become available which I was planning on regardless.

Enjoy and keep the shiny side up!!
