Disc Golf Wall Mount (Type 1)

Print Profile(1)

All
X1 Carbon
P1S
P1P
X1
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
1.2 h
1 plate
4.8(11)

Open in Bambu Studio
Boost
74
208
14
6
255
134
Released

Description

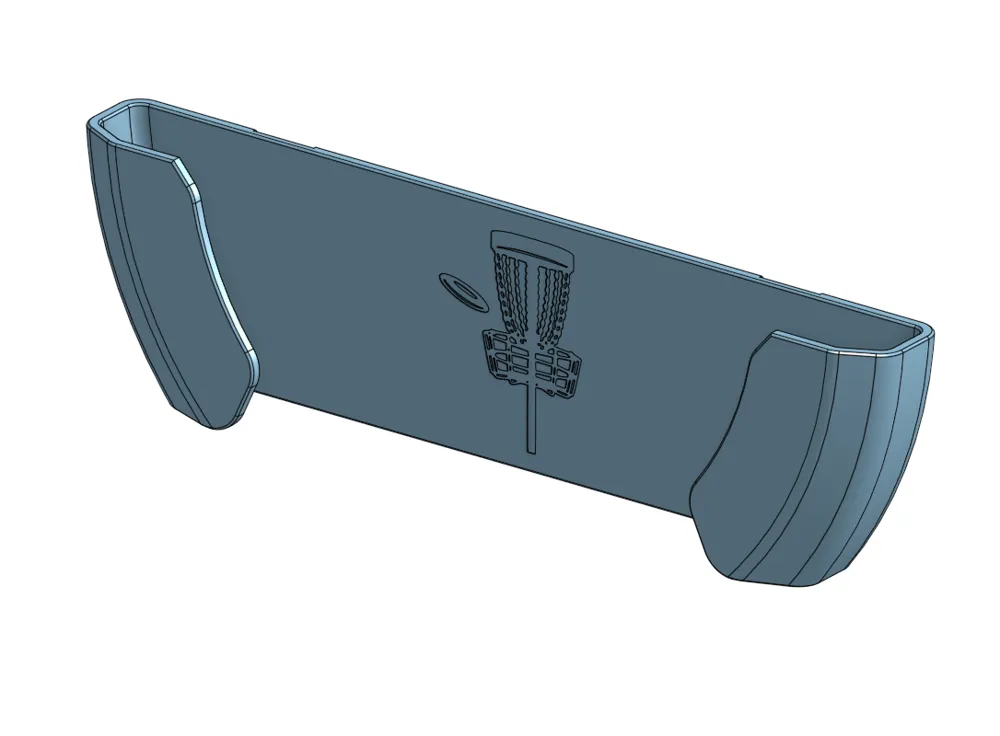

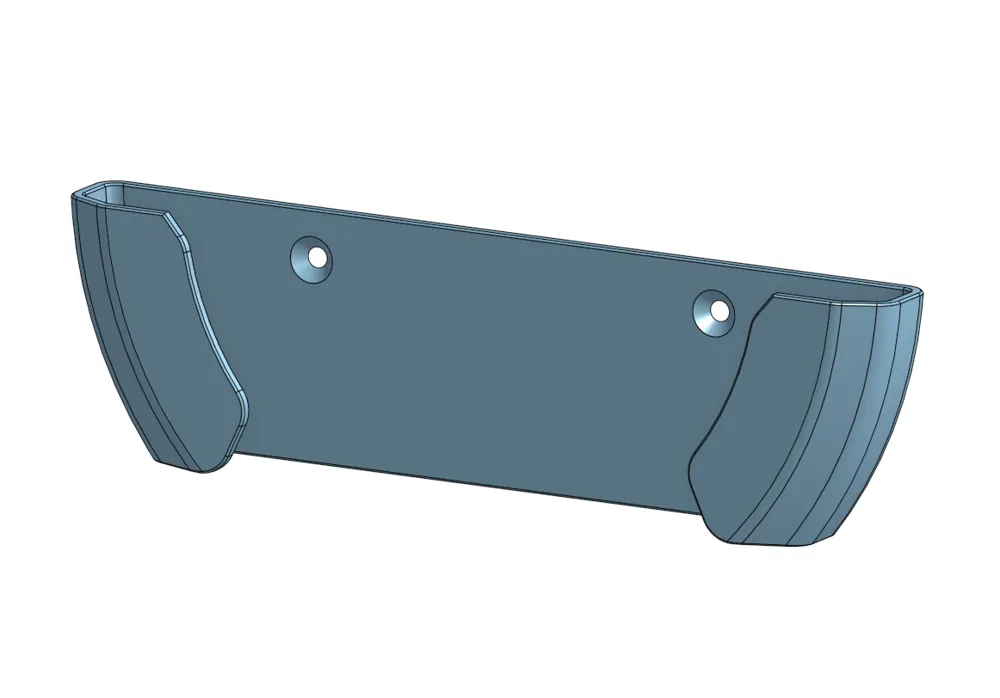

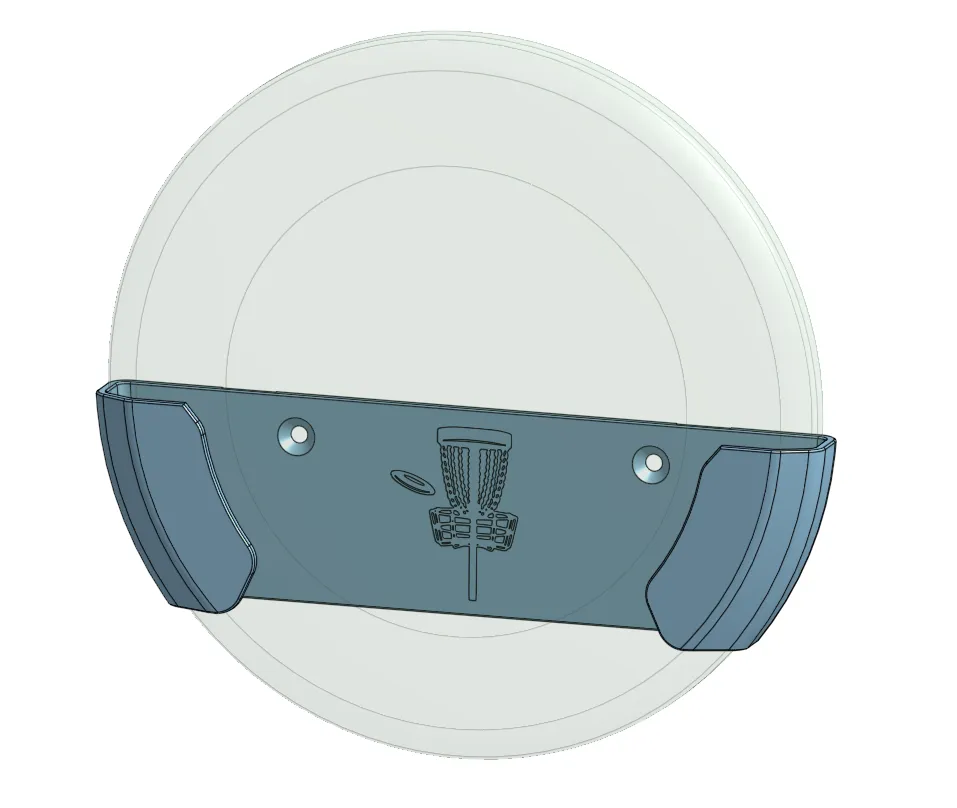

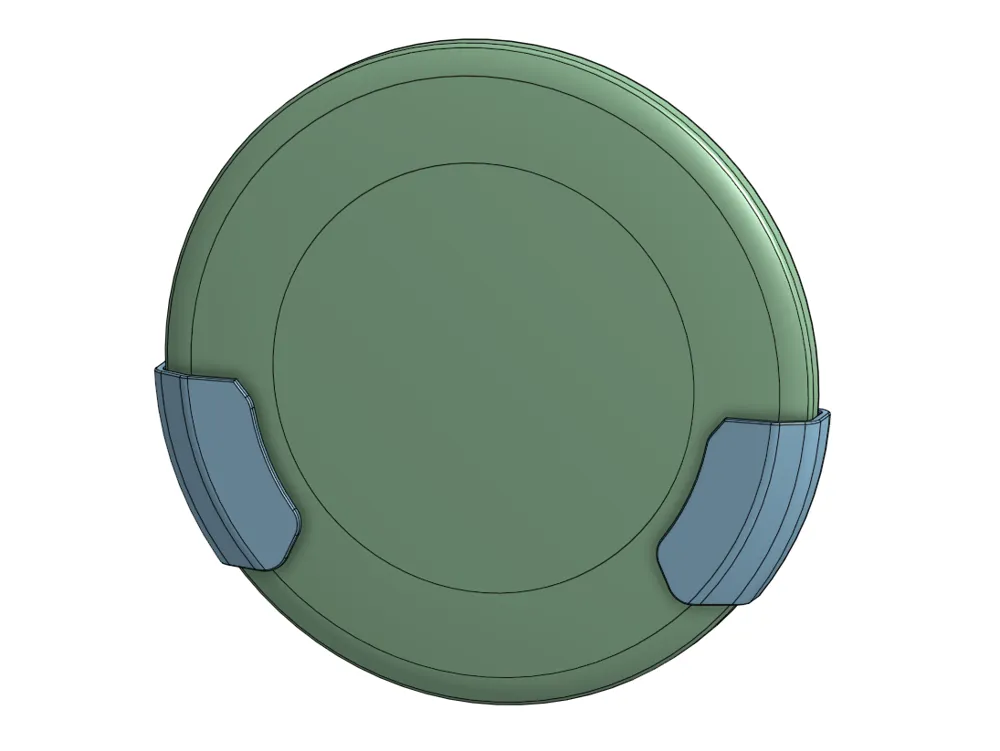

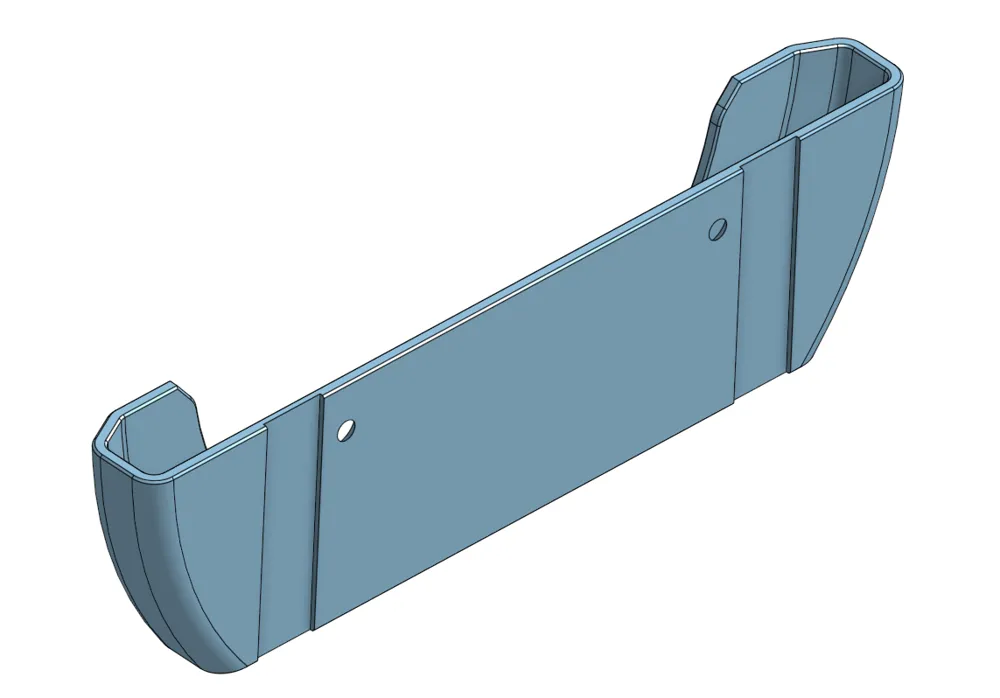

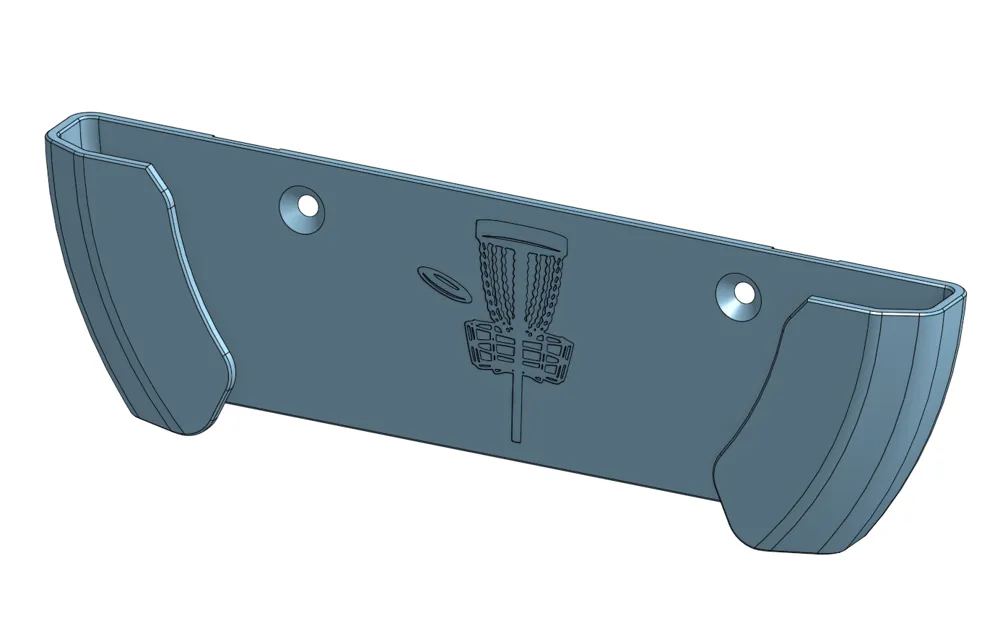

One of my coworkers wanted a way to display all his years of unique and classic disc golf equipment. I designed him two types of wall mounts, this is the first style and holds the disc from the outside. I have several configurations available below: one with 5/8" command strip mounting, one with screw mounting, one with both command and screw mounts, and each style with/without logos. Hopefully one of them will be useful to you as well. I am also uploading the step file for you to modify as you see fit. Lastly am providing the link to the Onshape native design file.



Onshape Link: https://cad.onshape.com/documents/18c888c28d2c482cfa774bee/w/b8db578ac6158ac21d7ecd87/e/31917400c29bf7aa1e8608a4?renderMode=0&uiState=6504b67ccaf63508b5a33ff4



Other Style (Type 2 = inside disc mount): https://www.printables.com/model/583736-disc-golf-wall-mount-type-2

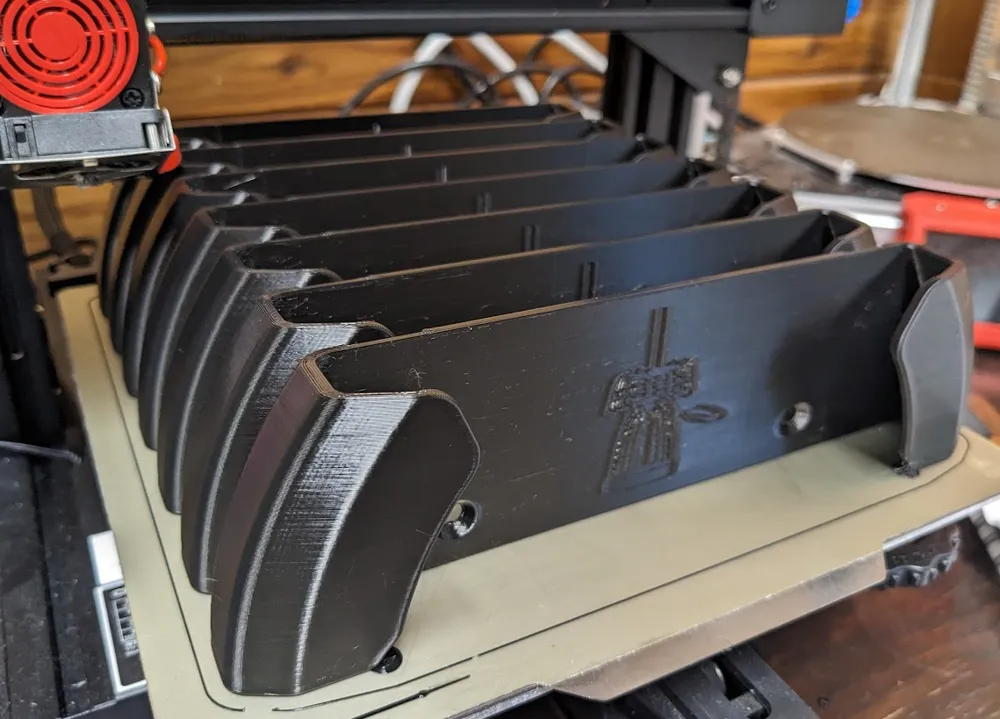

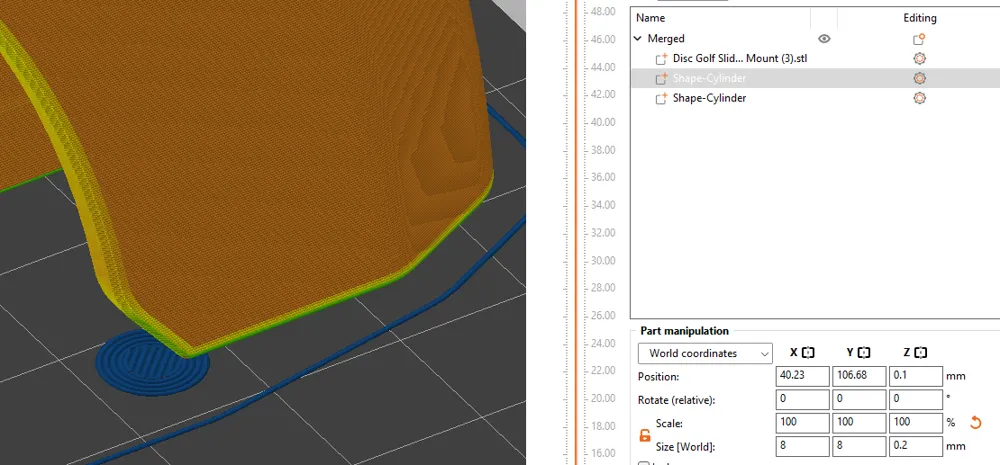

Note: I had someone mention they had issues with adhesion. First note is I print them upside down from the orientation the files were exported. Next suggestion would be to add helper disks at the open edge or the part. In PrusaSlicer right click → add shape → cylinder → change cylinder size to 8mm x 8mm x 0.2mm. Once you have placed helper disks anywhere adhesion was an issue on the original STL, Control-A to select all, then right click and select merge. Then slice as usual. See image in the photos of an example of a helper disk in use.

Comment & Rating (14)

(0/1000)

Print Profile
0.2mm layer, 2 walls, 15% infill
Thank you for the thoughtful design. it printed flawlessly. I did bump up the scale for my application of golf alignment disks. This design is just what I was looking for. Ty again.
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
perfect print !!! my disc is going on this!!
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
great
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
Easy print- works perfect.
0
Reply
Print is flawless. Printed upside down and 6 at a time. What size screw did you use to mount it?
The designer has replied
0
Reply
#6 (or similar) drywall screw should be fine. But if possible the 3M Command Wall Strips in the rear recessed pockets are nice because they can be removed and don't damage the wall.
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
Works great for the disker that you know and has some commemorative disks.
0
Reply
Print Profile
0.2mm layer, 2 walls, 15% infill
No matter what orientation it was printed it would get knocked off the build plate at some point I did end up using a glue stick and it held well enough to keep that from happening again
0
Reply
Turned out great, thanks
