Description

I recently invested in a Kindle Scribe to take notes and have a large format e-reader. I am amazed at how expensive covers are, with cheap one's fetching £30+. At the same time, covers rarely provide protection or advanced functionality. I therefore started creating this cover from scratch, building in the functions important to me:

  • Corners with voids to absorb shock from a fall.
  • Magnetic snap shut case.
  • Integrated are for the pen that works with the pen's magnetic snap on.
  • Integrated recess to ensure no direct surface contact with the screen. This can also be used to add some velvet fabric.

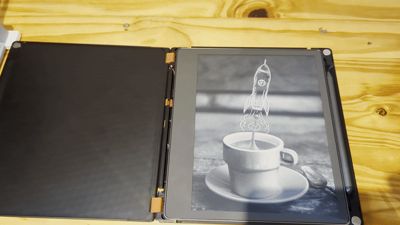

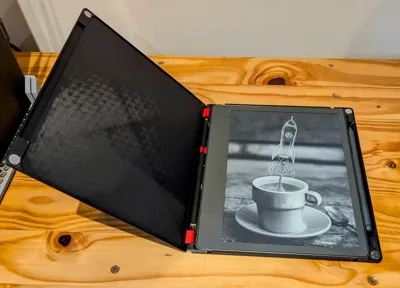

  • Opens completely to the back to allow for easy reading and to ensure it takes up minimal space.
  • Integrated push button so I do not lose functionality of the device with the cover.
  • Relatively light weight.
  • Easy and quick access to my device.
  • Super and stylish looks! :-)

For me, it has hit all the right marks!



What you will need additionally:

-2 x M3 x 30mm hex screws.

-2 x M3 nylon lock nuts

-2 x M3 x 25mm grub screws with hex fastener connection (headless screws for the lid) - Note you can also use 2 M3 x 12mm screws per hole with some superglue to make sure they stay seated tightly.

-4 x 10mm x 2mm magnets

-Some superglue (you will need to stick the two parts of the push button together after inserting into the main body)
