Updated 2024.12.11: The lower left and right parts have been uploaded, along with the print profile~

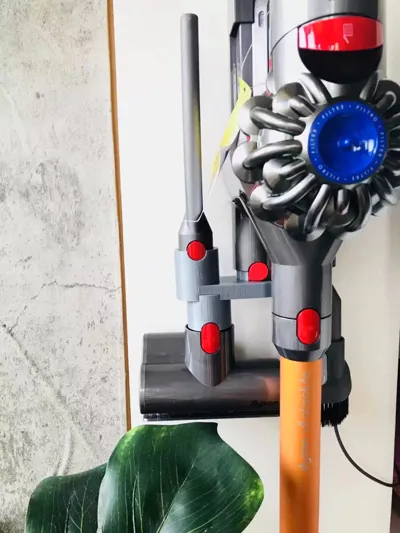

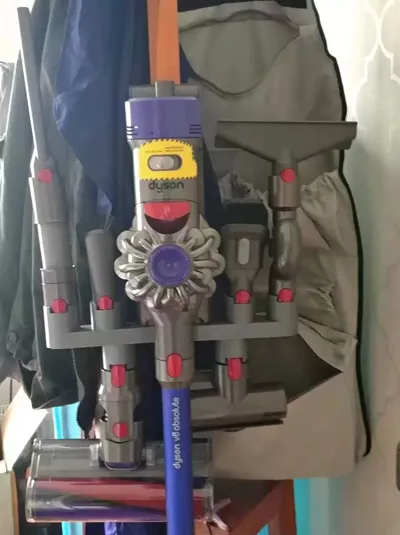

This Dyson V8/V10/V11/V12/V15 vacuum cleaner accessory holder expands the original wall mount to accommodate 4-6 attachments.

Each expansion bracket requires the following additional metal parts:

1. 2mm x 22mm stainless steel cylindrical pin

2. Stainless steel compression spring - 0.5mm wire diameter, 6mm outer diameter, 10mm length

Instructions for installing the cylindrical pin and spring:

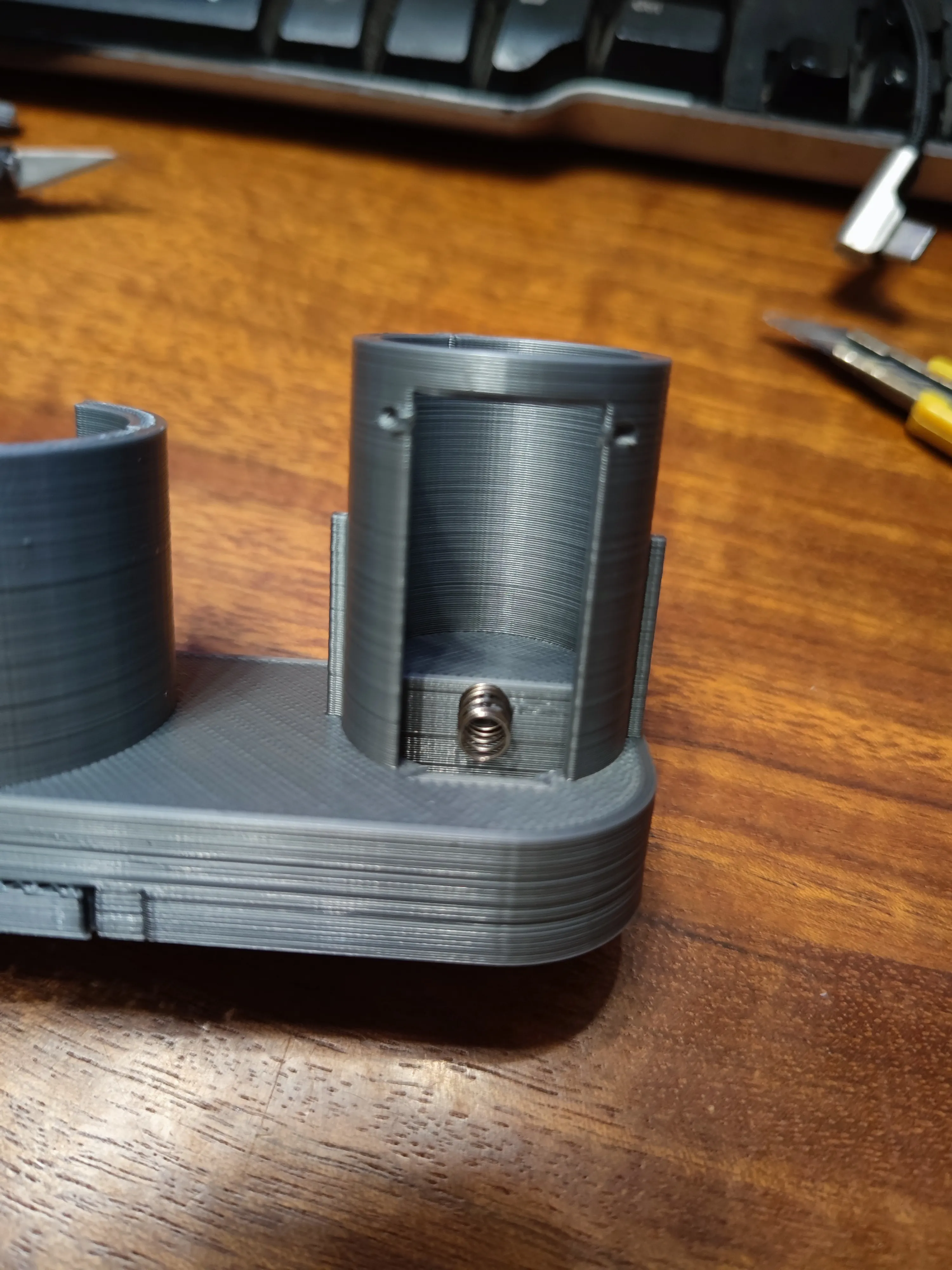

Place the spring into the upper part

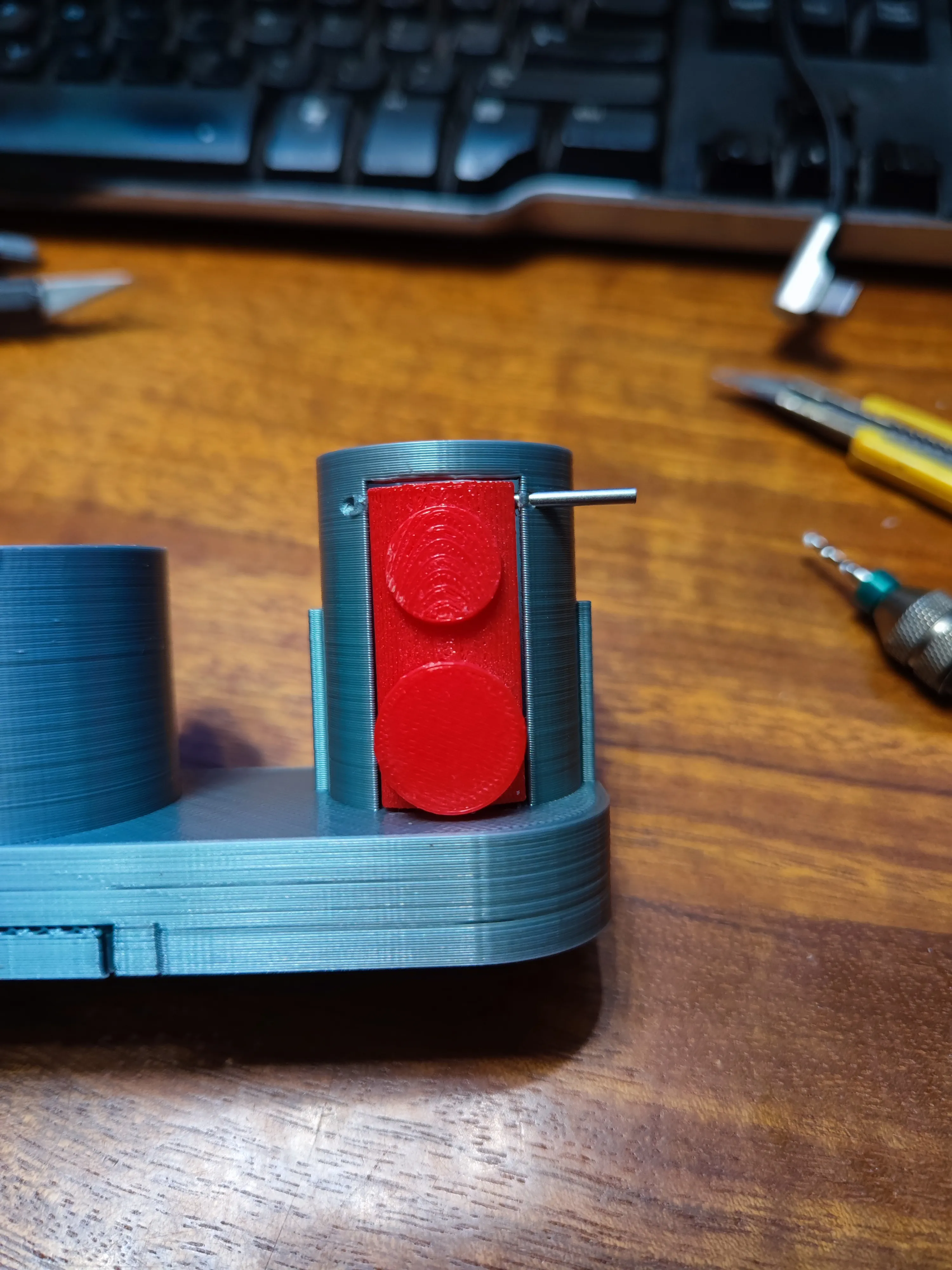

Position the button and insert the cylindrical pin, passing it through the button's circular hole (Enlarge the circular hole using a 2mm drill bit)

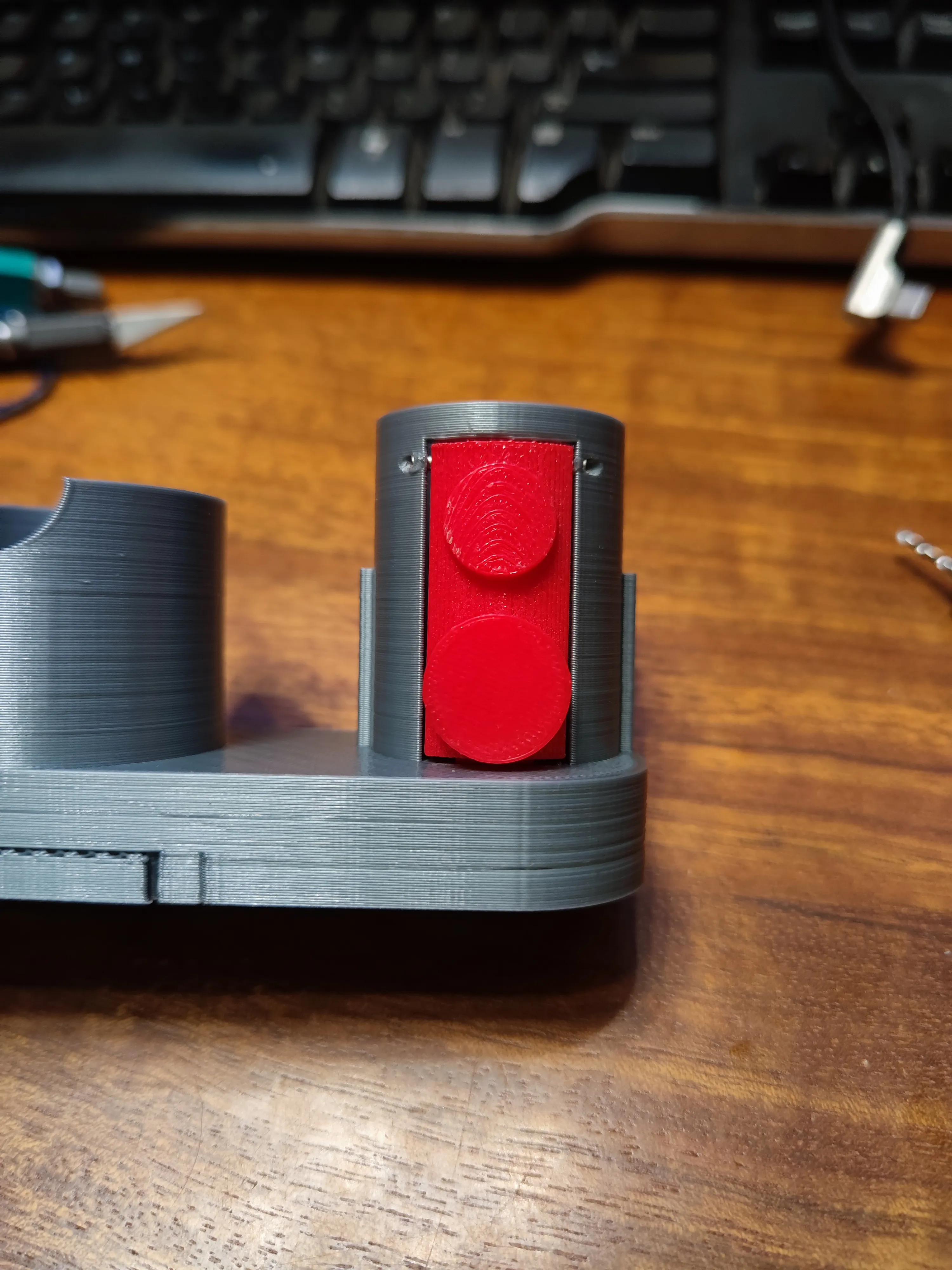

Fully insert the cylindrical pin

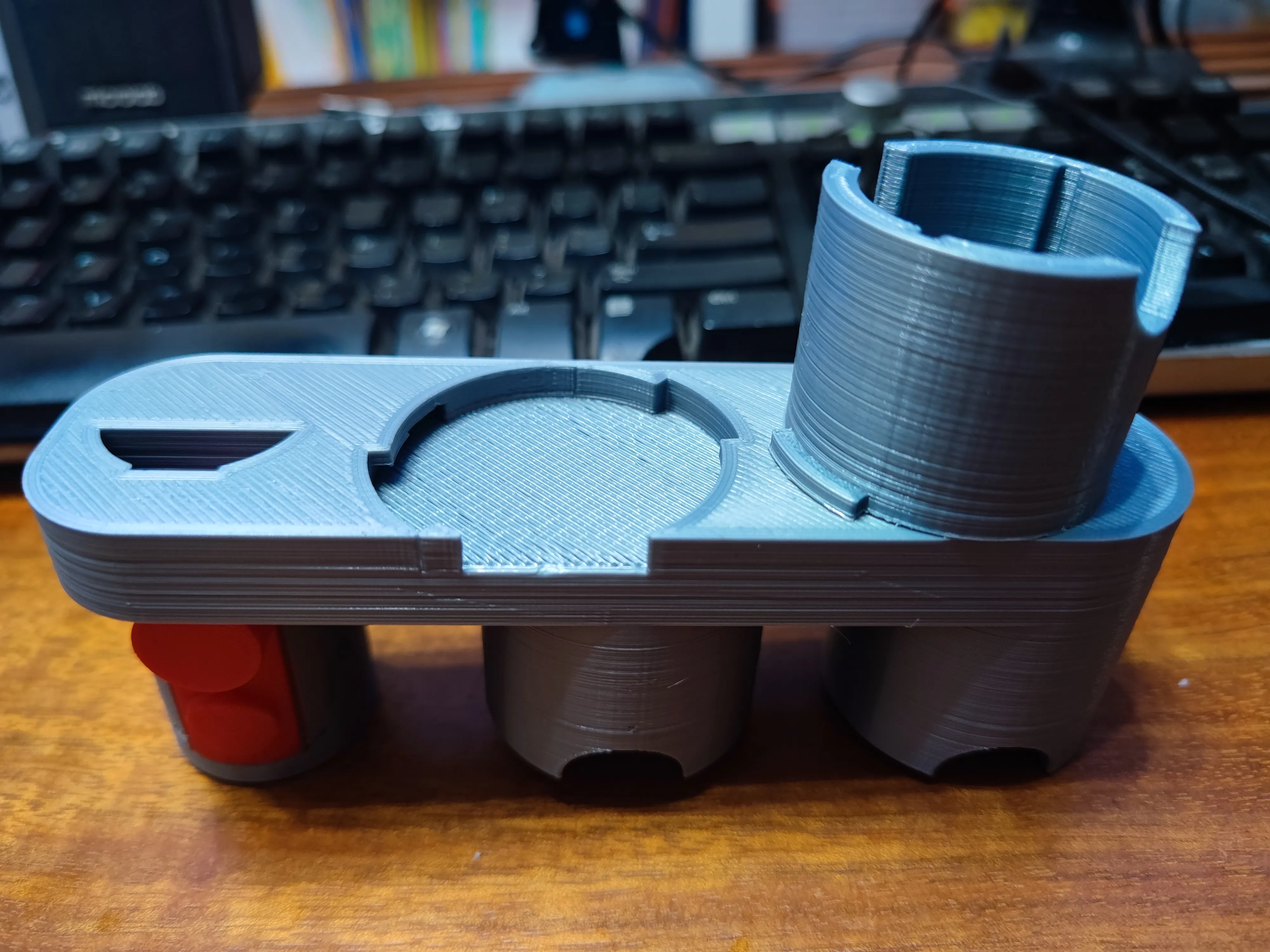

Lower part installation instructions
