HDD/SSD tray for CoolerMaster HAF X 942

This is a HDD or SSD tray for this computer case:

https://www.coolermaster.com/th-th/products/haf-x/

There are 2 versions of it.

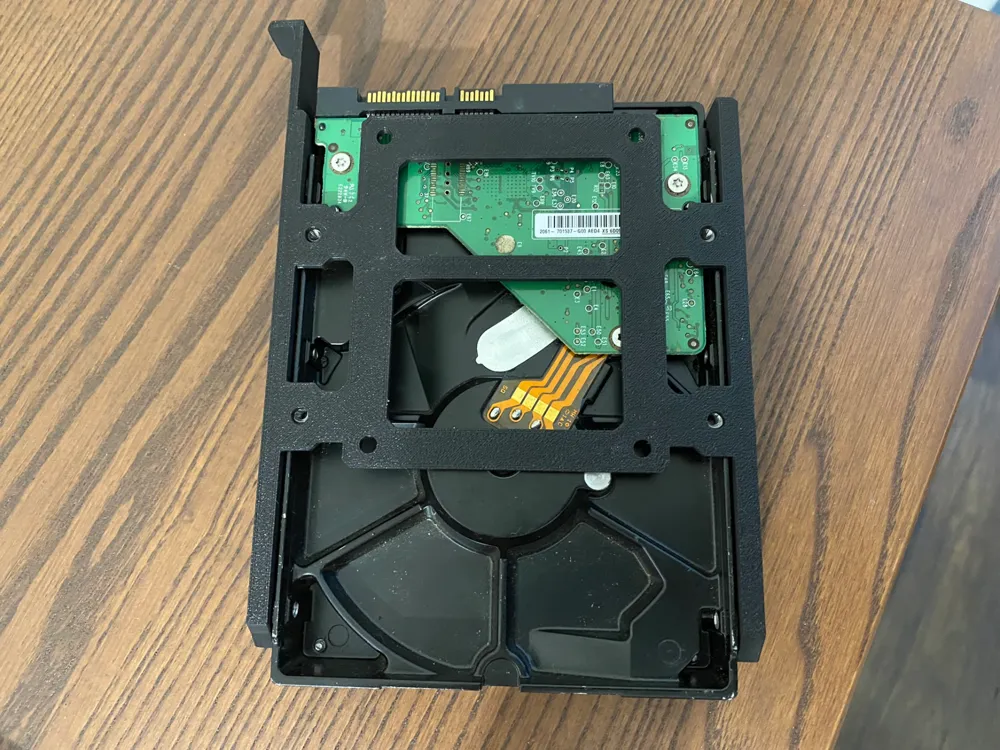

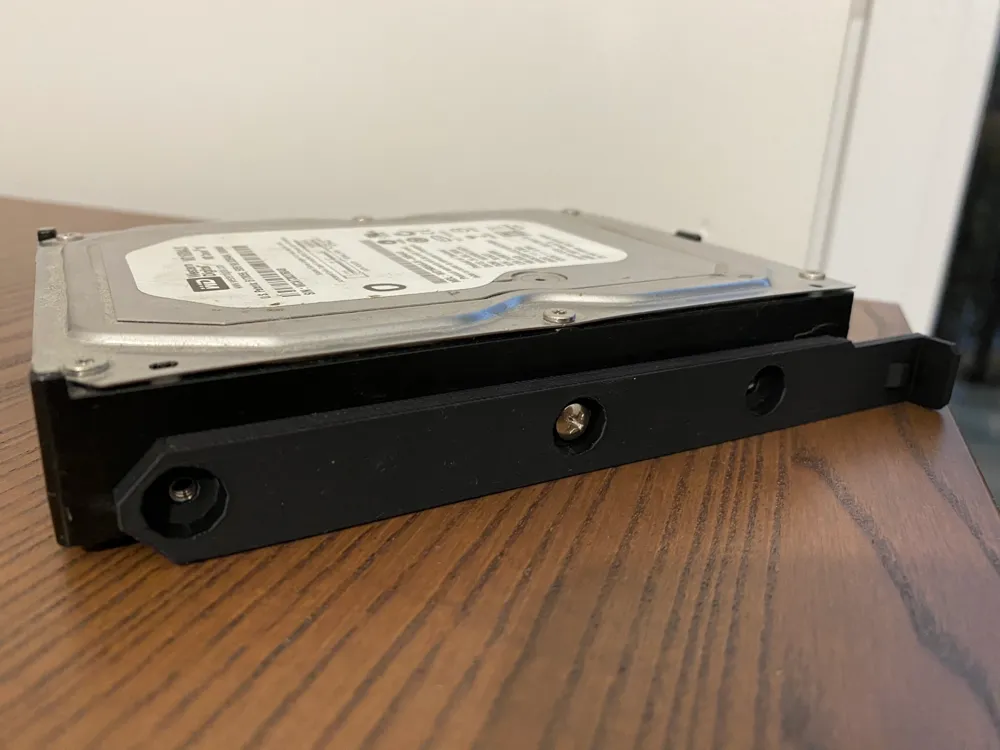

One plate ("normal tray") contains the “normal” version of the tray, similar to the original one. Use it if you've lost your original tray and want to keep things as they were before.

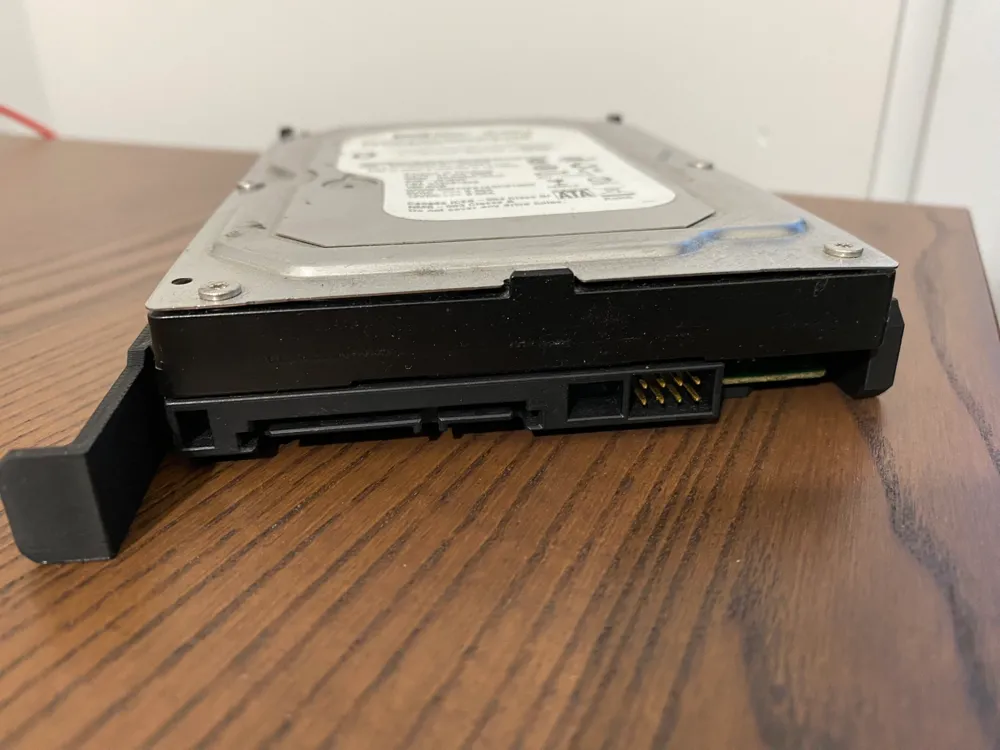

Another one ("inverse tray") swaps the orientation of the disk. SATA cables are in the front in this version. I'm using this version in my case – it's because now I can just open one wall to replace a disk. Original case design requires to open both walls in such scenario.

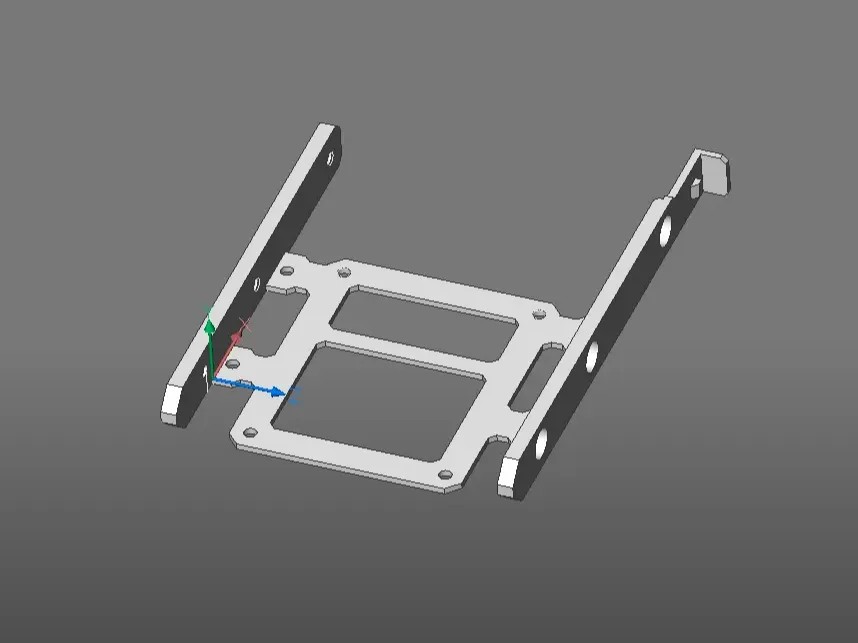

The .3mf file is all you need to print the part. If you want to modify it, use the DWG file. I've used BricsCAD to draw it – maybe AutoCAD will open it, but I'm not sure. This “source” file is attached because different case models can have slightly different sizes; it could be required for you to adjust 0.5mm so that the tray will fit perfectly for you. For me, I need to use a little bit of force when I insert the tray to the topmost position, but it fits just fine in the lowest position.
