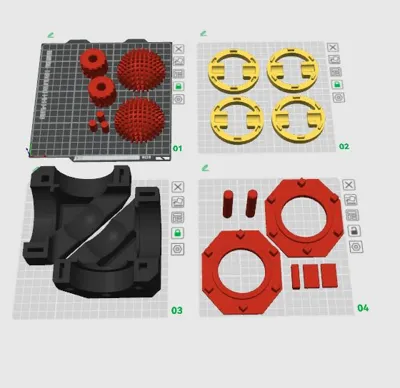

Print Profile(1)
0.16mm layer, 2 walls, 15% infill
Designer
16.6 h
4 plates
Open in Bambu Studio
Boost
44
101
12
10
117
60
Released
Description

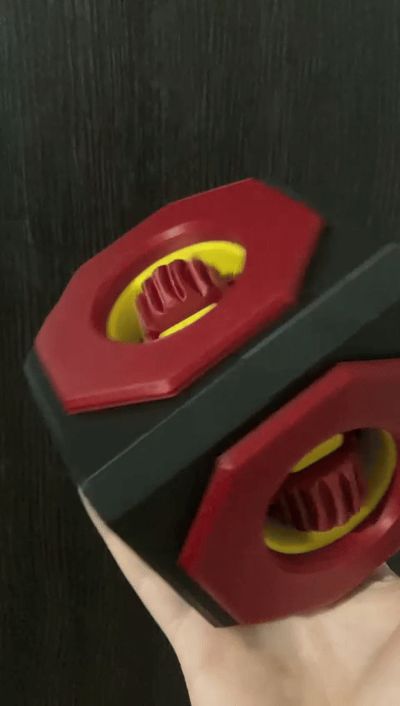

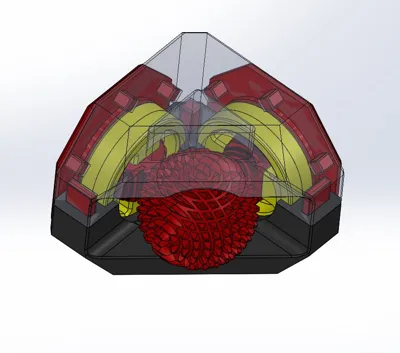

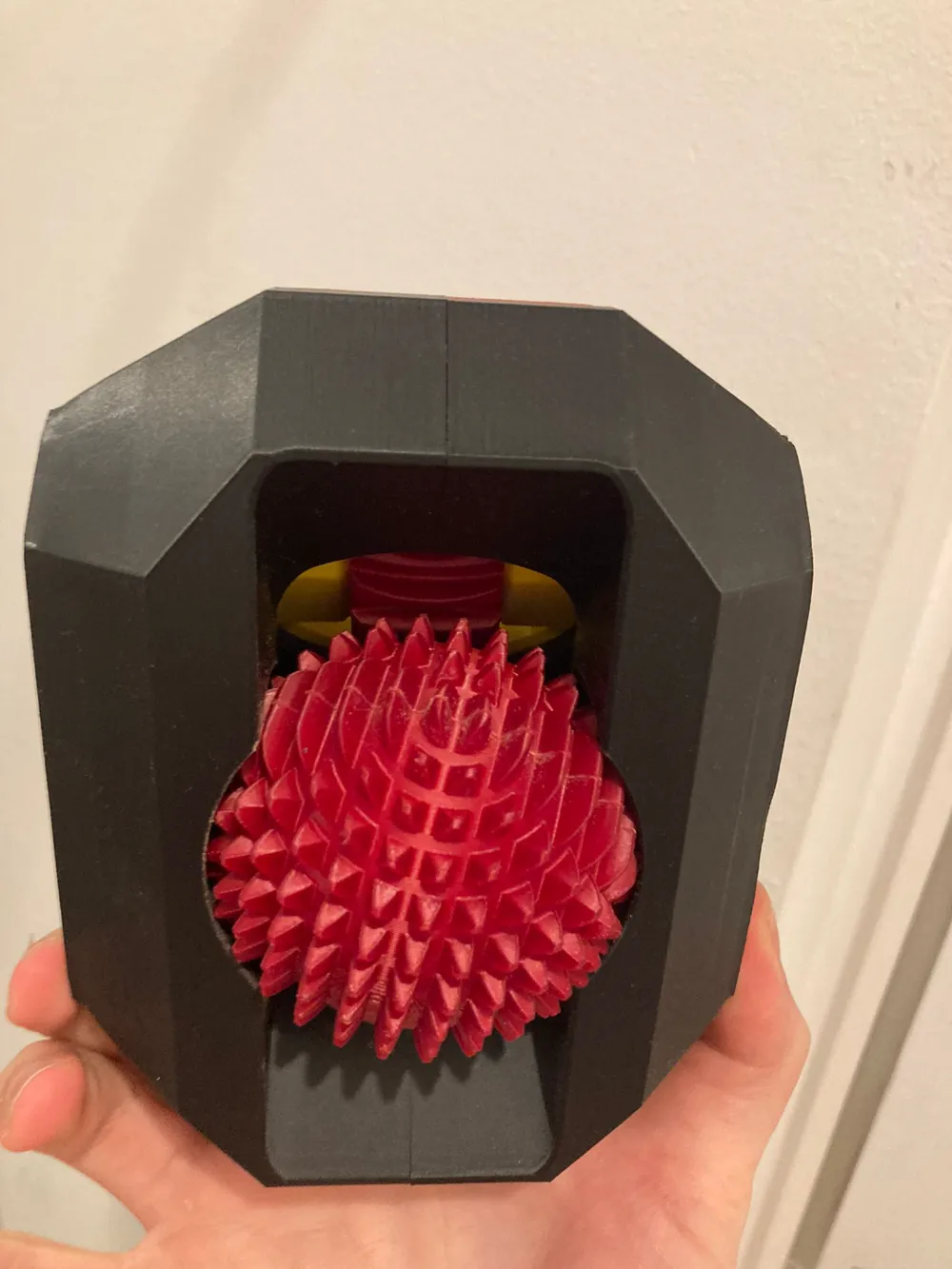

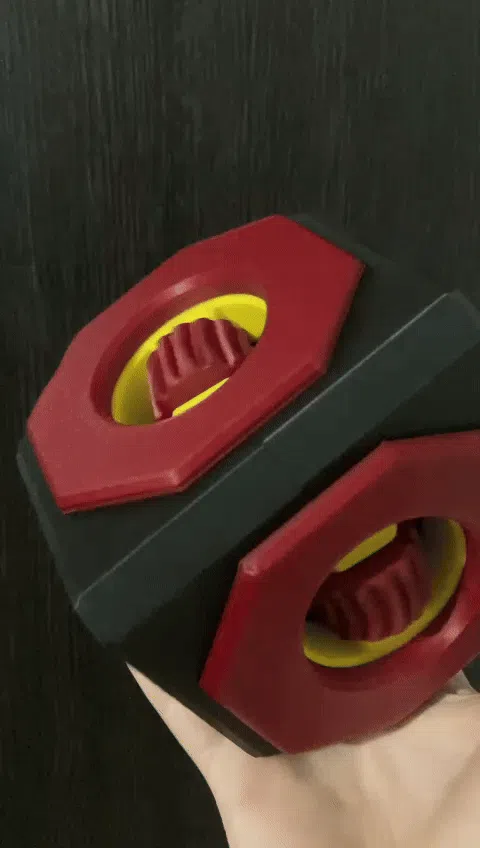

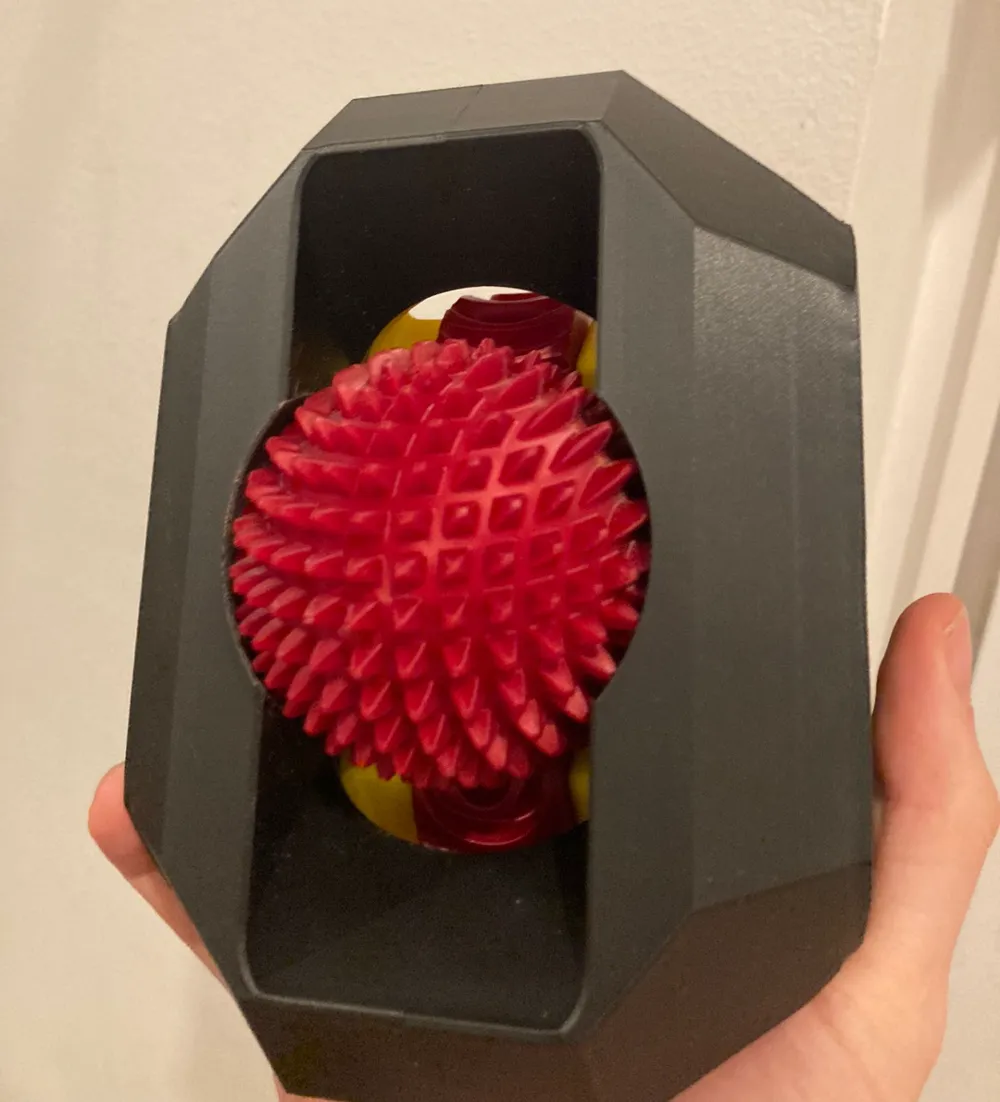

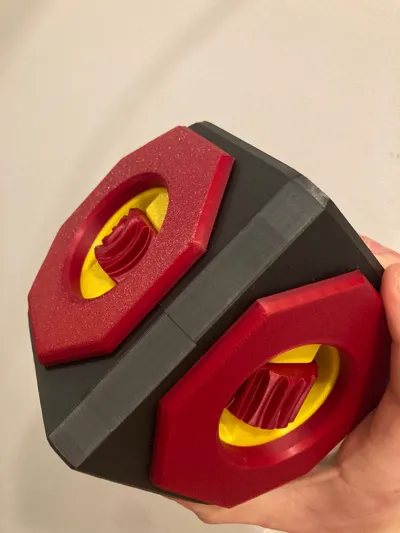

This Model shows the working principle of the Abenics active ball joint , which uses a spherical gear meshing with two monopole gears. The spherical gear has 32 teeth, while each monopole gear has 16 teeth, with a module of 2 for all gears. This model allows for the manual manipulation of the induvidual gears, creating a better understanding of the kinematics.
References:
- Article: DOI - 10.1109/TRO.2021.3070124
- Video: Watch here
