Picatinny Riser [Parametric]
IP Report
Print Profile(2)

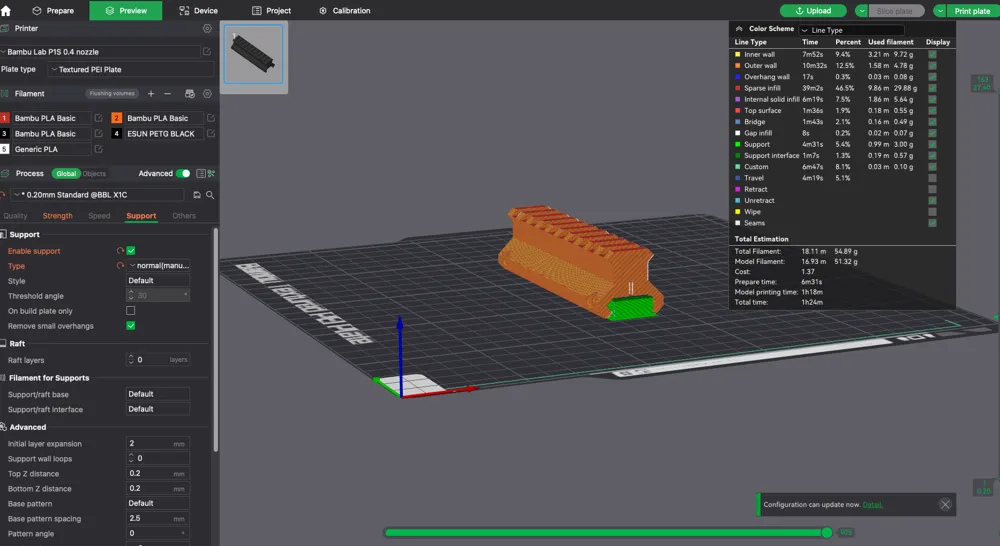

0.2mm layer, 3 walls, 100% infill,PLA
Designer
1.4 h
1 plate

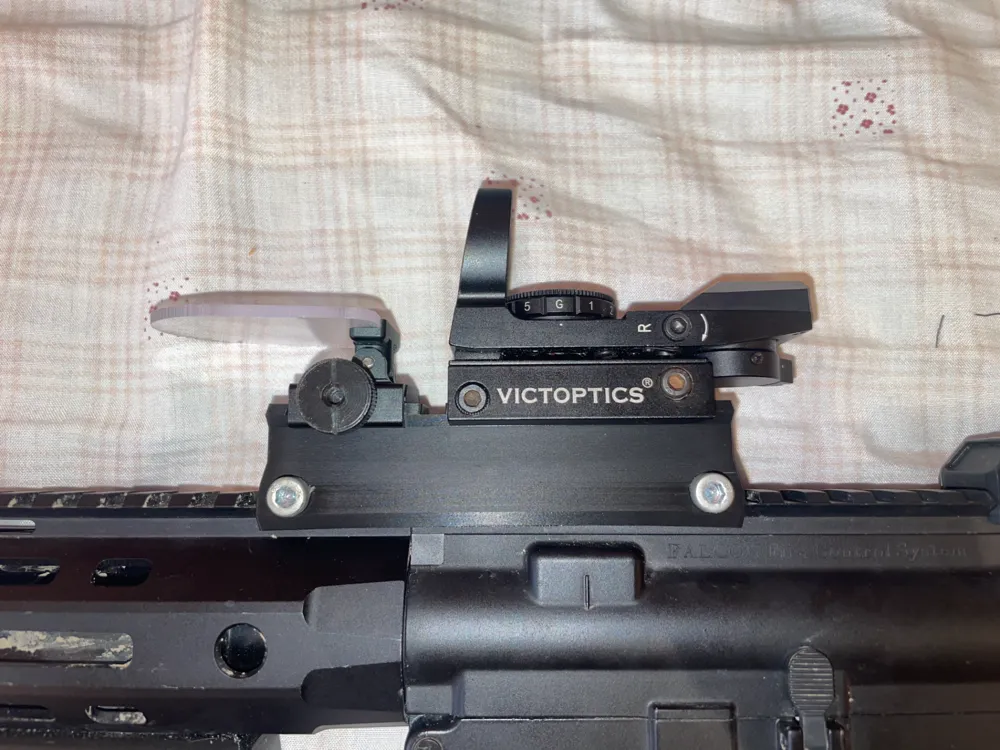

fits Begadi PHX552 145mm length 20mm raised
2.3 h
1 plate
Open in Bambu Studio
Boost
107
269
20
14
417
225
Released
Bill of Materials
List other parts
- M5X30 x 2:
- M5 NUT x 2:
Description

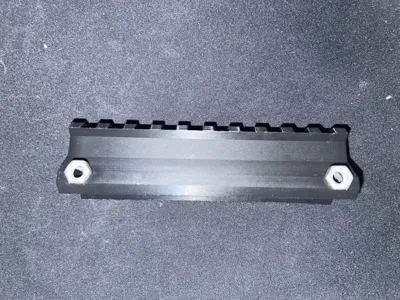

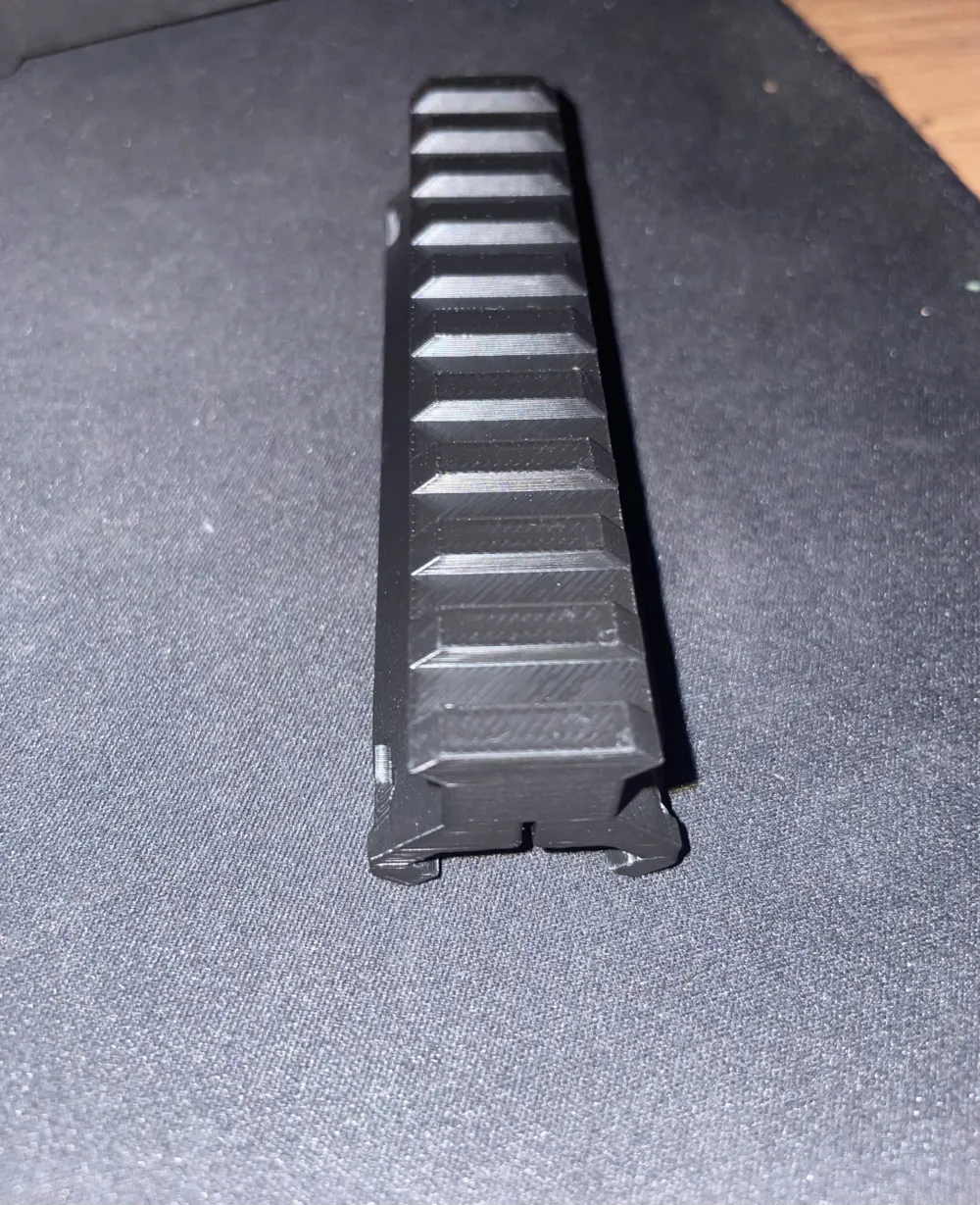

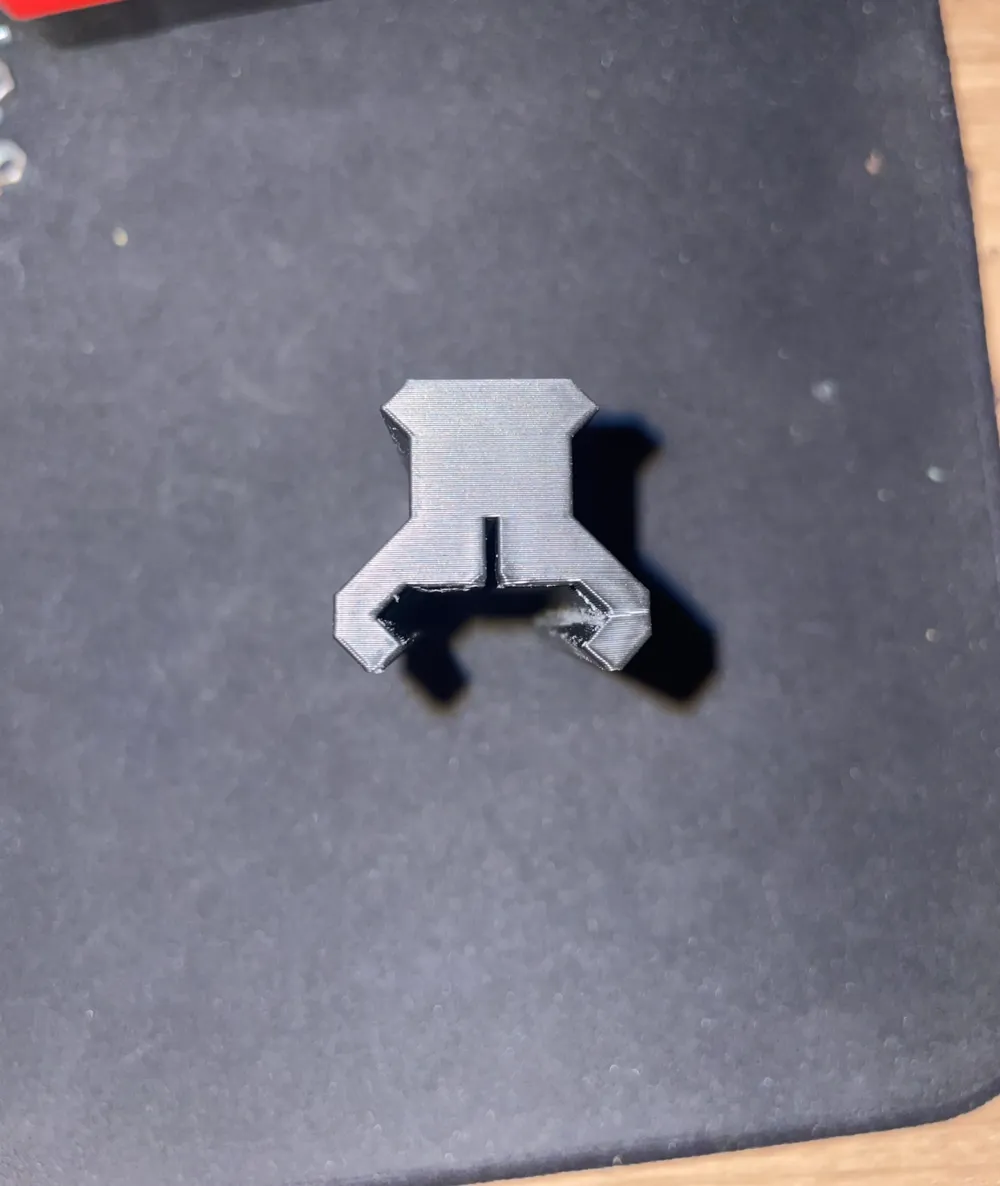

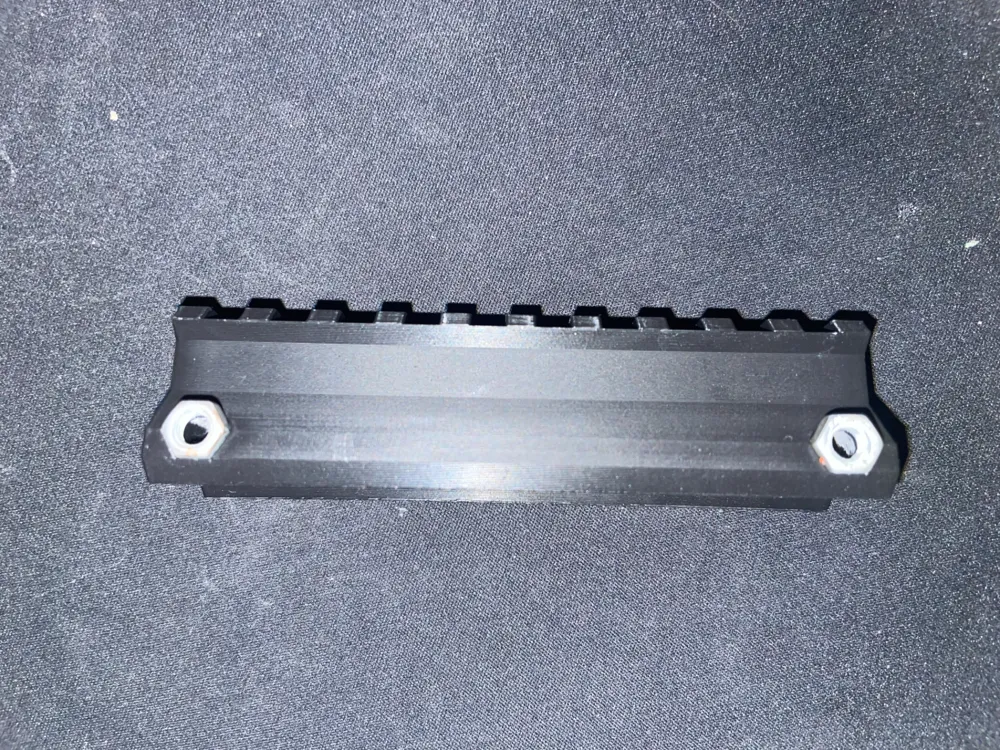

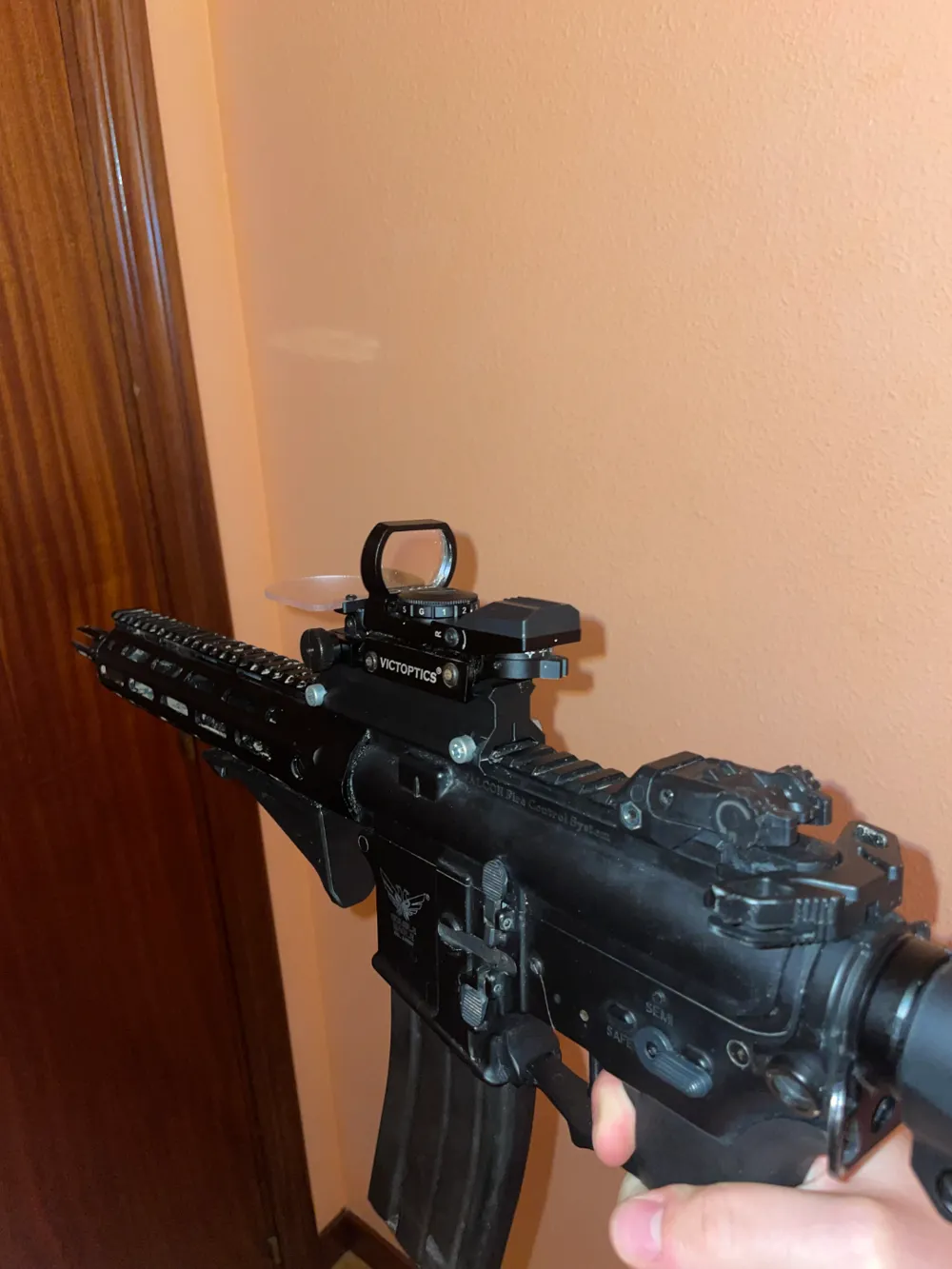

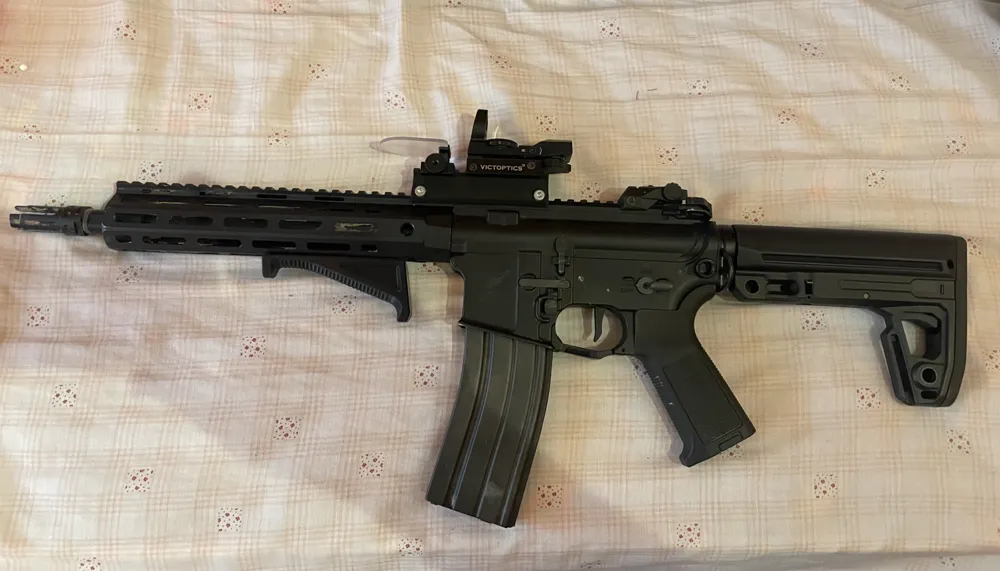

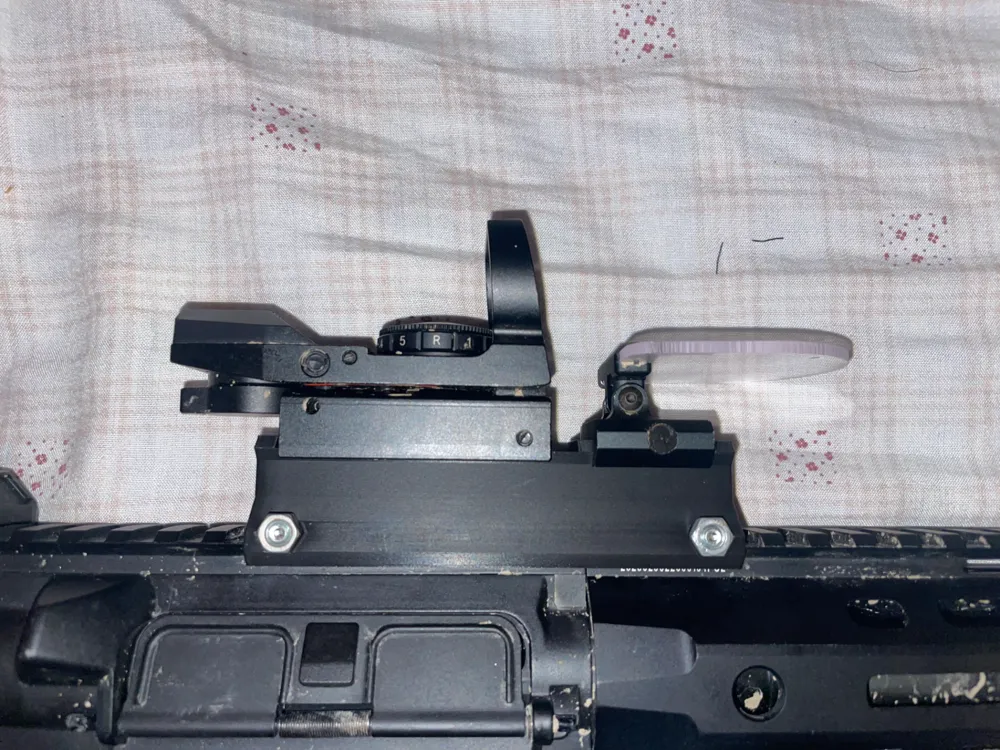

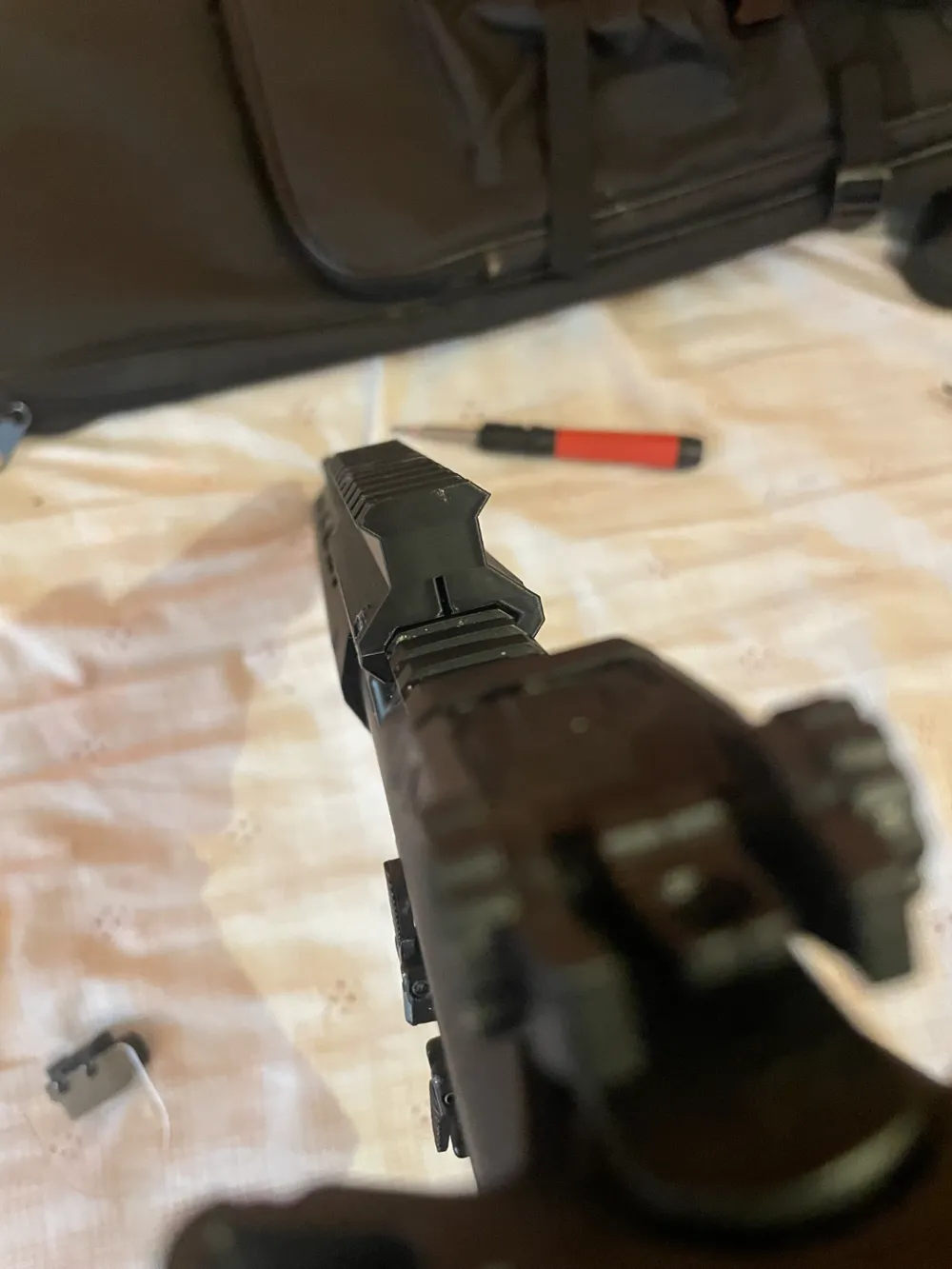

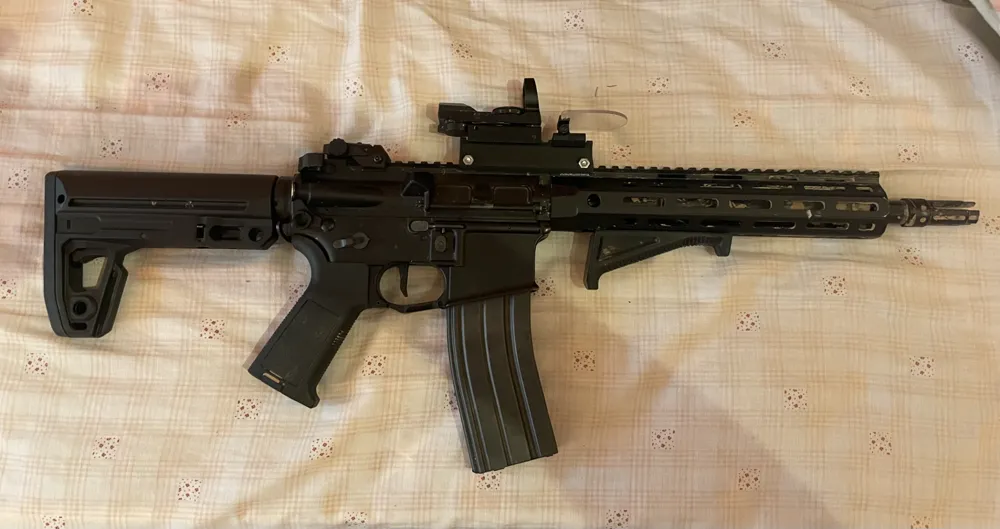

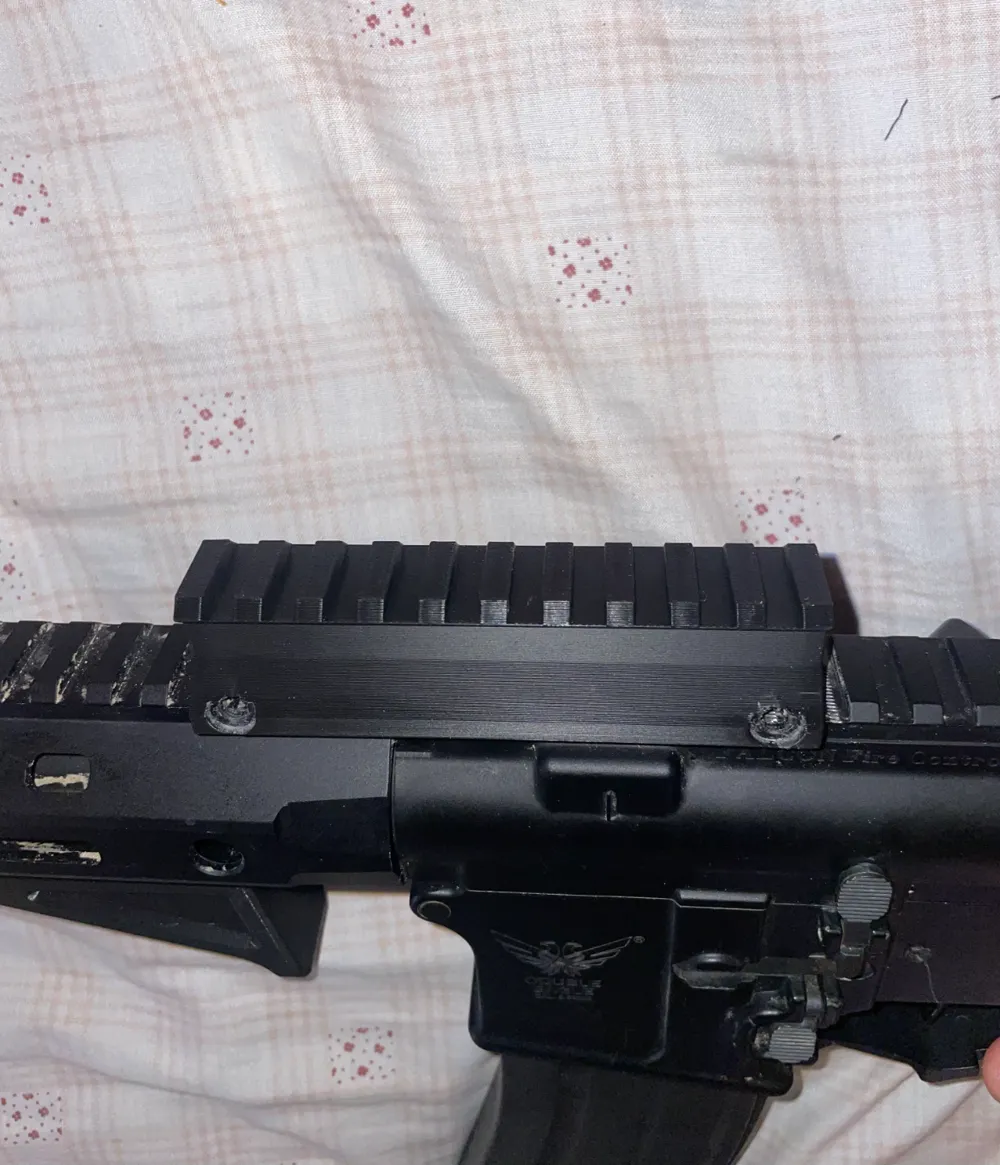

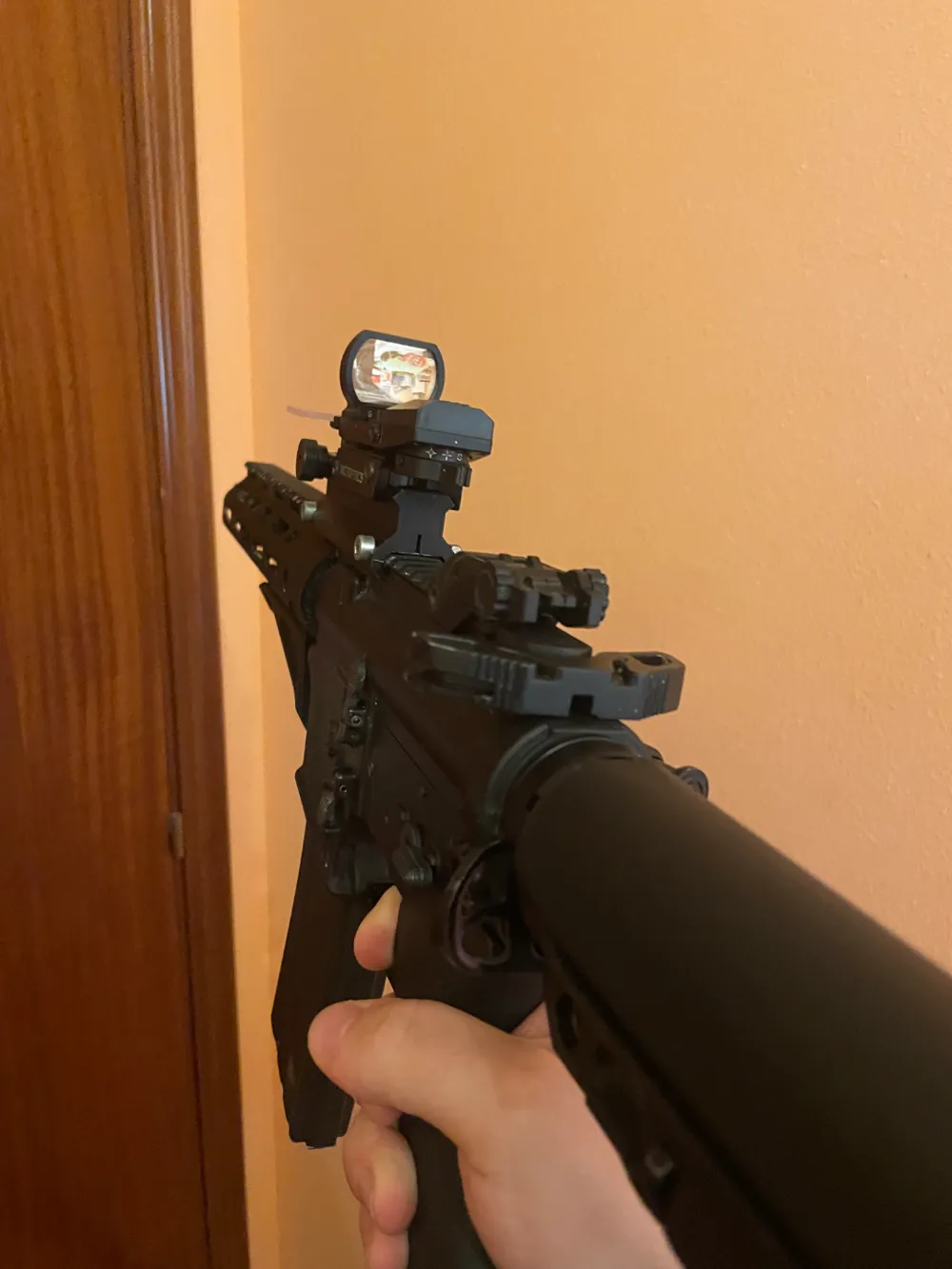

This is a parametric Picatinny rail riser for airsoft guns, customizable in height and length.

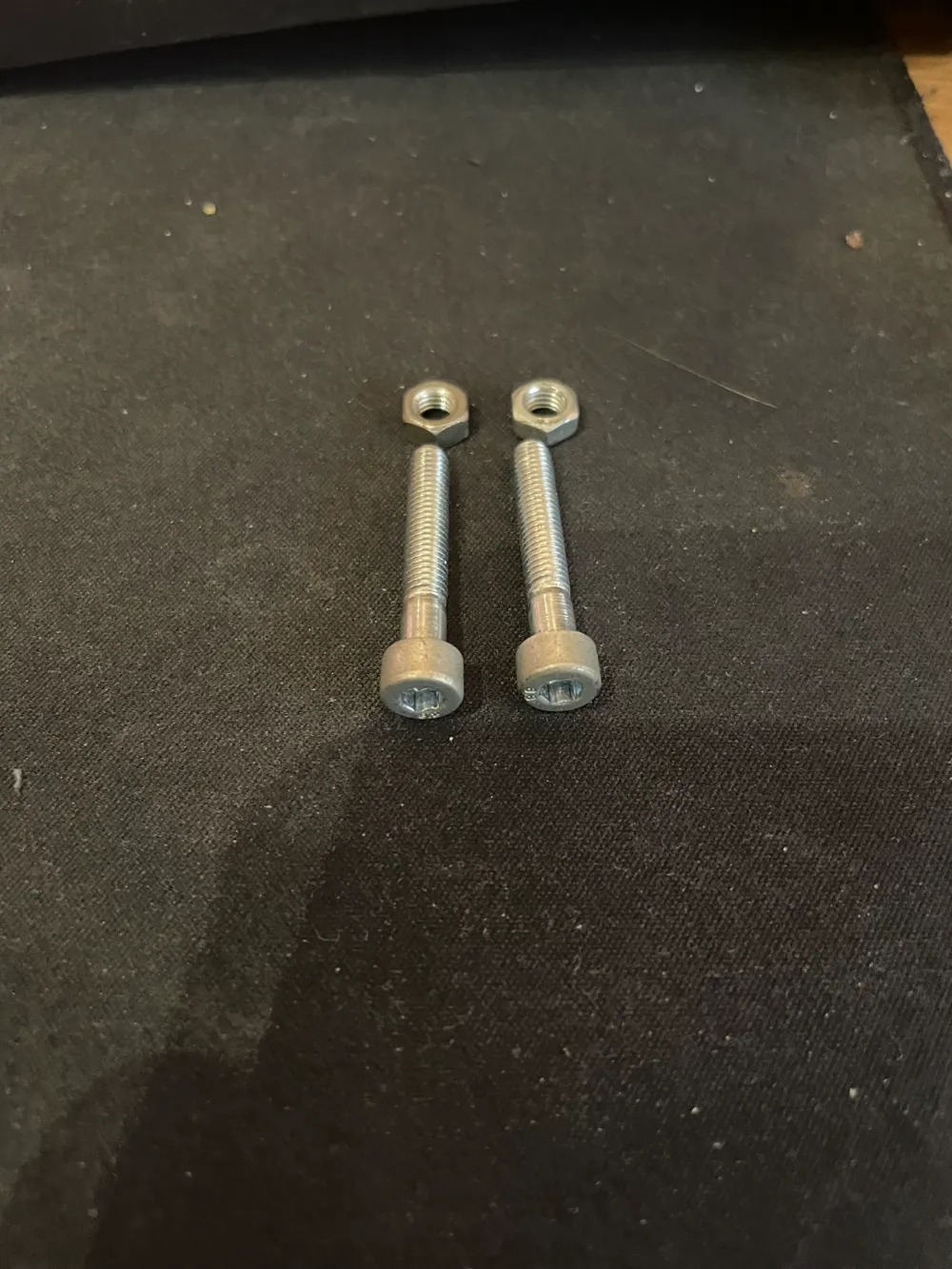

It requires
- 2 M5x30 screws (hex if posible)
- 2 M5 nuts
- 100% INFILL IS ADVICED
- SUPPORT: YES
DO NOT OVERTIGHT THE SCREWS

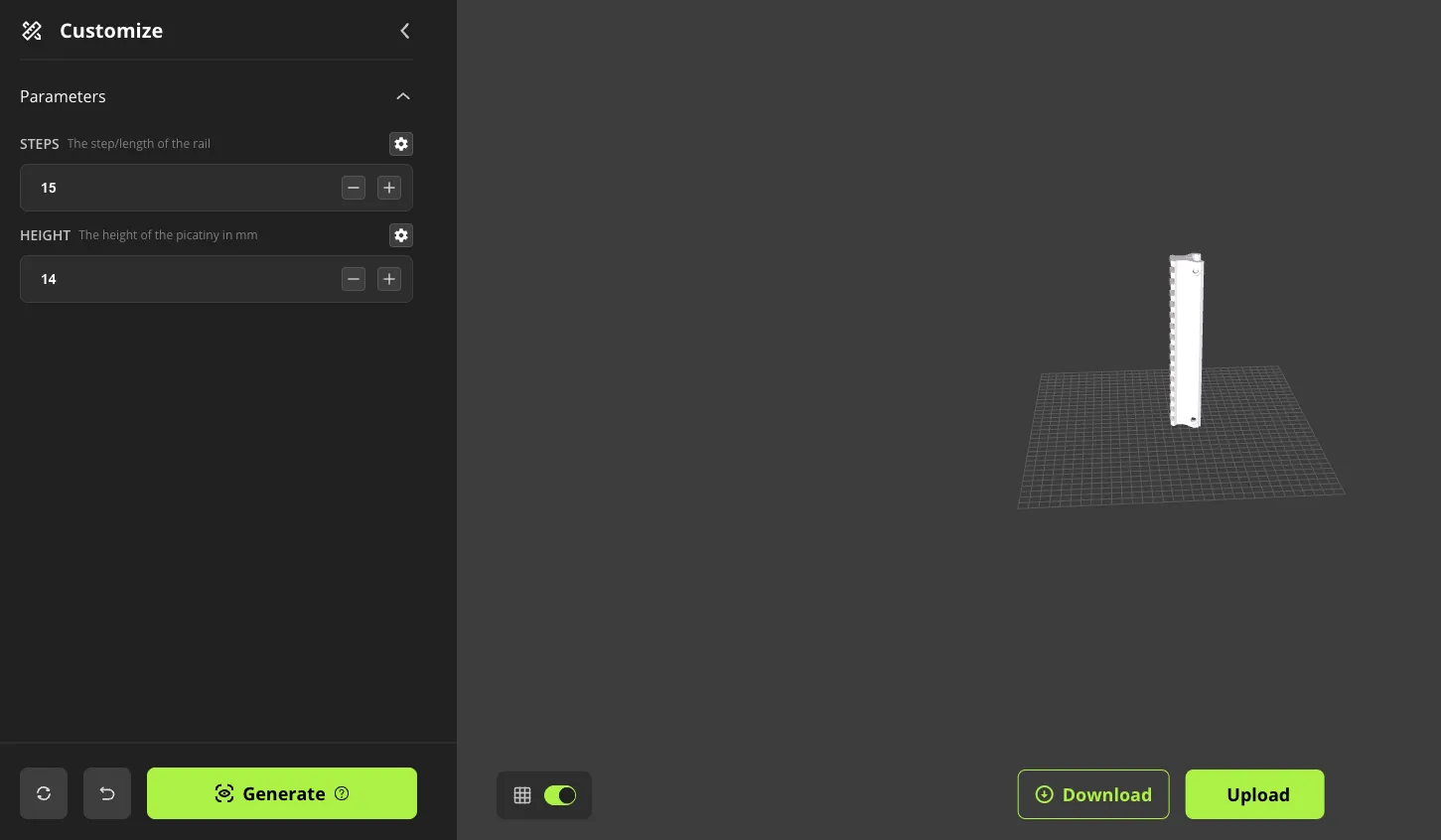

NOW YOU CAN CUSTOMIZE IT DIRECTLY FROM MAKERWORLD!!!
CLICK ON CUSTOMIZE

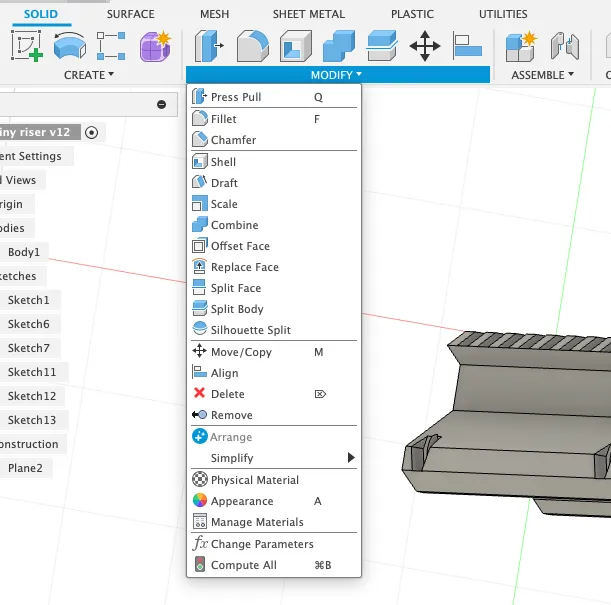

Or you can customize the model in fusion 360, in Modify→Change parammeters
