Description

Content has been automatically translated.
Show original

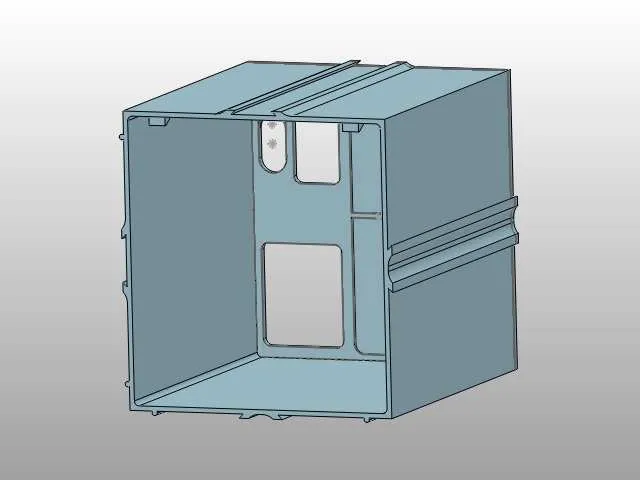

For testing and practice, I modeled a PX2 drawer cabinet from Konger (which can be purchased here https://szufladki.com/ or on Allegro, including the transparent drawer inserts) and modified it into a "half" version (Sometimes there isn't room for a full PX2 module, but a half one still fits ;) )

The model published here (at least when printed on Bambulab X1/P1 with PETG filament, after calibration) perfectly fits the original drawers (inserts) and also fits other cabinets from this series, interlocks with dovetail joints to the original (as well as with other printed units of this model)

This cabinet, compared to the original, has minor changes:
- Drawer retention tabs, thanks to which the (transparent) drawer does not fall out loosely, but it can be removed if desired - just slide it out completely and lift it upwards at an angle, and it will come out easily
- Modified wall-mounting brackets
- Vertical reinforcements to stabilize the cabinets (when multiple units are stacked) ensuring loads on the back wall are more evenly transferred to the dovetails below and above the cabinet

I added a "-light" version with thinned internal walls - only on large flat surfaces - this does not affect the structural strength, but significantly shortens printing time (and slightly reduces the amount of material needed)
