Description

Boost Me (for free)

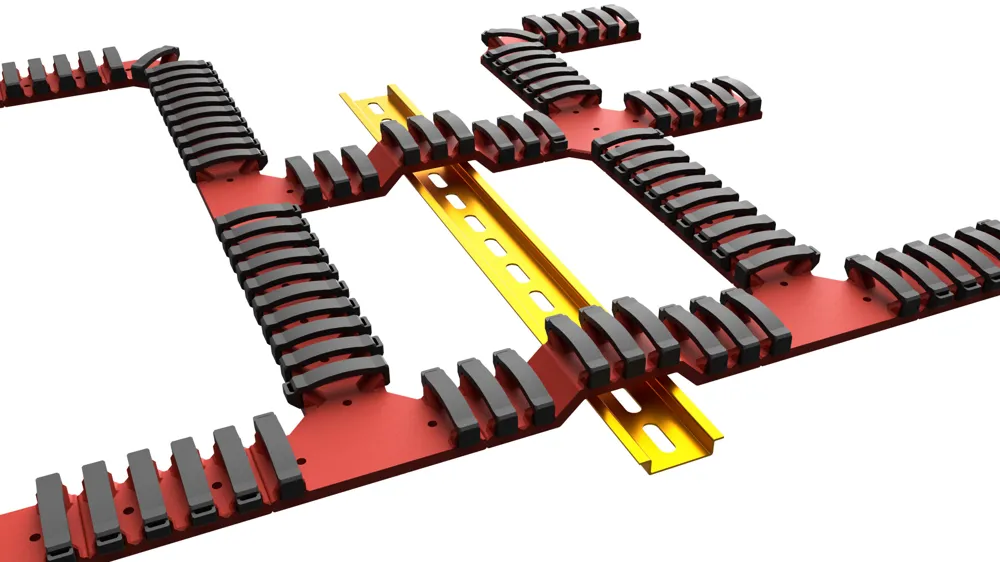

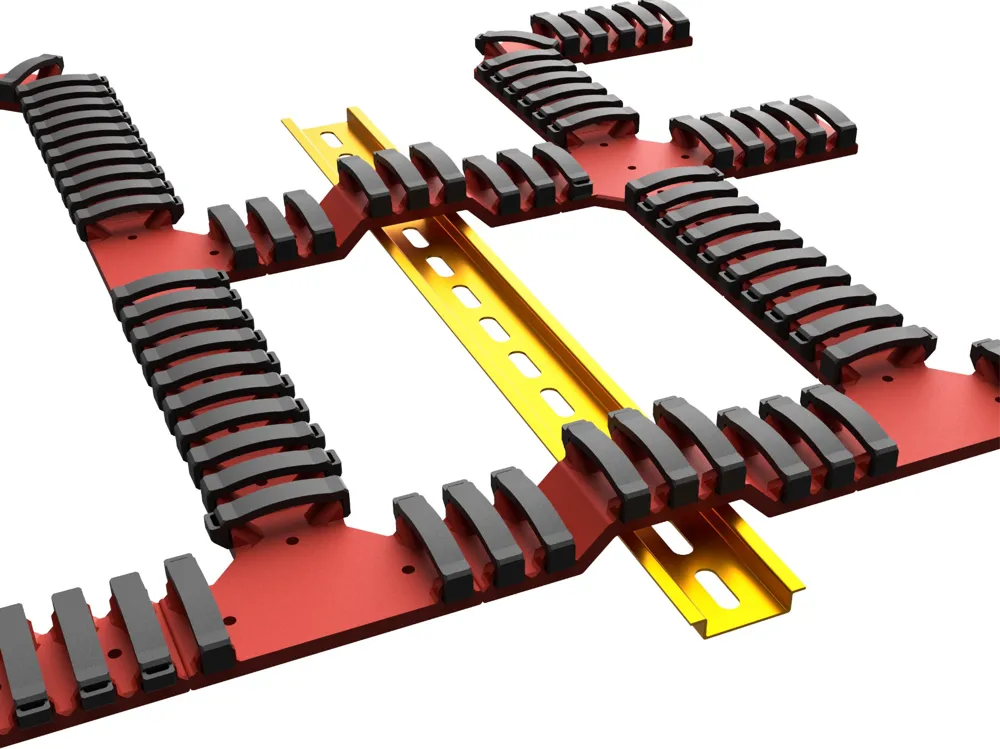

Cable Management EcoSystem

Convert your environment into Factorio!

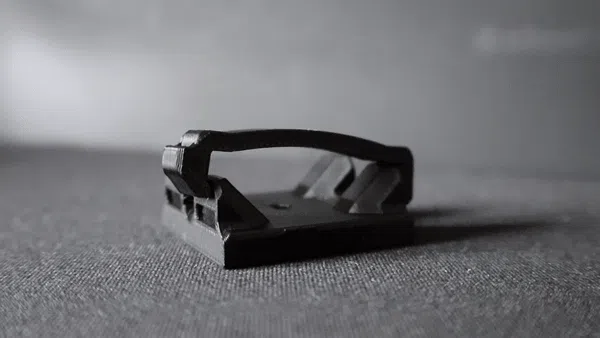

Simple Clip to hold cables

Step files on Printables: https://www.printables.com/model/1022931-cable-management-trays-ecosystem

Boost Me (for free)

Boost My Work!
Thanks <3

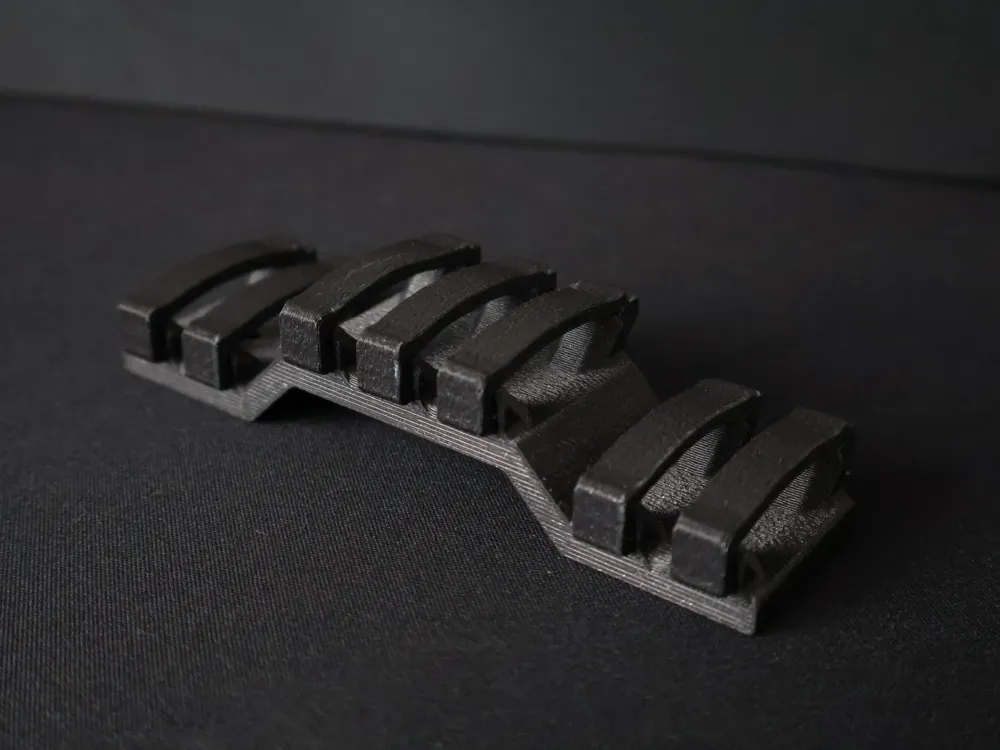

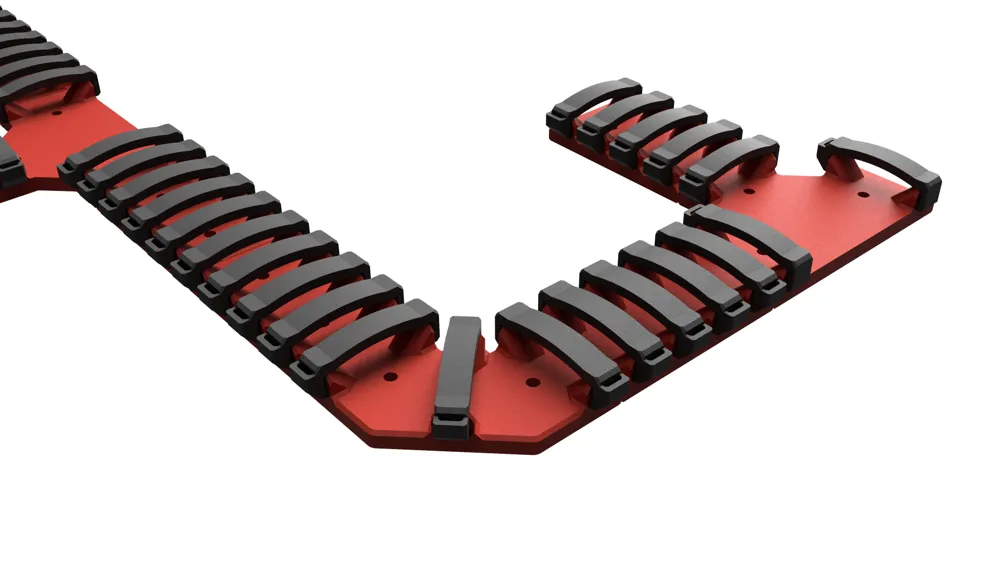

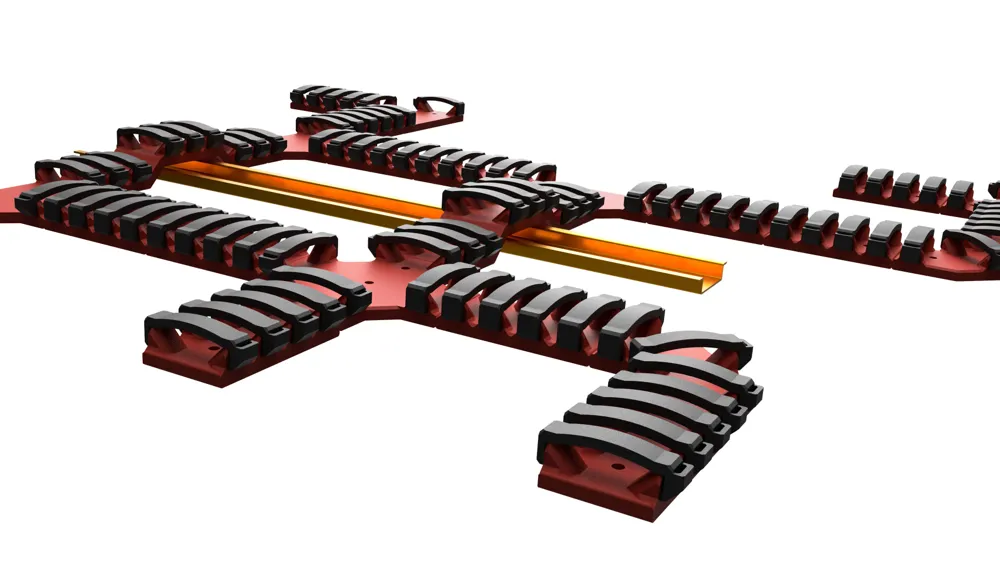

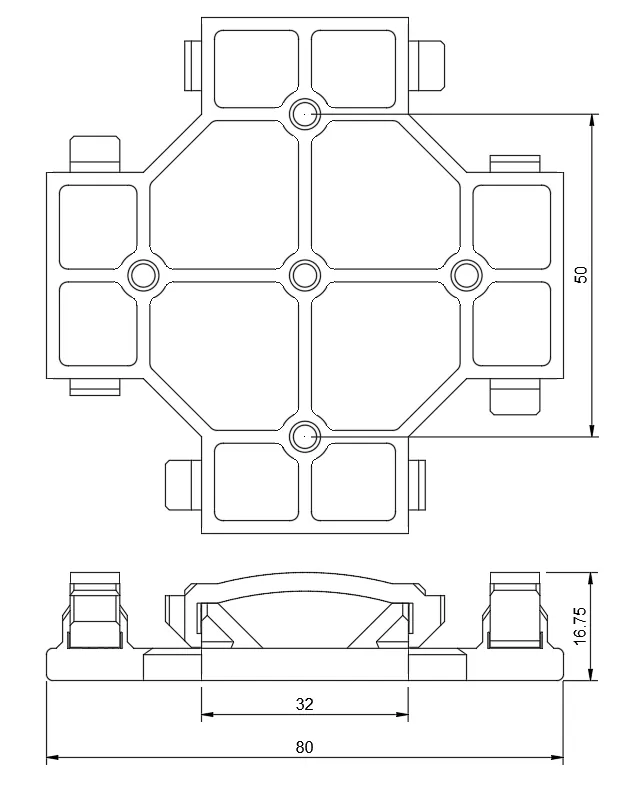

5 diffrent styles of Trays!

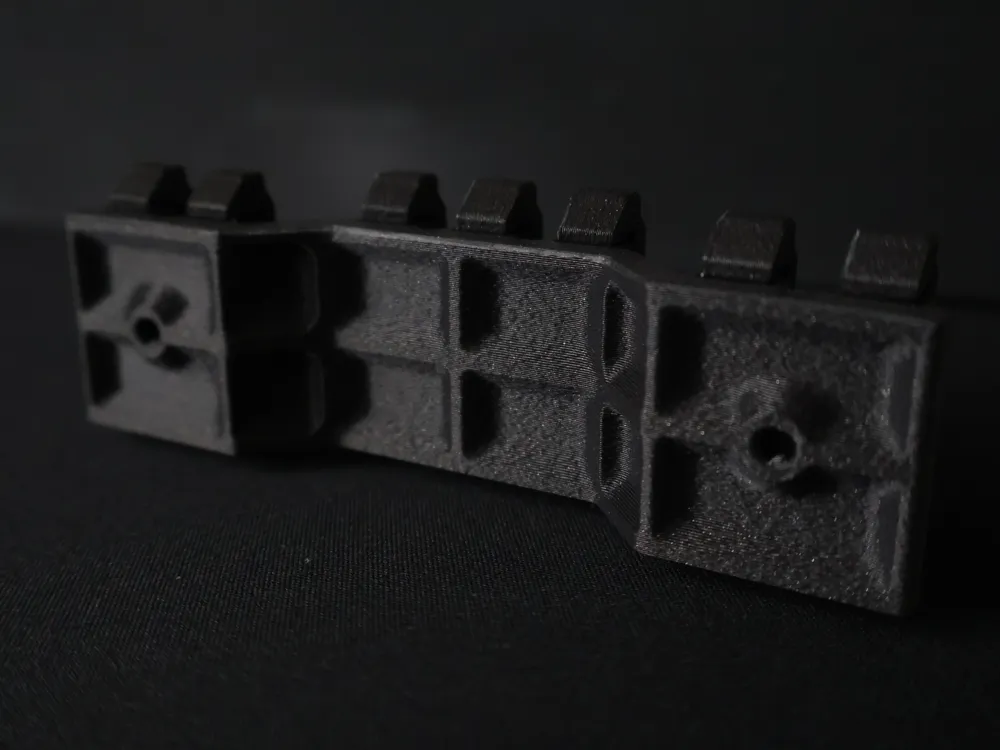

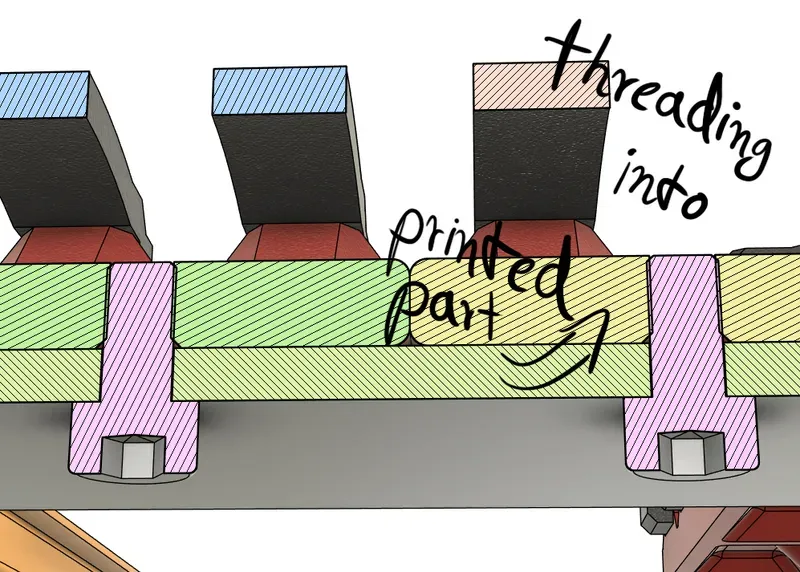

Simple mounting way!

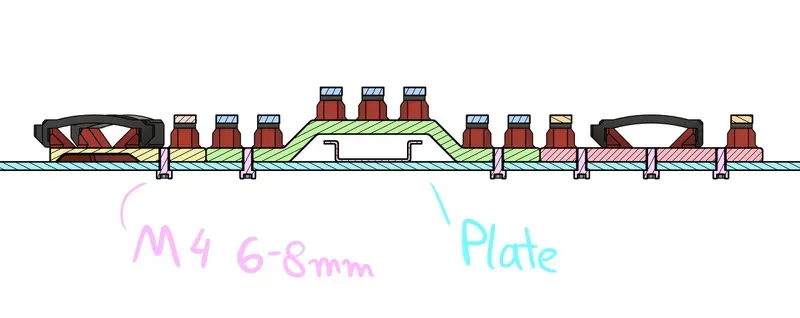

Normal Head Cap Screw

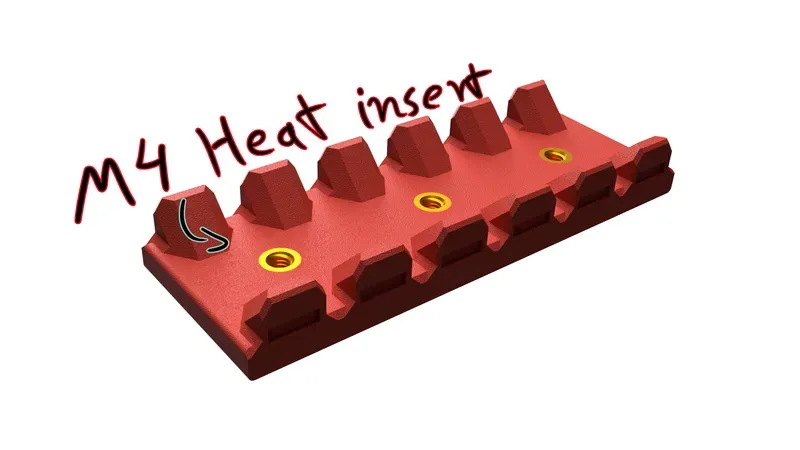

M4 Heat Insert (4-5mm)

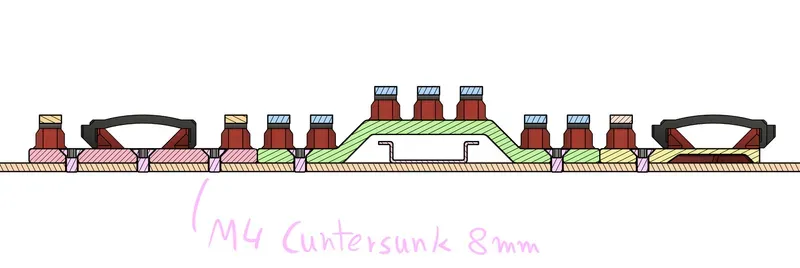

Countersunk Head Screw option

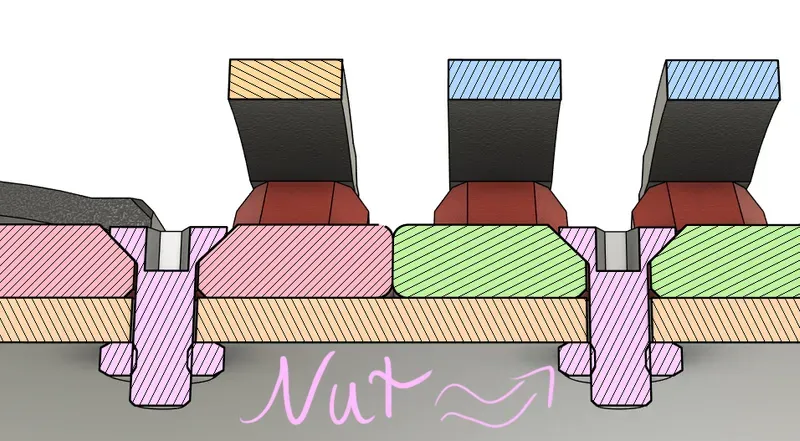

Nut Can be Used!
The screw have to be longer, to catch the nut :D

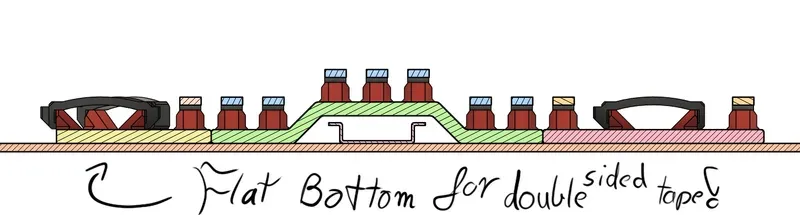

or simple Double Sided Tape

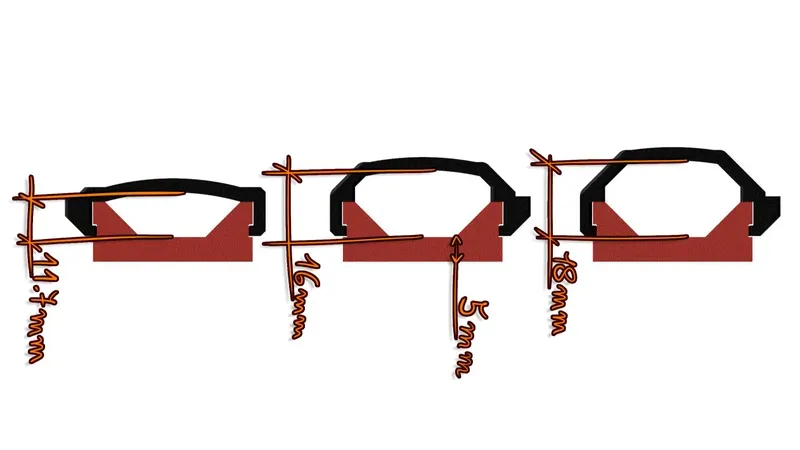

3 Sizes of Wire Clip (available on printables click)

--- Commercial Use ---

If you want selling the prints, you can buy lifetime sale option by buying the project on Cults, link Below:
https://cults3d.com/en/3d-model/gadget/cable-management-trays-ecosystem

Technical Data

--- Commercial Use ---

By purchasing my designs with a Commercial Use License, you’re supporting my work!

🔗 My Cults 3D Profile
