Filament Dry Box with silica and humidity sensor
Print Profile(1)
Description
Boost Me (for free)
If you like the model, feel free to boost it.
Or if you really like the model you can buy me a coffee

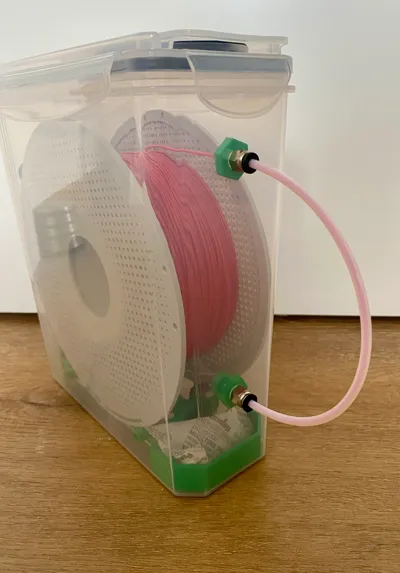

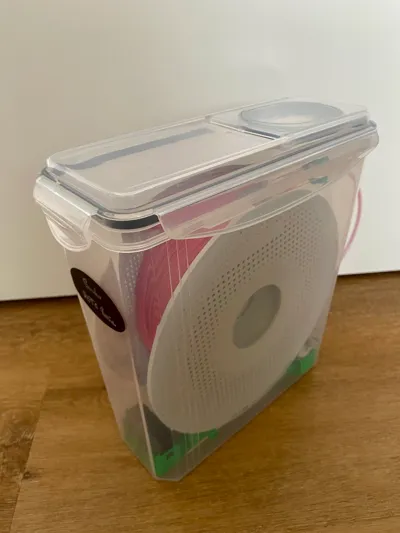

Filament Dry Box with a spot for a silica bag and a humidity sensor. Should fit for nearly all types of filament (tried it for Bambu, Prusa, Sunlu and GeeTech).
In addition to a box and the printed parts, the following parts are required per unit:
- 4x bearing 608-2Z
- 2x PTFE Fitting PC4-M10
- approx. 30 cm of PFTE tube

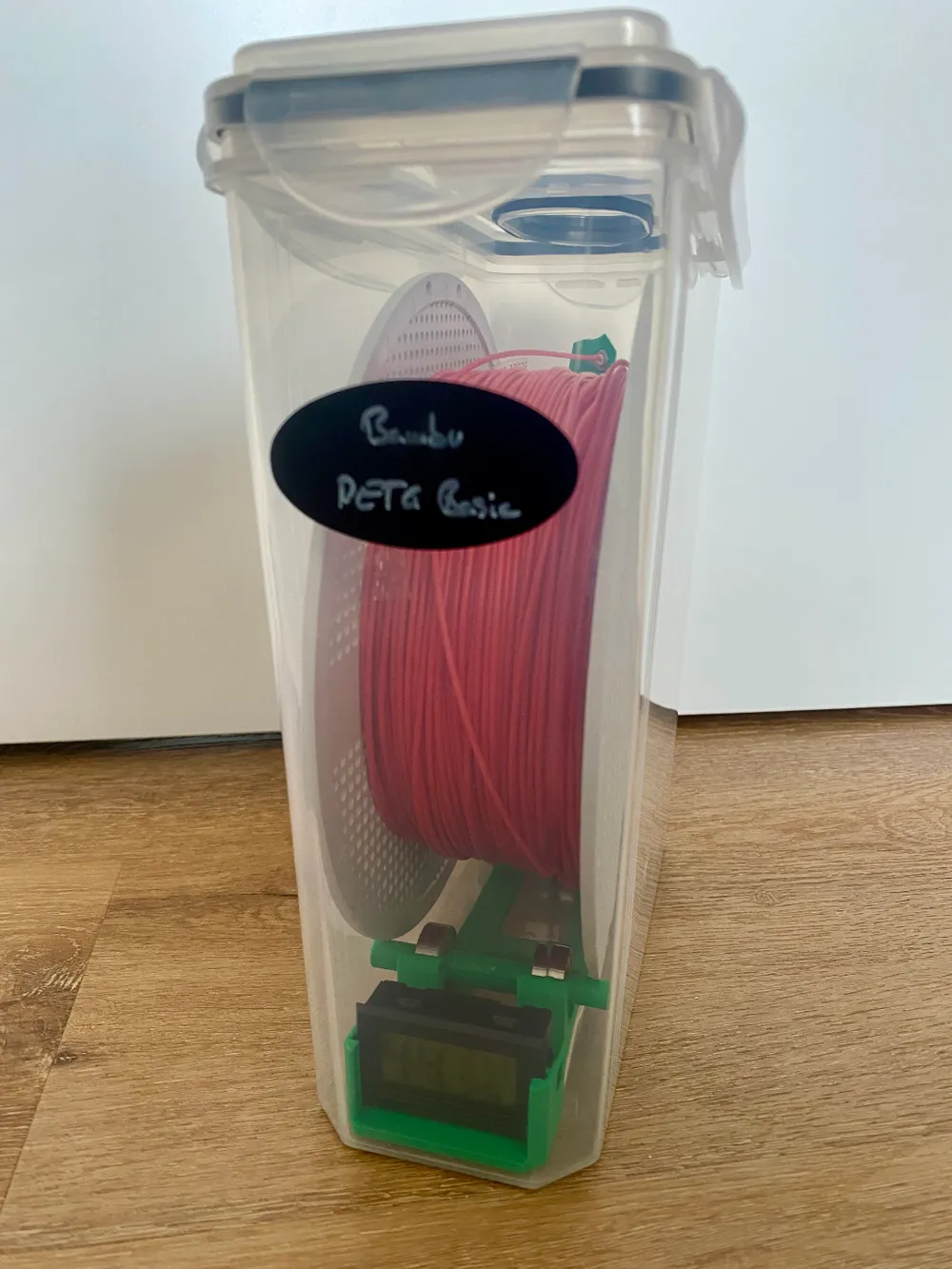

- 1x humidity sensor (optional)
- 1x silica bag (optional)
Links:
- Storage boxes:
- Bearings 608-2Z: https://www.amazon.de/gp/product/B0CHYNBCJY/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
- PTFE Fittings PC4-M10: https://www.amazon.de/gp/product/B07SKX5P9P/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
- PFTE tube: https://www.amazon.de/gp/product/B06XWYM4Y4/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
- Humidity sensors: https://www.amazon.de/gp/product/B07JW7K2M5/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&th=1
In addition, you can print a small container ahich is attached to the small lid, so taht you can replace the Silica without taking out the filament roll:
https://makerworld.com/de/models/831817#profileId-776383

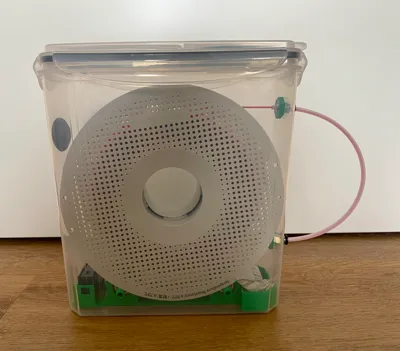

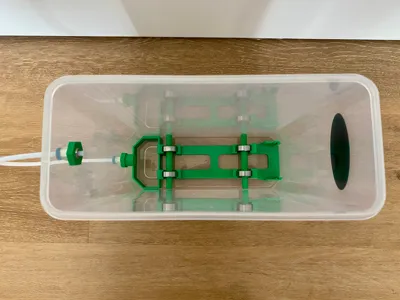

The holes in the storage box should be placed in the lower and upper thirds. Due to the M10x1 thread of the fittings, you need a hole diameter between 10 and 11 mm.
Depending of your printer calibration, it might be necessary to scale the size of the rolls. They should be pushed into the bearings with light force.
Printing parameters:
- Material: PLA / PETG
- Layer height: 0.2 mm
- Support not required
- Brim recommended for the rolls
