Hobby 5V DC motor pump

ENGLISH description:

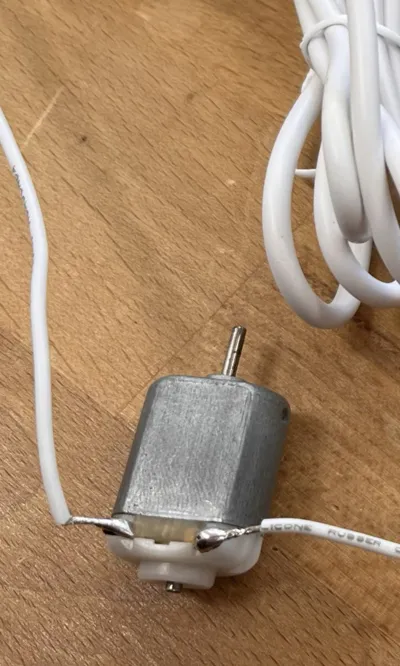

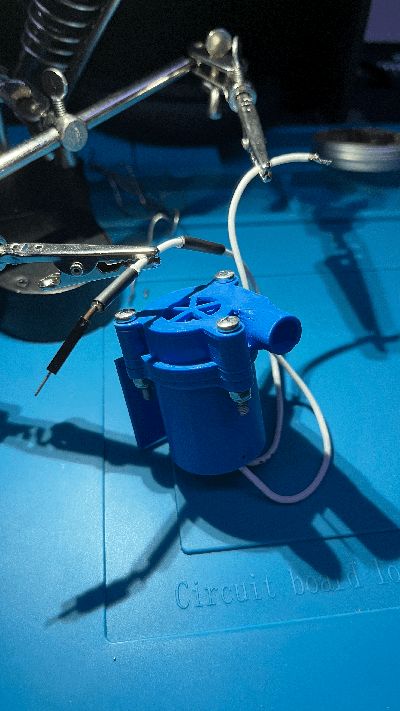

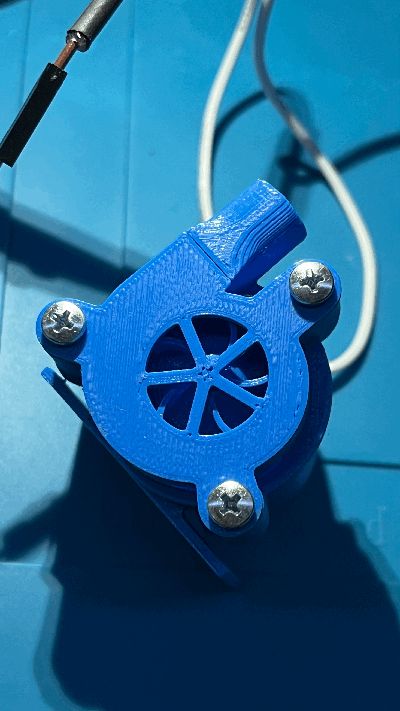

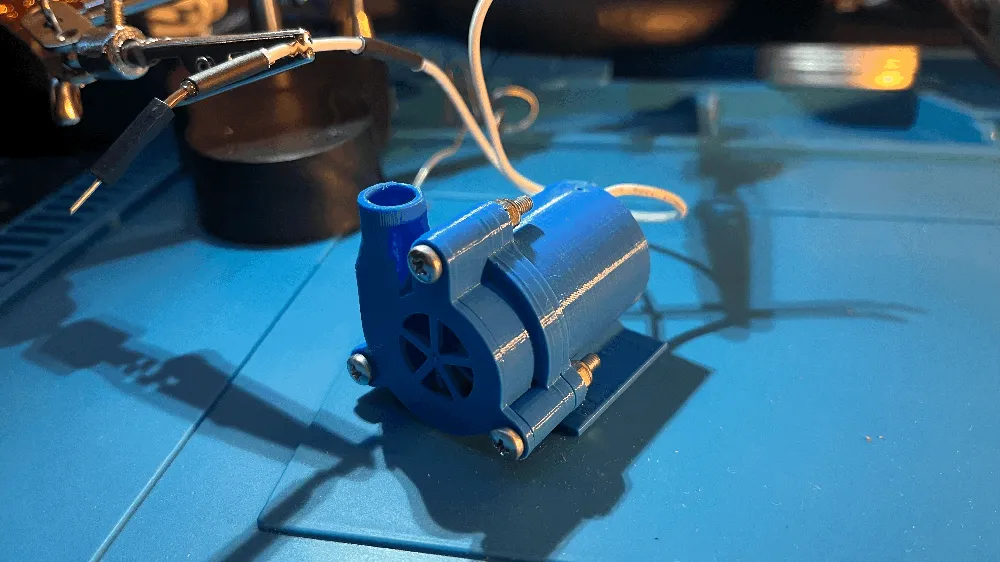

5V DC motor pump used in automatic plant Arduino watering systems. I have used this design to make my School project easier. Pump is using 1cm of diameter tube for water and 3screws with nuts for holding the pump itself together.

Printing instructions:

■ Steel sheet
➔ at your own preference (textured PEI for PETG material)

■ Nozzle
➔ 0.4

■ Material
➔ PETG/PLA

■ Infill
➔ at least 20% or higher

■ Circuits
➔ 3

■ Supports
➔ YES

SK/CZ popis:

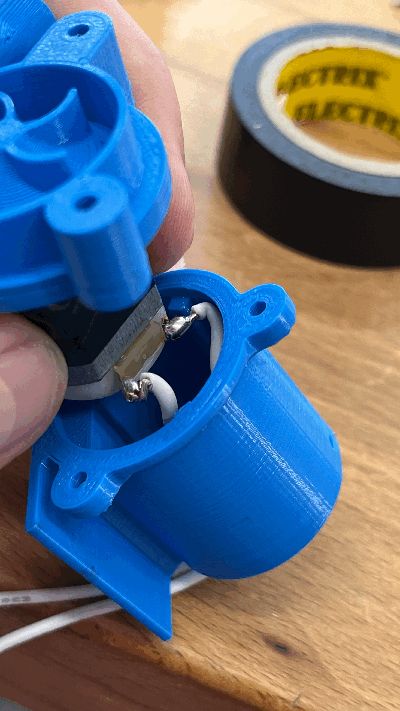

Pumpa pre 5V jednosmerný motor, ktorý je zväčša používaný s Arduino modulmi pre automatické zavlažovanie kvetov. Nástavec pre hadičku je o veľkosti 10mm a na spojenie dvoch častí 3 šrouby s matkami, ktoré to držia pokope. Samotný motor je tiež potrebné zaizolovať, nech v ňom nenastáva skrat spôsobený vodou.

➔I will be very grateful for every download and comment feedback you post. Have a nice day!

■Remixed by peto.r_ in 2024■
