Pin Tumbler Lock

Pin Tumbler Lock + Basic Lockpicking Tools

for education purposes.


How to identify which model is which?
- V2 model has 4 colors (dark grey, green, red, yellow)

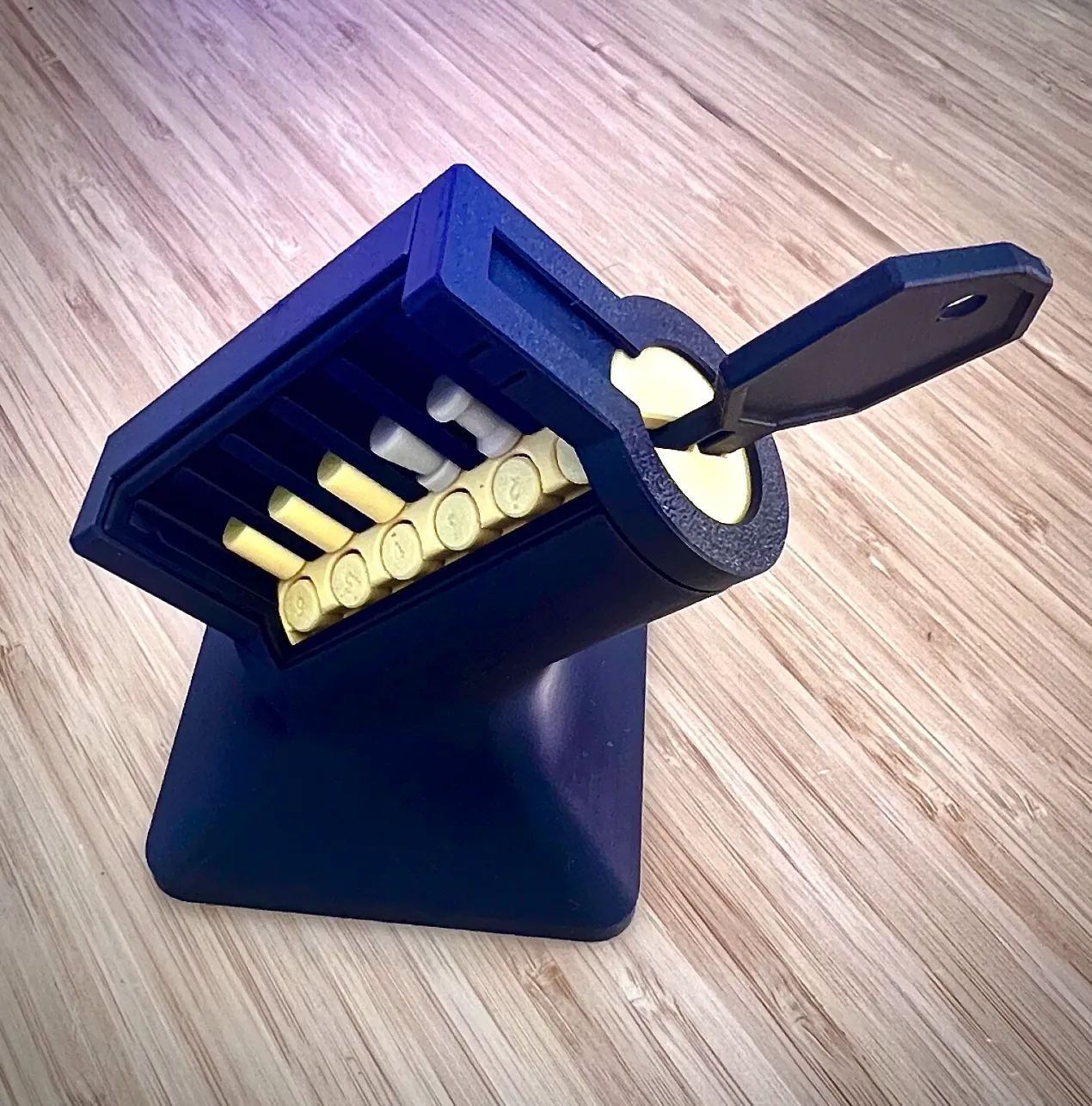

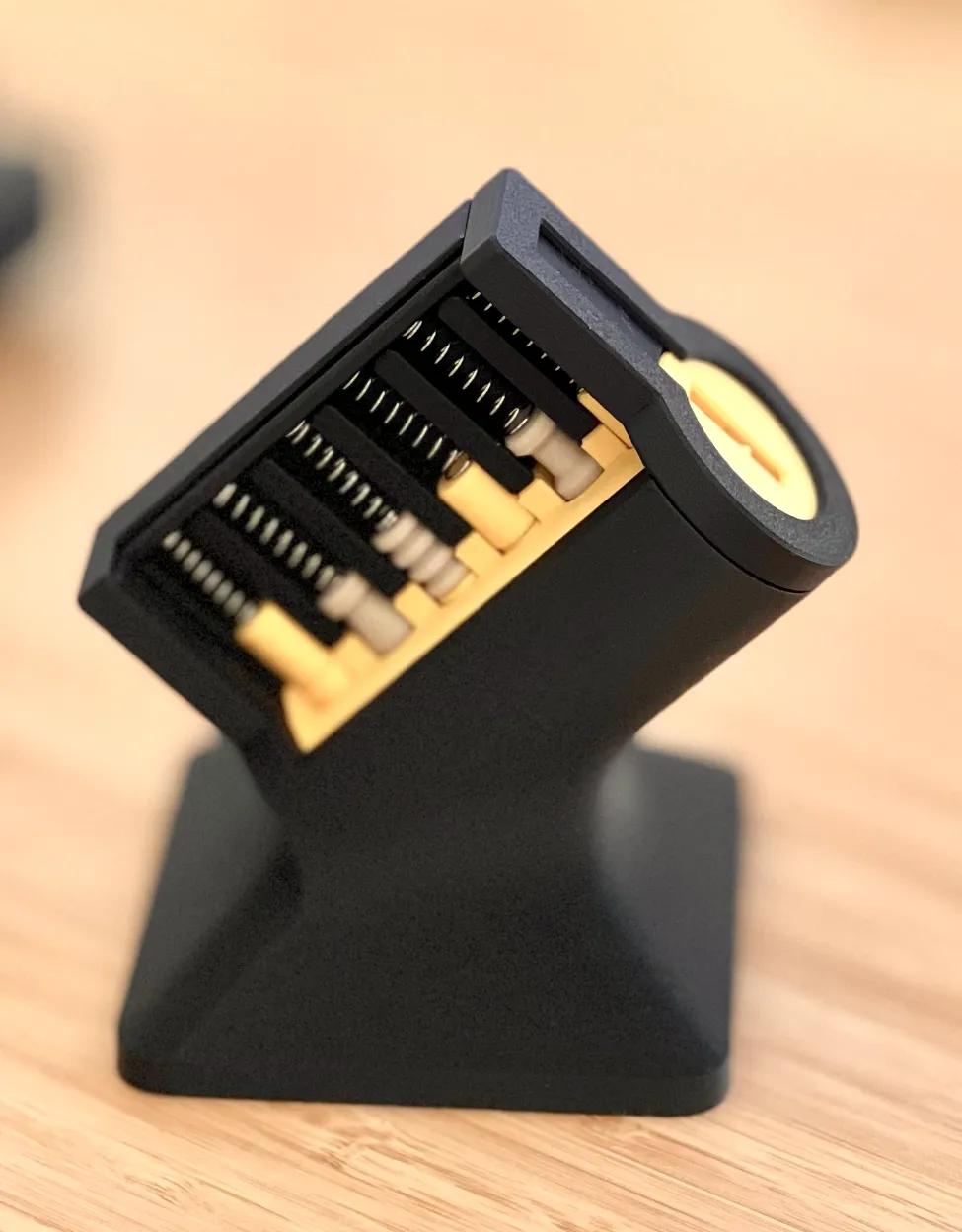

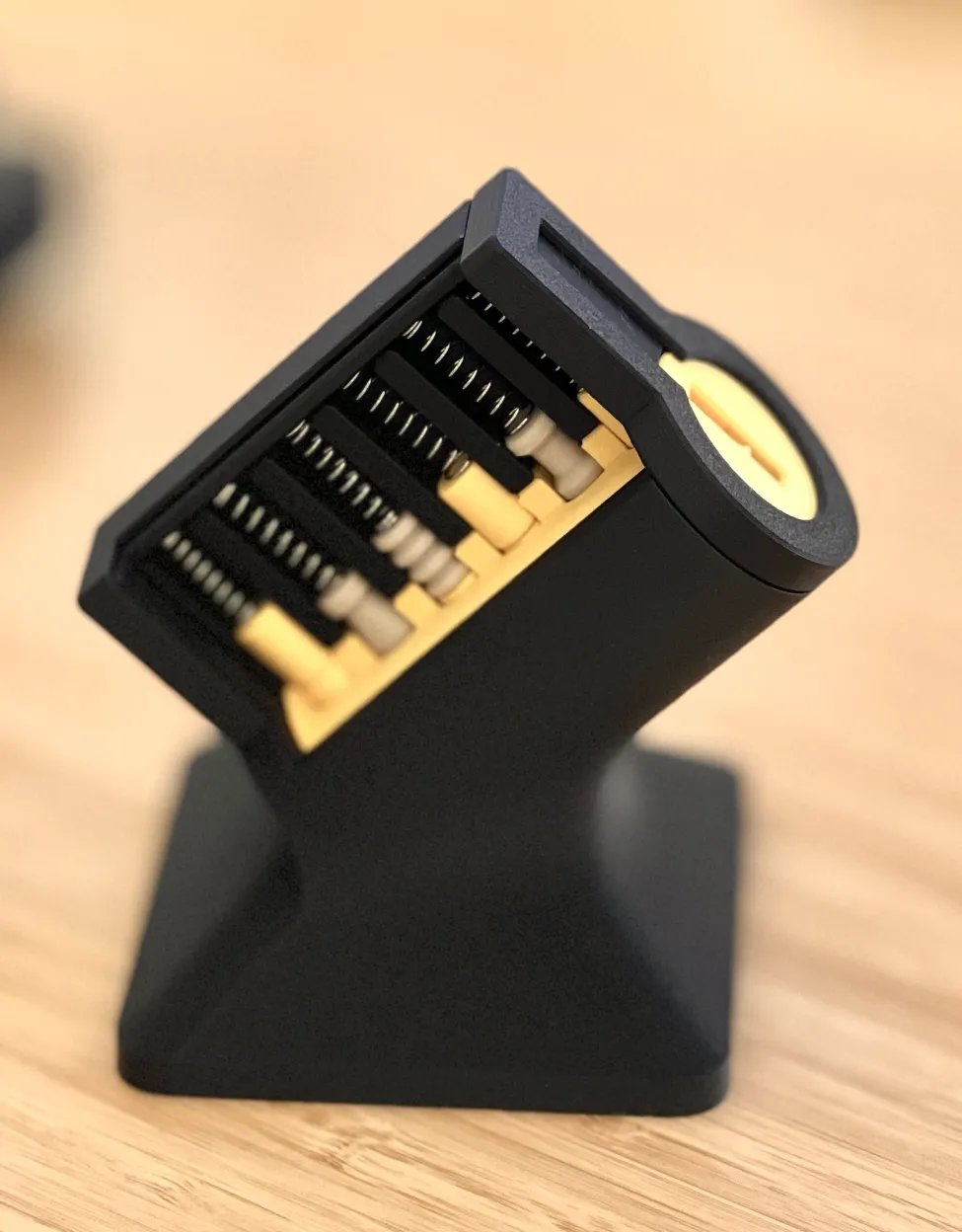

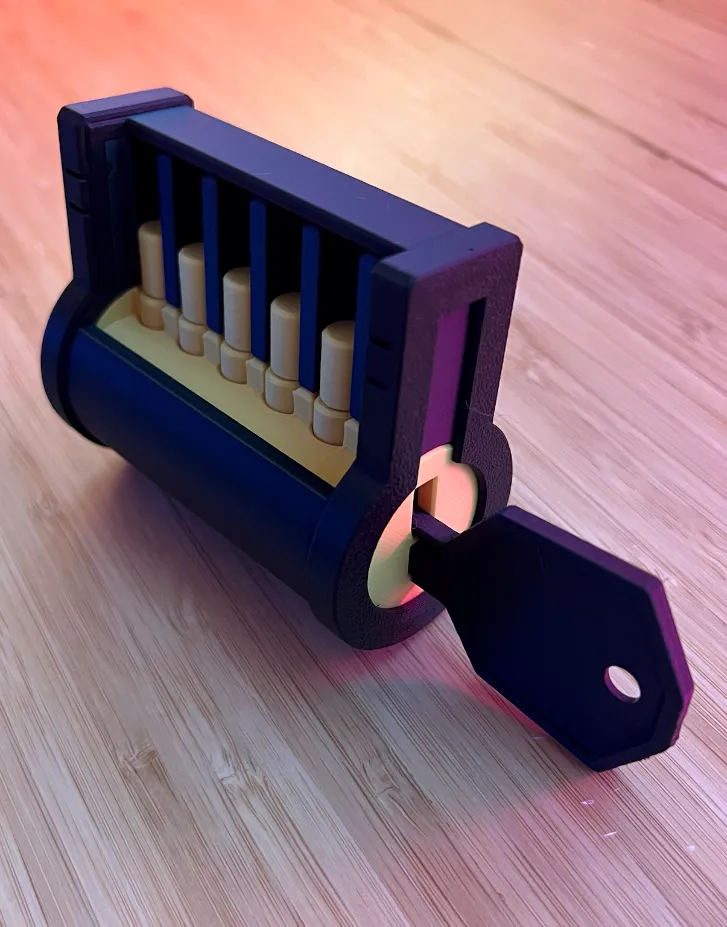

- V1 model is Black and Yellow


Springs:

For the V2 model:

• Springs*:  0.3mm x 4mm x 20mm

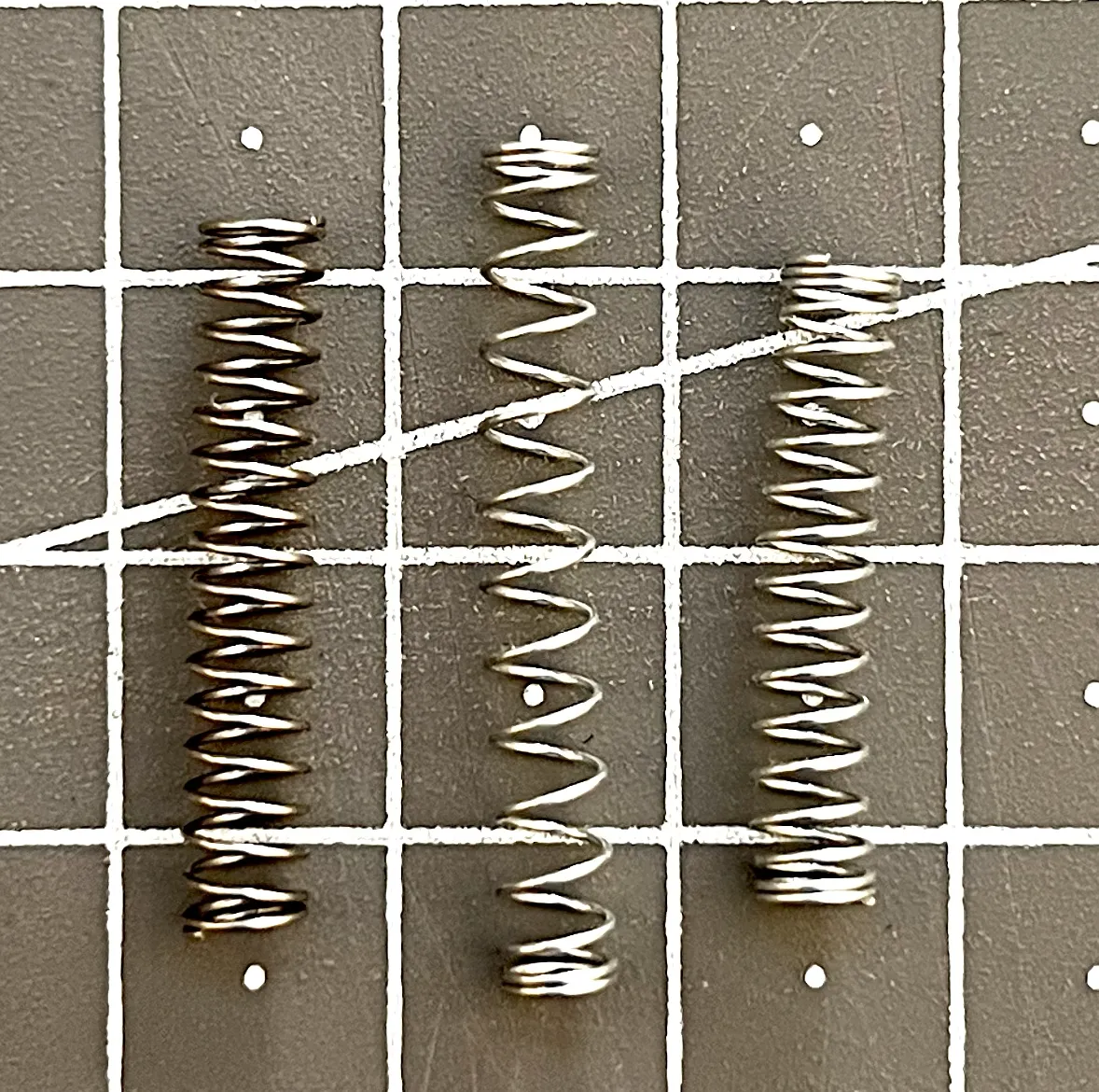

*You can use regular pen springs but be aware that pen springs have different strengths and heights which can make the lock harder to pick due to the force it applies on the pins.



For the V1 model:

• Springs: 0.5mm x 6mm x 20mm
• (springs are optional)

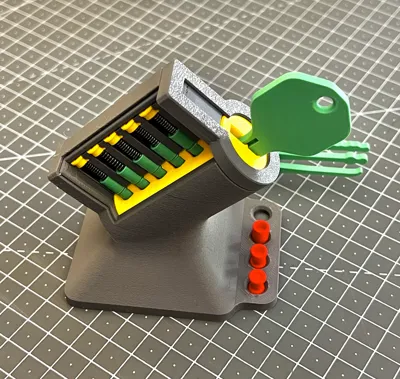

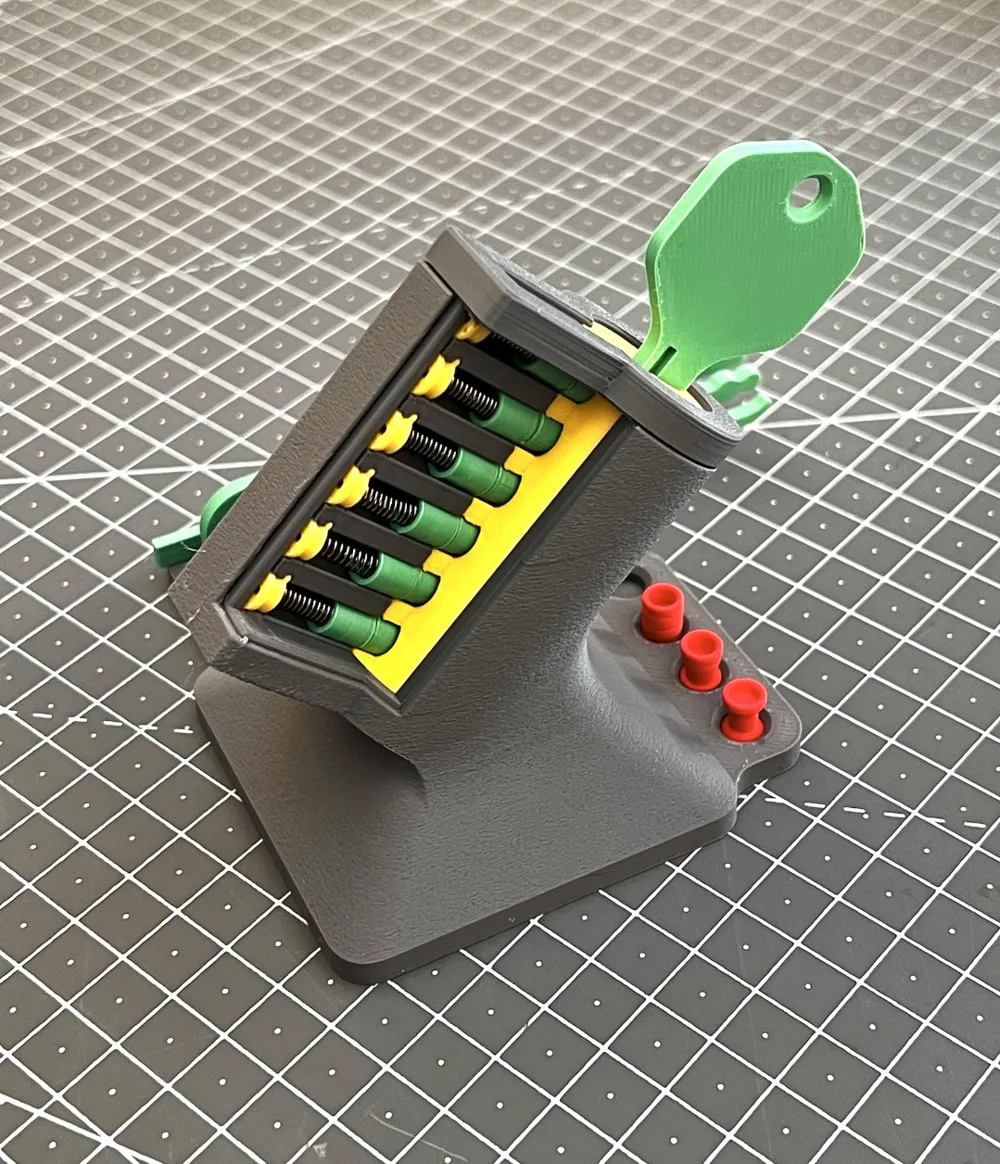

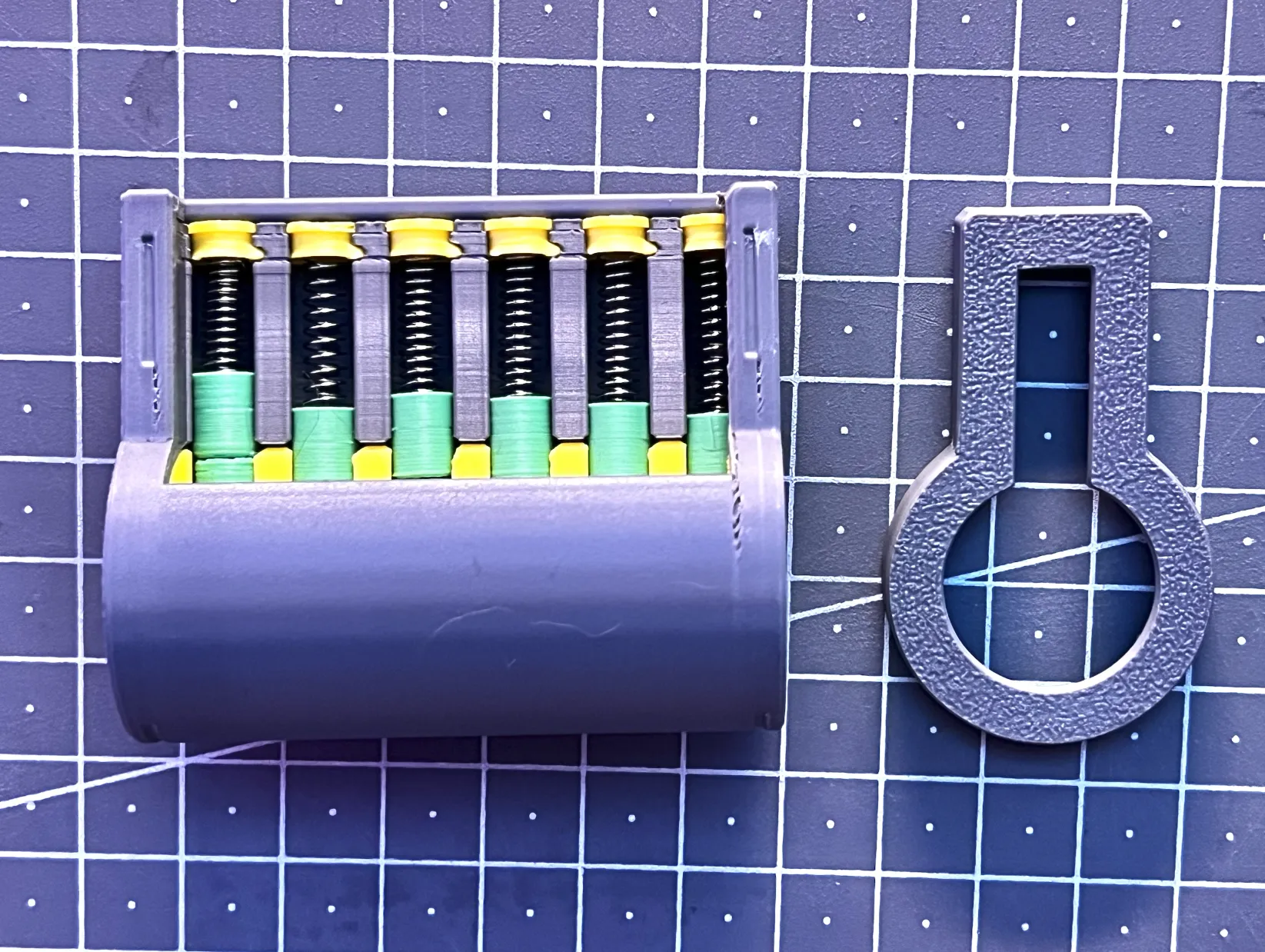

Version 2 Printed and Assembled

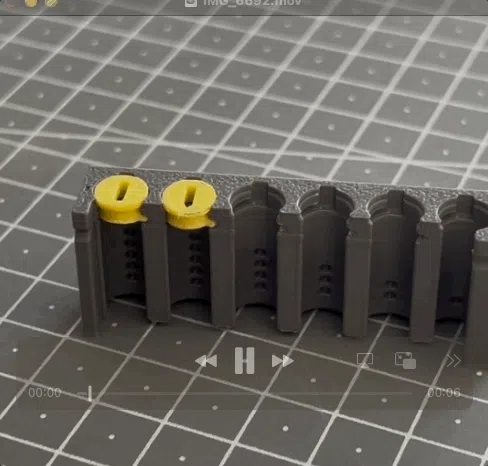

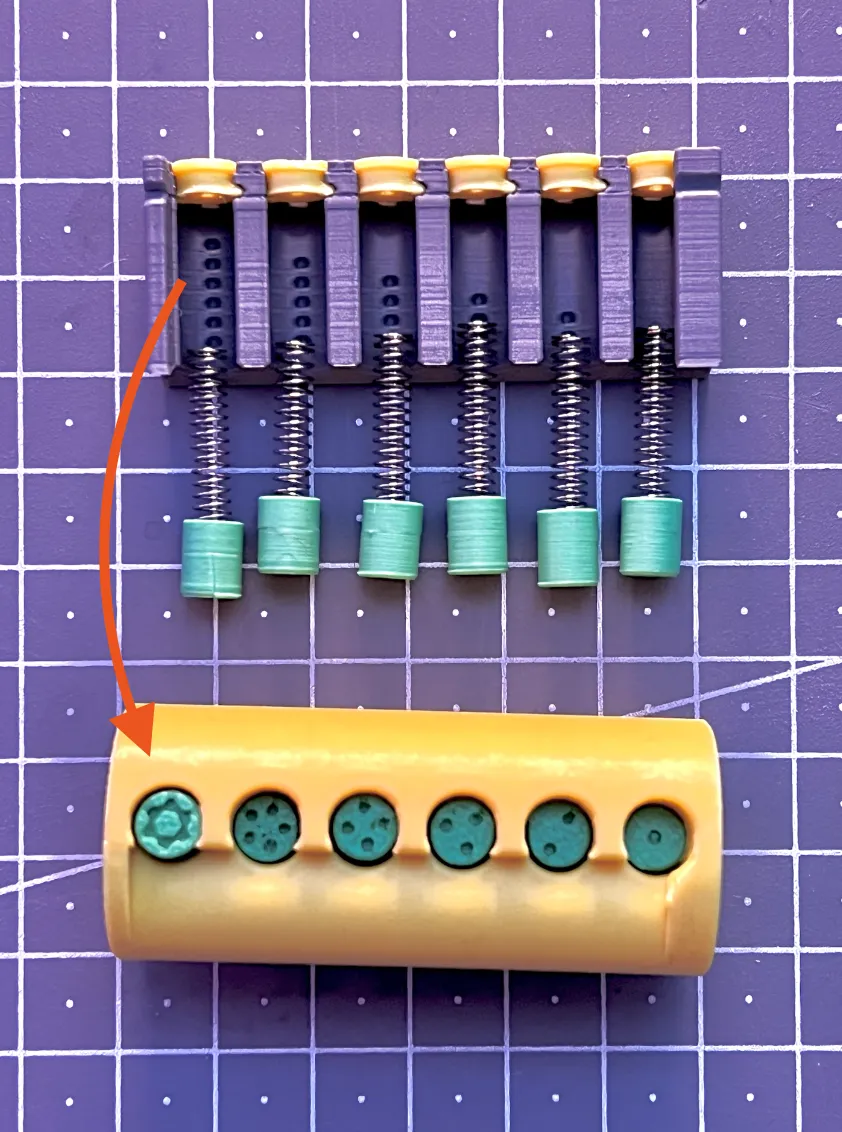

How to assemble:

Updates:

18 October 2025:

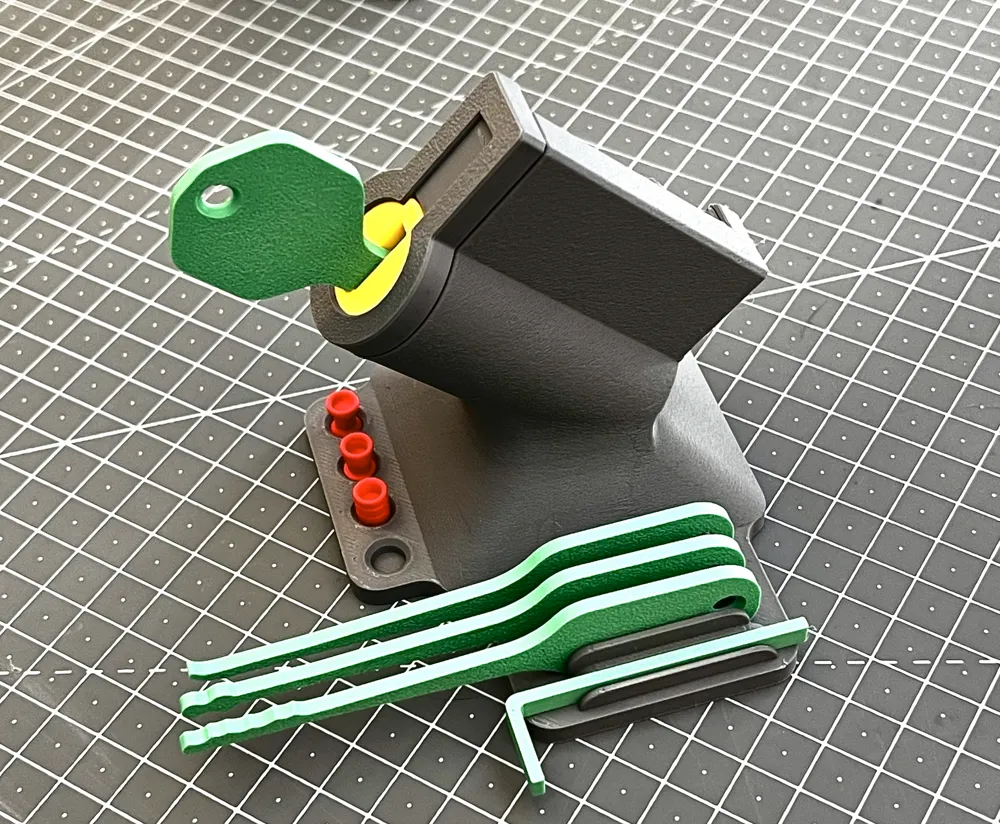

• Version 2 is out!
• Smaller size
• New lockpick tools
• New base with lockpick tool storage
• Compatible with regular pen springs*
• New texture on the base
• Better key fit

*You can use regular pen springs but be aware that pen springs have different strengths and heights which can make the lock harder to pick due to the force it applies on the pins.

28 November 2024:

• Added springs! Springs Size:  0.5mm x 6mm x 20mm  (6 of these)





27 November 2024:

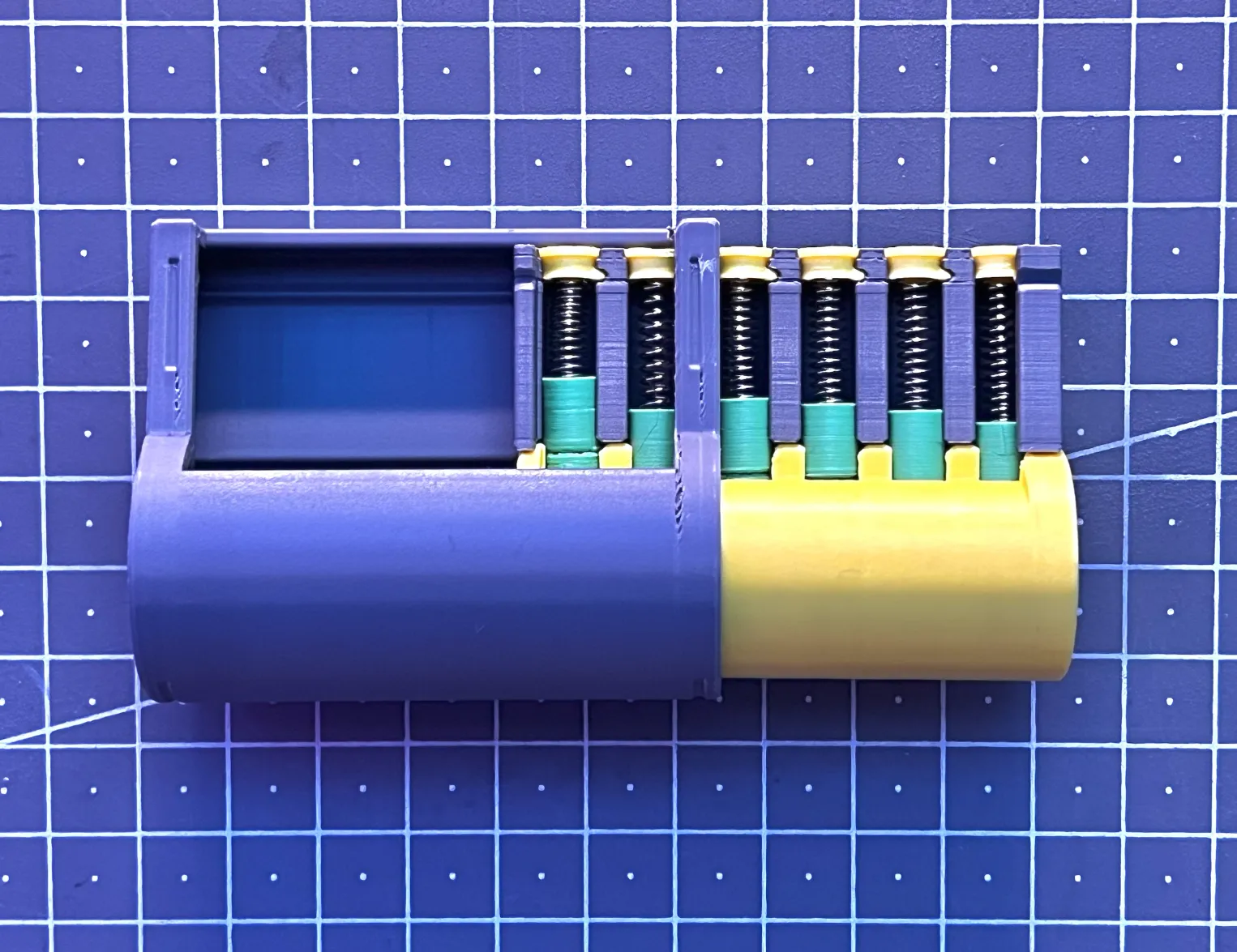

• Added a cut to the base so you can actually see what's going on while the whole tumbler is inserted in it

22 November 2024:

• Basic Lockpicking Tools

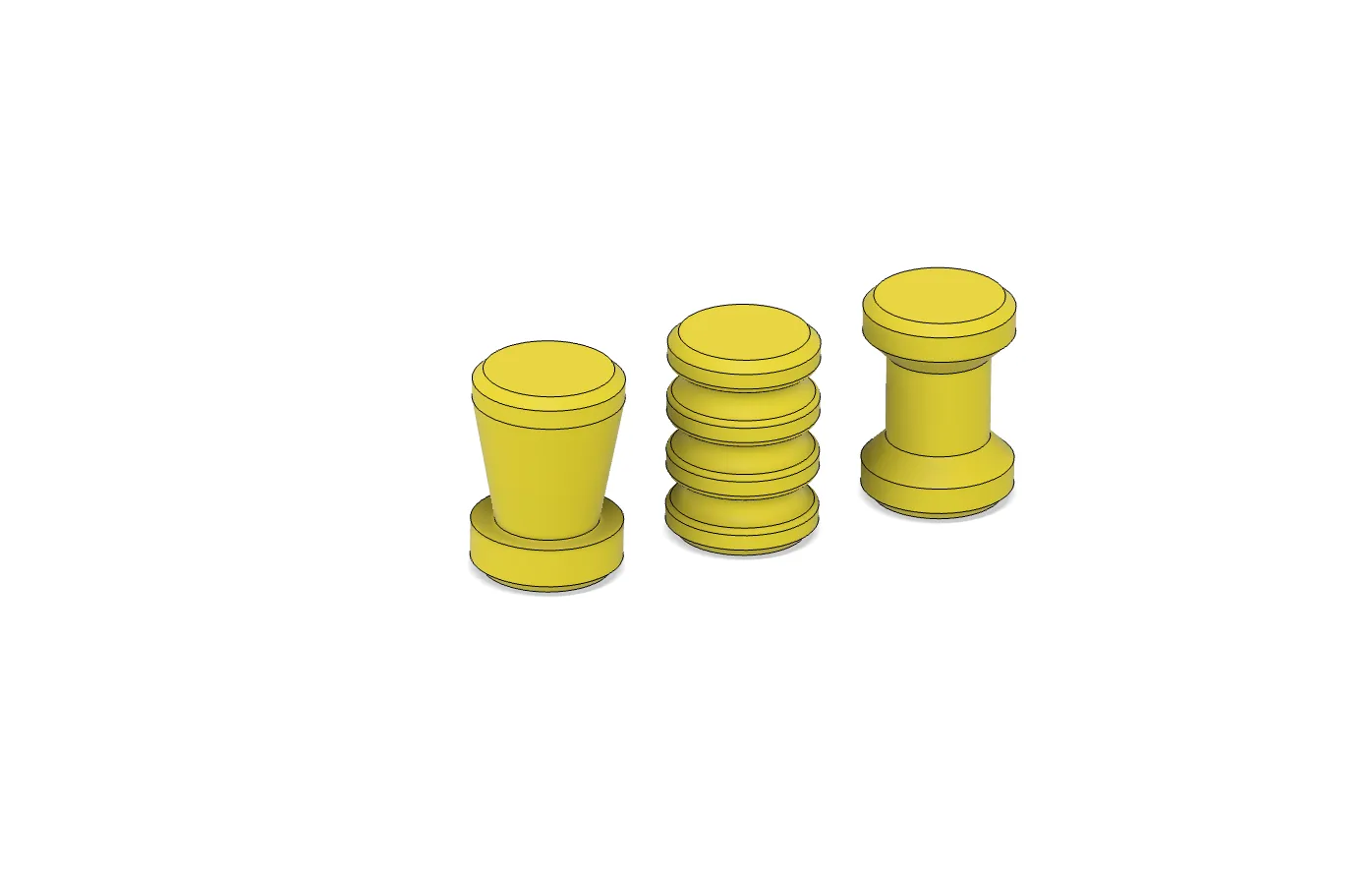

• Security Pins! Spool, Roller and Mushroom
• New press fit for the front and back plates.
