Please download the original and copy their instructions. This remix just tightens the tolerances, has 1 less magnet, and has a different design inspired by csgo.

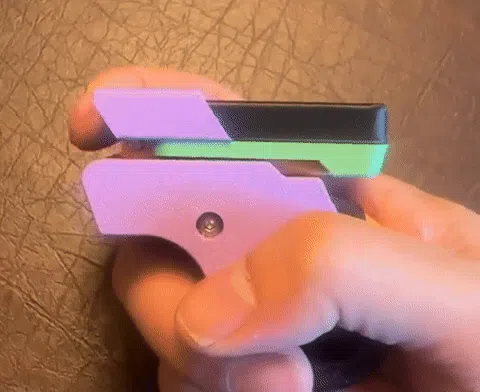

Here's a small gif showing the less slop



Here are some adjustments I made, please read first!!!

  • adjust Magnet Rail stopper.stl, reduced play.
  • combined Magnet Rail Top.stl and Magnet Rail Bottom.stl into 1 piece, adjusted the angle so you can print it in 1 piece with 1 color change. In the original model, it was hard gluing them together to guarantee it was perfectly flat. Use the supports in the 3mf file since those work well with it.
  • Adjust stopper.stl, just shortened it a bit since the adjustments I made to Magnet tail topper.stl had it sticking out.
  • Had to remove 1 magnet in order to reduce play. There are 4 magnetic positions instead of 5 in the original
  • Also updated the spring pieces, it wouldn't fit my springs.

All magnets are press fit in, except for the Magnet Rail Stopperv2.stl, that one is glued in.

If the model doesn't slide in nicely, that's because my spring_v2.stl is too tight. Use the original author's spring.stl. I only tightened it because there was some slop
