Fluval Flex 15 Gallons Light Replacement

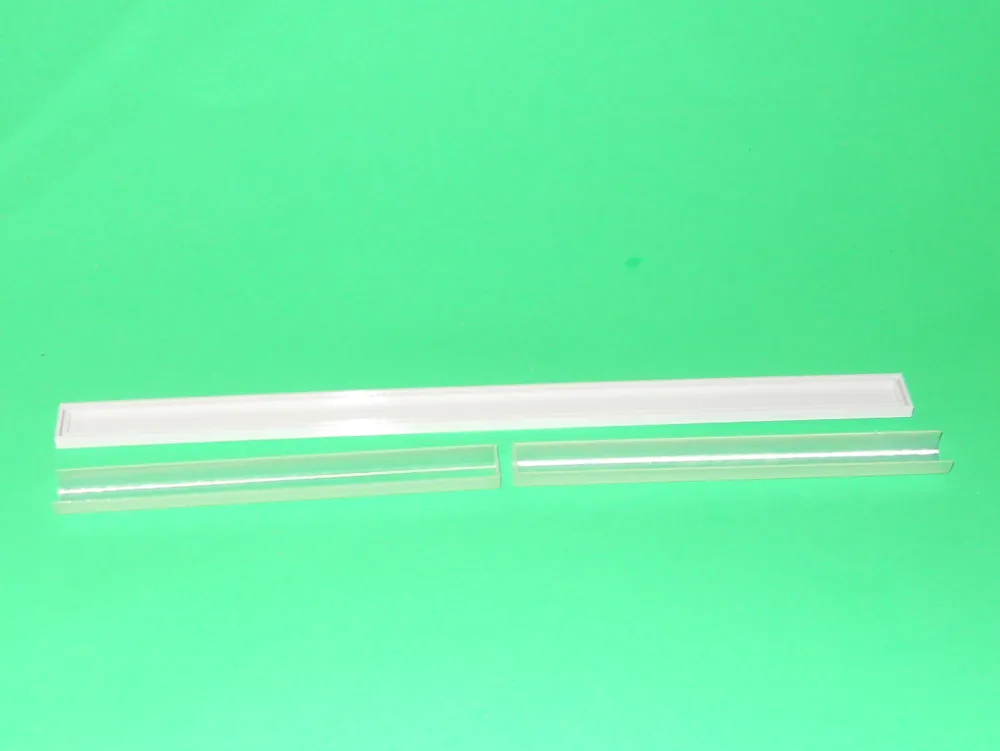

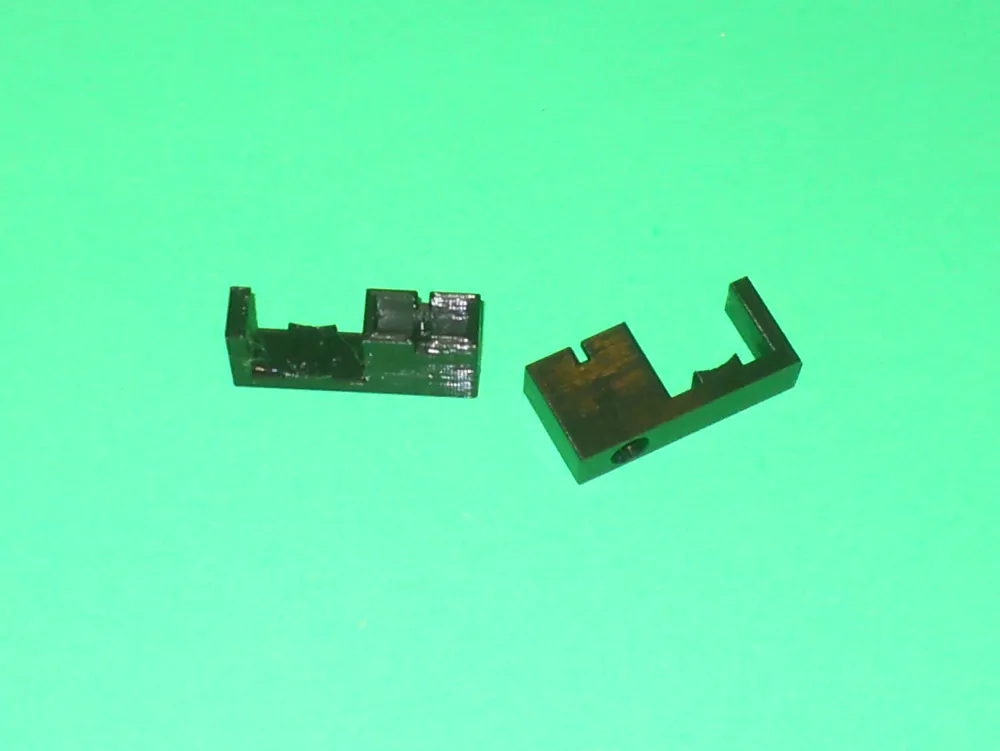

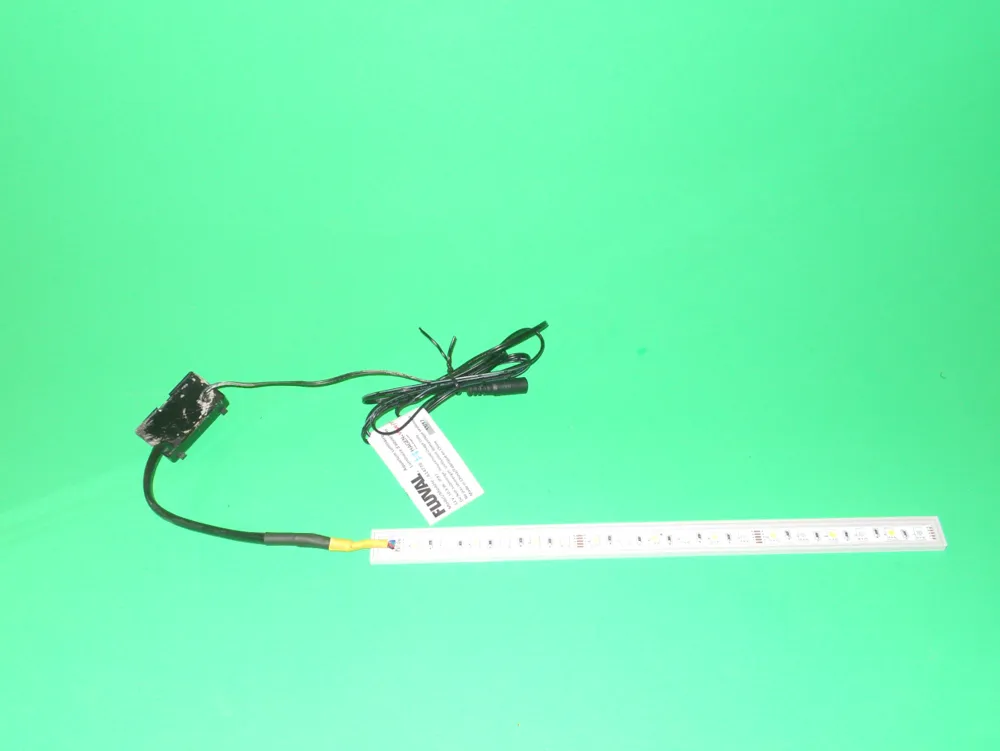

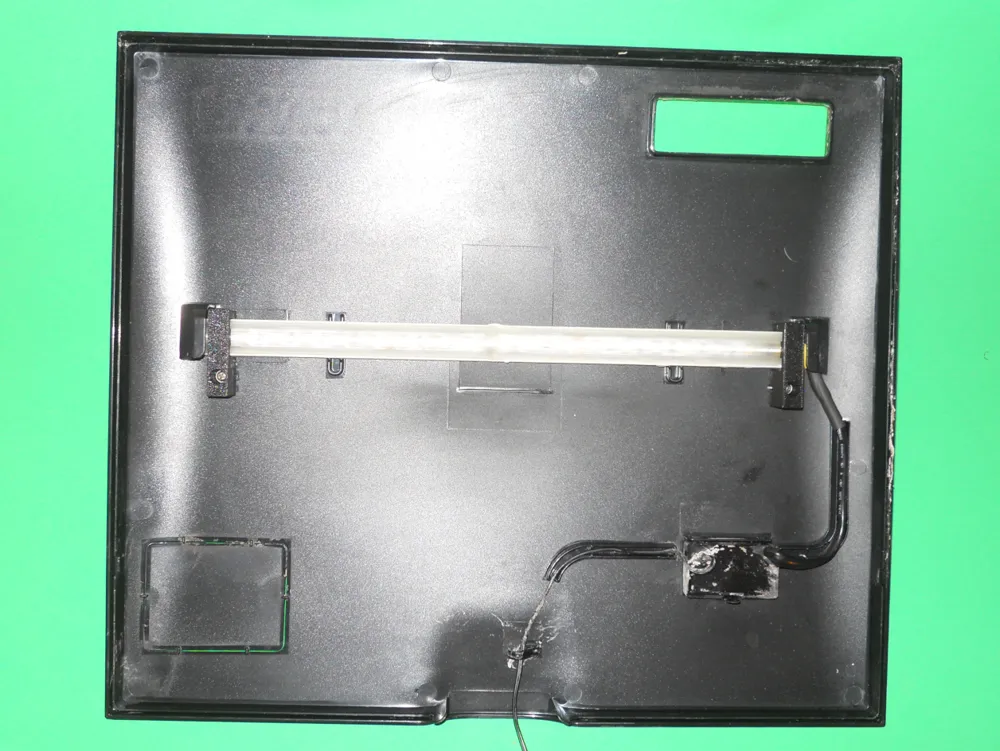

This is a light replacement for a Fluval Flex 15 gallons aquarium. You will need a strip of WRBG LEDs. I suggest you to reuse the supplied LED controller. I've used some epoxy glue to seal the lens to the base and the wires to make it water tight. The lenses are best printed vertically. This light fixture is held using 2 thin holders using the 2 original screws. You will also need a soldering iron, some wires and shrink tubing to assemble the electronics to the LED strip.

Support material is not required. An infill of 20% is recommended.

This object main web page is: http://www.ctheroux.com/fluval-flex-15-gallons-light-replacement/.

This object was designed using Solid Edge Community Edition.

You can request the source files on the page listed above.
