Description

If you want to play with the big boys, you have to go where the big boys are.

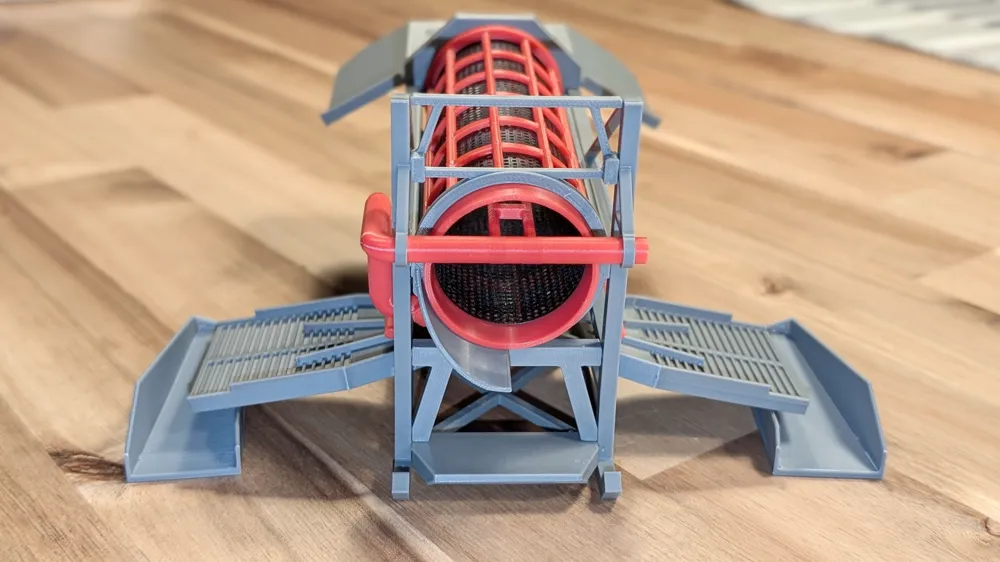

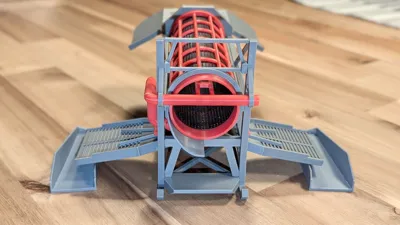

At last you have the chance to play with the big boys. Simply print out your new Macon T-600 sluice box and get rich.

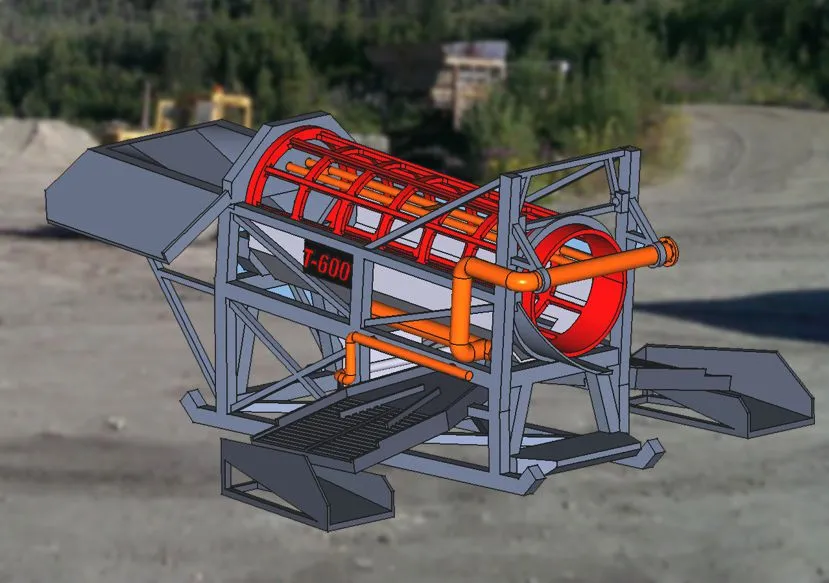

The T-600 is modeled on the original from Macon industries down to the last detail.

With this incredible mashine you will be able to handle more than 250t per hour.

Parker Schnabel and Tony Beets would be jealous of one of these.

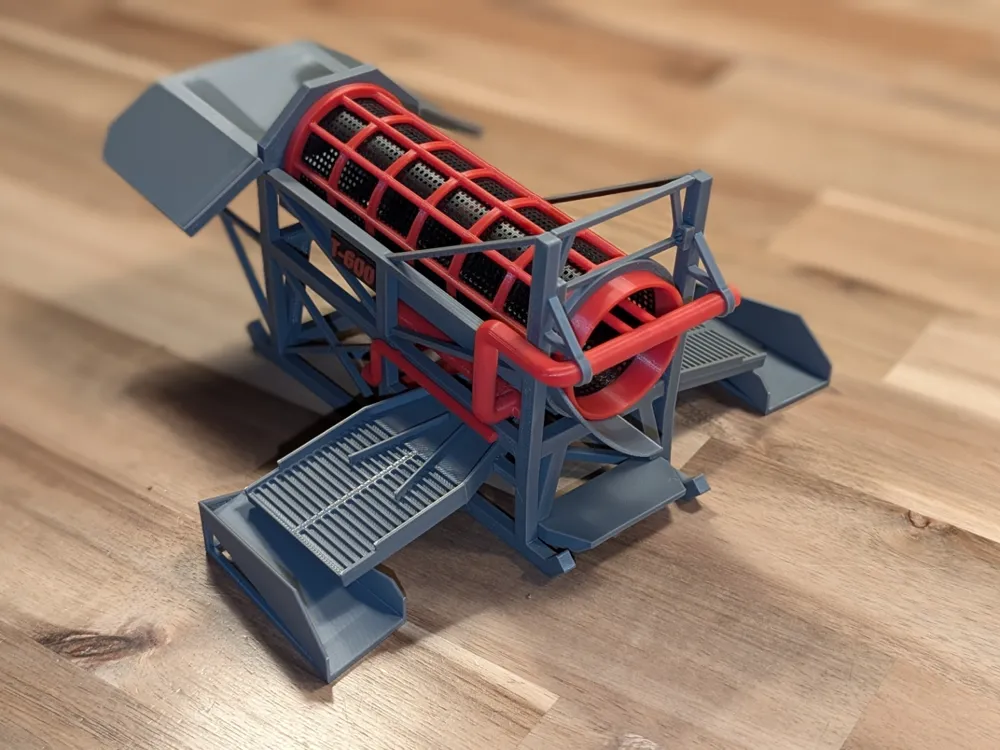

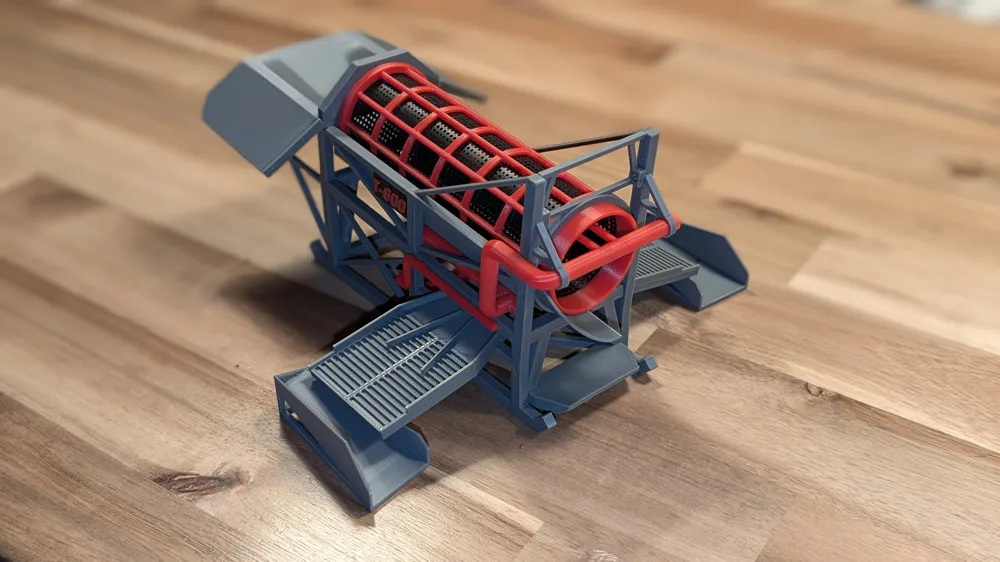

With this print you get a complete system consisting of:
- Washing trommel

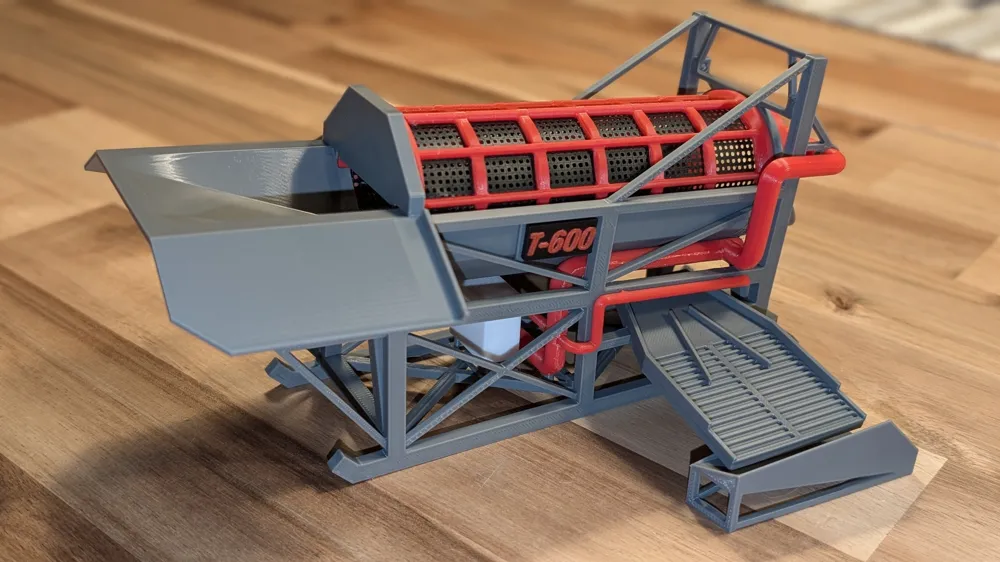

- feed hopper

- Water supply system

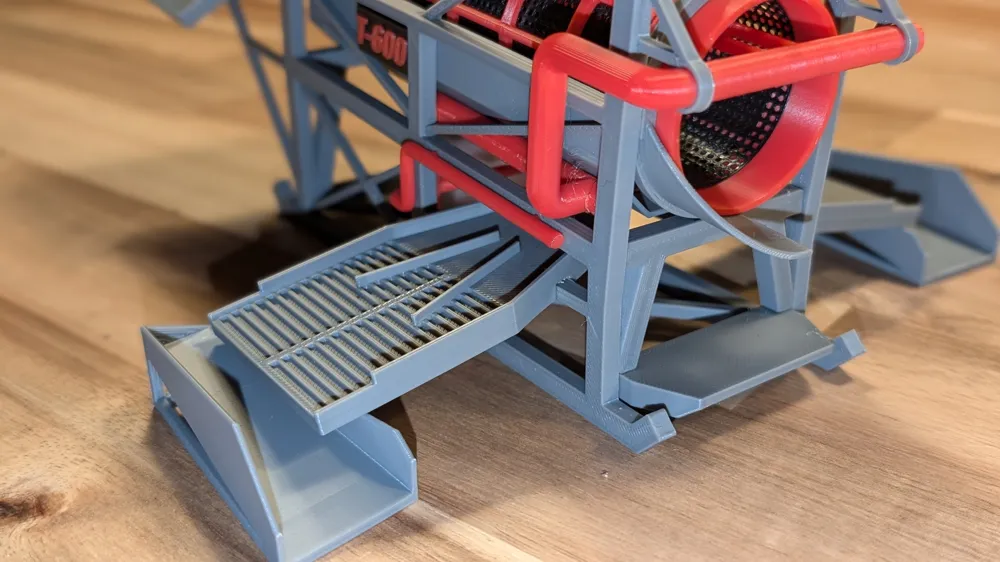

- Washing troughs
- Waste water channels

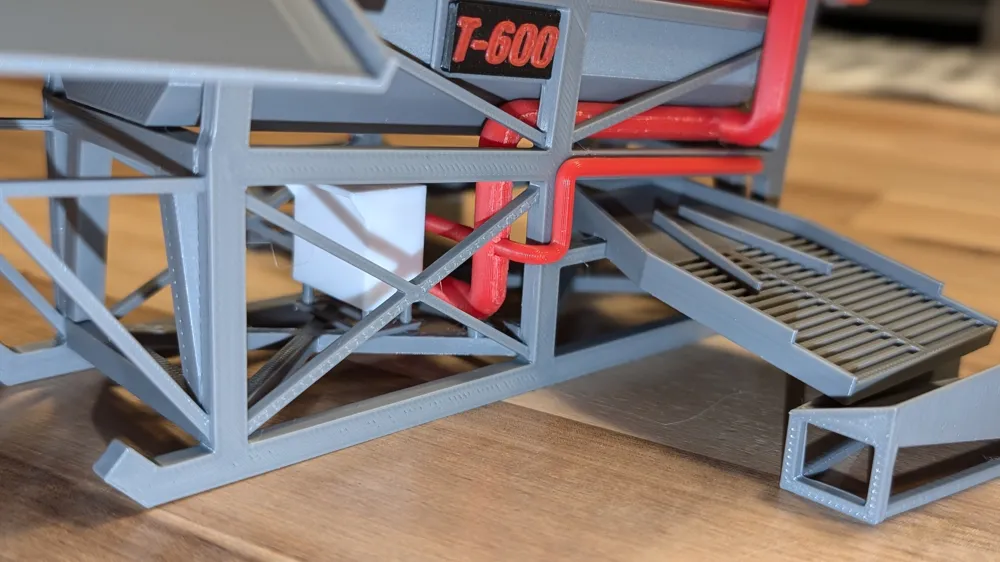

- Power supply box

Each part has been carefully designed to come as close as possible to the original.

They are connected to each other by tiny pins which fit into the corresponding holes. Make sure that these pins are not too loose in its counterpart. If this is the case, slightly scale the pins in your slicer up (or doen) for some percent.

Please download the attached assembly instuctions. It's a step by step guide to built the model.

Documentation (1)

Assembly Guide (1)

T600_Assembly_Instructions.pdf

Comment & Rating (29)

@user_3613601246

I'm a big fan of the show and don't miss an episode! I was pretty excited to see that someone had designed this model!! EVER COOL! Printed in Elagoo Grey Silk PLA, and Elagoo Matte Black PLA. I took it one step further and printed some gold nuggets using Elagoo gold silk PLA, and placed them throughout the sluice rungs, and in the hopper. I also had some aquarium rocks kicking around, so I put a bunch of them in the hopper, the trommel, and in a waste pile at the end of the trommel giving it some realism. I put all of this on a thick piece of cardboard so I can put it on display somewhere. I painted the cardboard brown. This was pretty easy to put together too. I had trouble getting the big water pipes to fit with the pegs, so i snapped off a few pegs here and there , and super glued the pipes in place, no biggy. Great model!!! Is there anything else you are going to design for the job site?? Maybe Parker's "Super Stacker Conveyor" or a water pump? I'd print them!!

The designer has replied

@Panda63

I like your little Diorama. Well done.

@user_3613601246

Replying to @Panda63 :

hey you inspired it...so thank you

@reaganwilkerson

I love that you are building on top of a laptop, your desk is a mess, and you have another laptop open in front of your desktop. My desk looks about the same.

@Fantoy_Lab

Very good thank you! I designed a drain mat

Show original

@user_3822923915

Boosted

The print profile is no longer public

This is such a great model, well done!

@user_1507925104

Does this really work?

Show original

@3DPrintinDude

Boosted

The print profile is no longer public

Amazingly detailed model and I think it came out great. I have been an avid viewer of the Gold Rush series since the beginning and when I saw this model I knew I had to give it a try. I had a little trouble printing the screen but after cleaning the plate I successful. Great model, thanks for sharing it.

@excavatorvolvo

Could you also incorporate a conveyor belt, mirroring its real-world counterpart Send feedback Side windows History Saved Translation results available

Show original

@excavatorvolvo

Could you also add a conveyor belt

Show original

@excavatorvolvo

top model

@user_3513813480

I am getting excited about printing this, can you tell me what scale it is design at?

The designer has replied

@Panda63

The original trommel has a diameter of 1,8m. So, the scale of my model is 1 : 50.

@GoldProspector

Boosted

Super model!I had a fantastic experience with this 3D-printed sluice box model. It was easy to print and simple to assemble, making the whole process enjoyable from start to finish. Highly recommended for anyone looking to add a customizable, effective sluice box setup!

The designer has replied

@Panda63

Thank you for yout friendly comment and for the boost.
