Computrol 35mm Film Bulk Loader Crank Replacement
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
28 min
1 plate
Open in Bambu Studio
Boost
3
5
0
0
5
1
Released
Description
Boost Me (for free)
If you find my models helpful, please send me a boost! Thank you :D
Update: Changed file format from .f3d to .stl and rounded off the top edge of the knob.

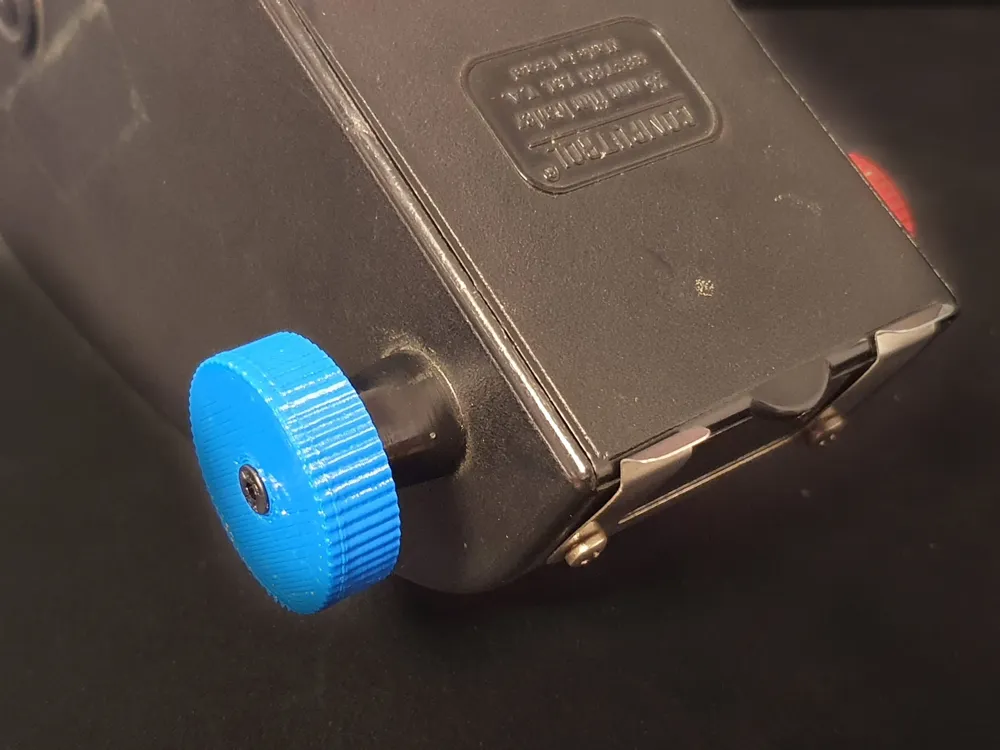

My loader's crank broke off, so I designed this super simple part that is easy to print and works well.

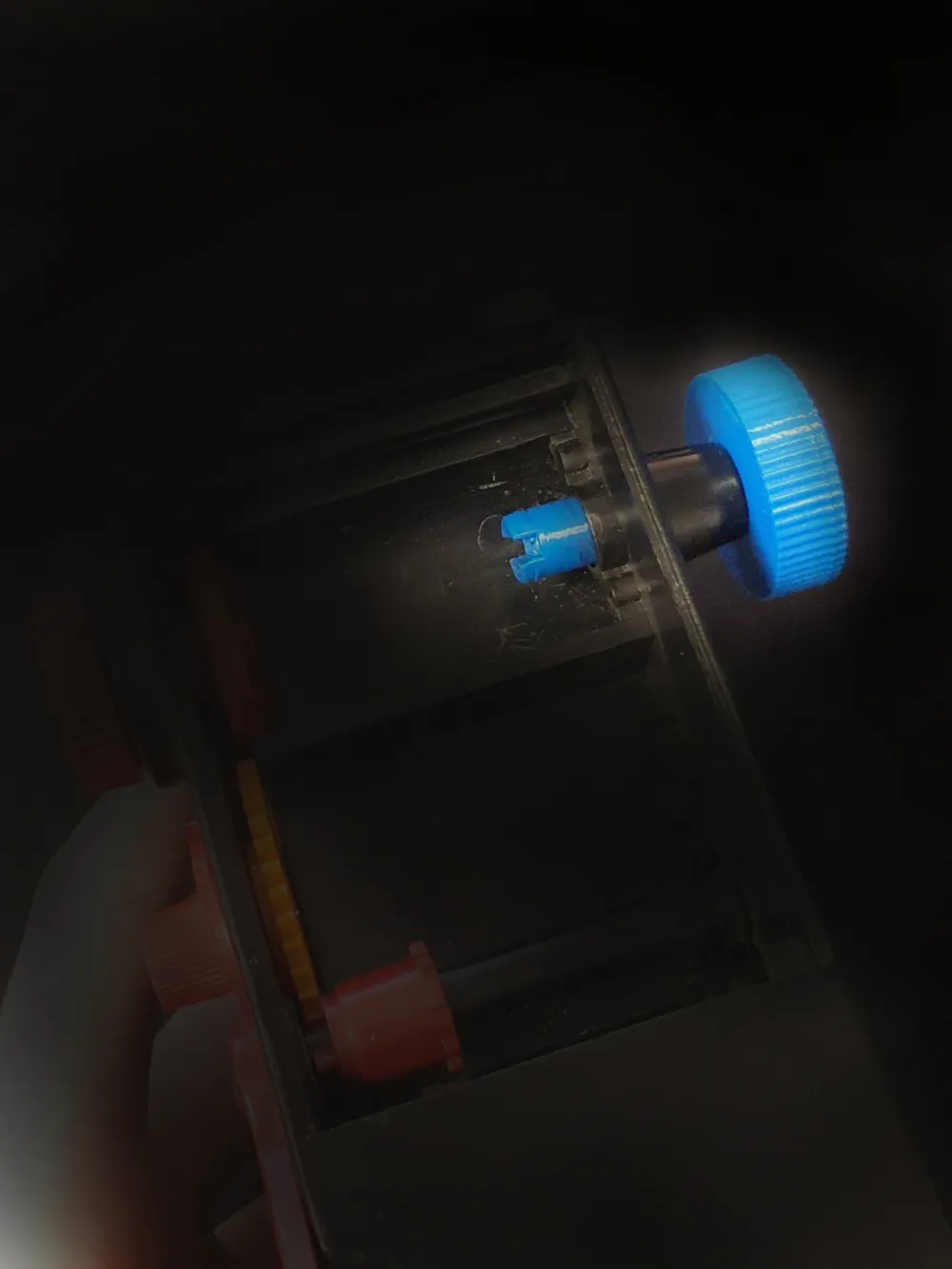

One M3x10 screw is needed to fasten the knob to the winding fork/peg.
The tolerances between the knob and peg are very loose. If someone wants a tighter fit, I can gladly provide the Fusion360 files. It works just fine for me though.
