DJI RC 2 GoPro Mount
Print Profile(1)
Description

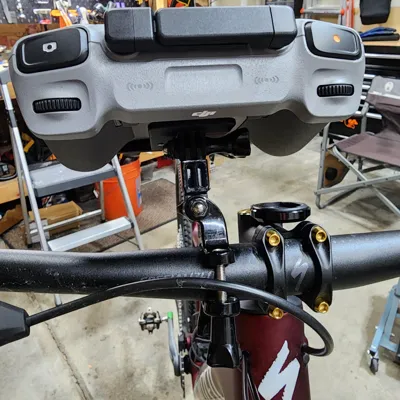

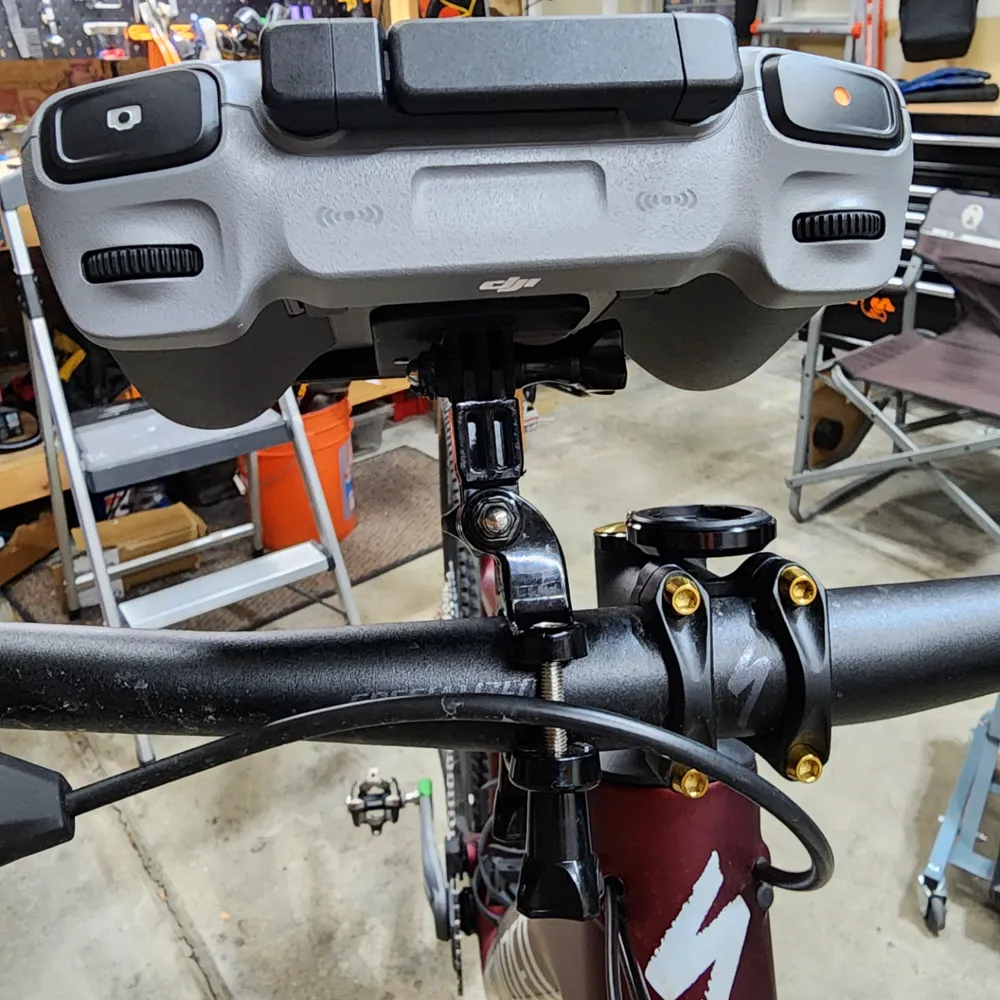

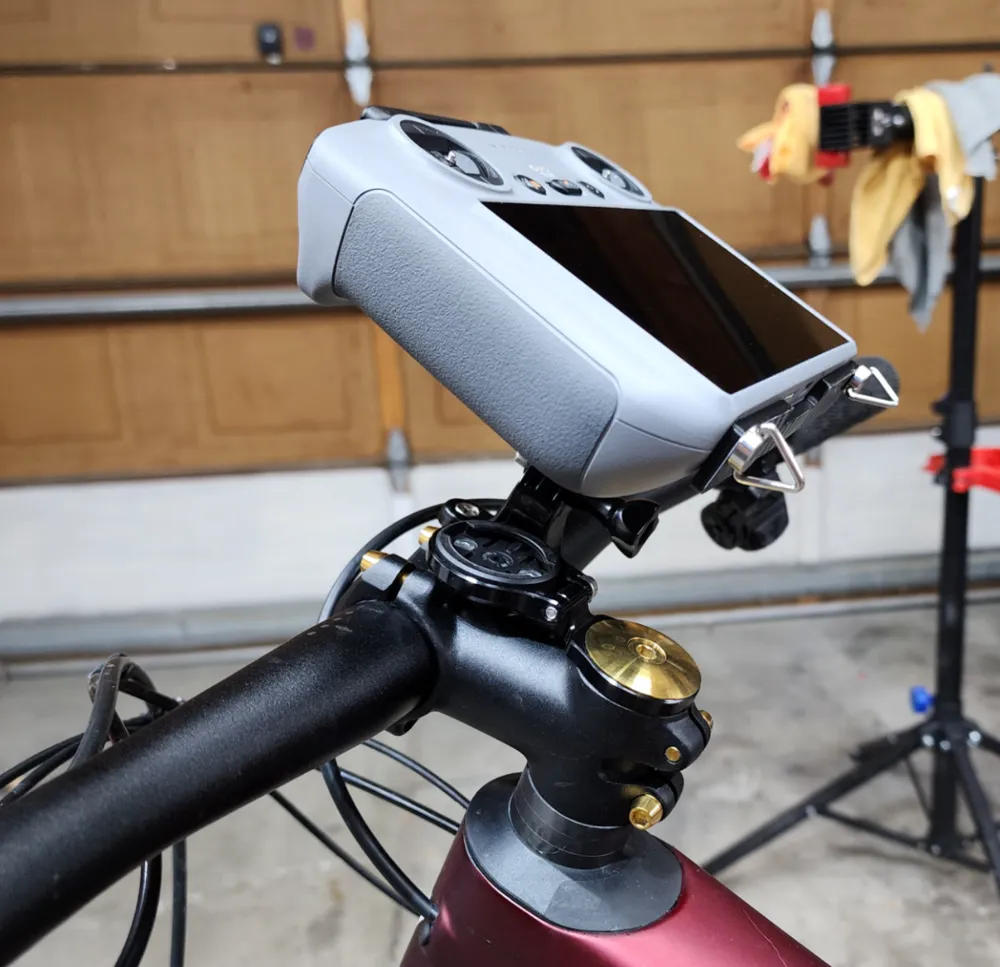

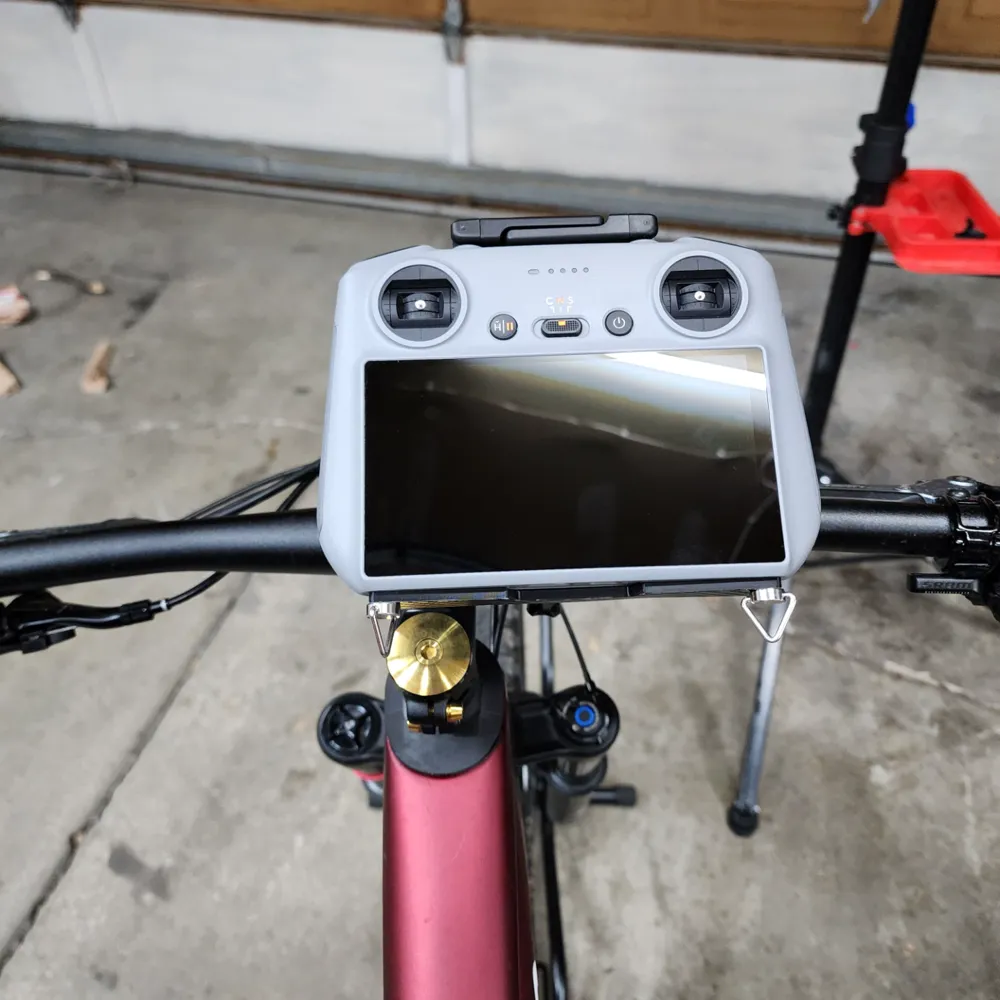

I wanted a way to fix my DJI RC 2 controller to my Bike handlebars for EASY rides. I have a couple GoPros and mounting hardware, so I decided to sit down and design something using the components that I had available.

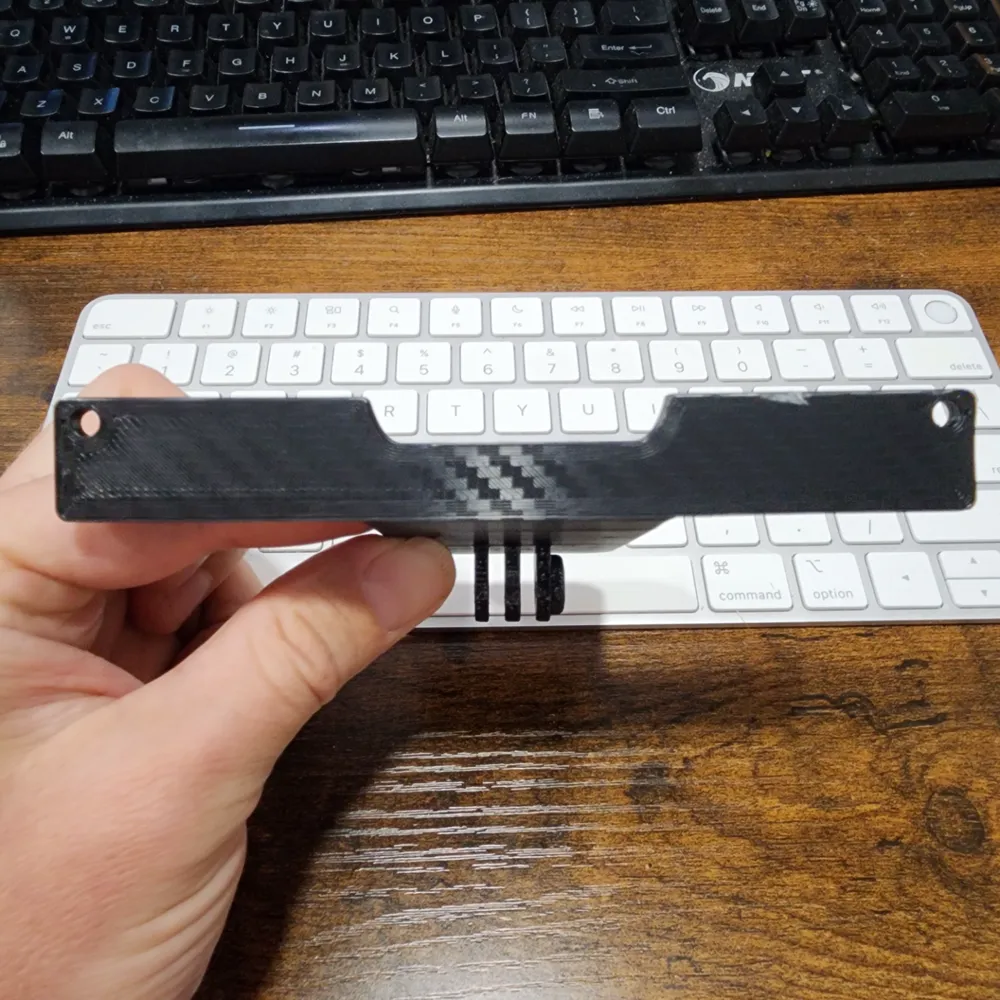

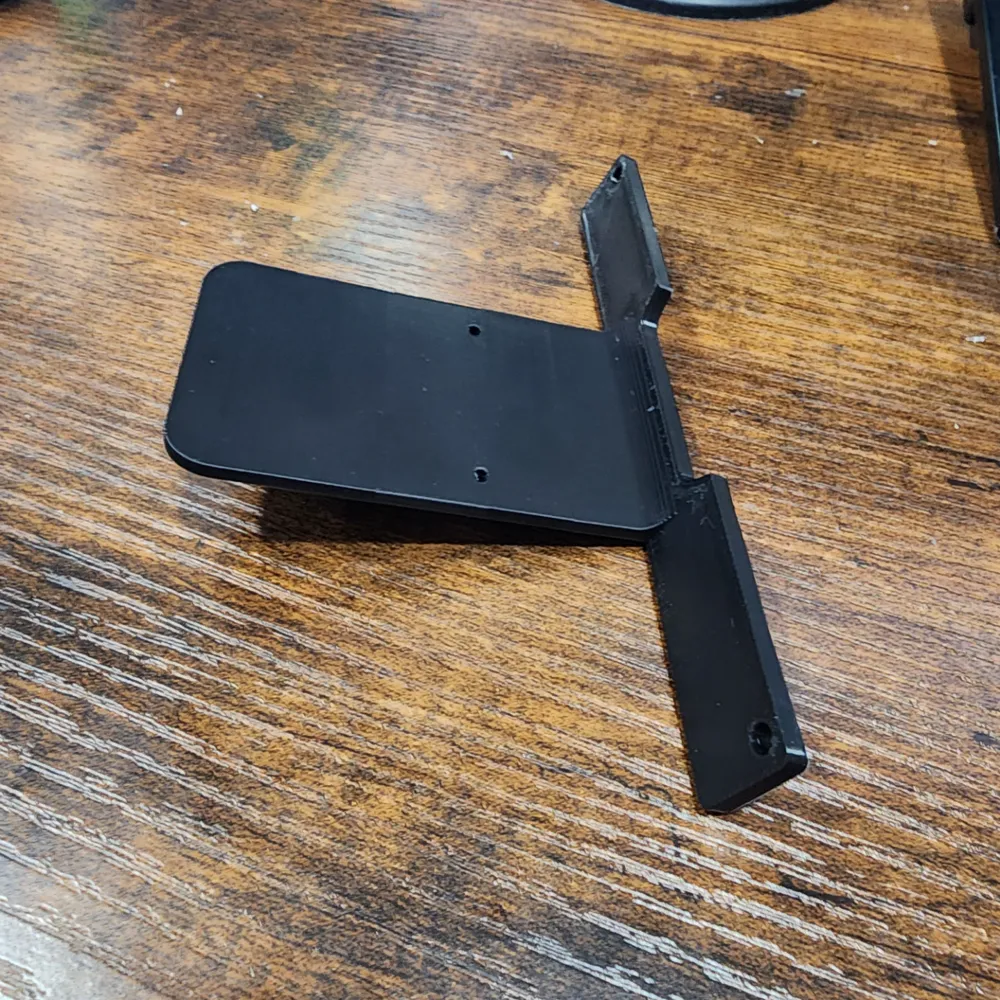

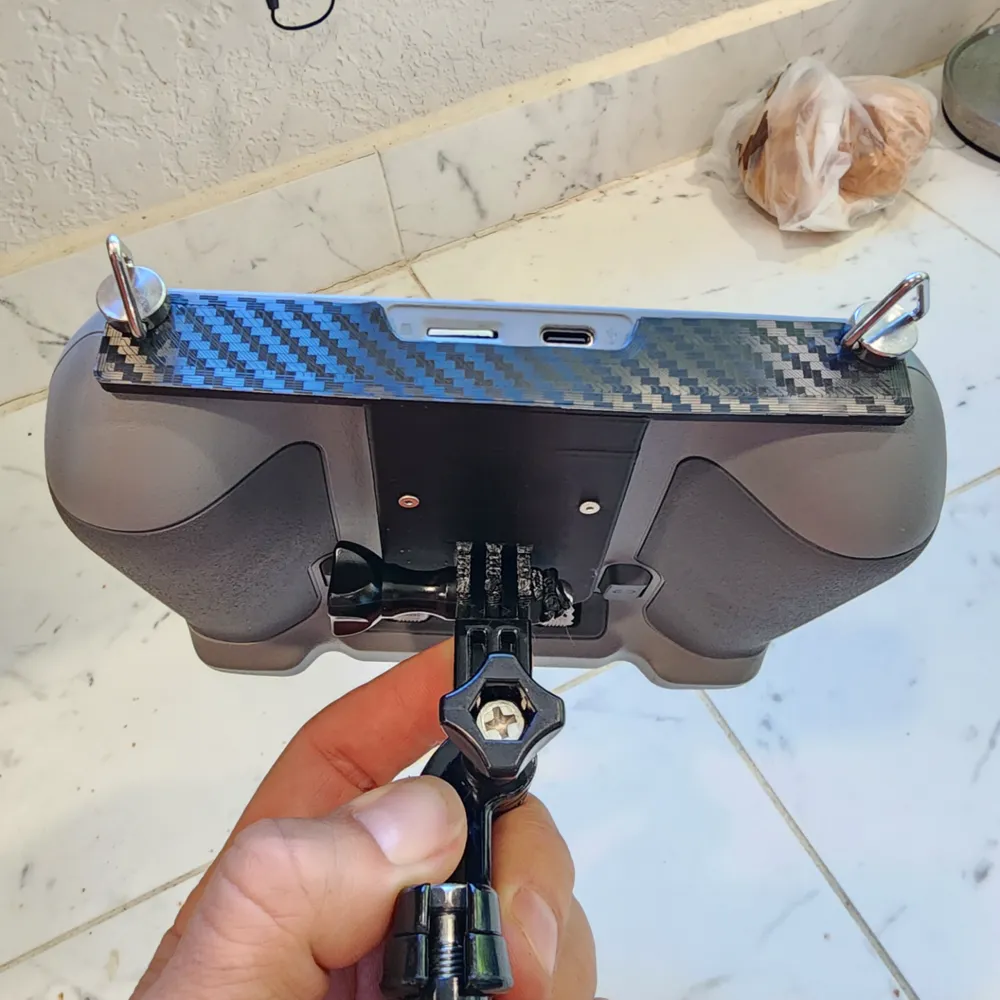

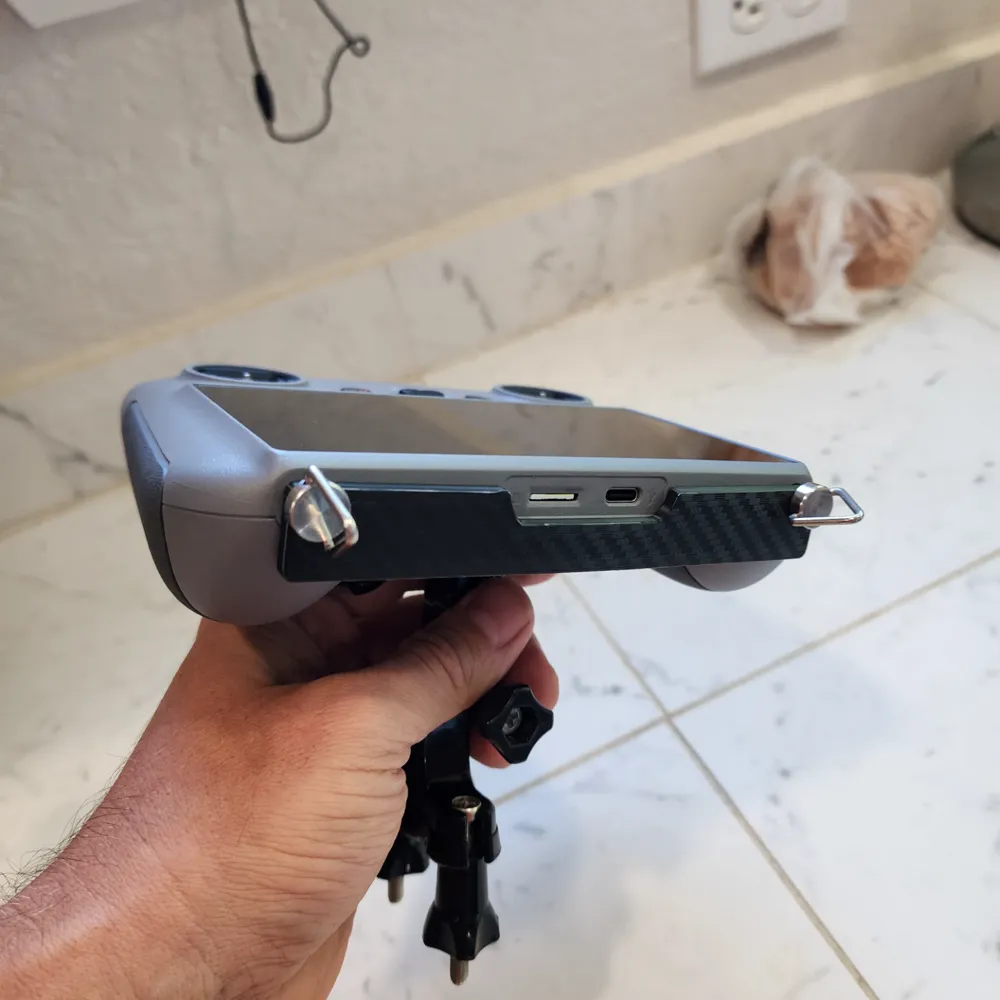

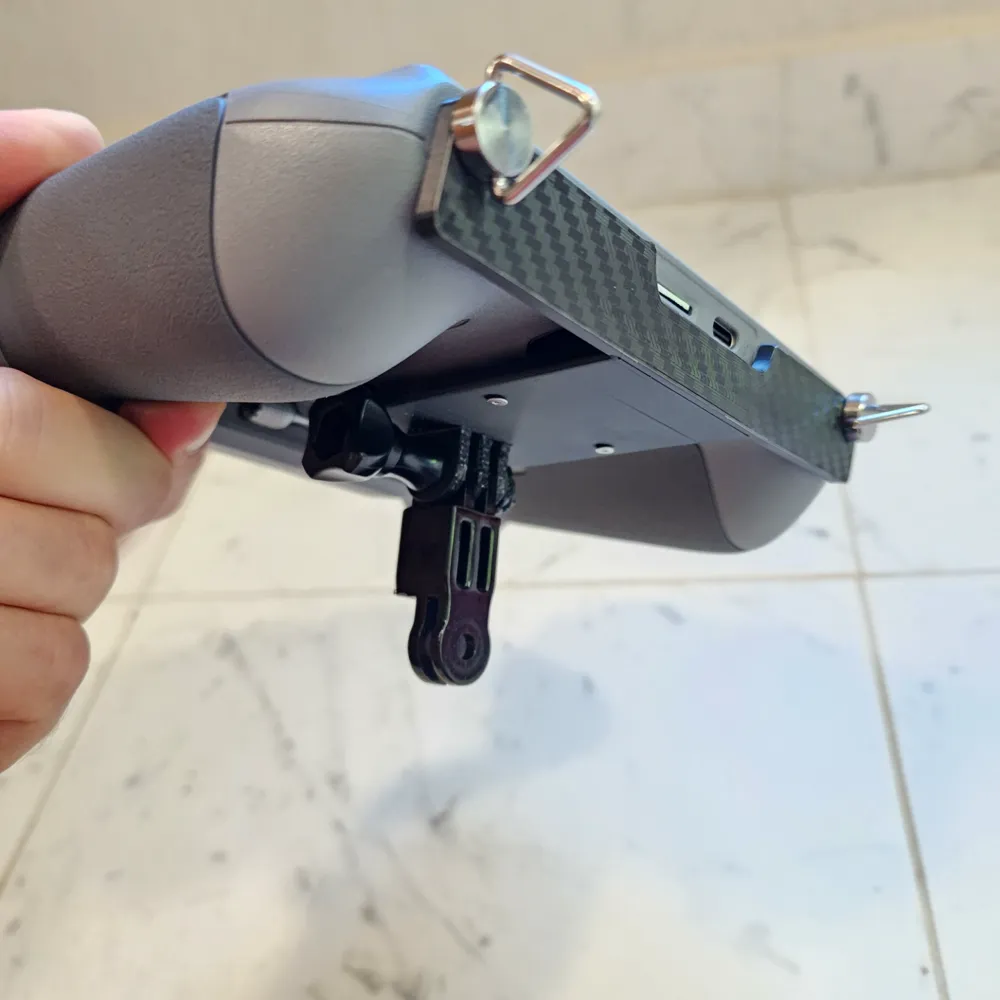

The mount uses the factory screw location (the M5 lanyard attachment points & the M2 holes on the underside) and is sturdy. I would not recommend bombing downhills or any serious or consequential riding, but this works fine for easy rides and follow-shots. The placement of the Gopro mount should help to limit shifting during easy rides. This mount also allows for access to the memory card and charging port on the controller while attached.

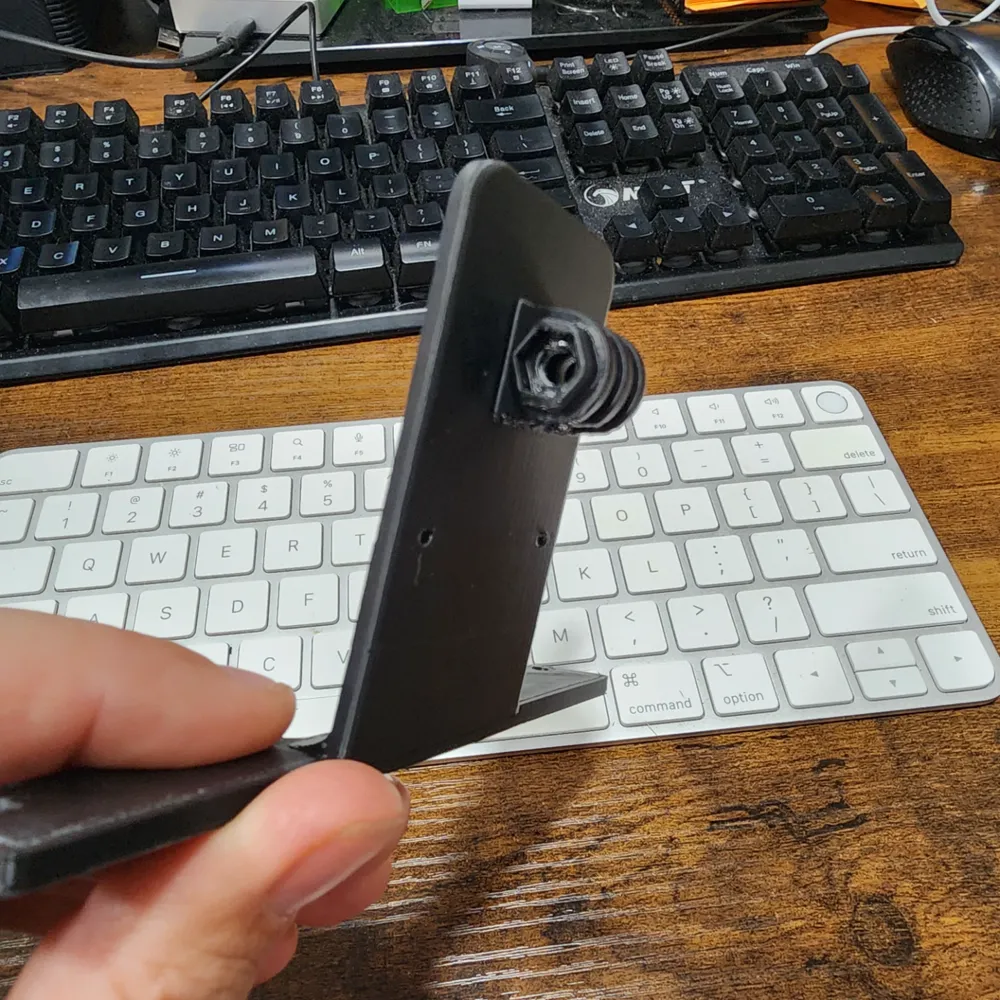

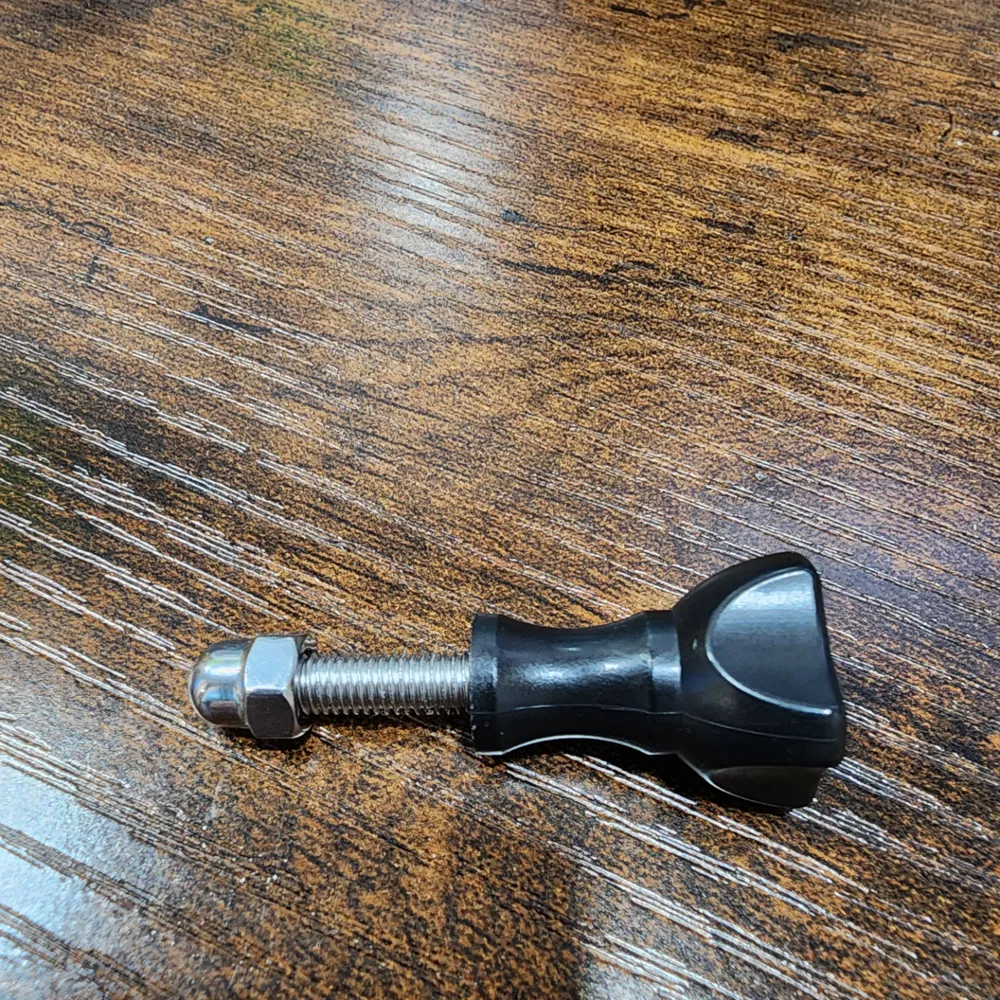

As for hardware, I used pieces from the Gopro mounting kit that I had around, namely the mounting screw and the nut (pictured) that I was able to scavenge. 8mm M2 bolts worked to secure the mount to the underside of the controller. I will admit that the mount screw was a bit tricky to insert once the mounting bracket is fixed to the controller, but it is doable. Be sure to print in ABS or other heat tolerant material. ASA would likely be best due to its high UV tolerance.
BOM:
Standard Gopro mounting accessories and hardware-
M2 bolts (8mm)
Lanyard screws or M5 screws (8mm)
High recommend printing the GoPro Mount wrench as well: https://makerworld.com/en/models/529393?from=search#profileId-446509
Not responsible for broken controller due to print misuse or abuse.
Happy printing!
