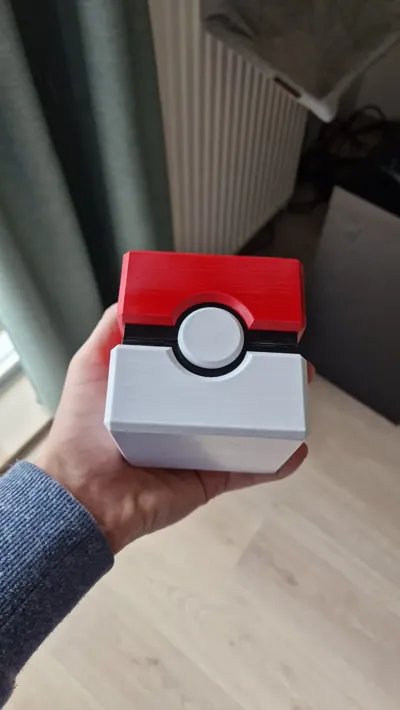

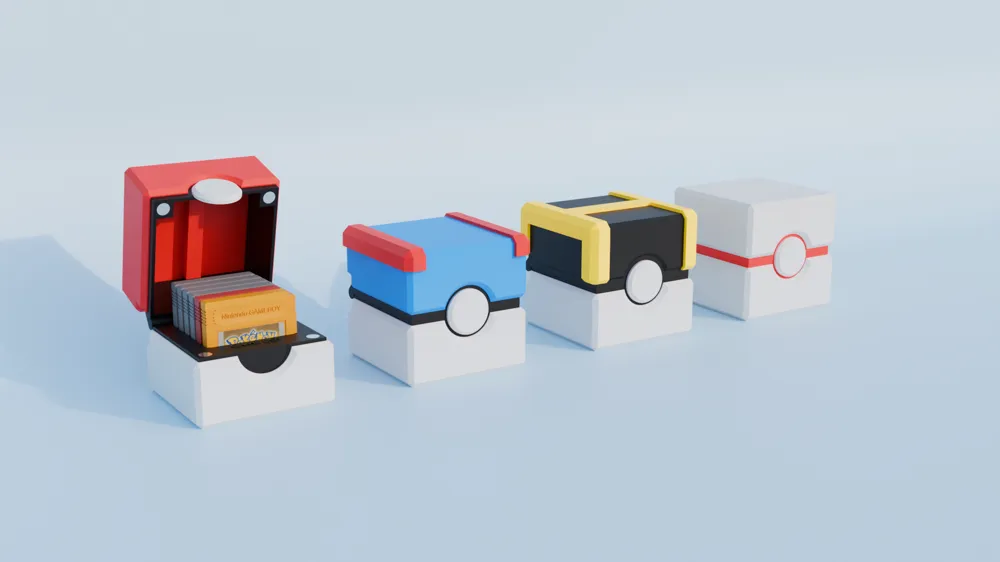

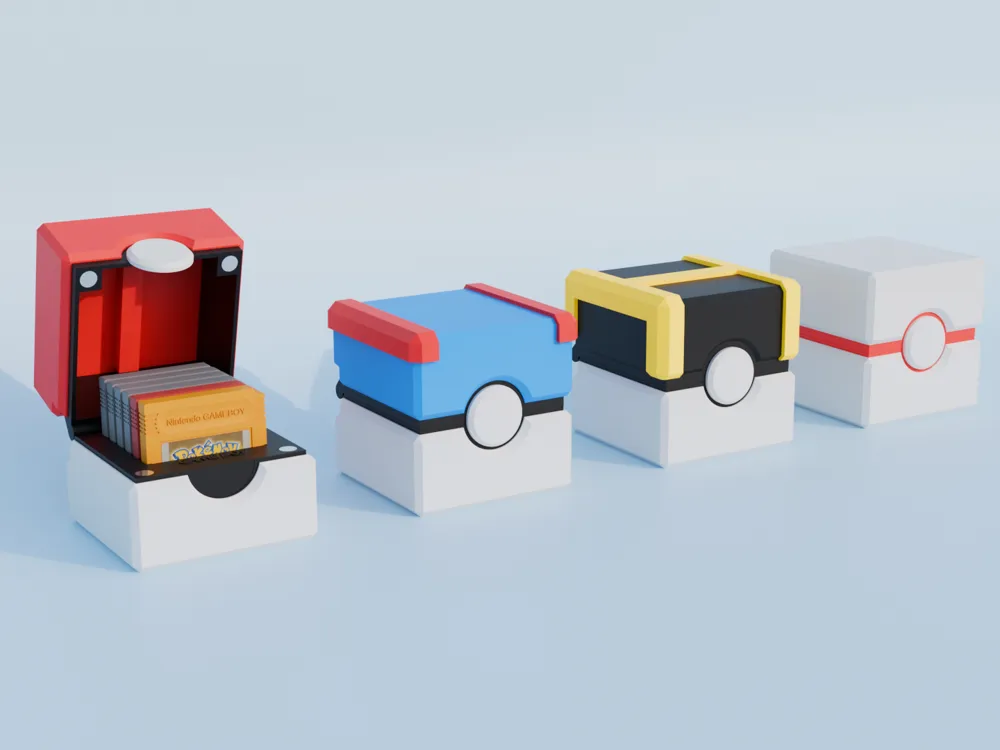

Poké Balls Game Boy Cartridge Cases (4 Models)

A Pokemon-inspired box for holding your Game Boy games.

The original version is a really nice decoration, but I wanted a bit of variation so I could store all my cartridges without having 3 identical boxes side by side.

It includes a print-in-place hinge to make assembly easy. The number of parts to be printed depends on the version.

There are two versions of the magnetic locking system :

1. One that requires 2 rectangular magnets 20mm x 5mm x 2mm to help hold the case closed. Here's a link to the magnets the original creator bought on Amazon (US).

2. A second one using 4 circular magnets 3x8mm. Here's a link to the magnets I purchased on Amazon (FR).



Poké Ball (files to print) :

1. Gameboy Cartridges Holder - Poké Ball - Top Cap.stl (red)

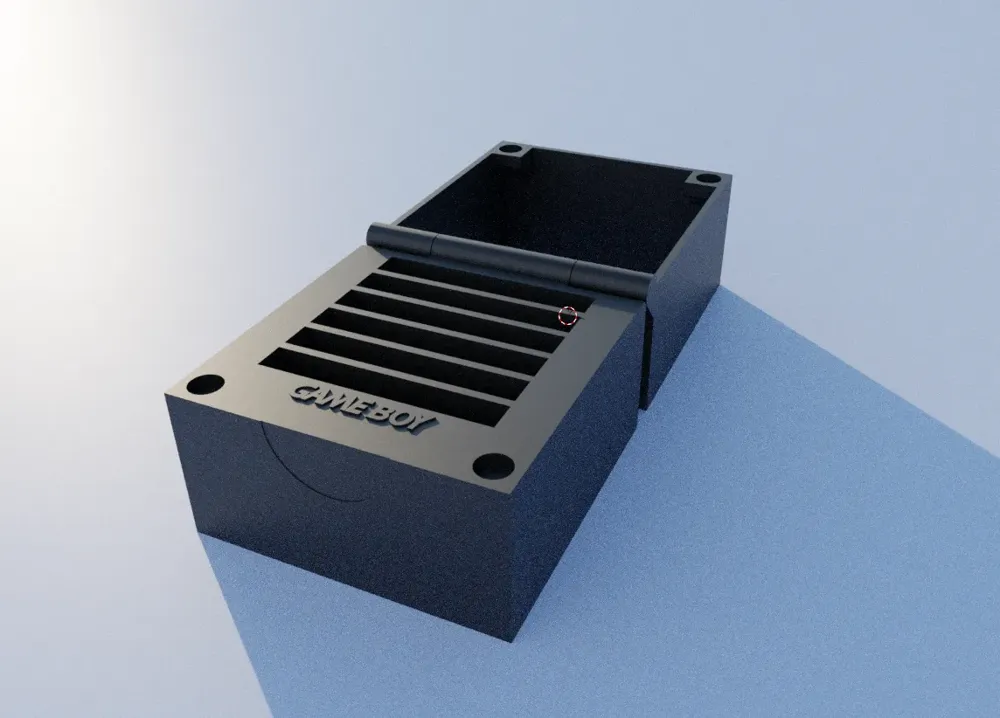

2. For the case (the black piece that includes the hinge), choose between : “Gameboy Cartridges Holder - Universal Case - Circular Magnets 8x3mm.stl” or “Gameboy Cartridges Holder - Universal Case - Rectangular Magnets 20x5x2mm.stl”
3. Gameboy Cartridges Holder - Universal Bottom Cap.stl (white)
4. Gameboy Cartridges Holder - Universal Button.stl (white)

Great Ball (Super Ball) :

1. Gameboy Cartridges Holder - Super Ball - Top Cap - Part 1.stl (Blue)
2. Gameboy Cartridges Holder - Super Ball - Top Cap - Part 2.stl (Red) (Print 2X)
3. For the case (the black piece that includes the hinge), choose between : “Gameboy Cartridges Holder - Universal Case - Circular Magnets 8x3mm.stl” or “Gameboy Cartridges Holder - Universal Case - Rectangular Magnets 20x5x2mm.stl”
4. Gameboy Cartridges Holder - Universal Bottom Cap.stl (white)
5. Gameboy Cartridges Holder - Universal Button.stl (white)

Ultra Ball (Hyper Ball) :

1. Gameboy Cartridges Holder - Hyper Ball - Top Cap - Part 1.stl (Black)
2. Gameboy Cartridges Holder - Hyper Ball - Top Cap - Part 2.stl (Yellow)
3. For the case (the black piece that includes the hinge), choose between : “Gameboy Cartridges Holder - Universal Case - Circular Magnets 8x3mm.stl” or “Gameboy Cartridges Holder - Universal Case - Rectangular Magnets 20x5x2mm.stl”
4. Gameboy Cartridges Holder - Universal Bottom Cap.stl (white)
5. Gameboy Cartridges Holder - Universal Button.stl (white)

All parts can be attached to each other with basic super glue.

Happy Pokéballing !
