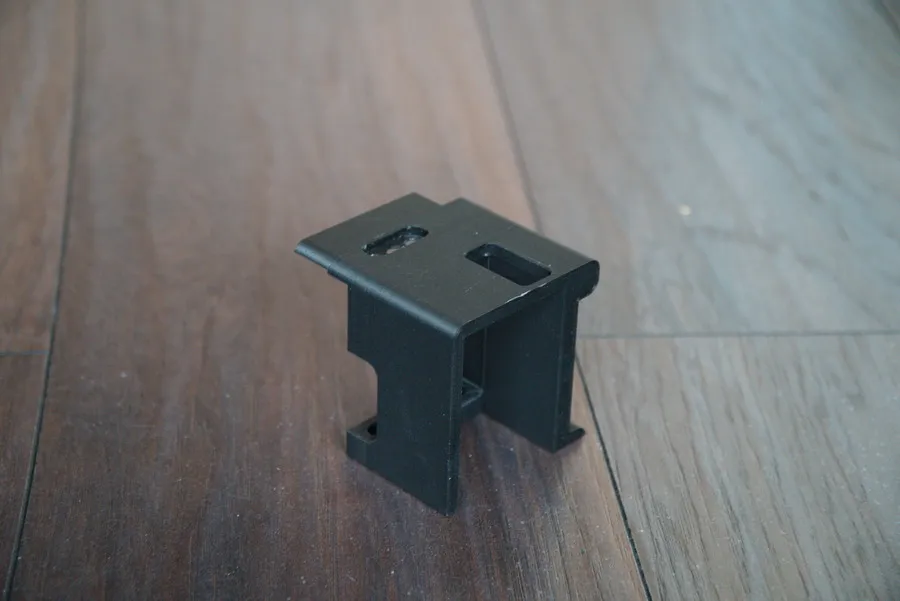

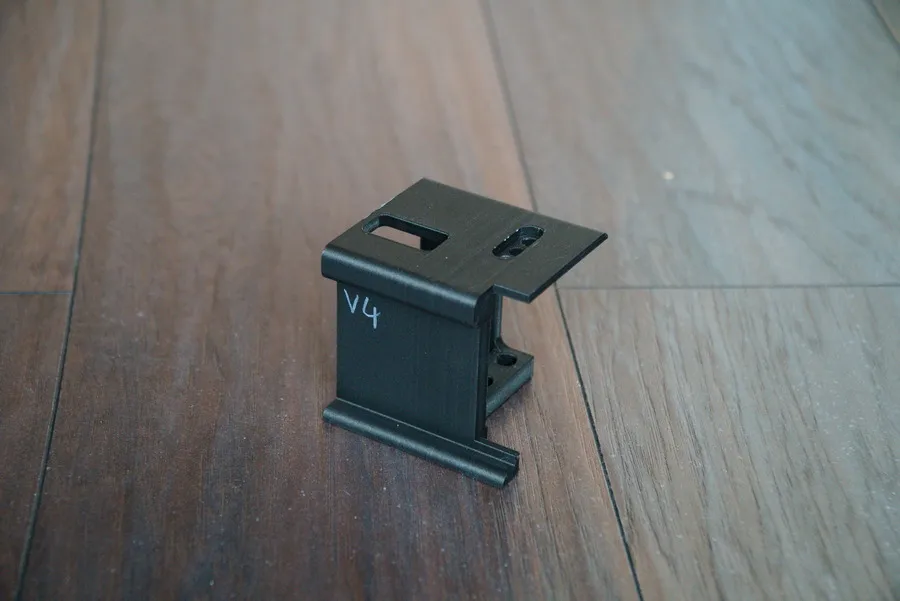

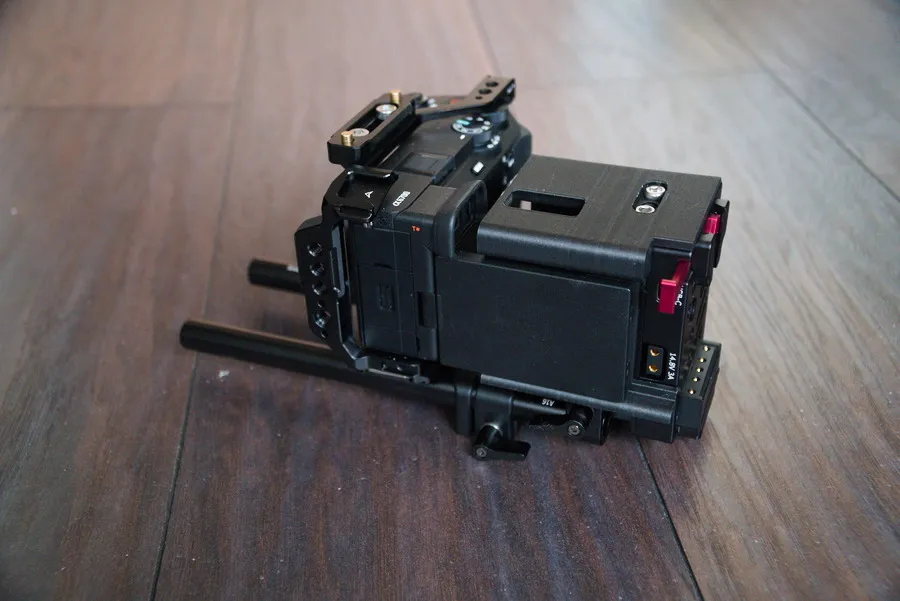

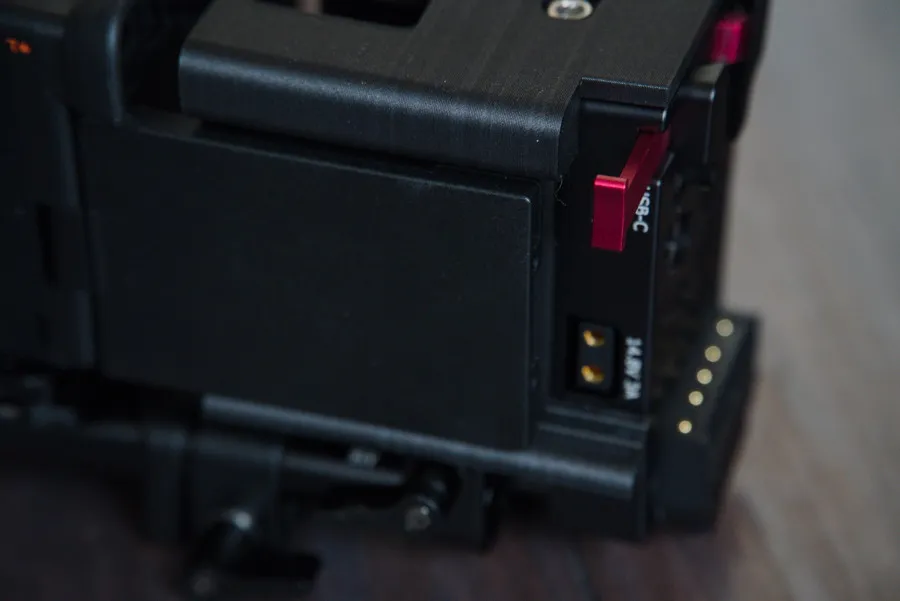

Screen Protector for Sony A6700 Rig
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 10% infill
Designer
1.8 h
1 plate
Open in Bambu Studio
Boost
47
106
4
2
80
22
Released
Bill of Materials
List other parts
- SmallrigRailSystem2061 x 1:
- SmallrigBaseplate1674 x 1:
- NiceyrigCheesePlate x 1:
- 15mmRod x 2: LengthDependsOnLens
- NitzeVMountBatteryPlateN21-D6 x 1:
Description
This Rig Part was designed for the use with the following parts:
Parts needed:
- Sony A6700
- Smallrig Cage 4336
- NICEYRIG cheese plate
- 15mm Rod
- Smallrig Baseplate 1674
- Nitze V Mount Battery Plate N21-D6
- Smallrig Rail System 2061
All screws used came with the listed parts.
Preparation:

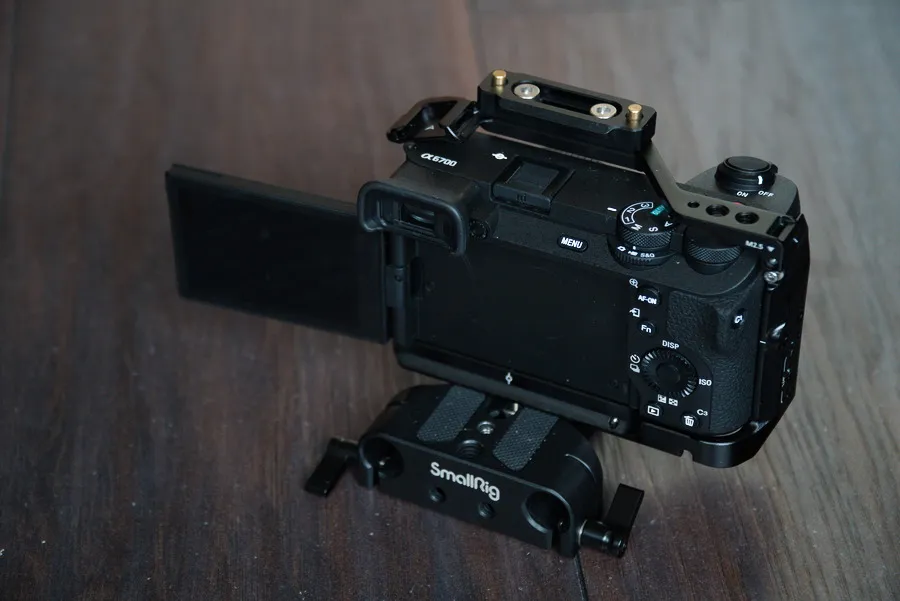

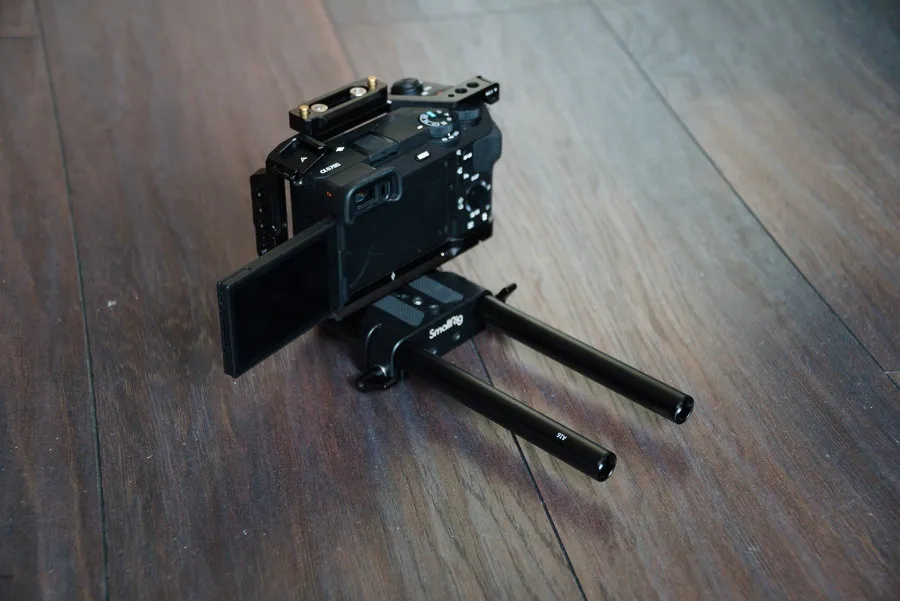

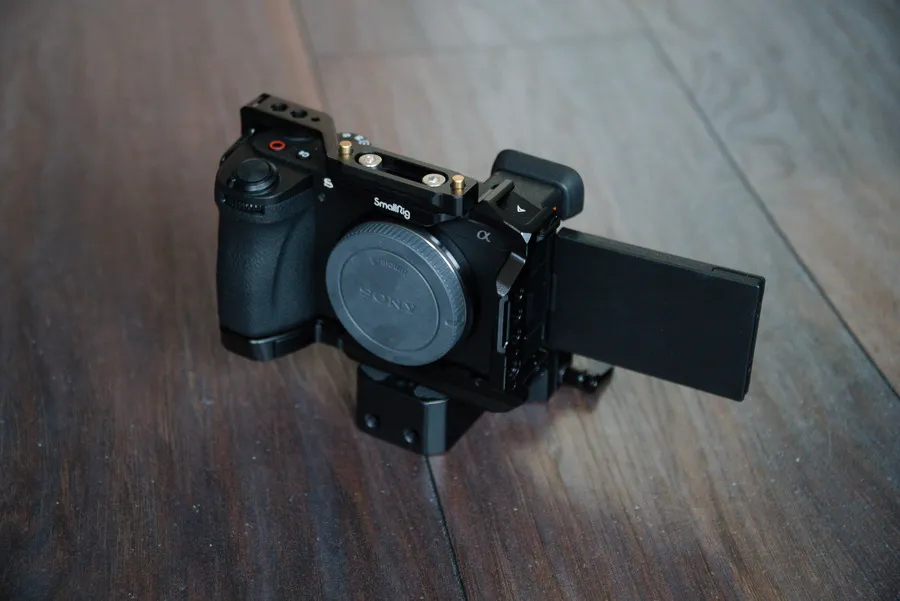

Start by mounting the camera in the cage on the baseplate.
Put the Rods into the Baseplate
leave a generous amount of space between the end of the rods and the camera.
Assembly:

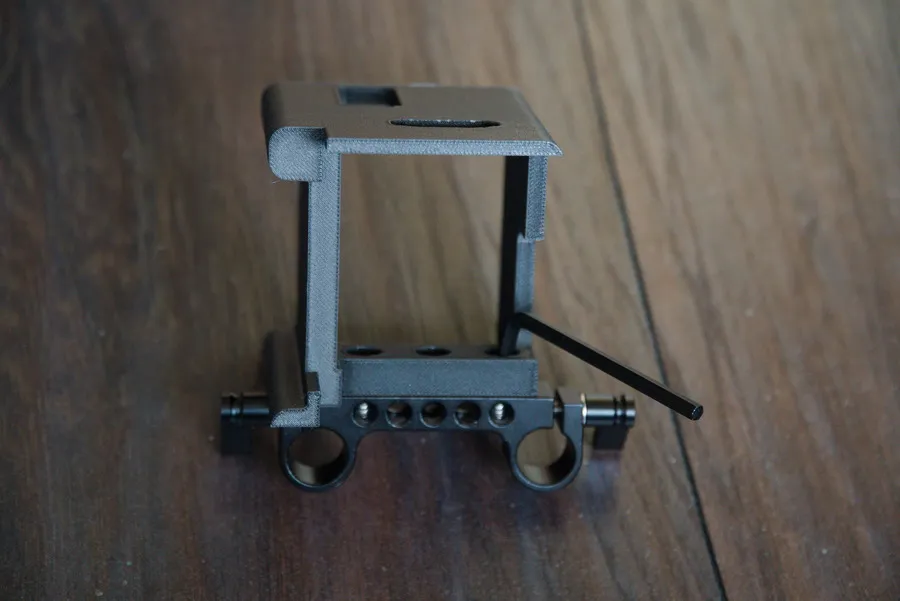

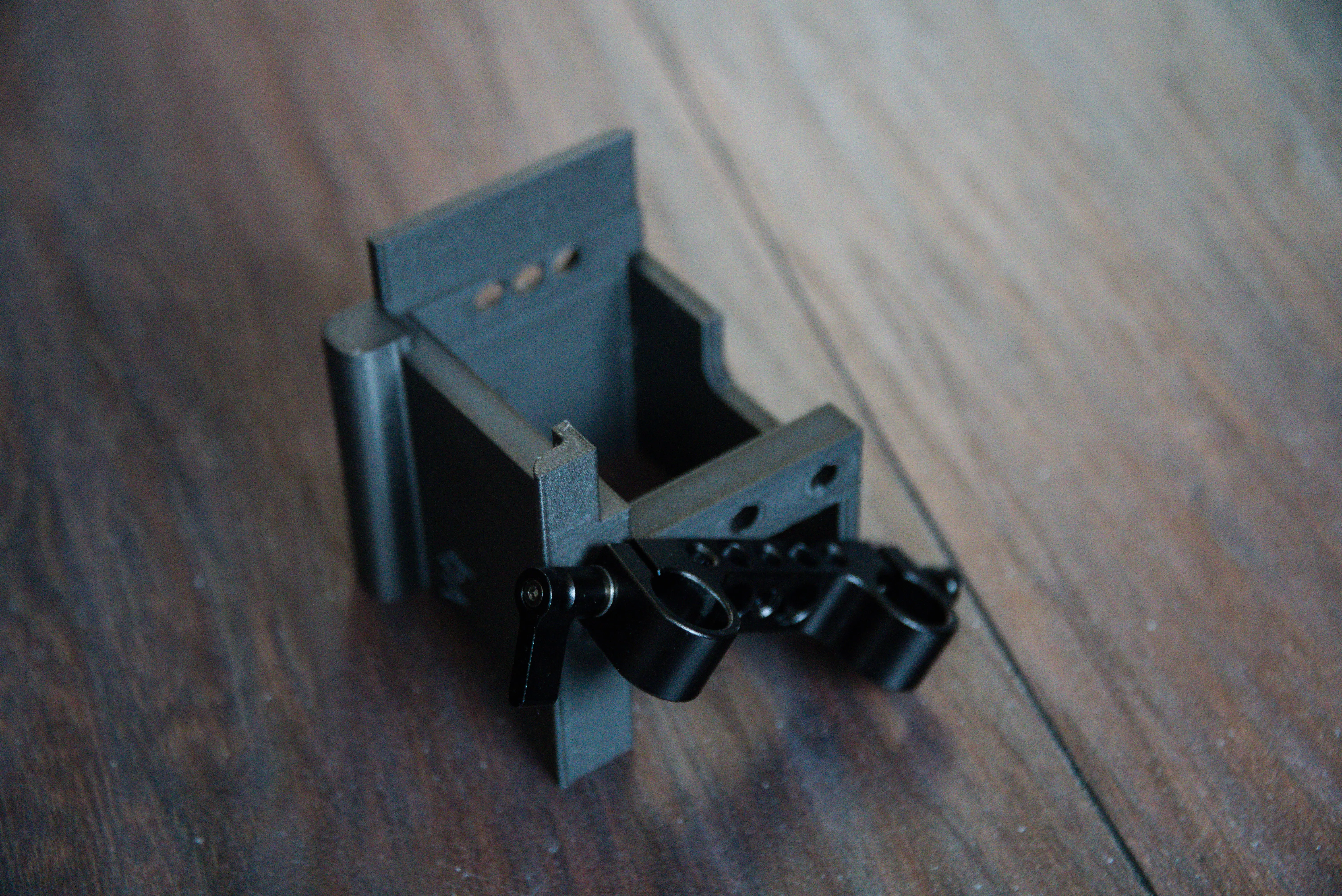

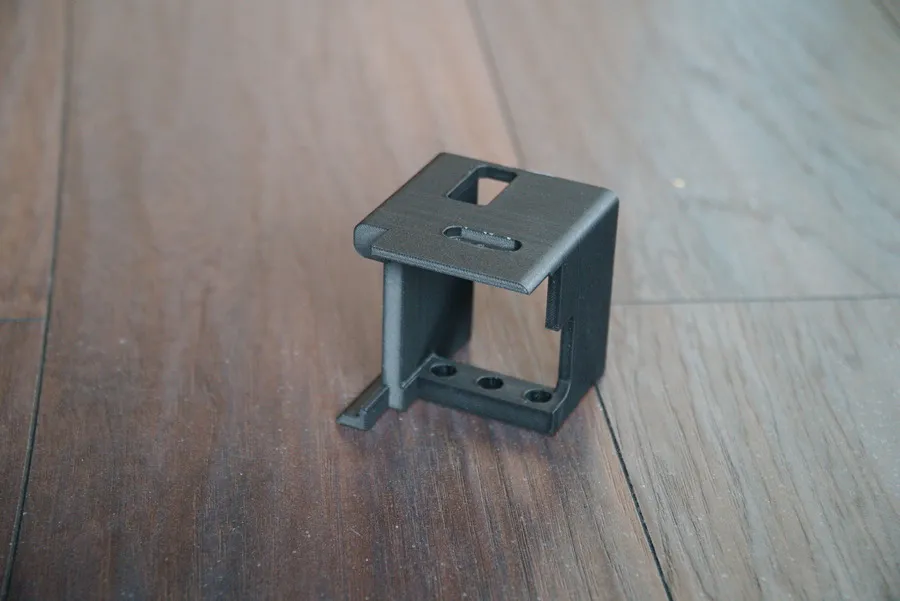

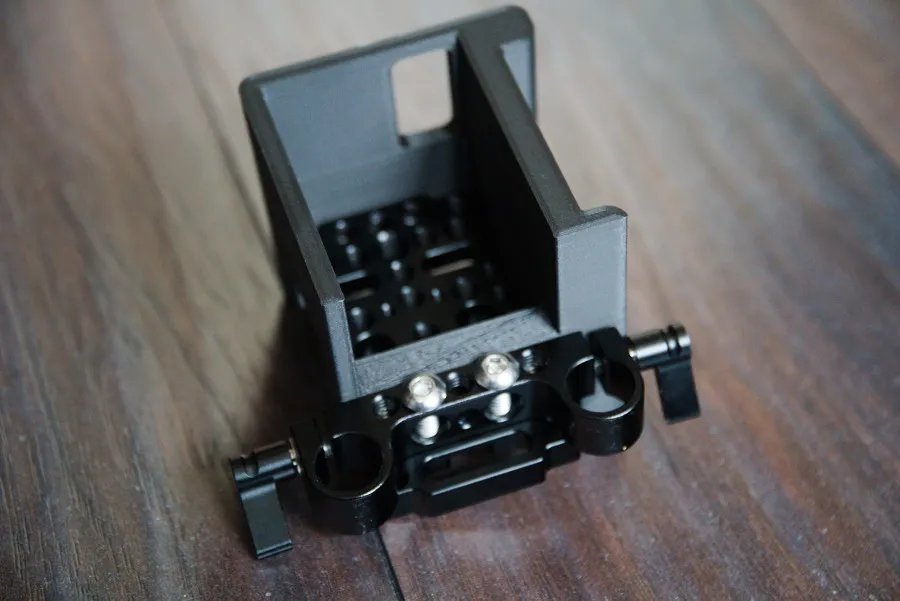

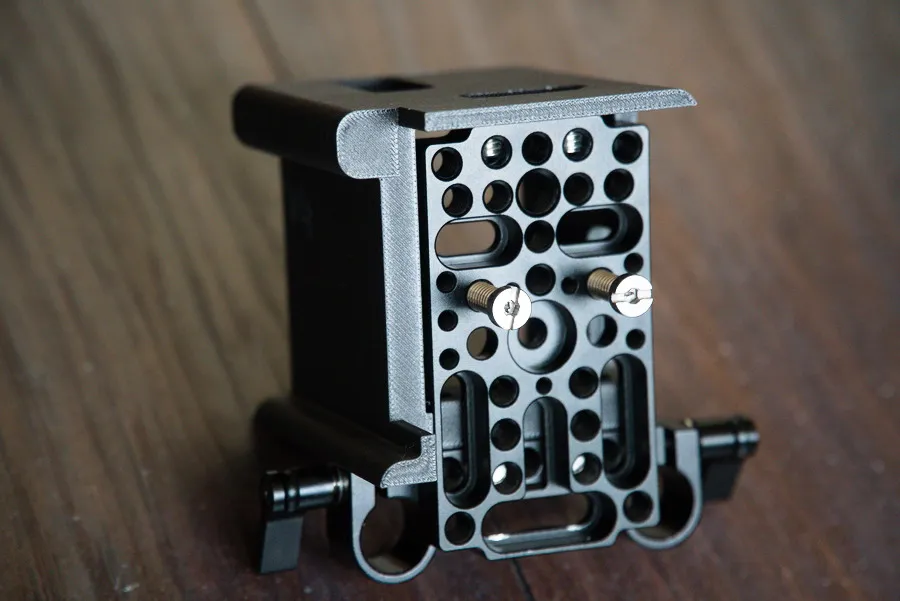

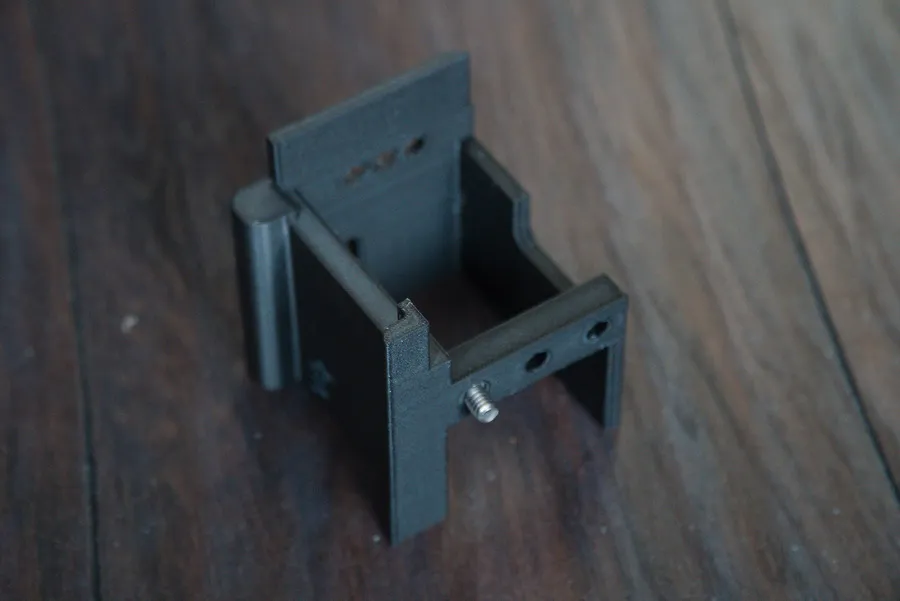

Screw the rail system to the printed part

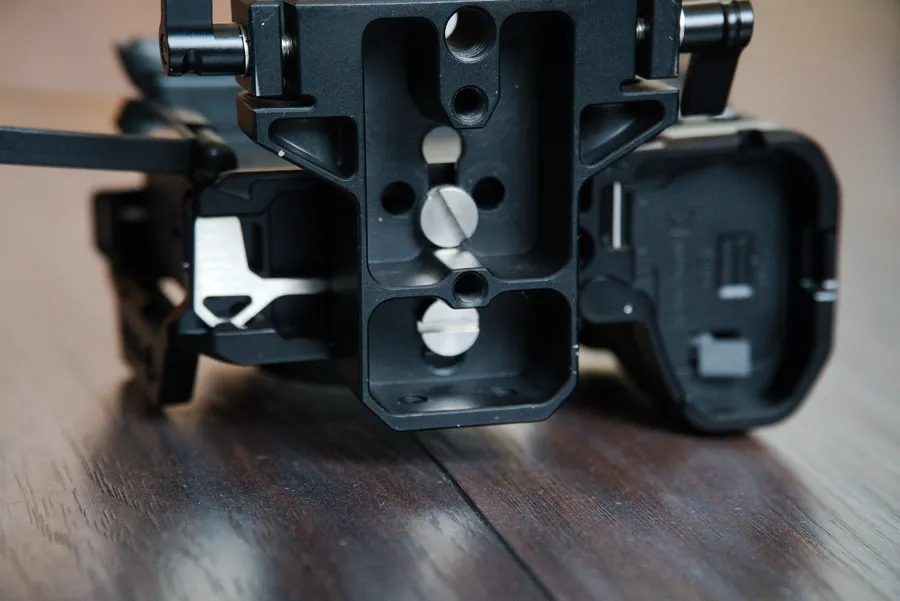

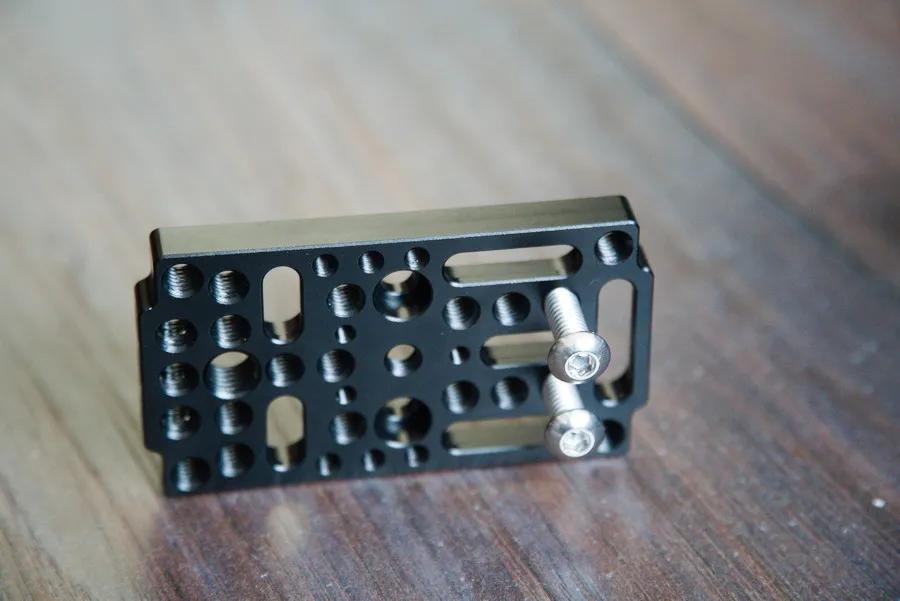

Mount the cheese plate

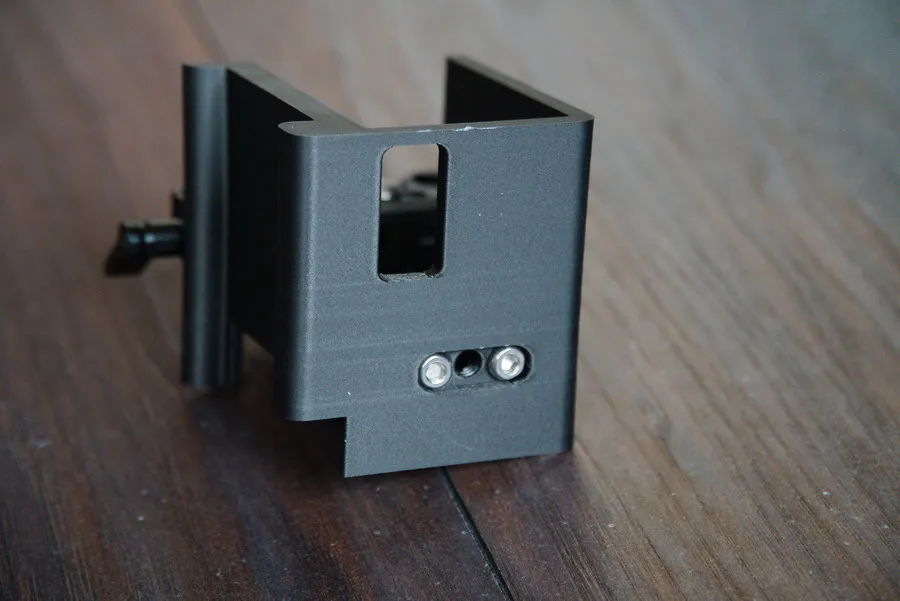

Screw the print into the cheese plate

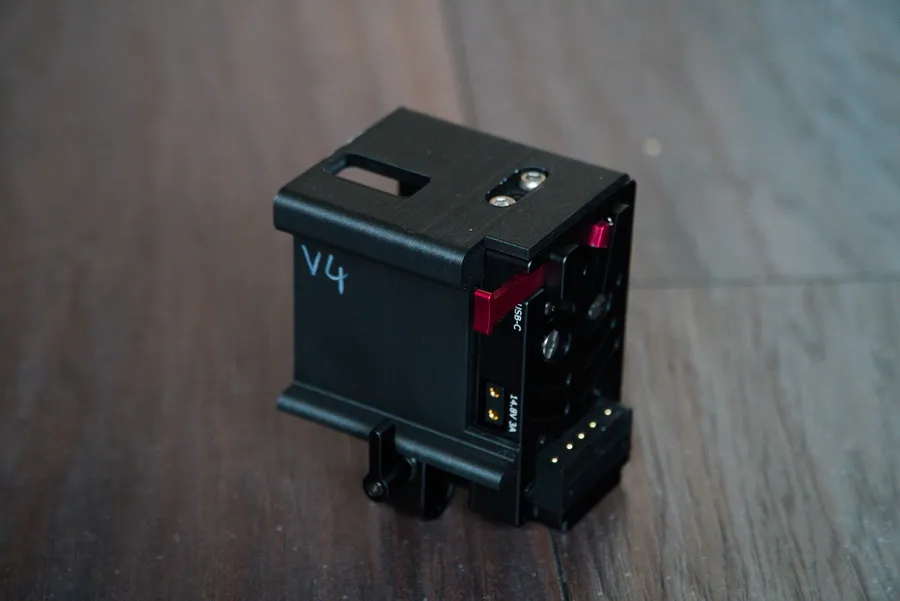

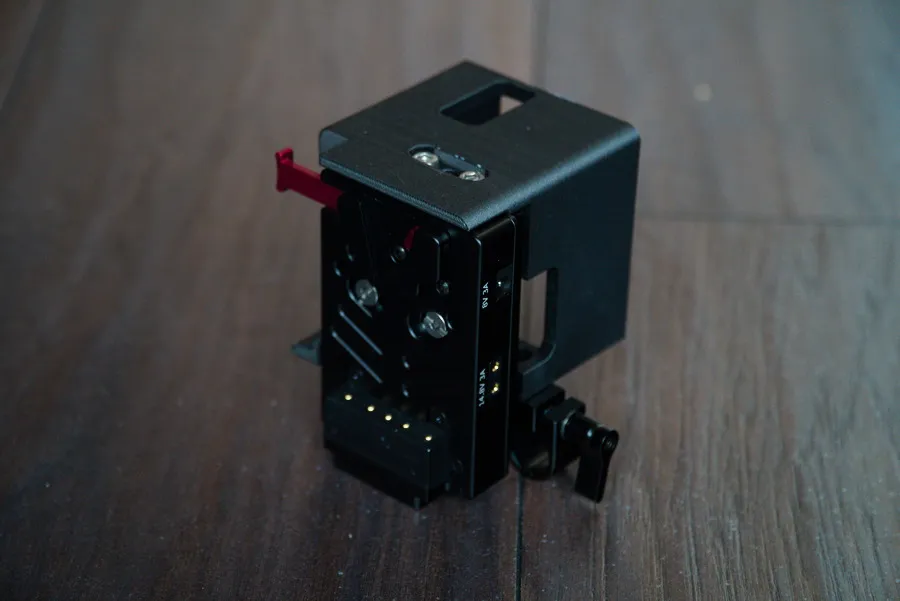

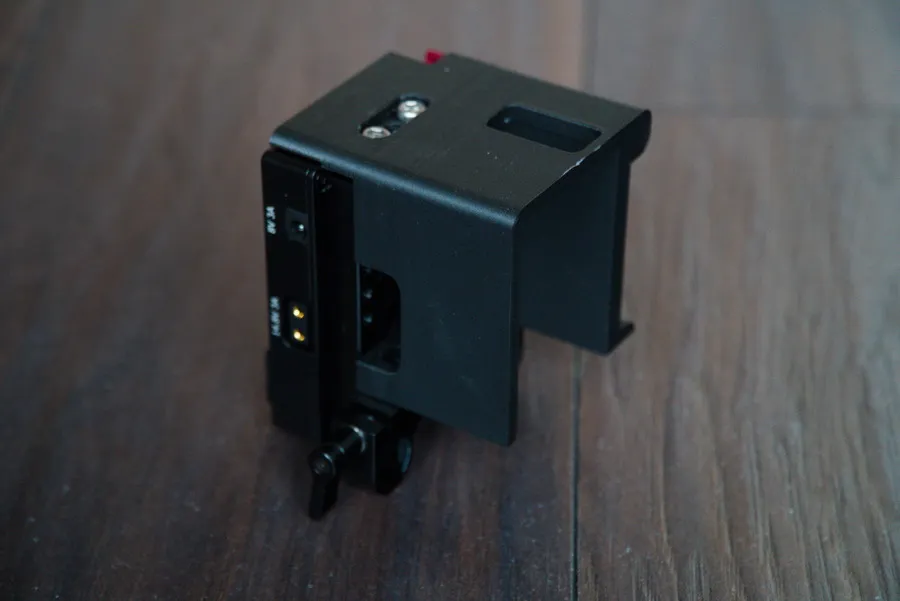

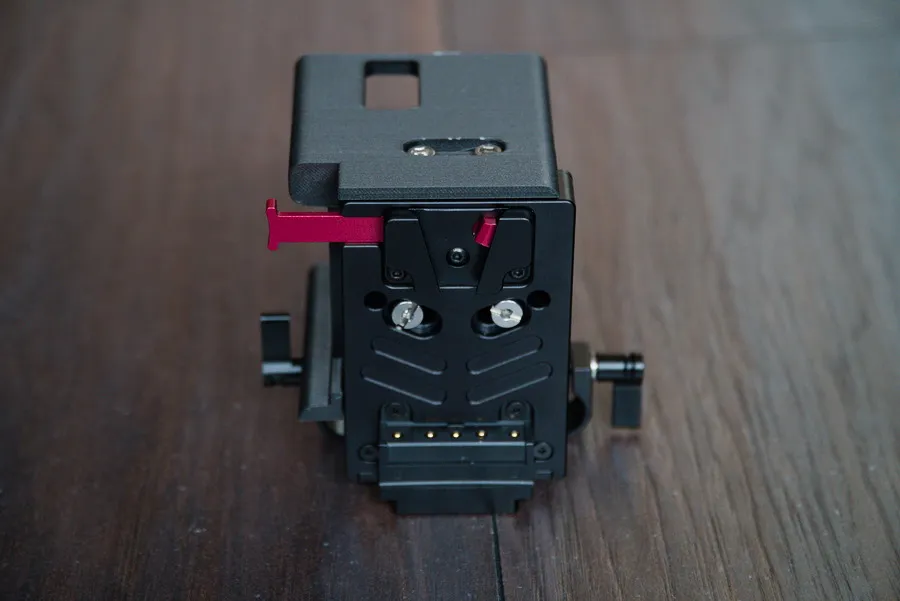

Mount the battery plate

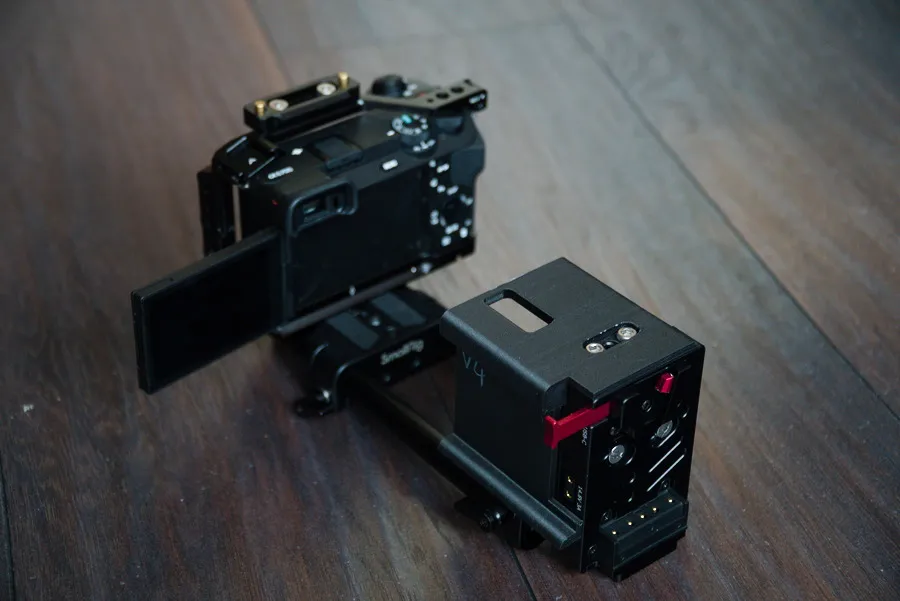

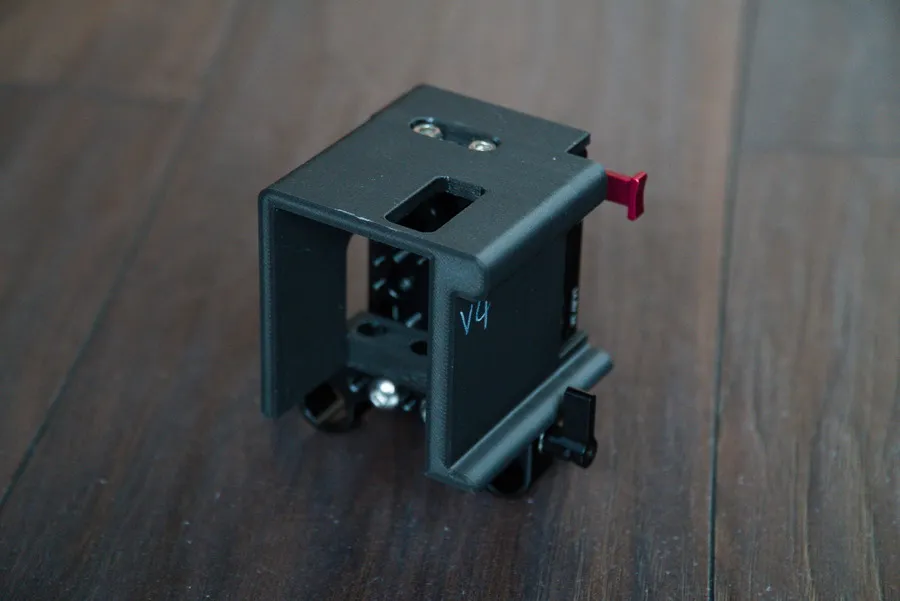

Put the assembled unit on the rods
REMEMBER TO OPEN THE MONITOR

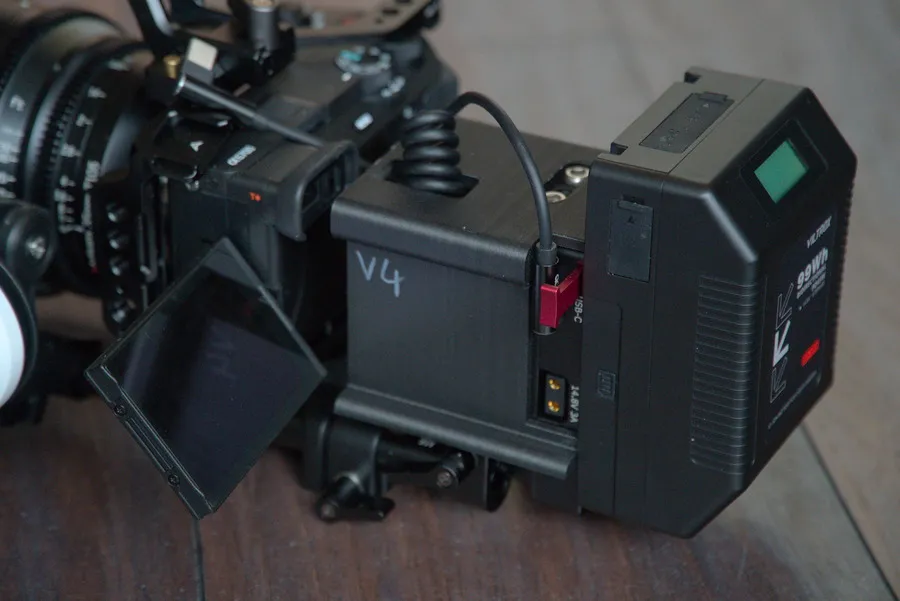

Loosen the rods on the baseplate and push the unit forward till the monitor sits flush

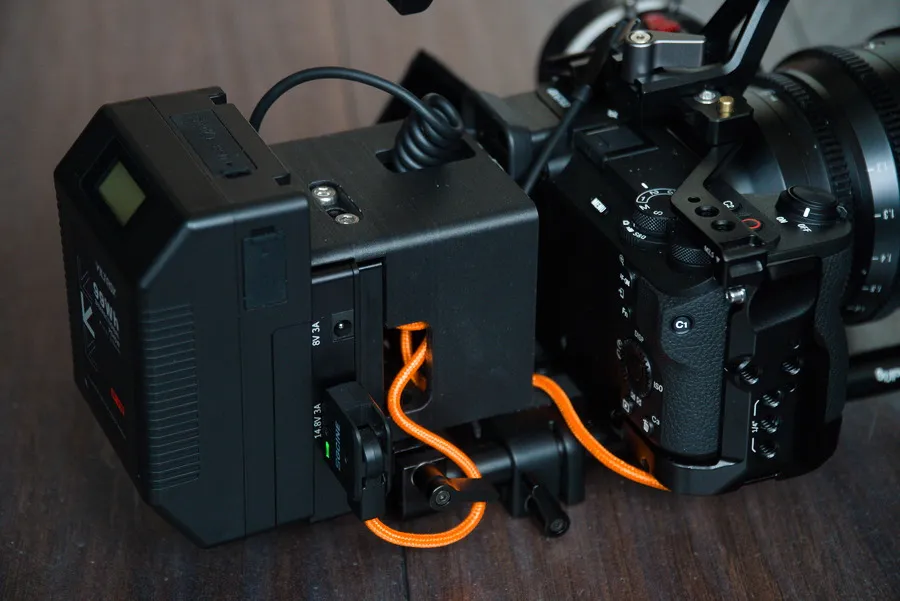

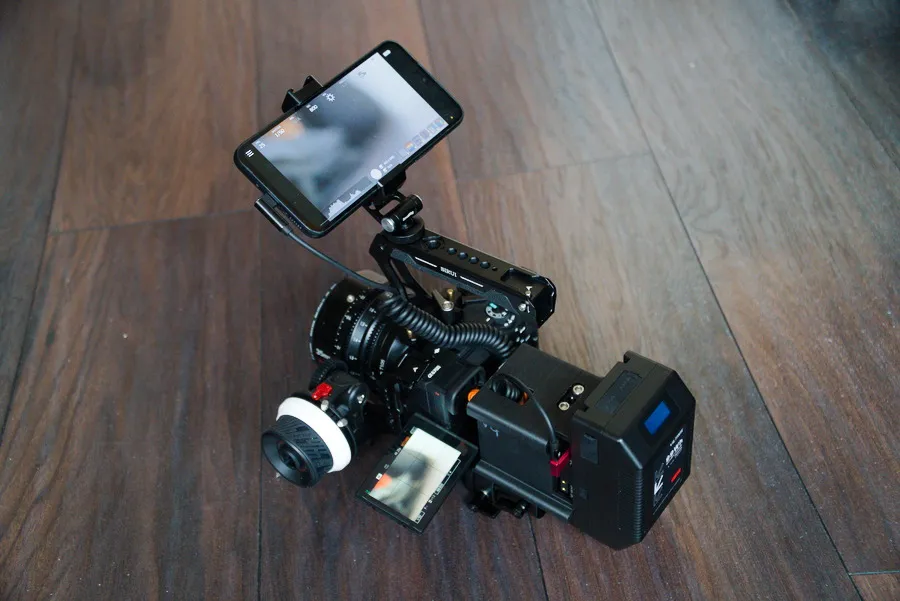

Now all that is left is to assemble the rest of your personal rig. I used a dummy battery to d-tap and an angled USB-C to USB-C cable.
If you have a shorter or longer lens, you may need different length rods.
For disassembly, do the assembly steps in reverse.
I hope this rig add on is helpful. Feel free to give productive criticism or to change the model to your own needs. Do not sell my design without my permission.
